Alphacool Eisball Digital RGB - Acrylic (D5/VPP Ready)

AGB Alphacool Eisball Digital RGB - Acryl (D5/VPP Ready)

Article no.: Terms
EAN: 4250197153621
Weight: 0,642 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€69.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 16/10mm screw-on nozzle G1/4 - Chrome Sixpack

€31.98*

Alphacool NexXxoS ST30 Full Copper X-Flow 240mm Radiator

€54.98*

Alphacool Eisblock XPX CPU - polished Clear Version

€39.98*

Alphacool Digital RGB LED Y-cable 3-way with JST connector - black 60cm

€7.98*

The Alphacool Eisball expansion tank with integrated pump top comes in a unique design. The... more

Close menu

Product information

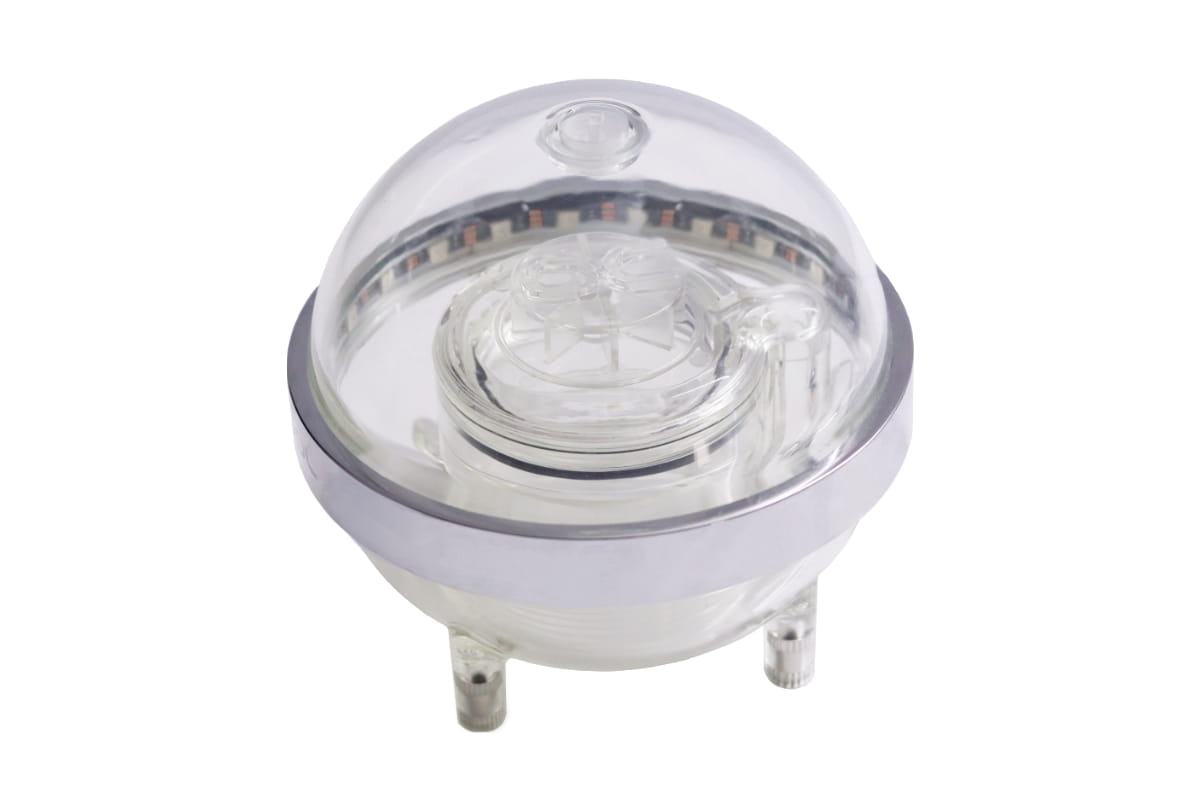

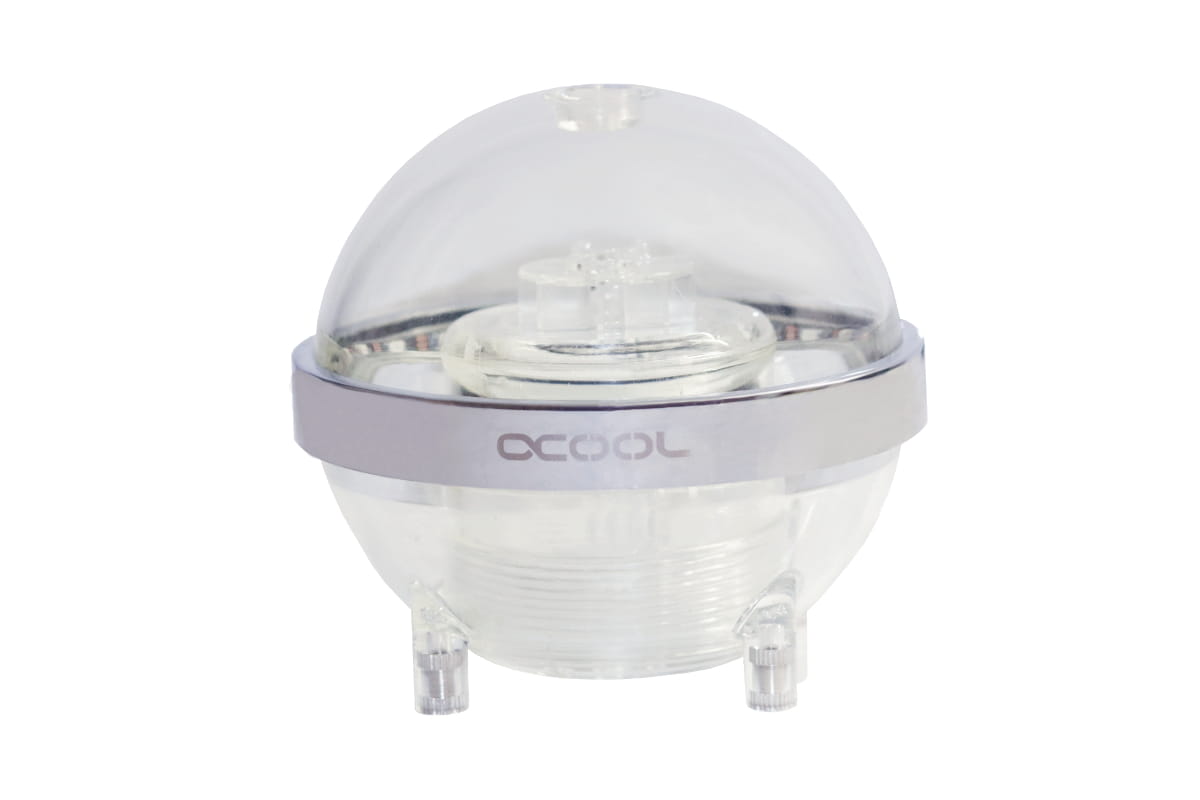

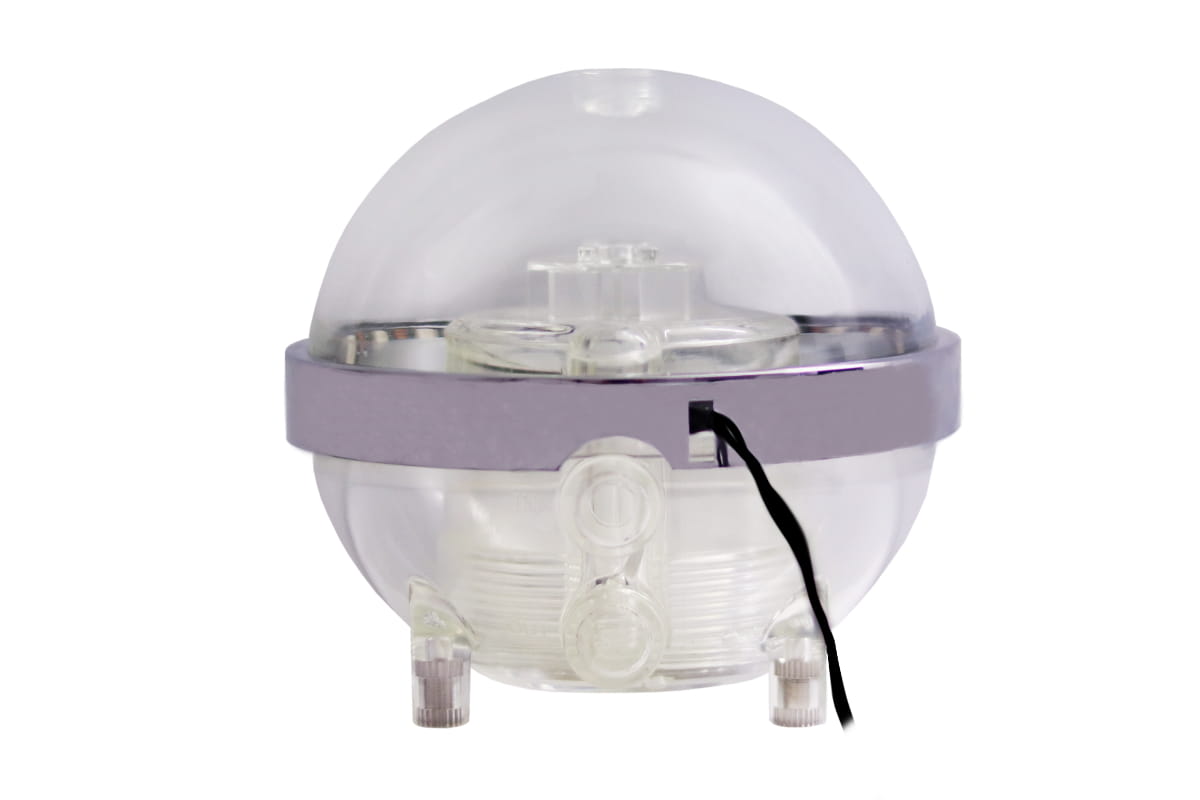

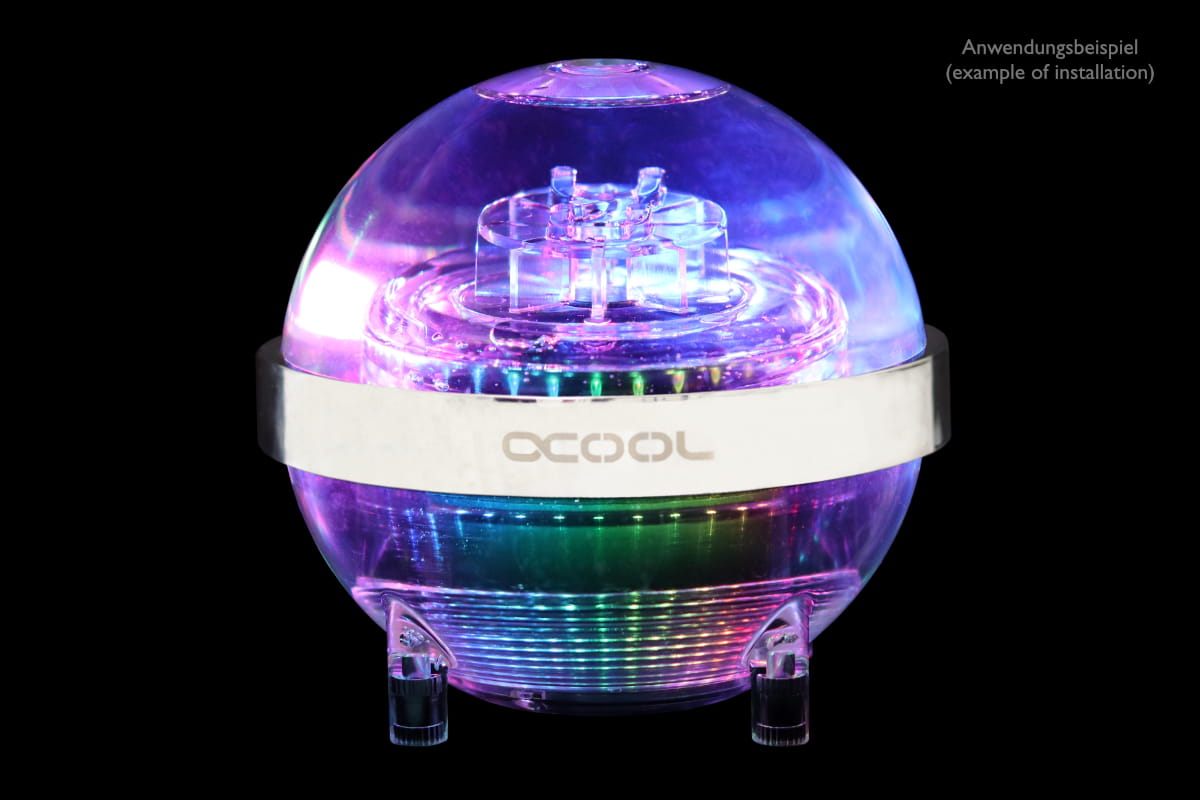

The Alphacool Eisball expansion tank with integrated pump top comes in a unique design. The unprecedented spherical shape opens up countless new possibilities, especially in the area of modding. From static, single-color lighting to the R2D2 mod: there really are no limits to creativity here.

Unique design and excellent lighting

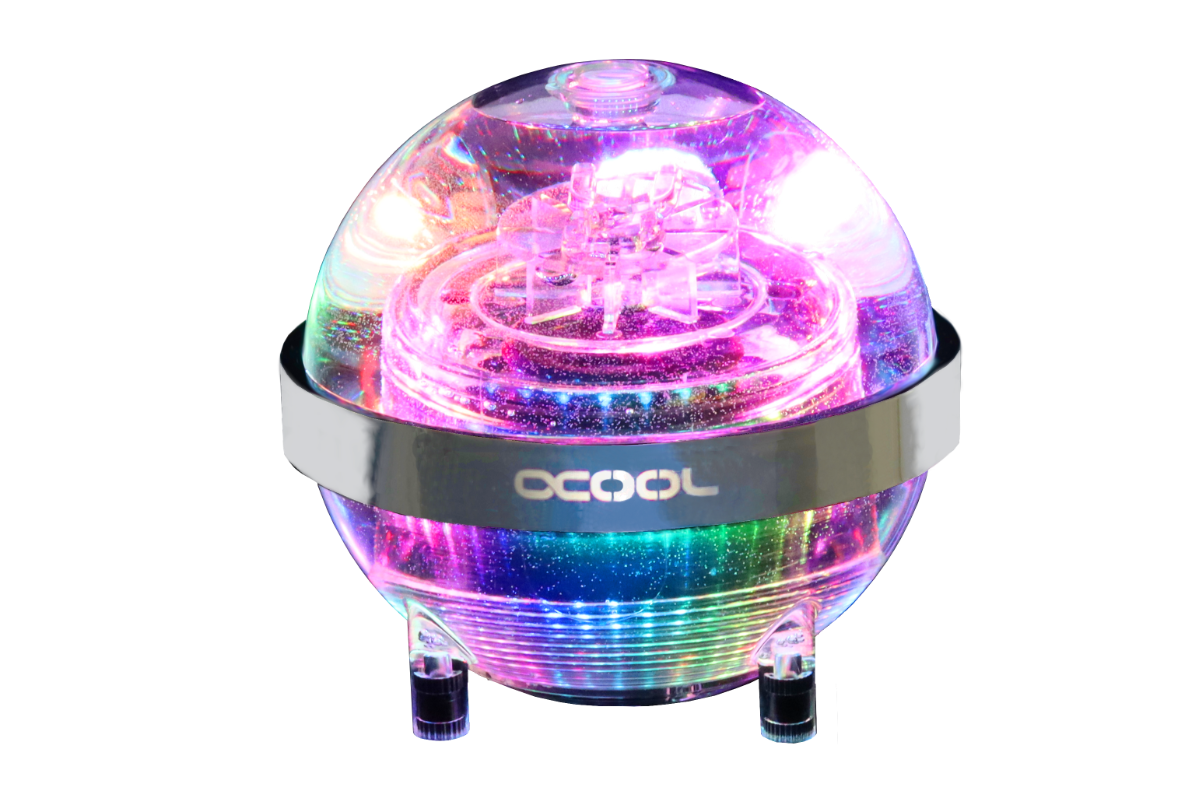

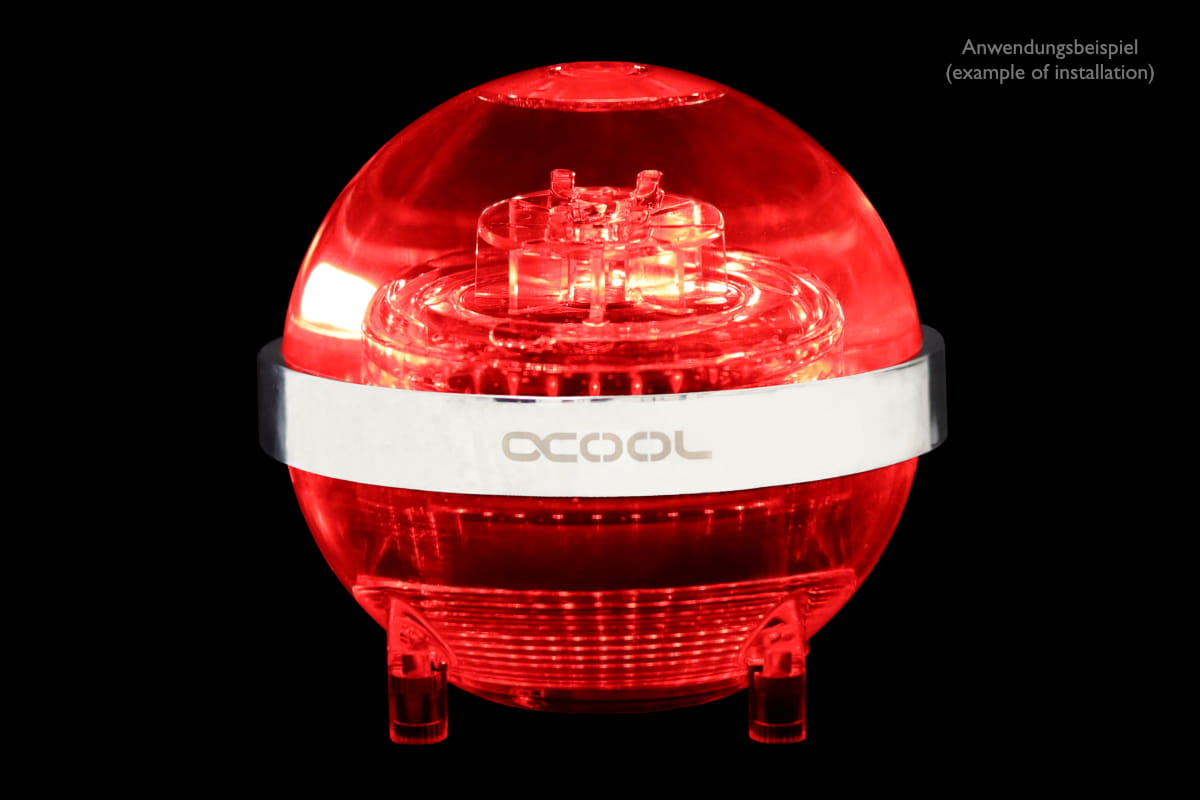

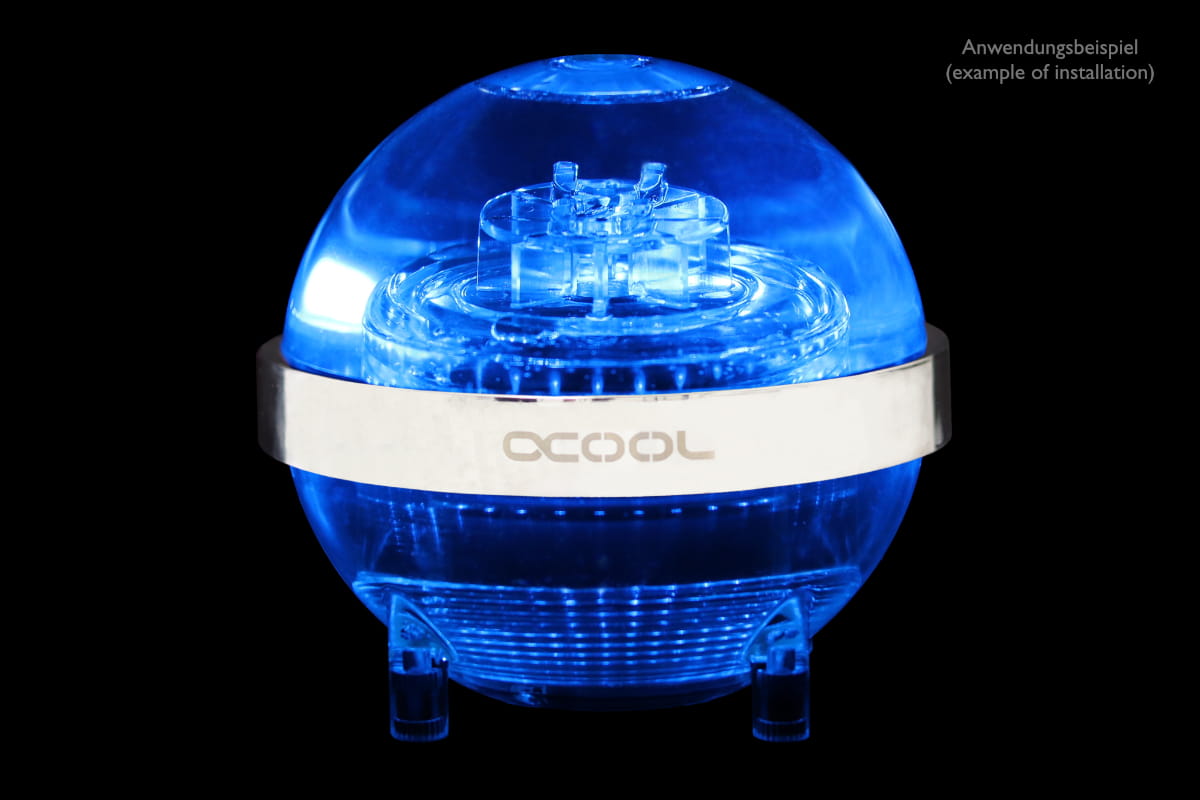

In contrast to conventional expansion tanks, the Alphacool Ice Ball has a spherical design that has never been seen before. The 22 digital RGB LEDs, which run completely around the equator of the ice ball in a chrome ring, provide versatile and optimal lighting. Of course, the device comes with a digital RGB controller with which you can individually adjust the style and lighting of your ice ball.

Versatile mounting options

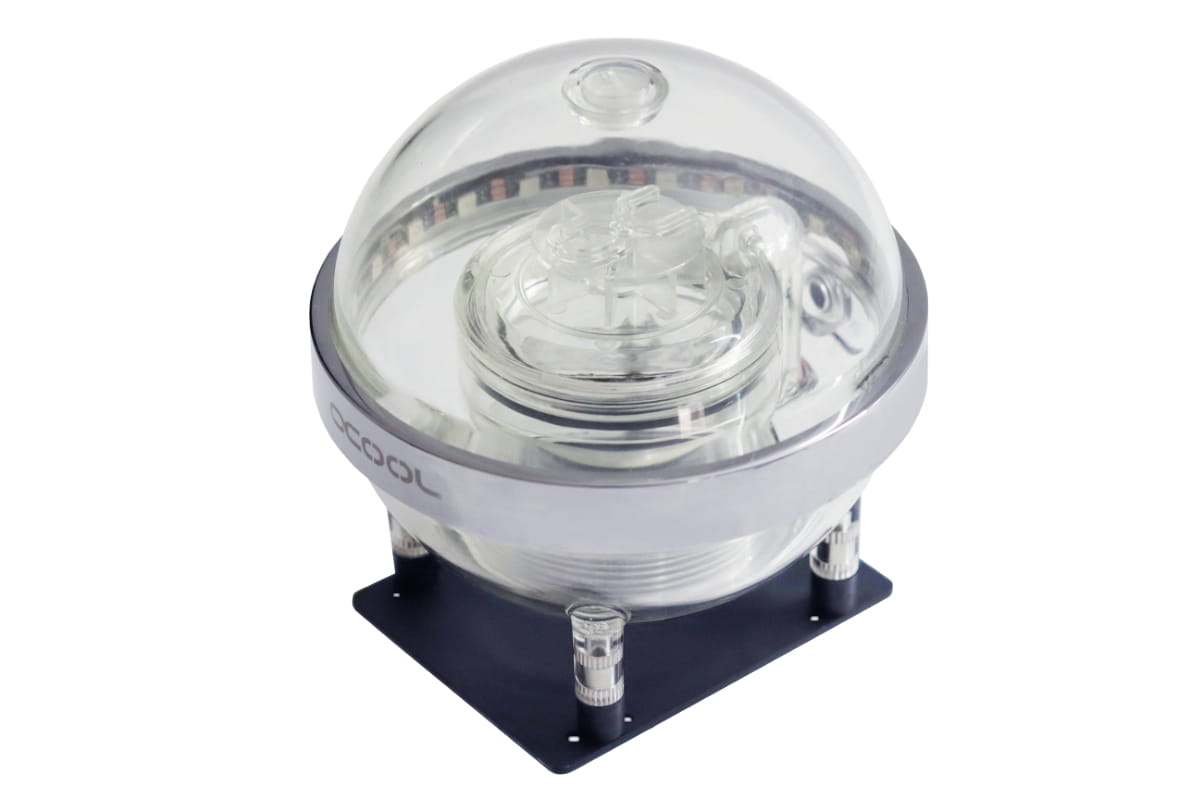

Don't limit yourself to a single mounting option! The adhesive mat and 2 different mounting plates included in the delivery allow you to implement many different mounting ideas: whether on the radiator, the fan slots, or a 2.5" SSD slot. Alternatively, you can of course also use the tried and tested universal Alphacool pump mount.

Where is the pump?

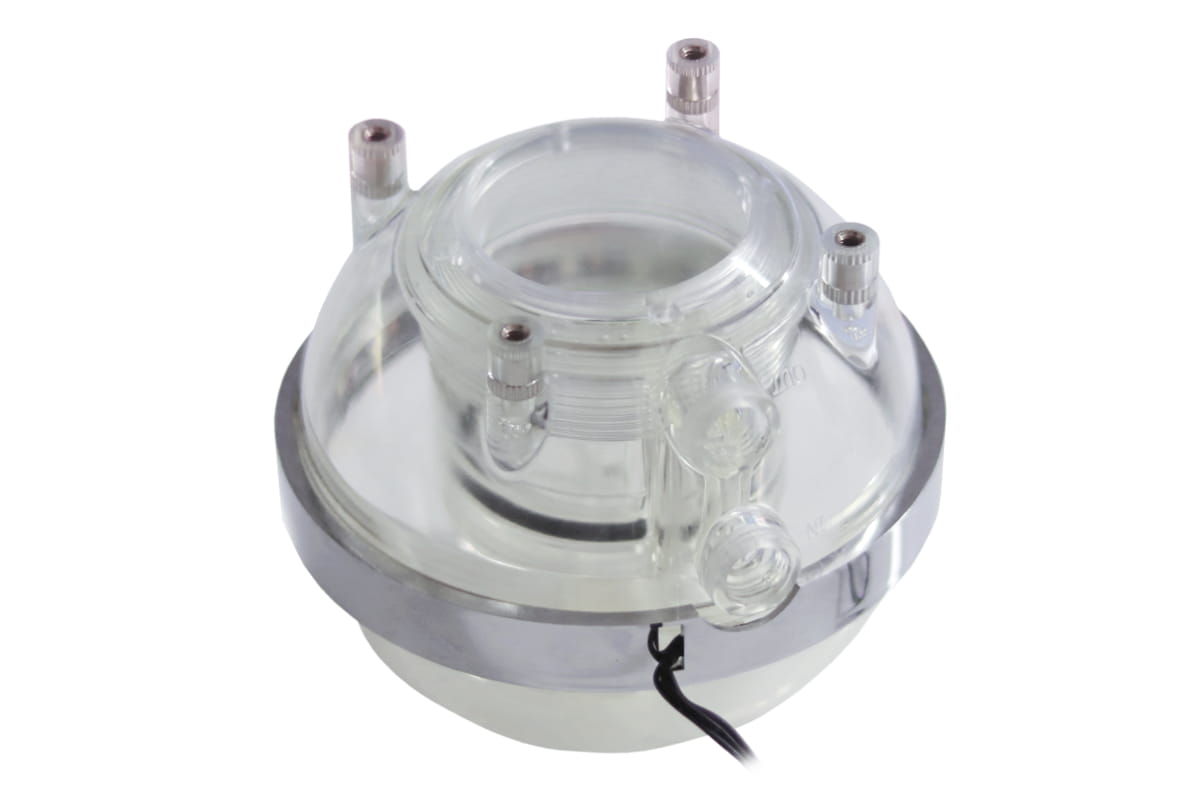

The pump disappears completely inside the ice ball. It is inserted into the ice ball from below and secured with a special pump bracket. All Alphacool D5 pumps such as the VPP655 and VPP755 as well as all original Laing D5 pumps are suitable for installation.

Is the Ice Ball Silent suitable?

With the ice ball, the pump is completely inside the container and is therefore completely surrounded by water. The water acts as additional sound insulation. The included decouplers also reduce vibration transmission to a minimum. All in all, a truly silent product!

Note: The ice ball can also be operated upside down with the VPP755 pump. However, only with the VPP755.
With all other Laing D5 pumps such as the VPP655 this is not possible due to the spherical bearing.

Technical data:

WxDxH: 117.51 x 128 x 128 mm
WxDxH With mounting material and decoupler: 130.01 x 128 x 128 mm
Net weight: 243 g
Maximum working temperature: 60 °C
Ice ball material: transparent nylon
Material pump bracket: Acetal
Material Digital RGB Ring: Acetal
Ice ball color: transparent
Color Digital RGB Ring: Chrome
Connections: IN 1x G1/4“ / OUT 1 x G1/4“
Fill port: 1 x G1/4“
Capacity: 700 ml
Digital RGB connector: 4-pin
Voltage Digital RGB: 5 VDC

Download manual PDF: Alphacool Eisball Digital RGB - Plexi (D5/VPP Ready)
Download data sheet PDF: Alphacool Eisball Digital RGB - Plexi (D5/VPP Ready)

Technical details mehr

Technical details

Hersteller:	Alphacool
Material:	Acetal, Acryl
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
Pumpenkompatibilität:	für 1x D5
Behältertyp:	Sonstige Behälter
Anzahl Anschlüsse:	2
Volumen:	700ml
LED Bohrungen:	Slot für aRGB/RGB vorhanden
Abmessungen:	130,01 x 128 x 128mm
Farbe:	transparent
