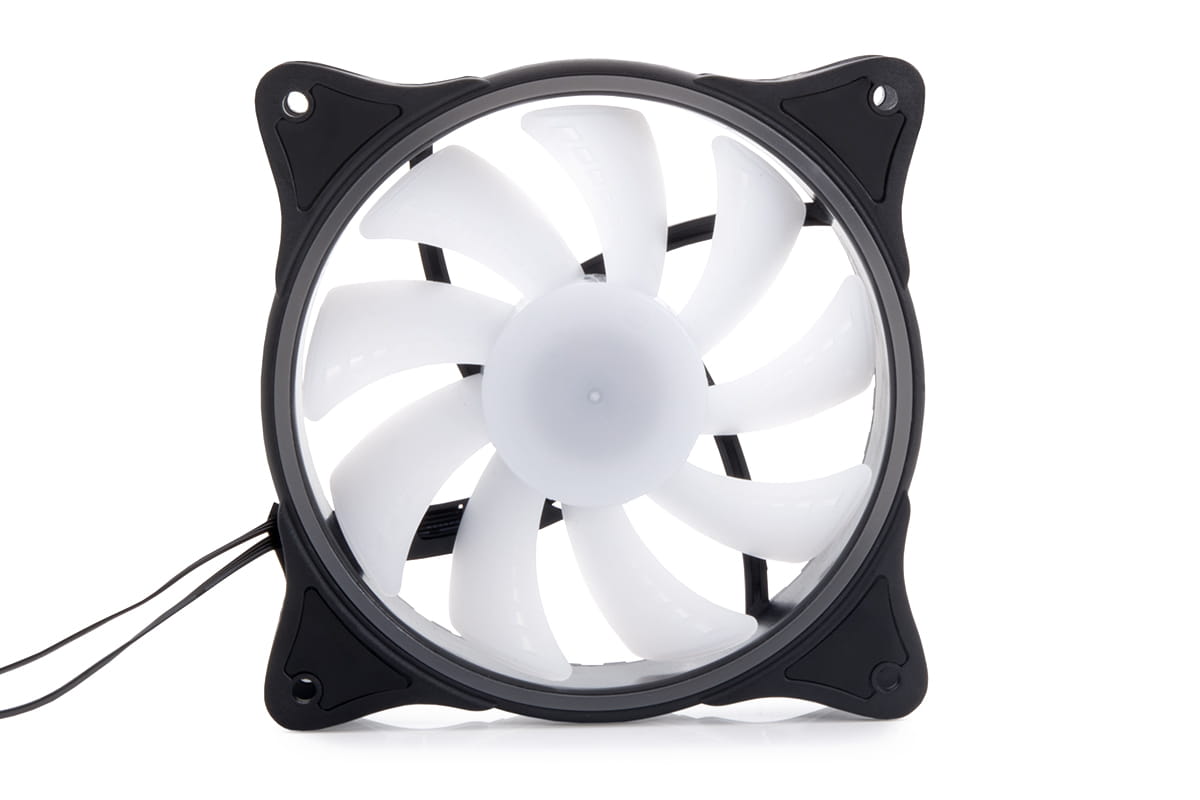

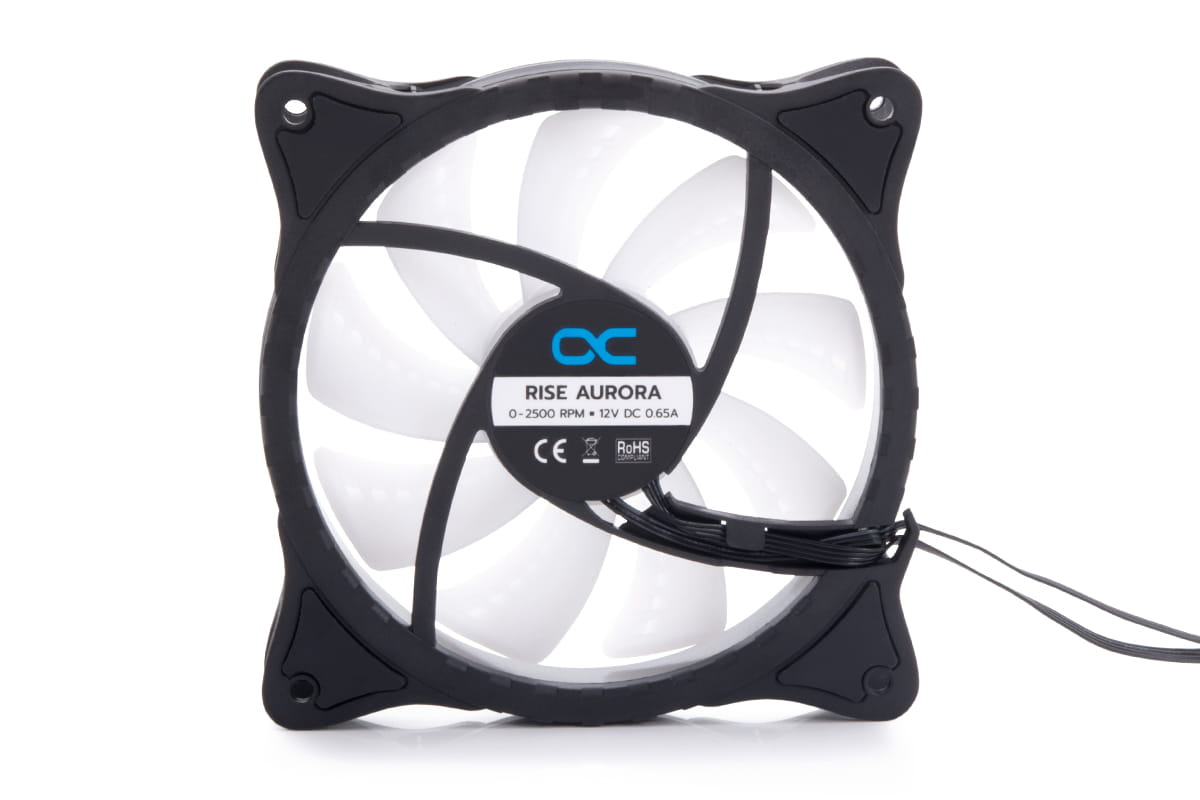

120 mm aRGB high performance fan

L12 Alphacool Rise Aurora 120 mm Lüfter (120x120x25mm) PHT EOL

Article no.: L12
EAN: 4250197135801
Weight: 0,18 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€11.98 * €18.98 * (36.88% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Digital RGB LED Y-cable 3-way with JST connector - black 60cm

€7.98*

Alphacool ice cyclone Aurora LUX PRO 2 Digital RGB (120x120x25mm)

€12.98*

Alphacool Eis-Matrix II - Adapter 5-Pin to PWM + 5V Digital RGB (3pcs) each 20cm

€4.47*

In addition to a wide control range, the Alphacool Rise fan also offers outstanding digital RGB... more

Close menu

Product information

In addition to a wide control range, the Alphacool Rise fan also offers outstanding digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the special design of the fan create unique effects.

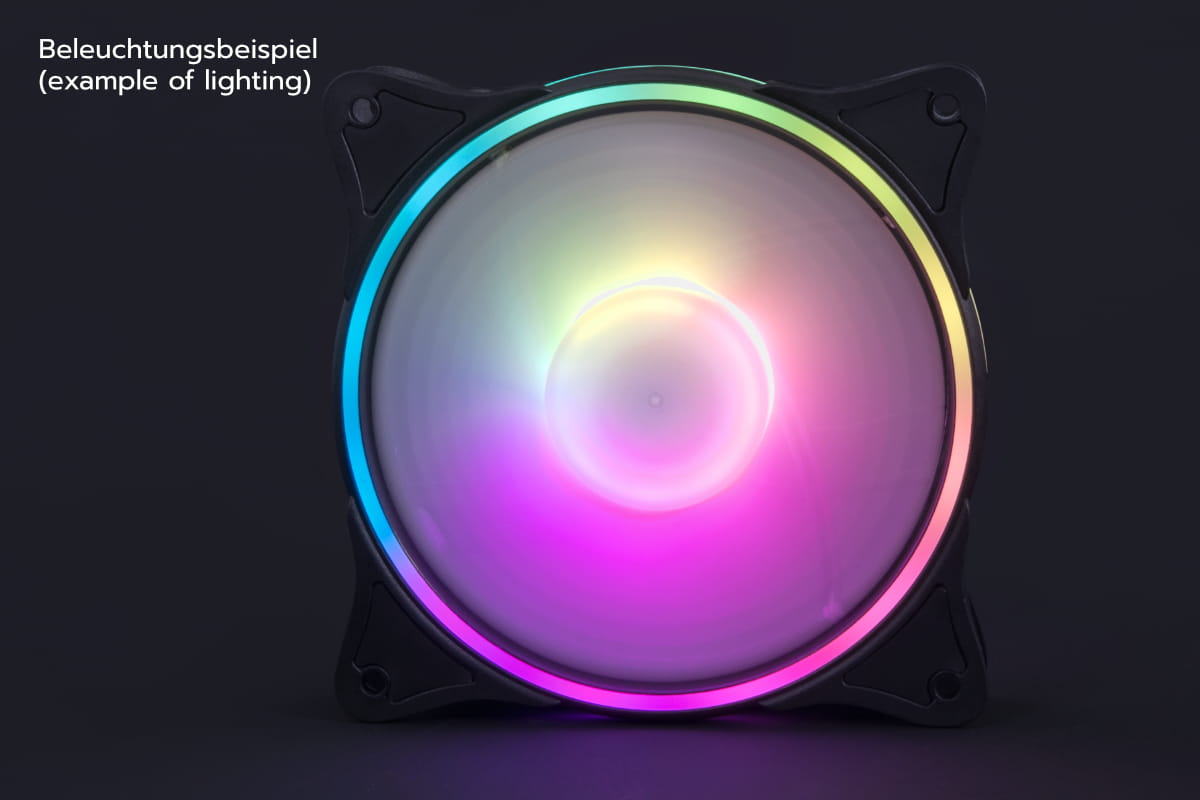

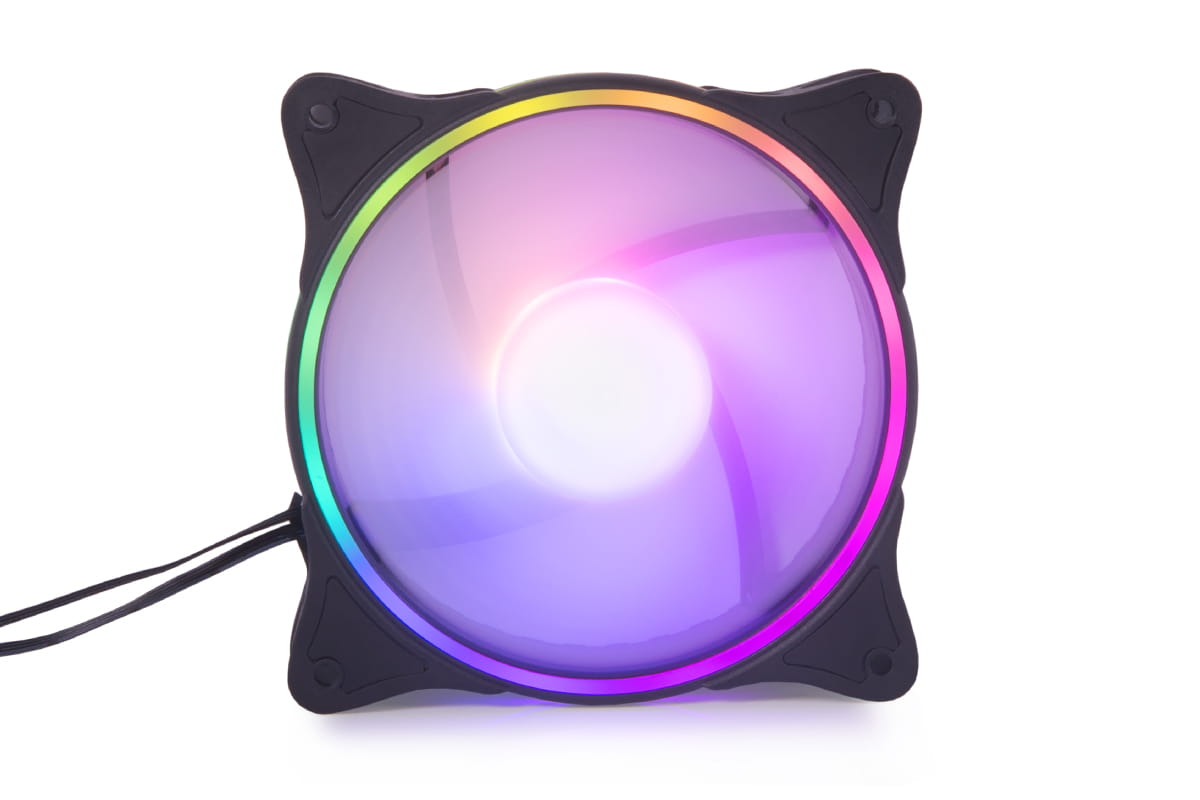

Brilliant lighting
20 digitally addressable 5V RGB LEDs are installed in the frame and hub, which illuminate the entire fan. This creates a unique lighting that looks very classy. Thanks to the recessed diffusers, the light is distributed evenly. This avoids spotty illumination. Individual LEDs are no longer visible.

Wide control range and silent

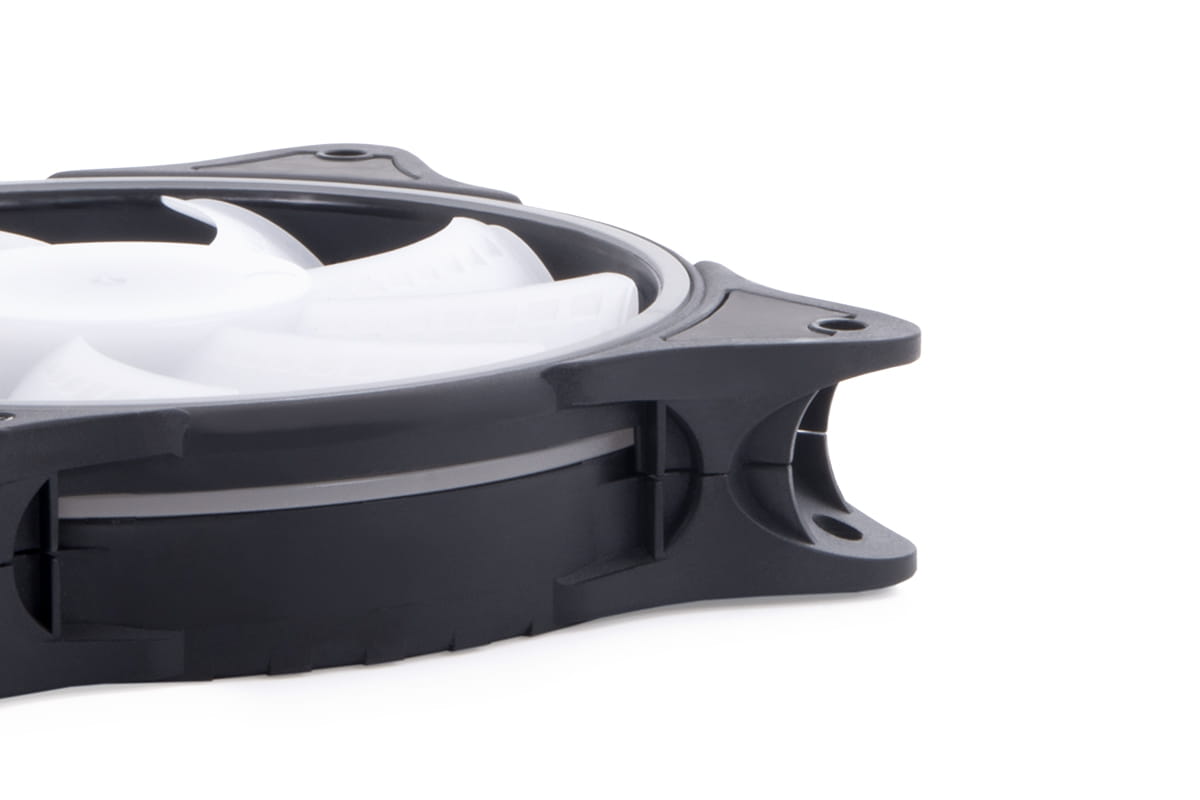

The fan can be controlled from 0 to 2500 rpm via the 4-pin PWM connection. It also offers a zero control, with which the fan can be regulated down to 0 rpm and then starts at around 350 rpm. At 800 rpm, the fan is almost silent, but still offers a good air flow (118.9m ³ /h) coupled with a high static pressure (3.17mm/H ₂ O). This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case. There are decouplers directly on the frame. The soft foam padding reduces the transmission of vibrations to the case. Tear-off edges on the fan blades also ensure a significant reduction in background noise.

Connections?

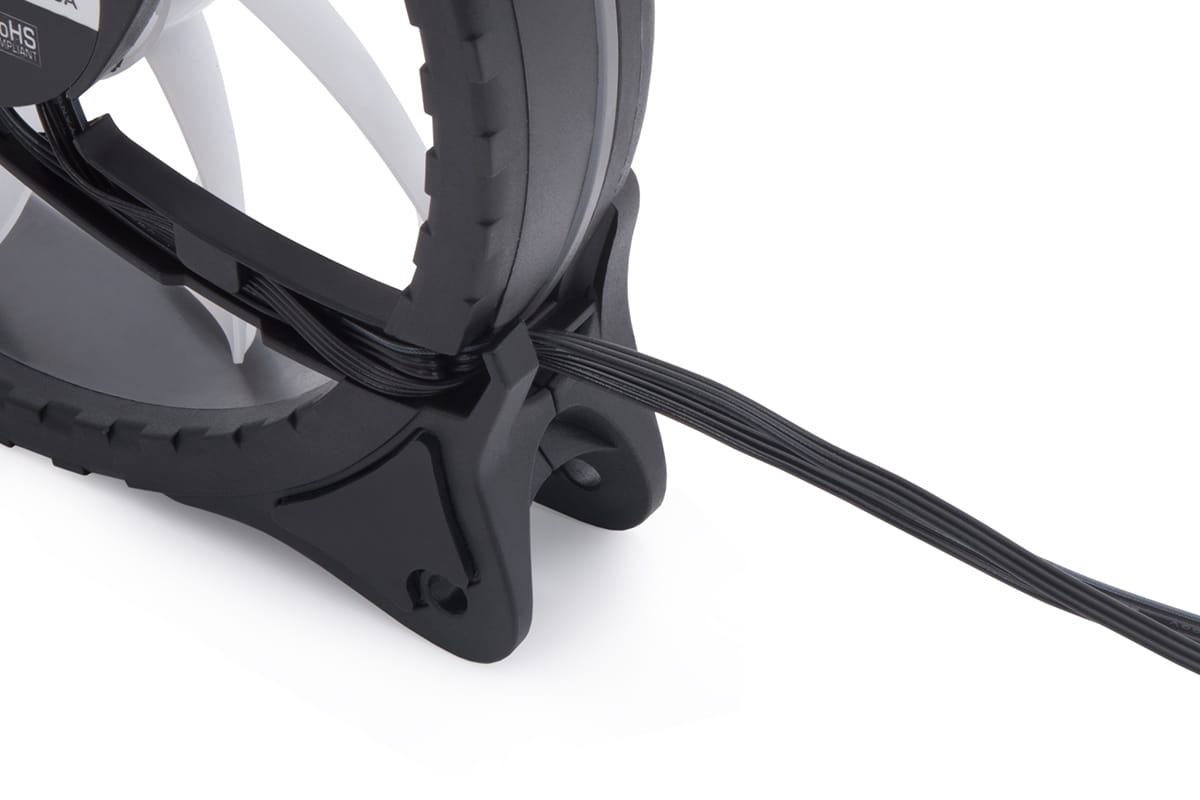

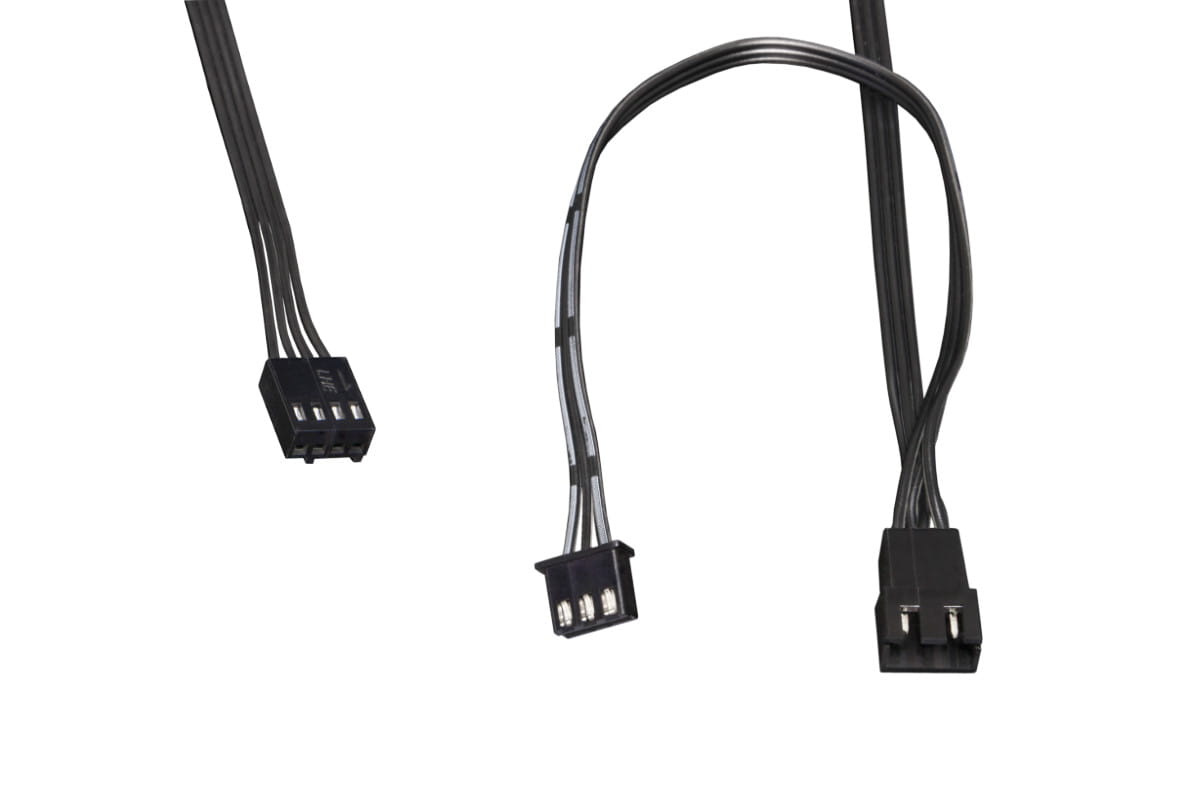

The fan is controlled via a 4-pin PWM connection. The cable is 40 cm long. This means that the fan can be connected to the mainboard or a special controller without any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector.

Note: The cable for connecting the ARGB LEDs is not included in the scope of delivery, but is optionally available in the shop! ( Art. 18604, Alphacool connection cable 3Pin to 3pin Digital RGB )

Technical data fan
L x W x H	120x120x25mm
Speed	0 - 2500 (+/- 10%)
Fan bearing	Bearing
Connection	4-pin PWM
Cable length	40cm
Tension	12V DC
Power consumption	0.65A (0.72max)
Static pressure	3.17mm H2O
Air flow	118.9 m³/h
Volume max	max. 31.5 dB(A)
MTBF	50,000 hours
Speedometer signal	Yes
Auto restart	Yes

Technical data Digital RGB
LED Type	5V RGB
Connection	3-Pin JST
Cable length	50cm (splinters after 40cm)
Max. current consumption LEDs	3.5W
LED number	Frame: 12 / Hub: 8

Download data sheet PDF: Alphacool Rise Aurora 120 mm fan (120x120x25mm)

Technical details mehr

Technical details

Hersteller:	Alphacool
Nennspannung:	12V DC
Stromanschluss:	4Pin
RPM Signalübertragung:	Ja
Lautstärkebereich:	30 - 49,9 dB(A)
Größe:	120mm
Abmessungen:	120 x 120 x 25mm
Luftförderbereich:	100 - 149 m³/h
Druck:	2,00mm H2O
Lebensdauer (bei 25°C):	50.000 h
Nenndrehzahl:	2600 U/min
Leistungsaufnahme:	7,8W
Luftförderleistung:	118,9 m³/h
Lautstärke:	31,5 dB(A)
Farbe Rahmen:	schwarz
Farbe Rotor:	transparent
LED:	ARGB
