Alphacool Core 200 Aurora reservoir acetal/acrylic with Apex pump

  • 15381
  • 4250197153812
  • 1,36 kg
  • There are more than 250 units available
  • Images may differ slightly from the original
€89.98 * €124.99 * (28.01% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ROH Alphacool Eisbaer TPV Extension Set (hose and connections)
1x
Alphacool Eisbaer TPV Extension Set (hose and connections)
€15.39*
RAD Alphacool NexXxos ST30 Full Copper 240mm prefilled AIO Edition
1x
Alphacool NexXxos ST30 Full Copper 240mm prefilled AIO Edition
€85.98*
WAZ Alphacool Apex Liquid ECO 1000ml clear
1x
Alphacool Apex Liquid ECO 1000ml clear
€14.98*
PUM Alphacool VPP Apex Pump
1x
Alphacool VPP Apex Pump
€65.99*
WZS Alphacool spray bottle Core 1000ml
1x
Alphacool spray bottle Core 1000ml
€6.28*
24844 Alphacool Core 120mm fan PWM 3000rpm (120x120x25mm)
1x
Alphacool Core 120mm fan PWM 3000rpm (120x120x25mm)
€8.48*
PUM Alphacool VPP655 - Single Edition PHT EOL
1x
Alphacool VPP655 - Single Edition
€69.98*
PUM Alphacool VPP655 - PWM - Single Edition
1x
Alphacool VPP655 - PWM - Single Edition
€74.98*
The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and is supplied... more
Product information

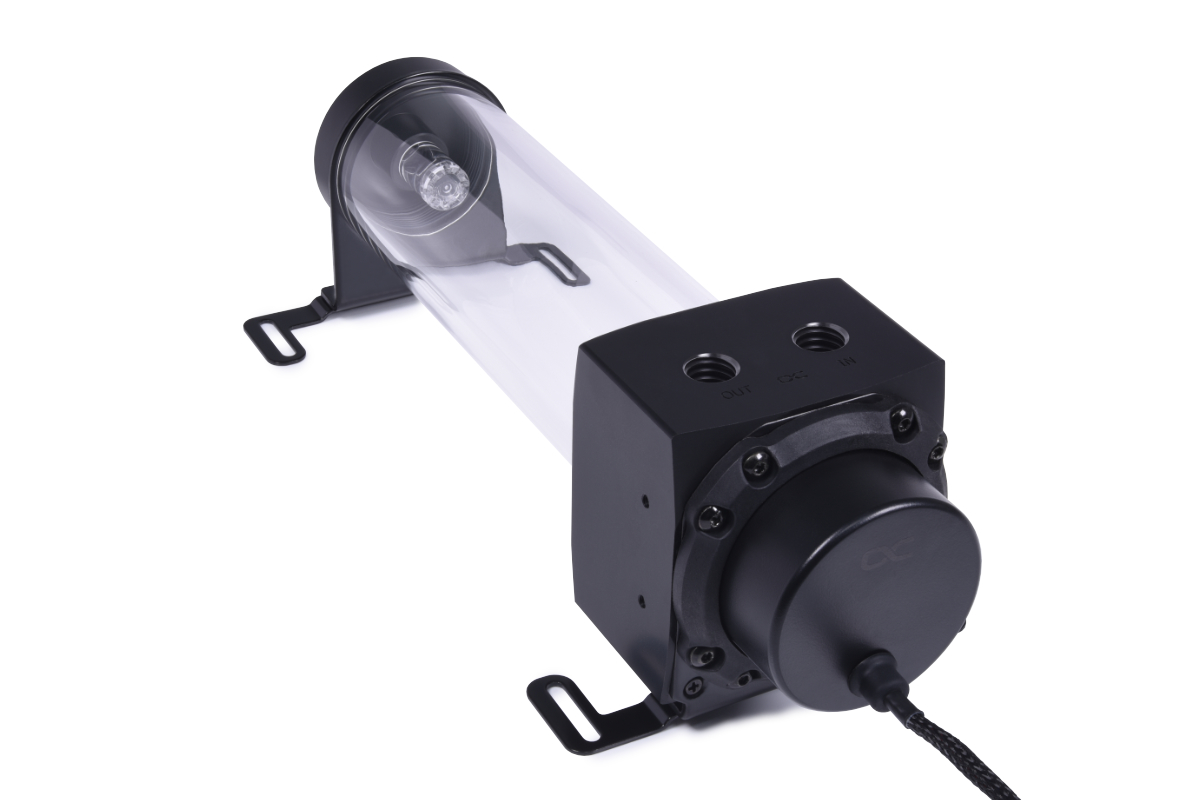

The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and is supplied with a VPP Apex pump. The reservoir tube is made of acrylic, the D5/VPP pump top and the lid are made of acetal. The combination of these two materials gives the reservoir a subtle appearance. 12 digitally addressable RGB LEDs in the pump top and the light tower water effect inside the acrylic tube provide the wow effect.

What's new?
Compared to the previous ice cream bowl models, the acrylic tube of the Core reservoir has an external thread. This ensures greater stability and safety when connecting the lid and pump top to the tube. The integrated digital aRGB lighting is also new. 12 digitally addressable RGB LEDs in the pump top are included with the Core reservoir and no longer need to be purchased separately.

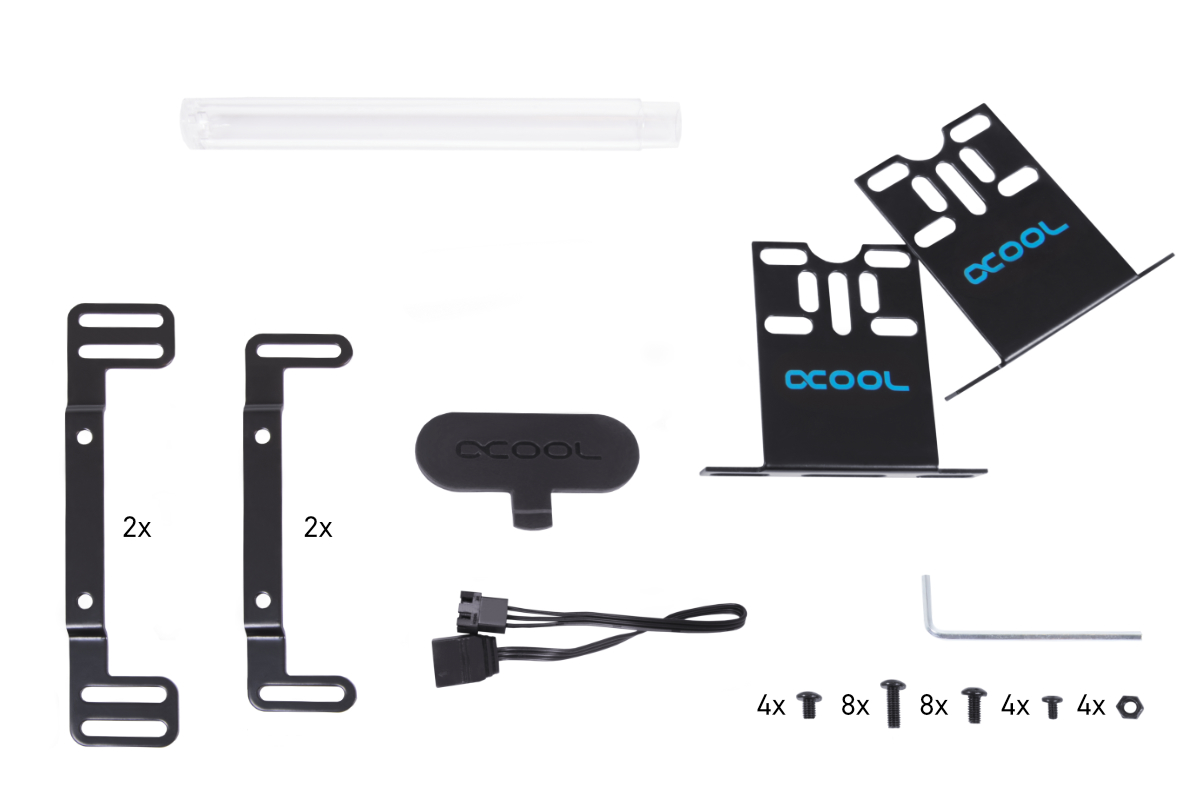

Extensive assembly options
Mounting option 1:
The scope of delivery includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.

Mounting option 2:

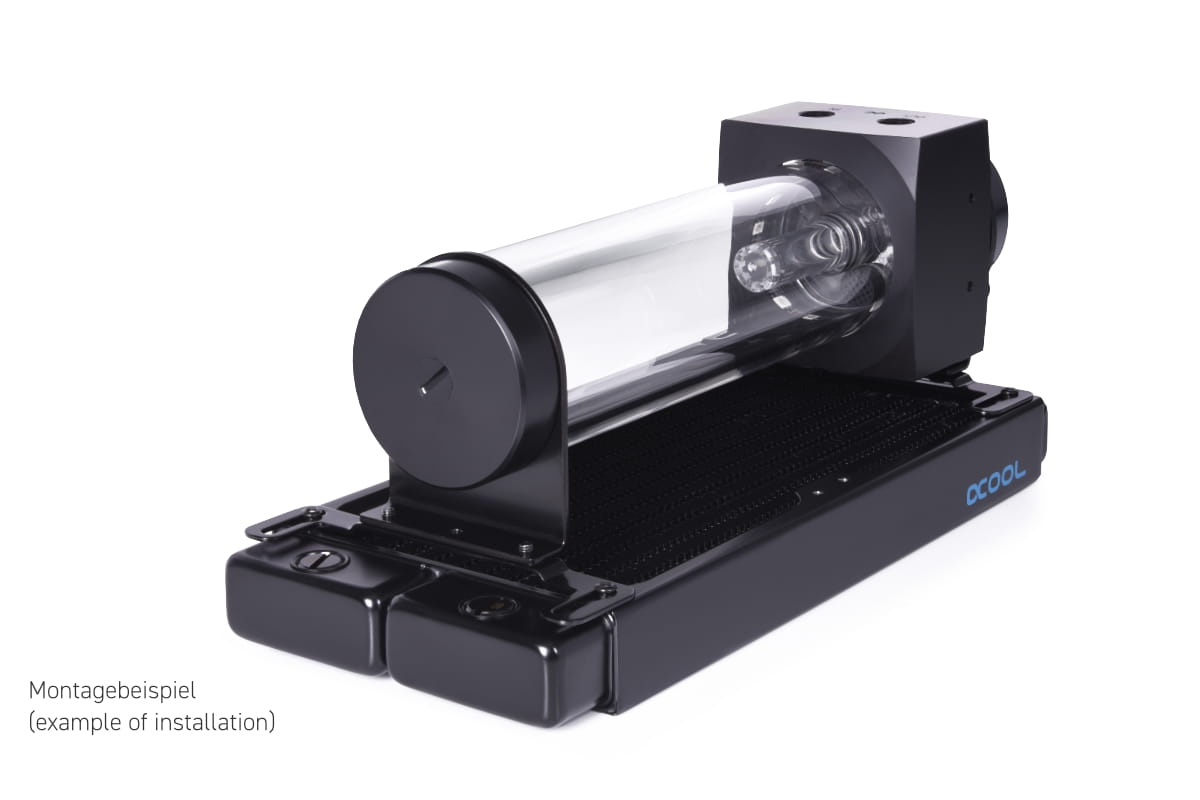

The scope of delivery includes 120mm/140mm mounting frames with which the Core expansion tank can be attached to free fan slots, radiators or to the fans on radiators.

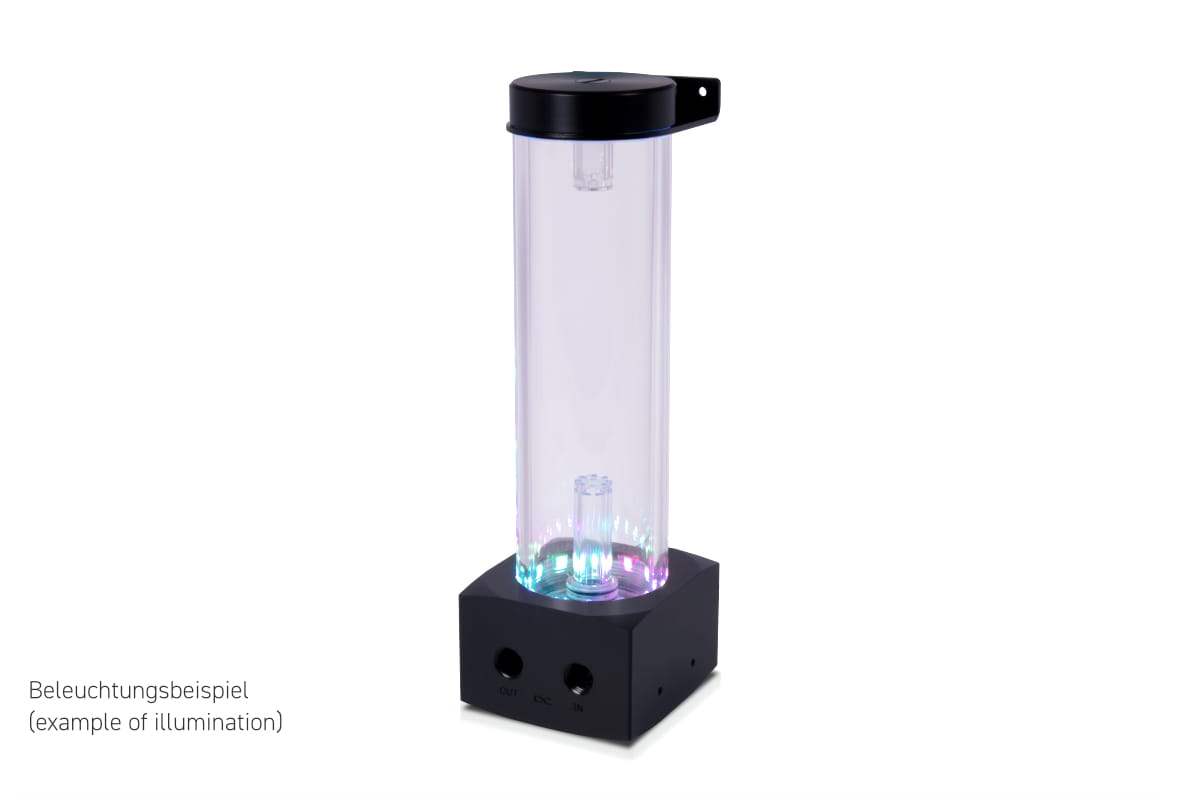

Digitally addressable RGB lighting
12 digitally addressable RGB LEDs illuminate the acrylic tube of the expansion tank. They are arranged in a ring at the lower end of the tube in the transition to the pump top and ensure brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (eg Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

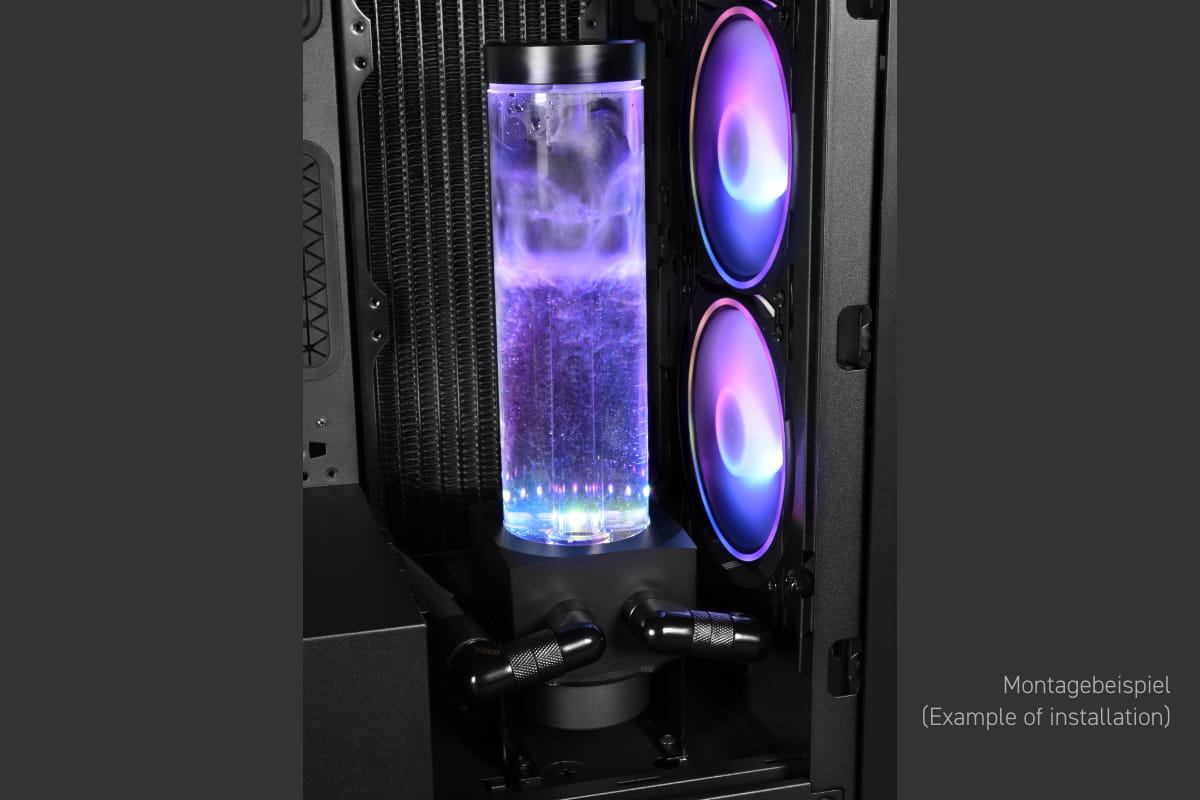

Lighttower water effect
A special water effect is created in the core reservoir via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.

Pump compatibility
The Alphacool Core reservoir has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the delivery.

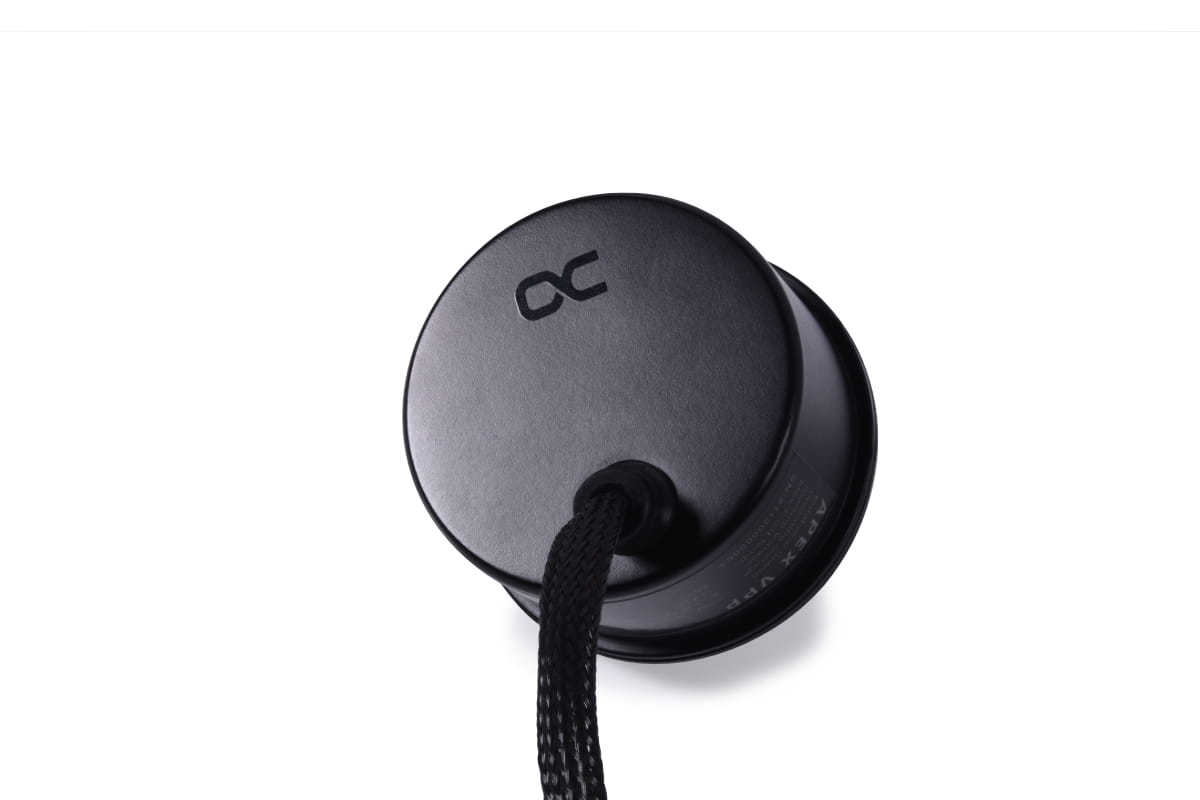

pump
The VPP Apex pump does not have a spherical bearing and uses a ceramic axle. The motor coils have been moved from the inside to the outside. The changes mean that the pump is fundamentally more stable and runs more smoothly and vibrations have been significantly reduced. Another positive side effect is that power consumption has been almost halved. In comparison to Alphacool's ice pumps, the power supply is not via a 4-pin Molex connection. Instead, the Apex VPP pump is connected to the power supply using a SATA connection. The Apex VPP pump has a 4-pin fan connection that is connected to the mainboard or to an external controller. This allows the speed range of the pump to be controlled and read via PWM.

Technical data
L x W x H 251x76.5x76.5mm
Pump compatibility D5
volume 400ml
Material pump top & lid Acetal
Material tube Acrylic
Connections 3x G1/4“ internal thread
Maximum working temperature 60°C
Pressure tested 0.8 bars
Number of digital aRGB LEDs 12
Voltage digital aRGB LEDs 5V
Power connection digital aRGB LEDs 3-Pin JST (male & female switch)
Weight 621g
Color black

Technical data VPP Apex
Dimensions (L x W x H) 65x65x41mm
Material pump plastic
Material pump cover aluminum
Material Axle Ceramics
Power connection 4-pin PWM | SATA
Control range 2500 - 4500 RPM
Cable lengths 4-Pin PWM - 48cm | SATA - 48cm
Operating voltage 8-13V DC / 14W IP32
Starting voltage 12V DC
Maximum discharge head 4.25m
Maximum flow 340 l/h
Maximum working temperature 60°C
Net weight 276g
Color black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
