Flat G1/4 temperature sensor Alphacool Eiszpafen

SEN Alphacool Eiszapfen Temperatursensor flach G1/4 - schwarz

Article no.: SEN
EAN: 4250197175968
Weight: 0,02 kg
Available:
Images may differ slightly from the original

€8.98 *

Prices incl. VAT plus shipping costs

Liefertermin: in 5 - 6 Monaten

Alphacool Eisfluegel flow indicator G1/4 square - Acetal

€17.98*

Alphacool Eisfluegel Aurora flow indicator "HighFlow" with speedometer signal

€34.98*

Alphacool Eiszapfen Acrylic/Acetal Inline Filter G1/4 IG

€9.98*

Alphacool ES flow and temperature sensor "HighFlow" with speedometer signal

€39.98*

Alphacool Core temperature sensor with C/F display

€13.98*

The Alphacool Eiszapfen temperature sensor flat G1/4" is a simple water temperature sensor that... more

Close menu

Product information

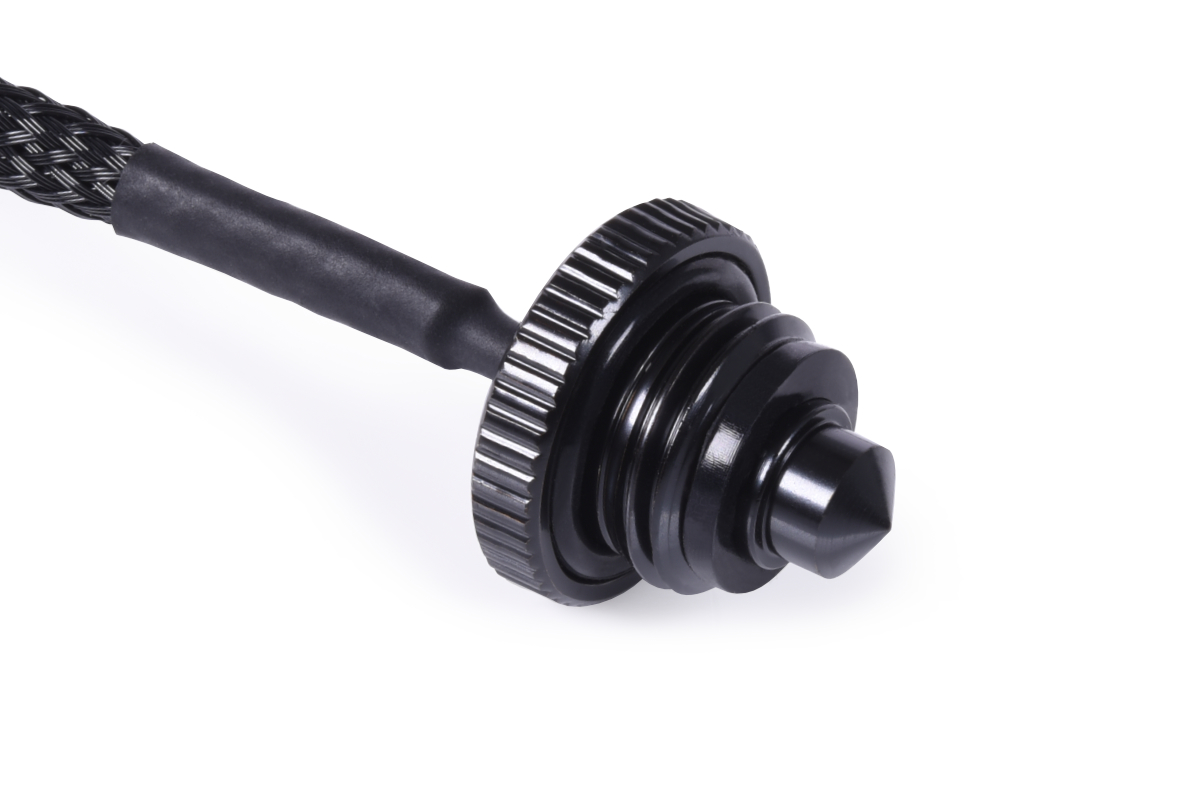

The Alphacool Eiszapfen temperature sensor flat G1/4" is a simple water temperature sensor that can be easily integrated into any water loop.

Integration made easy

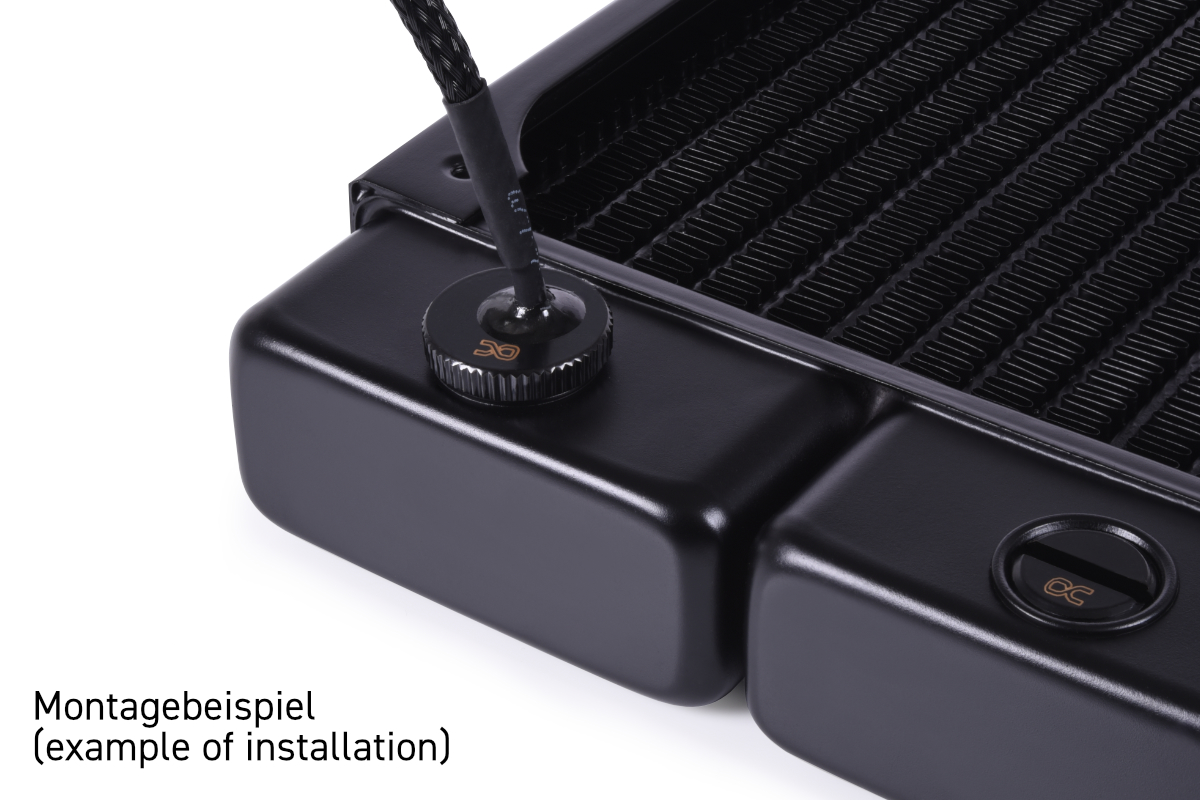

The temperature sensor is very compact and can be integrated into any water circuit due to its G1/4" external thread. It is simply screwed into the corresponding G1/4" connection at any position in the water loop. Due to the small screw-in depth, it is compatible with all Alphacool products with a free G1/4" connection.

Sensor

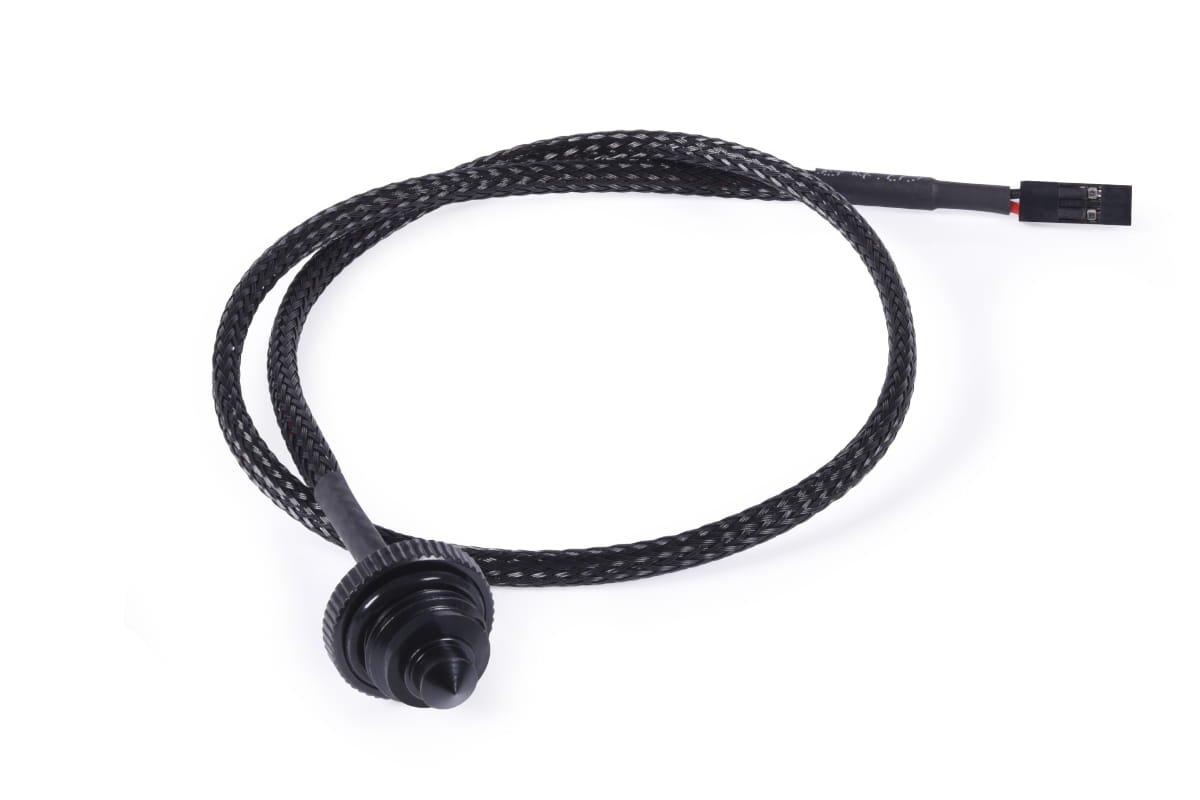

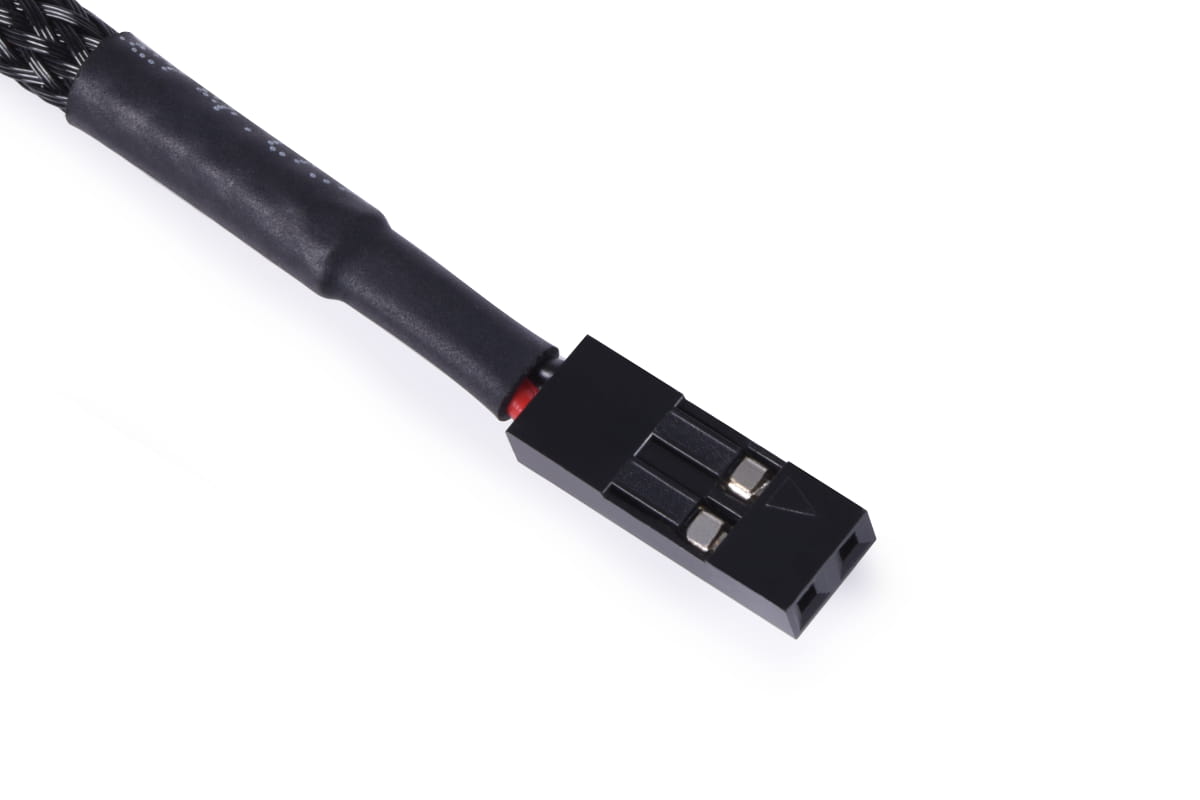

A classic NTC 10 kOhm thermistor is used as sensor. The readable temperature range is between -40 and 125°C. The cable is 40 cm long and leads into a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual of your mainboard. Of course there are also several external controllers that offer a connector for the sensor.

Design
The design is very simple so that the temperature sensor can be installed almost invisible in the system.

Compatibility:
G1/4" female connectors

Technical data
H x D	17mm x 18mm
Material	brass
Color	black
Pressure test	8 bar
Cable length	40cm
Connection	2-Pin
Thermistor	NTC 10 kOhm
Thread	G1/4" IT
Thread length	5mm
Total screw-in depth	13mm
