Alphacool Core temperature sensor with C/F display

  • 17573
  • 4250197175739
  • 0,04 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€13.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANF Alphacool Eiszapfen double nipple rotatable G1/4 AG to G1/4 AG - Deep Black
1x
Alphacool Eiszapfen double nipple rotatable G1/4 AG to G1/4 AG - Deep Black
€3.47*
ANS Alphacool Eiszapfen 13mm HardTube screw-on nozzle G1/4 - Chrome
1x
Alphacool Eiszapfen 13mm HardTube screw-on nozzle G1/4 - Chrome
€5.99*
ANS Alphacool Eiszapfen 16mm HardTube screw-on nozzle G1/4 - Chrome Sixpack
1x
Alphacool Eiszapfen 16mm HardTube screw-on nozzle G1/4 - Chrome Sixpack
€31.98*
ANF Alphacool Eiszapfen double nipple G1/4 AG to G1/4 AG - Deep Black
1x
Alphacool Eiszapfen double nipple G1/4 AG to G1/4 AG - Deep Black
€2.48*
ANF Alphacool HF double nipple G1/4 AG to G1/4 AG rotatable - Deep Black
1x
Alphacool HF double nipple G1/4 AG to G1/4 AG rotatable - Deep Black
€2.48*
The Alphacool Core Sensor allows you to show temperature of the fluid inside your cooling loop.... more
Product information

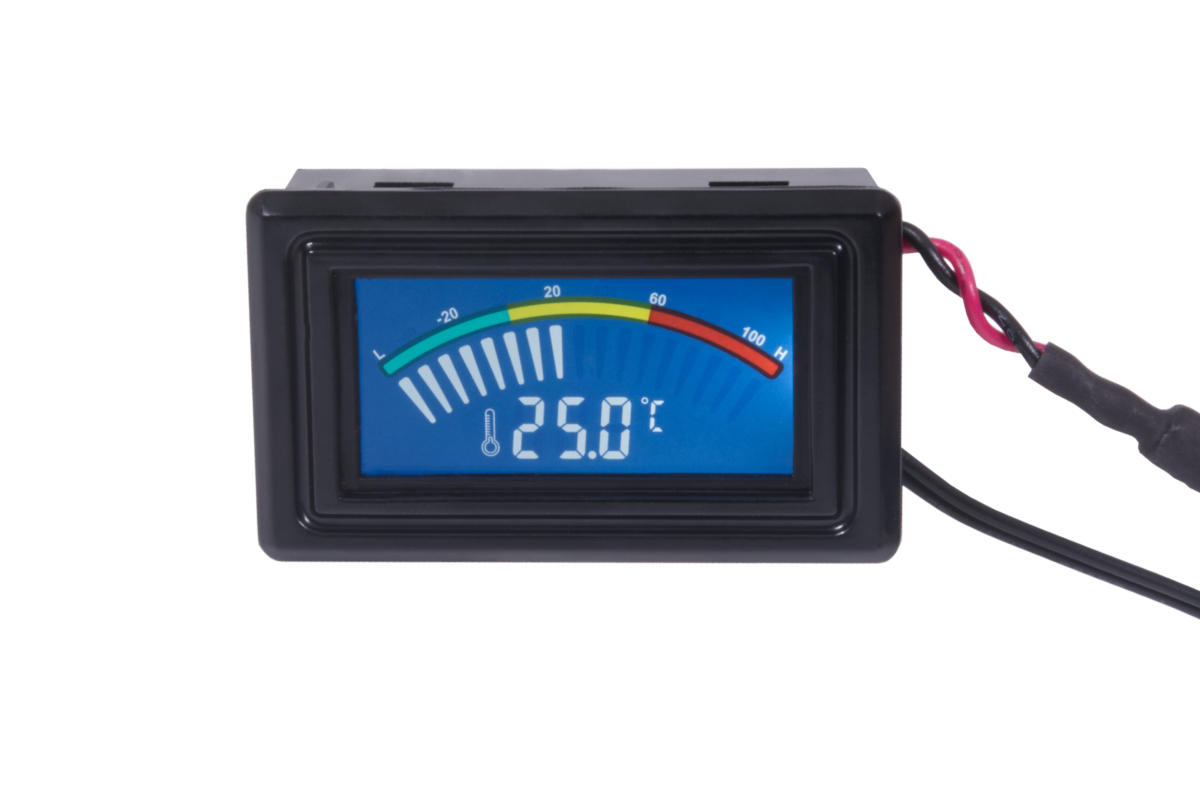

The Alphacool Core Sensor allows you to show temperature of the fluid inside your cooling loop. Thanks to the available colour display, the temperature can be read either in degrees Celsius or Fahrenheit.

Integration made easy

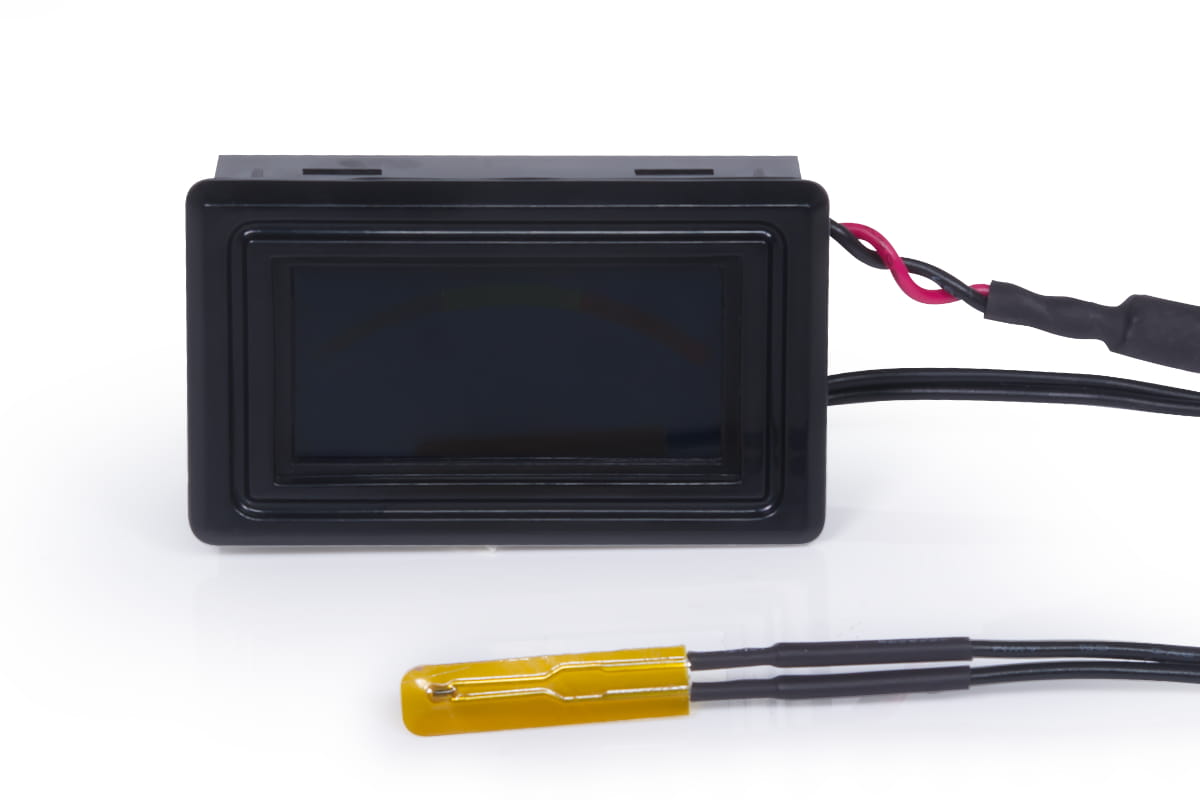

The sensor is flat as well as flexible and allows easy mounting on the component to be monitored.

Temperature sensor & display

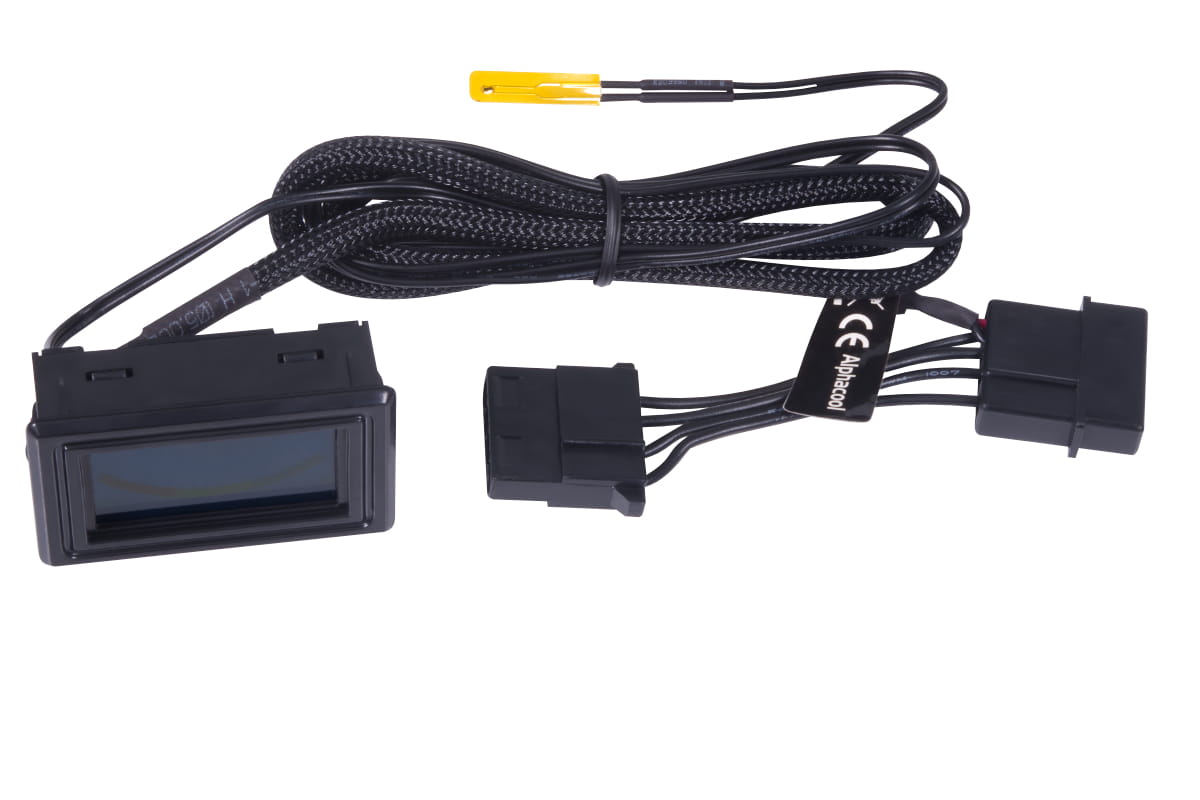

A classic NTC 10 kOhm thermistor is used as the sensor. The cable of the temperature sensor with a length of approx. 100 cm offers enough possibilities for a comfortable installation. Power is supplied via a 55 cm long cable with one male and one female 4-pin Molex connector. The readable temperature range is between -50 and 110 °C with a possible deviation of 0.1 °C. The display has a colour scale to keep track of critical temperature ranges at any time. Additional software for reading out the temperature ranges is not required.

Download kOhm Sensor Table Alphacool



Technical data
Dimensions display47,8 x 28,2 x 16,7 mm
Typ Displaymulti-coloured, indication optionally in ° C or Fahrenheit
Sensor typeNTC 10 kOhm thermistor
Power connection4-Pol-Molex (12 V)
Power cable length550 mm
Length sensor cable1000 mm
Temperature measuring range-50 bis +110 Grad Celsius
ColorBlack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
