Article no.: 15247
EAN: 4250197152471
Weight: 0,964 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€46.48 * €63.99 * (27.36% Saved)

Prices incl. VAT plus shipping costs

in stock

The step towards perfection The new Alphacool AGB is available in three different versions.... more

Product information

The step towards perfection

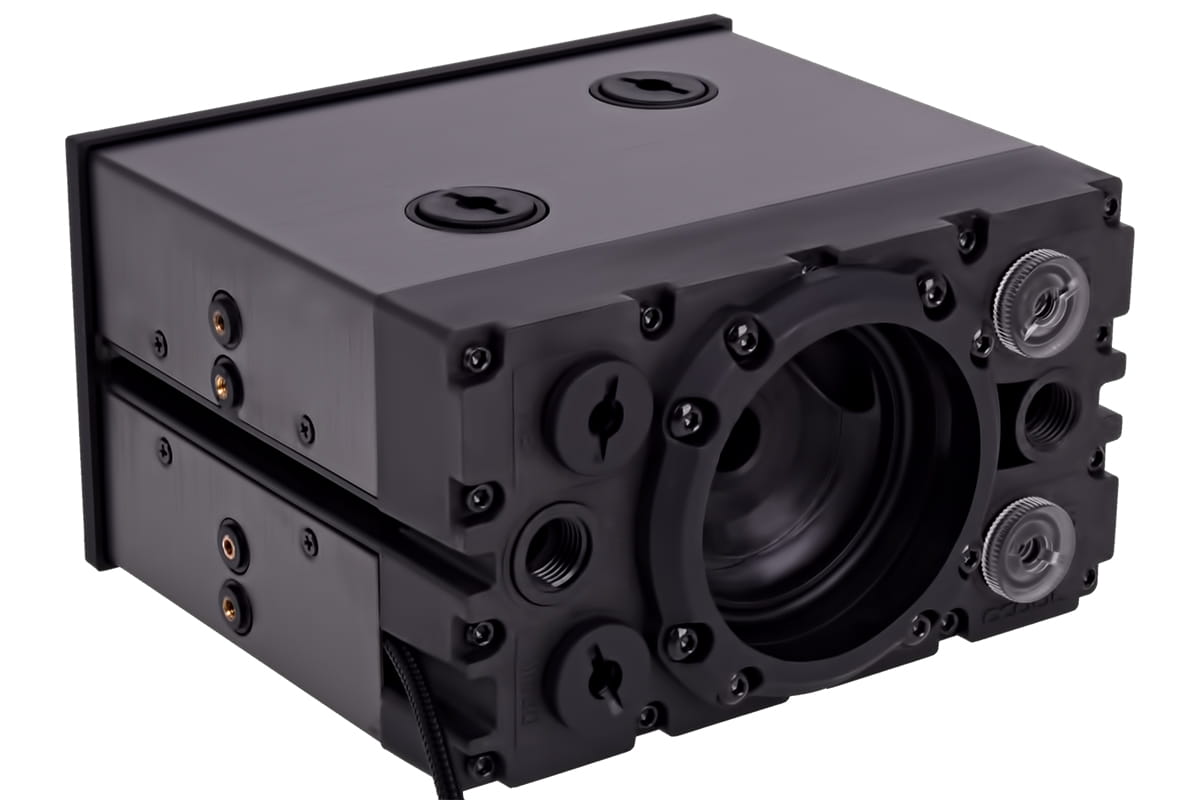

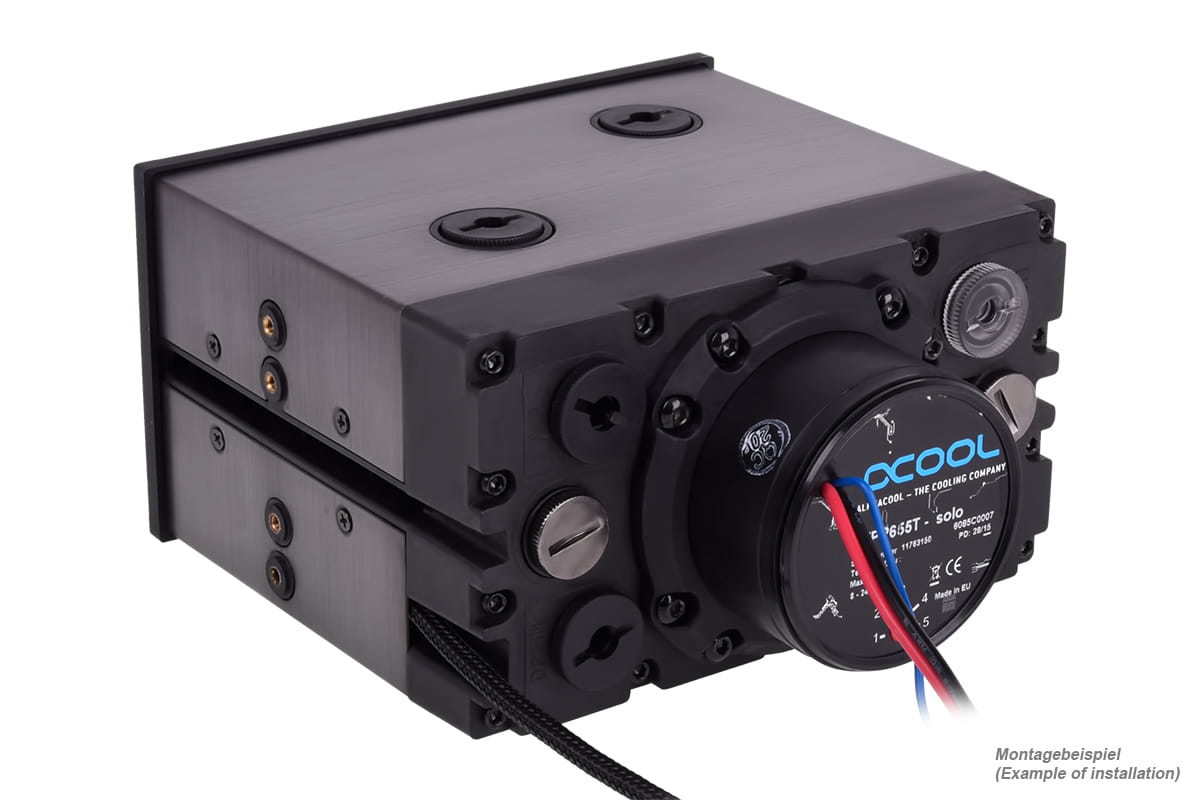

The new Alphacool AGB is available in three different versions. Depending on the model, the Laing DDC, the Alphacool DC-LT or the Laing D5 or the Alphacool VPP655 can be installed in the rear panel.

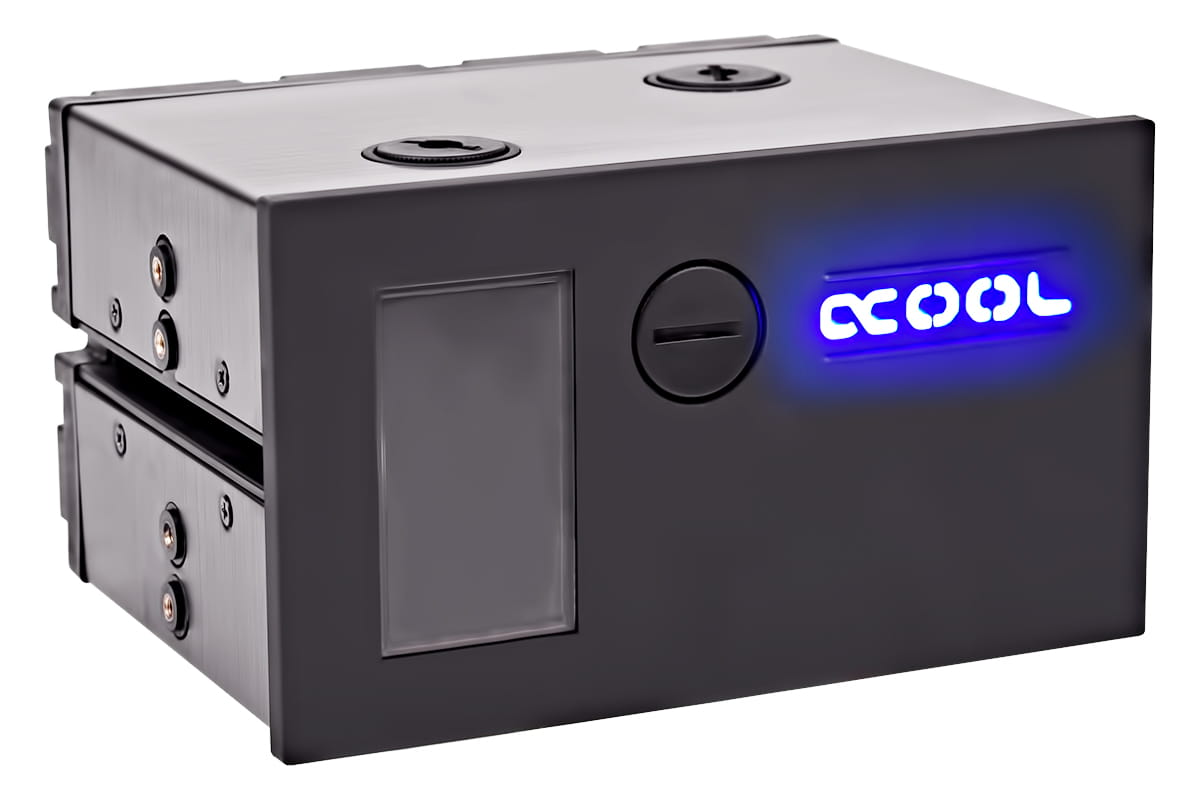

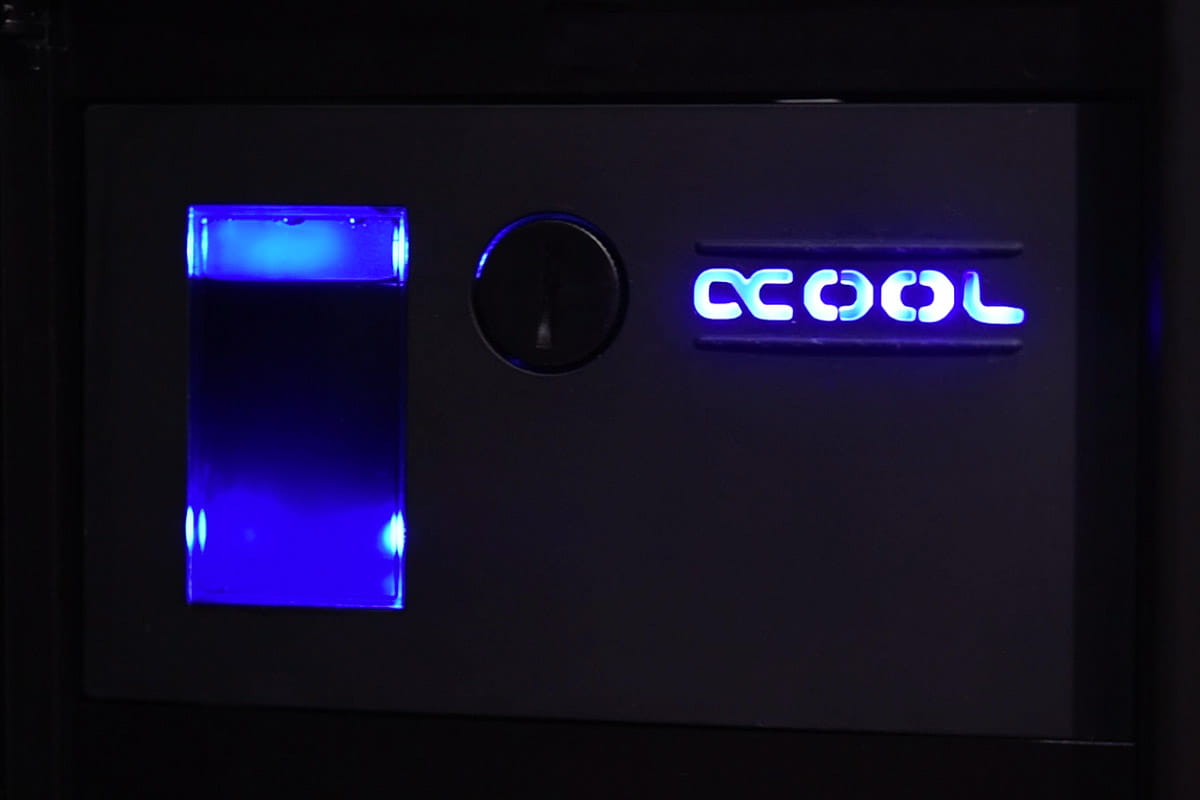

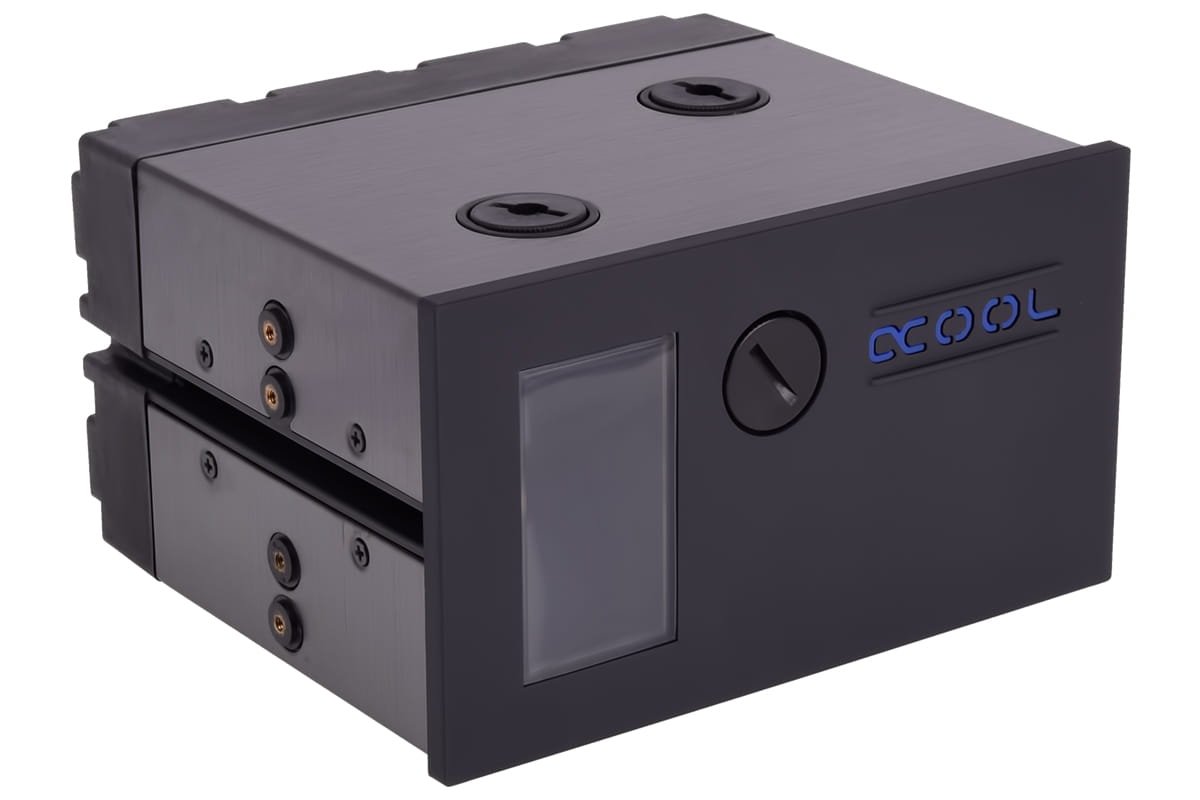

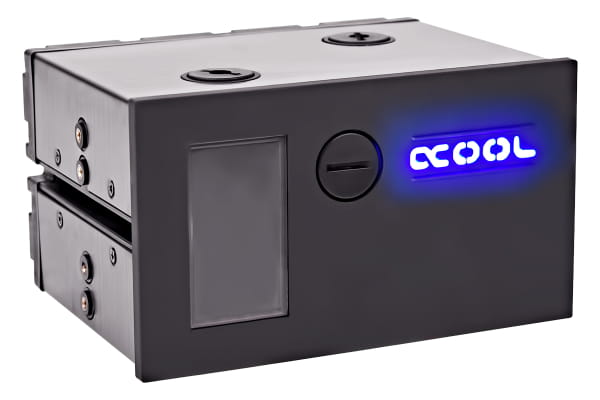

The workmanship is very high quality. The brushed sheet metal that surrounds the container creates a visually rounded overall appearance. The front is matt black and consists of a scratch-proof soft-touch surface. The ice compartment is installed in two of the front 5.25" slots, which means that you can always see the container and the fill level can be read through the backlit viewing window. The Alphacool logo on the front can also be illuminated if the 3-pin plug is connected to a power source.

Many little things complement the first impression!

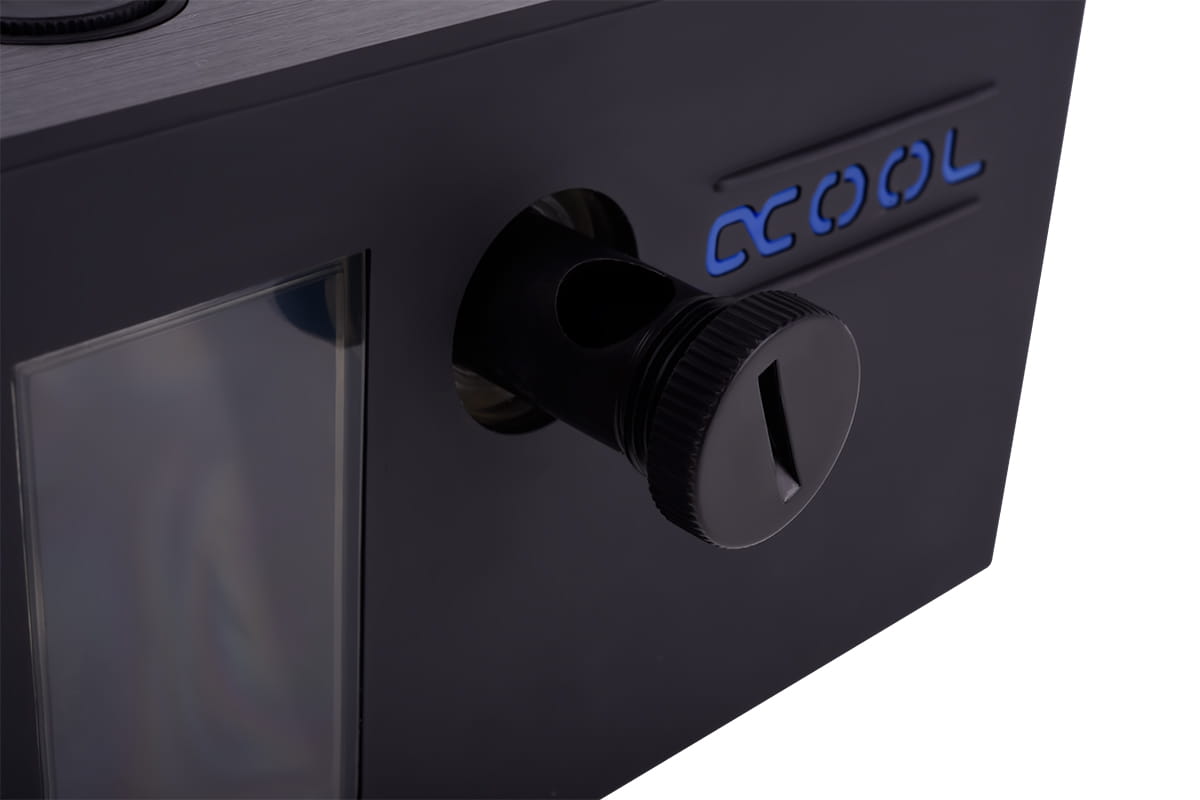

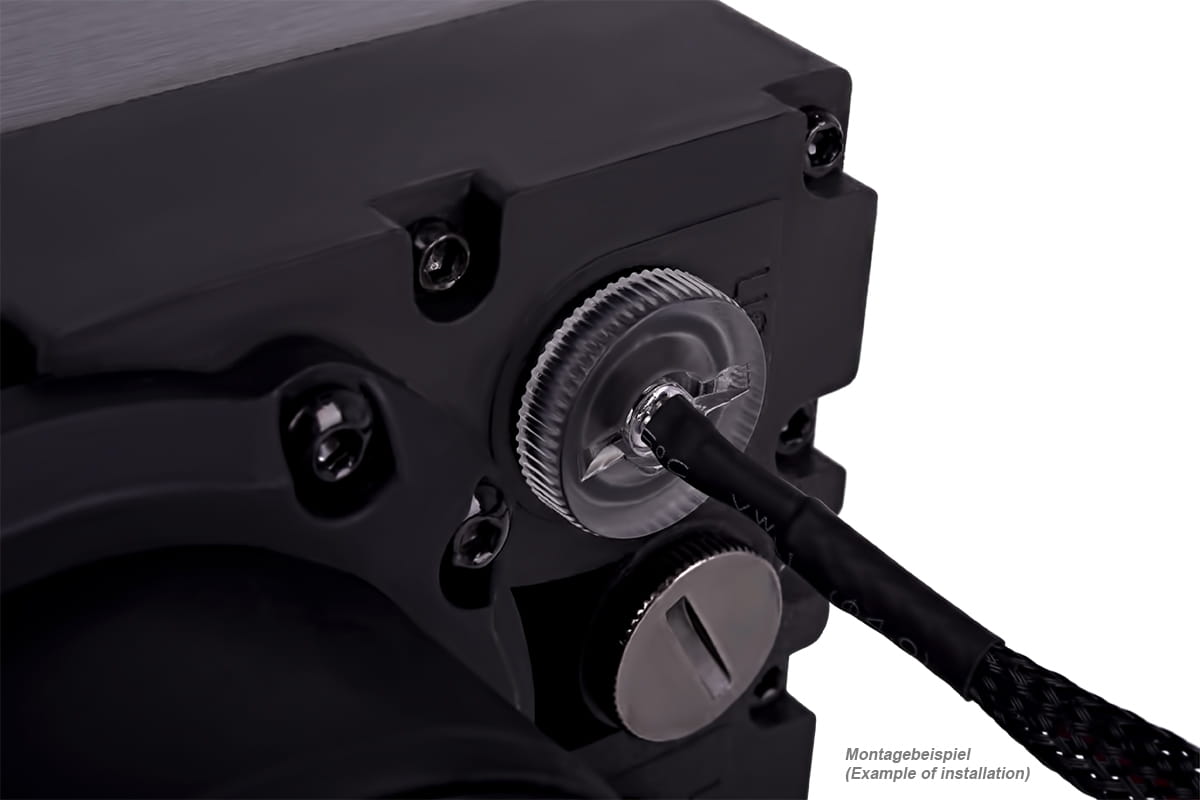

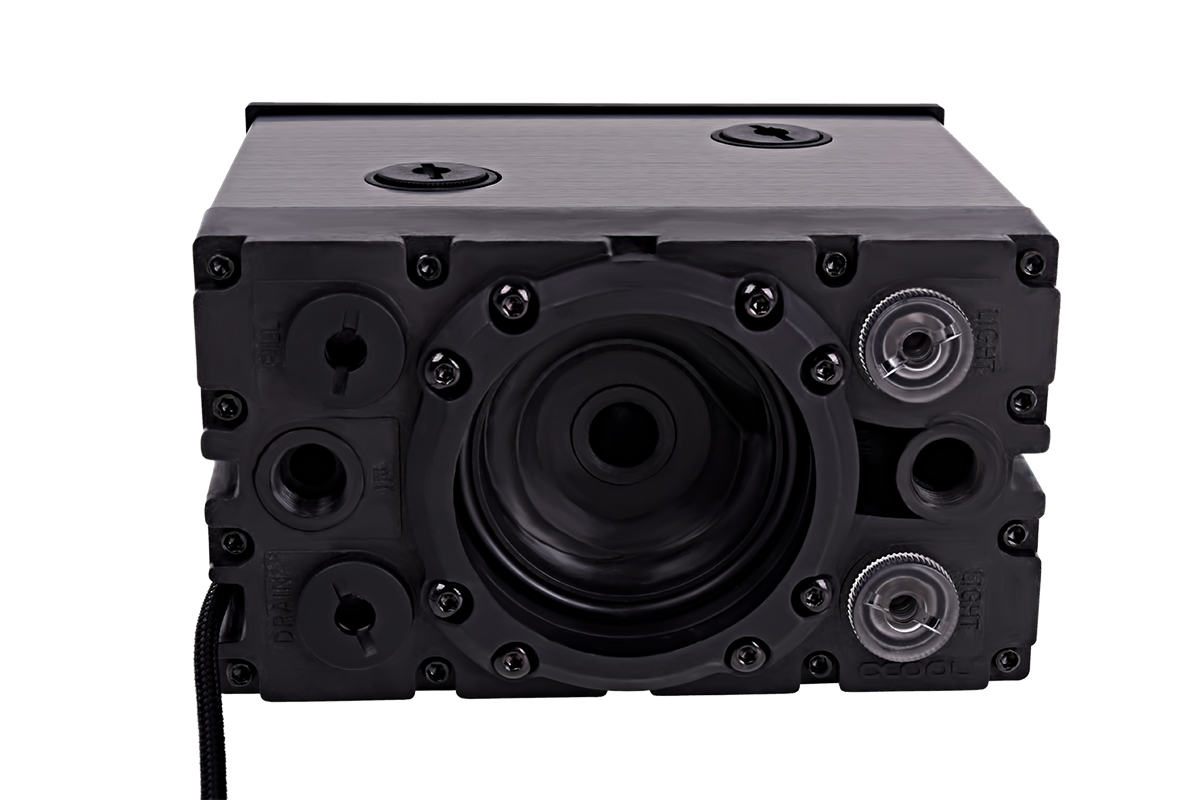

There are two 1/4" openings on the top for initial filling. To refill the coolant, the filling nozzle on the front can be unscrewed and pulled out. There are also two 1/4" openings on the bottom for draining the liquid. On the right-hand side of the back, two lighting modules for 5mm LEDs are placed behind the viewing window. This can be used to create a very unique look and illumination. On the left-hand side there are also two openings for filling and draining the liquid. The last two 1/4" threads are for the inlet and outlet. A bubble down module has been placed behind the inlet to prevent turbulence that can bring air into the water circuit.

Technical data:
Material: plastic, metal
Color: Black
Dimensions (LxDxH): 148 x 132 x 84.5mm
Connection thread: 10x 1/4"
Lighting: 2x 5mm LED

Scope of delivery:
1x Alphacool ice compartment
Mounting material

A notice:
The container is delivered without a pump. Please order this separately or as a set!

Download 3D file (.stp)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Material:	Acetal, Acryl, Aluminium, Nylon
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
LED Bohrungen:	vorhanden (für 5mm LEDs)
Pumpenkompatibilität:	für 1x D5
Behältertyp:	Sonstige Behälter
Abmessungen:	148 x 132 x 84,5mm
Anzahl Anschlüsse:	10
