Apex VPP pump for PC water cooling

Article no.: PUM
EAN: 4250197133395
Weight: 0,321 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€65.99 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisdecke D5 attachment - Black Acetal G1/4 - (VPP755/VPP655/TPP644/MCP655) V.3

€29.98*

Alphacool Eisdecke D5 Acrylic Top V.4

€39.98*

Alphacool Rise Flat Reservoir D5

€104.98*

and Conditions Alphacool Core 100 Aurora Reservoir D5/VPP Acetal/Acrylic

€45.98*

The Alphacool Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops... more

Close menu

Product information

The Alphacool Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM signal. The Apex VPP is supplied with power via the SATA connector.

Features
Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes have the effect that the pump is fundamentally more stable and smoother running, and any vibrations that arise have been significantly reduced. Another positive side effect is that power consumption has been almost halved as a result.

Power supply

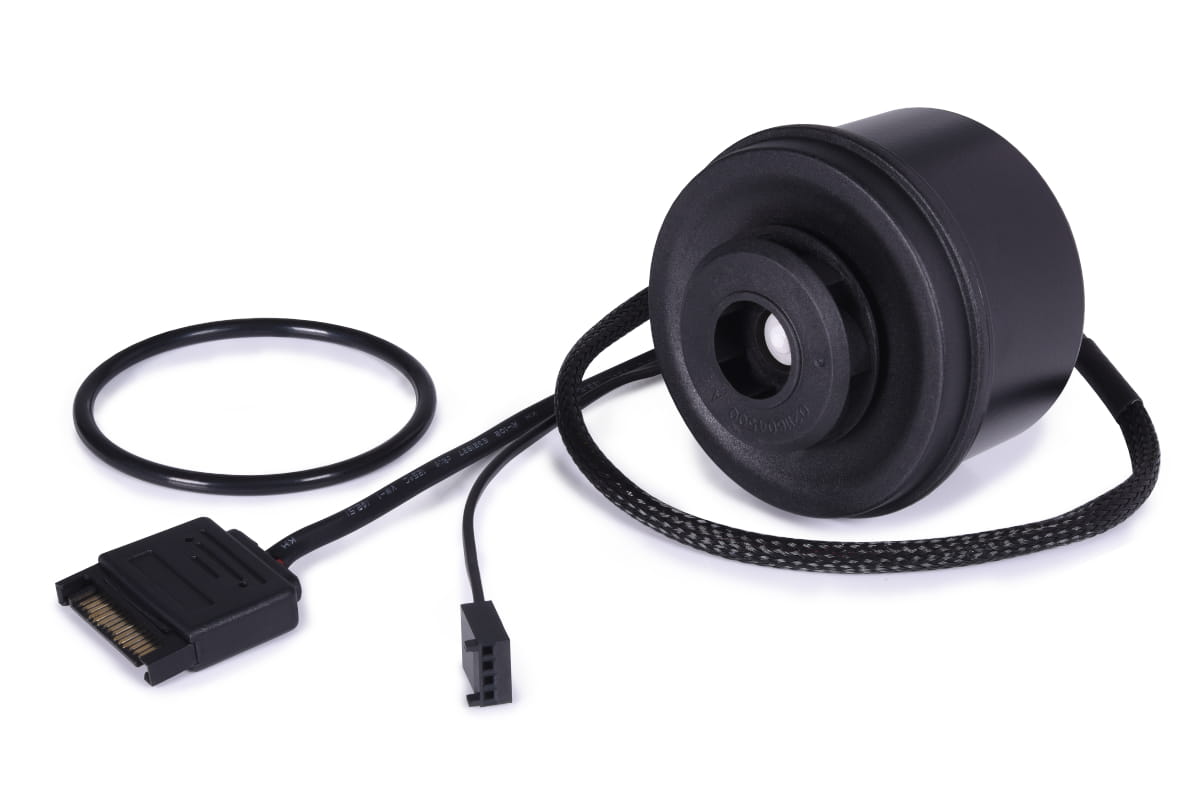

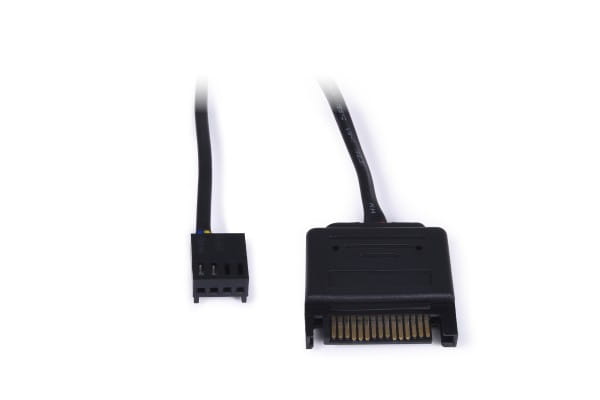

Compared to Alphacool's Eispumpe, the power is not supplied via a 4-pin Molex connector. Instead, the Apex VPP pump is connected to the power supply using a SATA connector.

Control
The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or to an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal.

Compatibility
The Apex VPP pump is compatible with the most popular D5/VPP pump tops and reservoirs.

Technical data
Dimensions (L x W x H)	65 x 65 x 41mm
Material pump	synthetic material
Material pump cover	aluminium
Material axle	ceramics
Connections	4-Pin PWM \| SATA
Rotational speed	2500 - 4500 RPM
Cable lengths	4-Pin PWM - 48cm \| SATA - 48cm
Operating voltage	8-13V DC / 14W IP32
Starting voltage	12V DC
Maximum pumping head	4,25m
Maximum flow rate	340L/h
Maximum working temperature	60°C
Weight	276g
Color	black

Warranty: 5 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Spannung:	12V DC
Maximale Systemtemperatur:	60°C
Wassereinlass:	nicht vorhanden
Wasserauslass:	nicht vorhanden
Maximale Förderhöhe:	Extrem (größer 4m)
Stromanschluss:	SATA
Maximaler Durchfluss:	340 l/h
Zugelassene Flüssigkeiten:	Wasser/Glykol-Gemisch
Leistungsaufnahme:	14W
Abmessungen:	65 x 65 x 41mm
Möglicher Regelbereich:	8-13V DC
Material:	Aluminium, Keramik, Kunststoff
