400ml reservoir for PC water cooling

AGB Alphacool Core 200 Aurora Ausgleichsbehälter D5/VPP Acetal/Acryl

Article no.: 15394
EAN: 4250197153942
Weight: 1,073 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€49.98 * €101.13 * (50.58% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Chrome

€5.99*

Alphacool Eiszapfen 13/10mm screw-on nozzle 90° rotatable G1/4 - Chrome

€7.98*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

and Conditions Alphacool Core 100 Aurora Reservoir D5/VPP Acetal/Acrylic

€45.98*

Alphacool VPP655 - Single Edition

€69.98*

Alphacool VPP655 - PWM - Single Edition

€74.98*

Alphacool hose AlphaTube HF 13/10 (3/8"ID) - Clear sold by the meter

€6.98*

The Alphacool Core reservoir combines performance with design. The reservoir tube is made of... more

Close menu

Product information

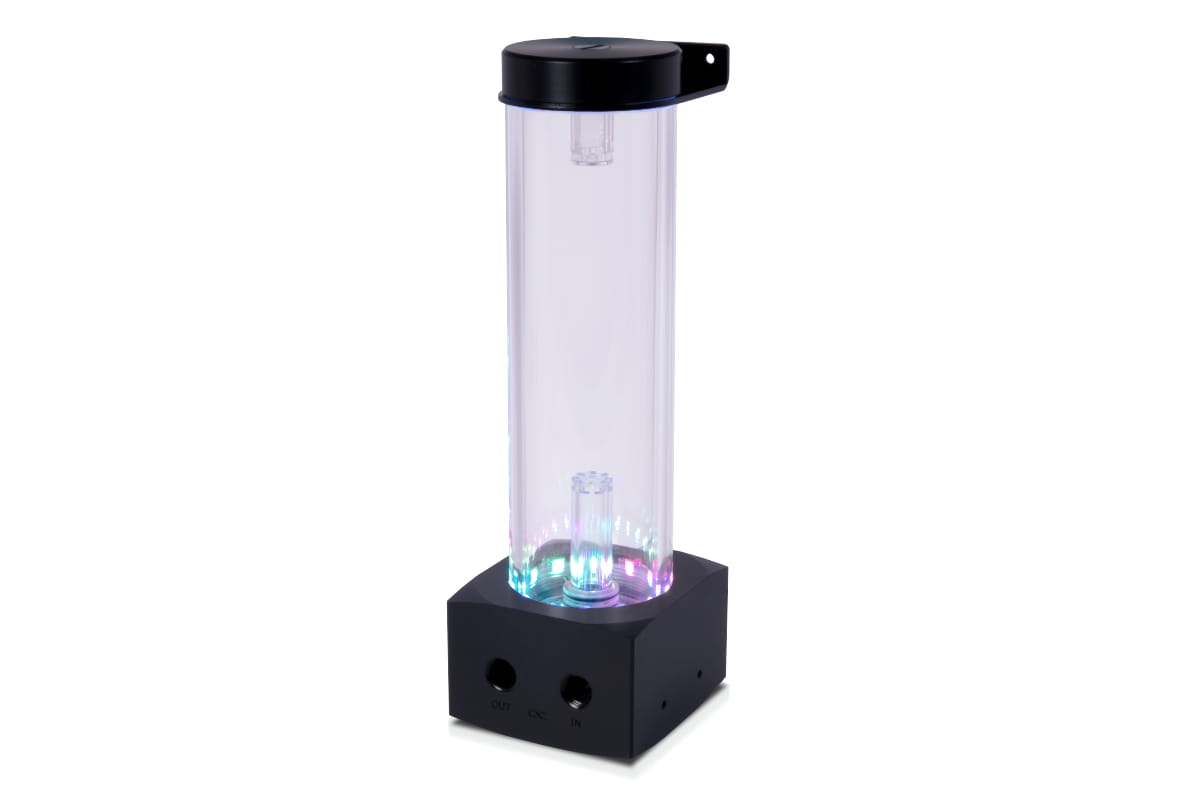

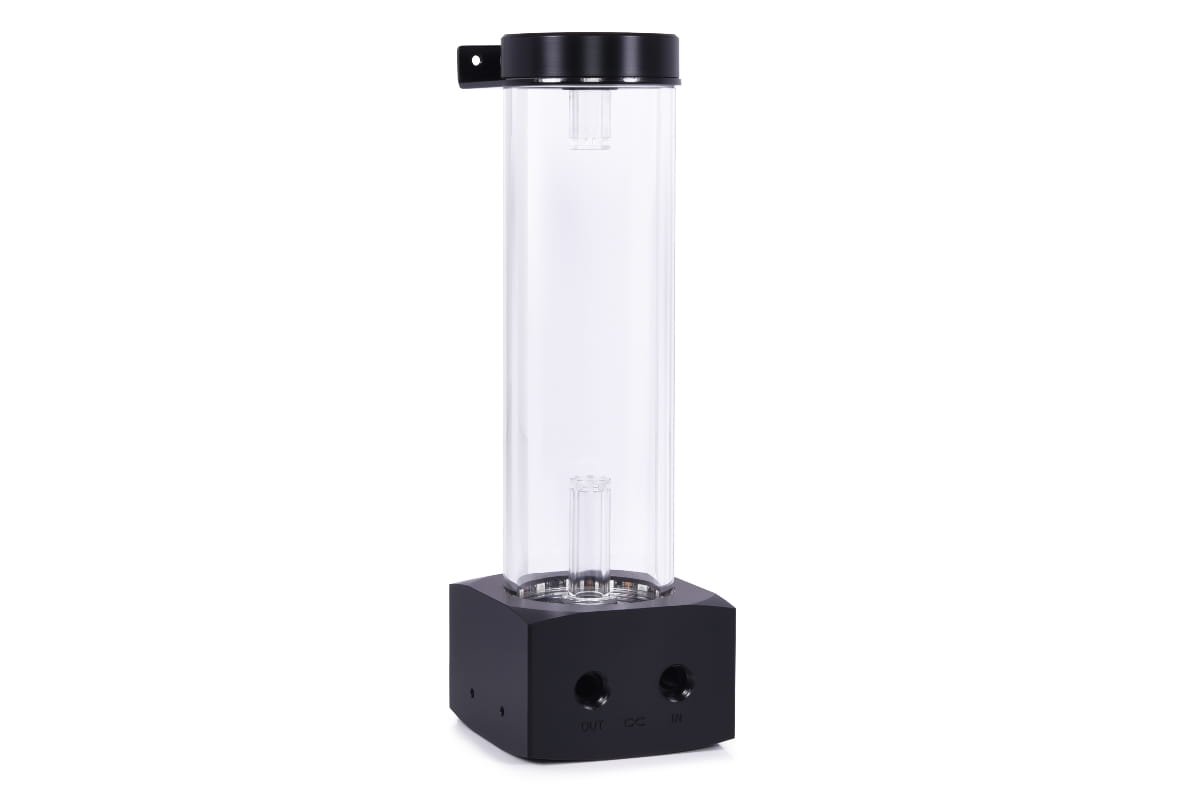

The Alphacool Core reservoir combines performance with design. The reservoir tube is made of acrylic, the D5/VPP pump top and the lid are made of acetal. The combination of these two materials gives the reservoir a subtle appearance. 12 digitally addressable RGB LEDs in the pump top and the light tower water effect inside the acrylic tube provide the wow effect.

What's new?
Compared to the previous ice cream bowl models, the acrylic tube of the Core reservoir has an external thread. This ensures greater stability and safety when connecting the lid and pump top to the tube. The integrated digital aRGB lighting is also new. 12 digitally addressable RGB LEDs in the pump top are included with the Core reservoir and no longer need to be purchased separately.

Extensive assembly options
Mounting option 1:

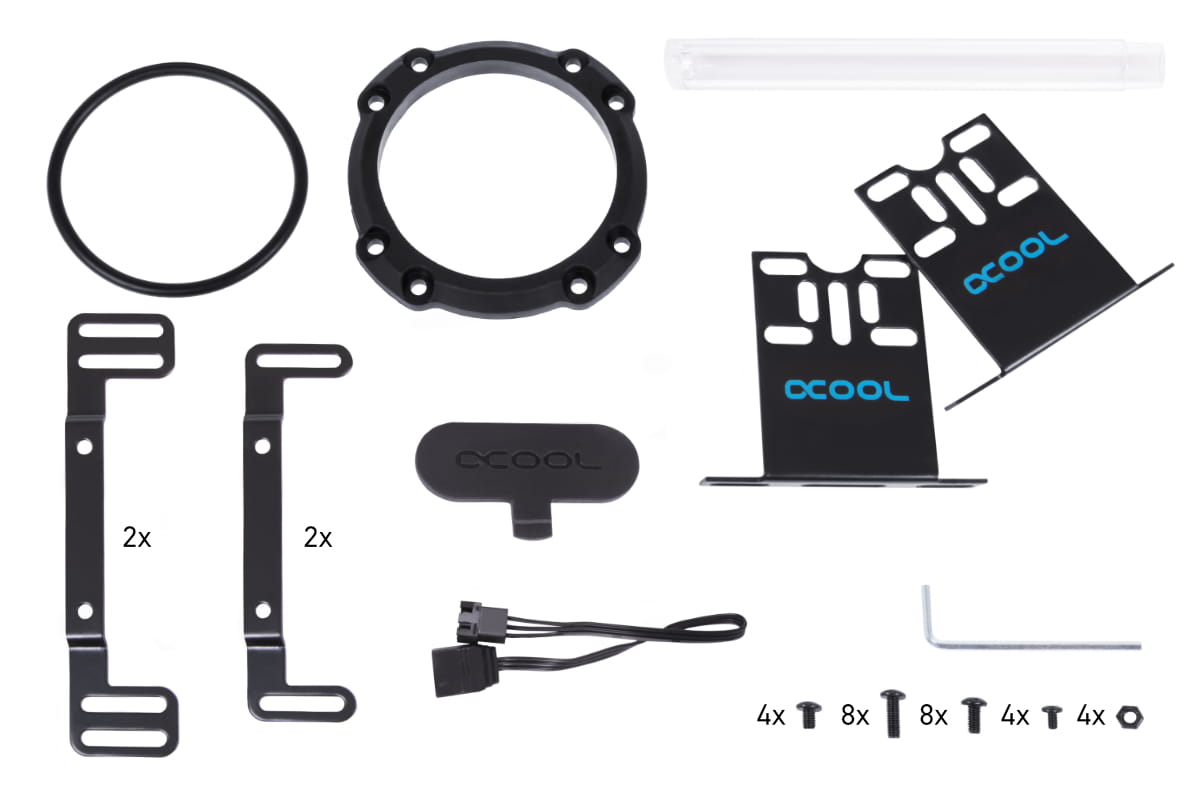

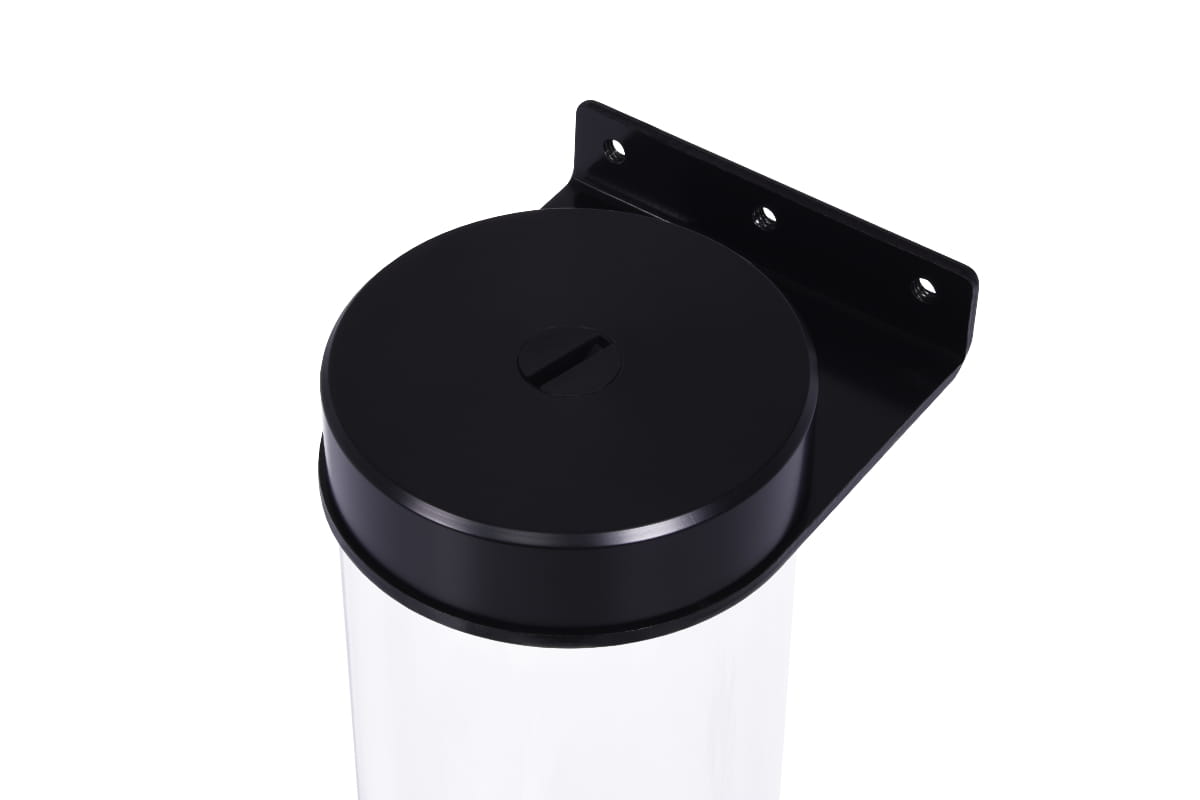

The scope of delivery includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.

Mounting option 2:
The scope of delivery includes 120mm/140mm mounting frames with which the Core expansion tank can be attached to free fan slots, radiators or to the fans on radiators.

Digitally addressable RGB lighting

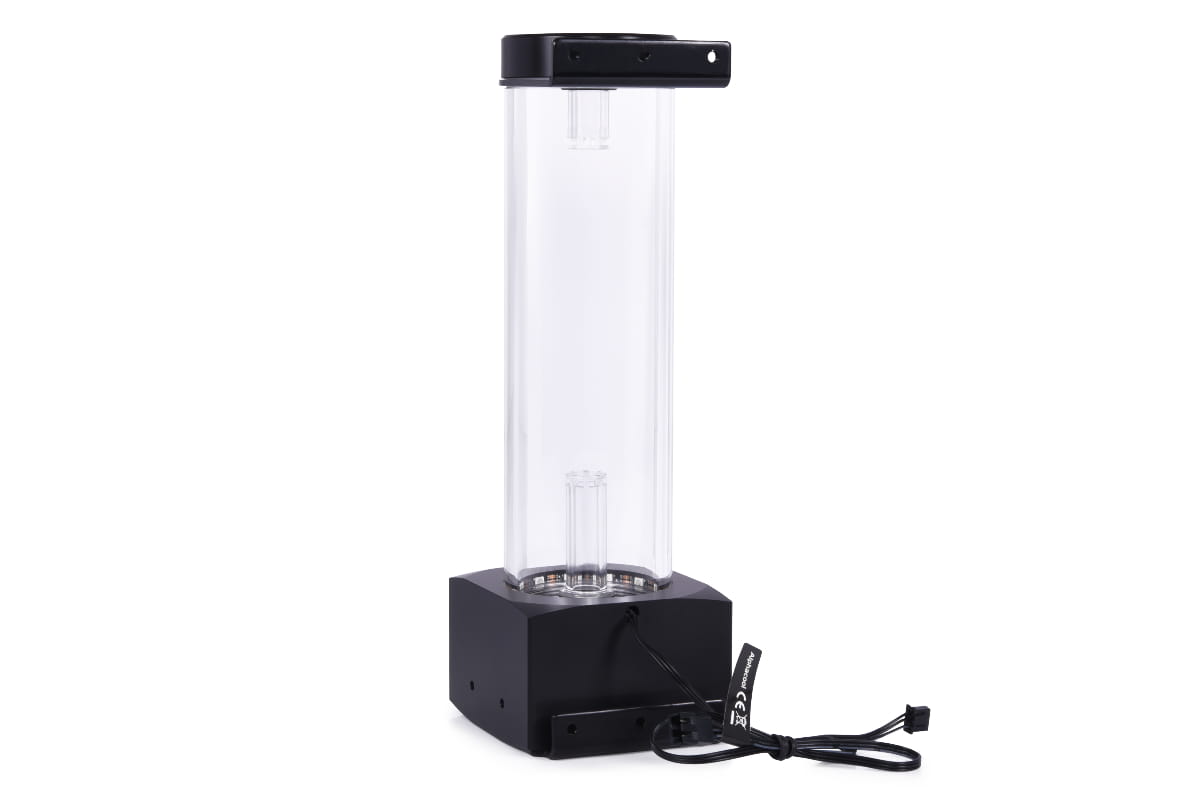

12 digitally addressable RGB LEDs illuminate the acrylic tube of the expansion tank. They are arranged in a ring at the lower end of the tube in the transition to the pump top and ensure brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (eg Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Lighttower water effect

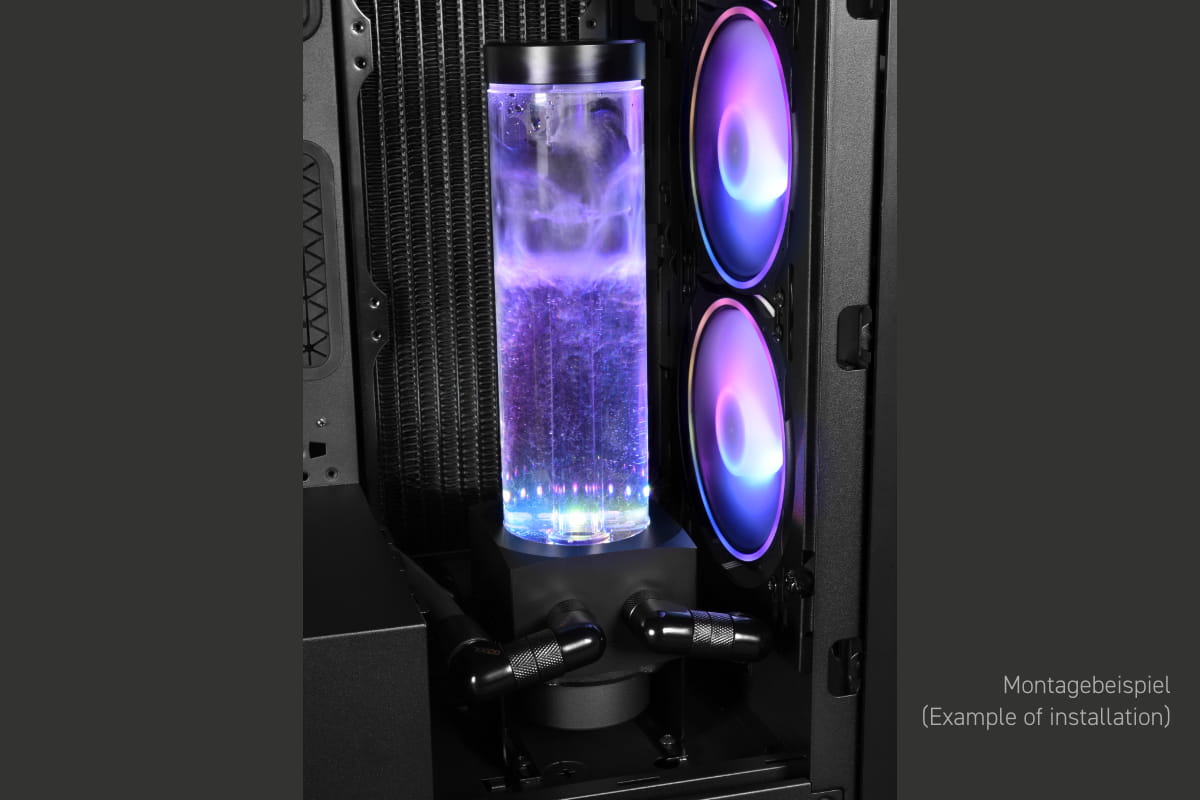

A special water effect is created in the core reservoir via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.

Pump compatibility

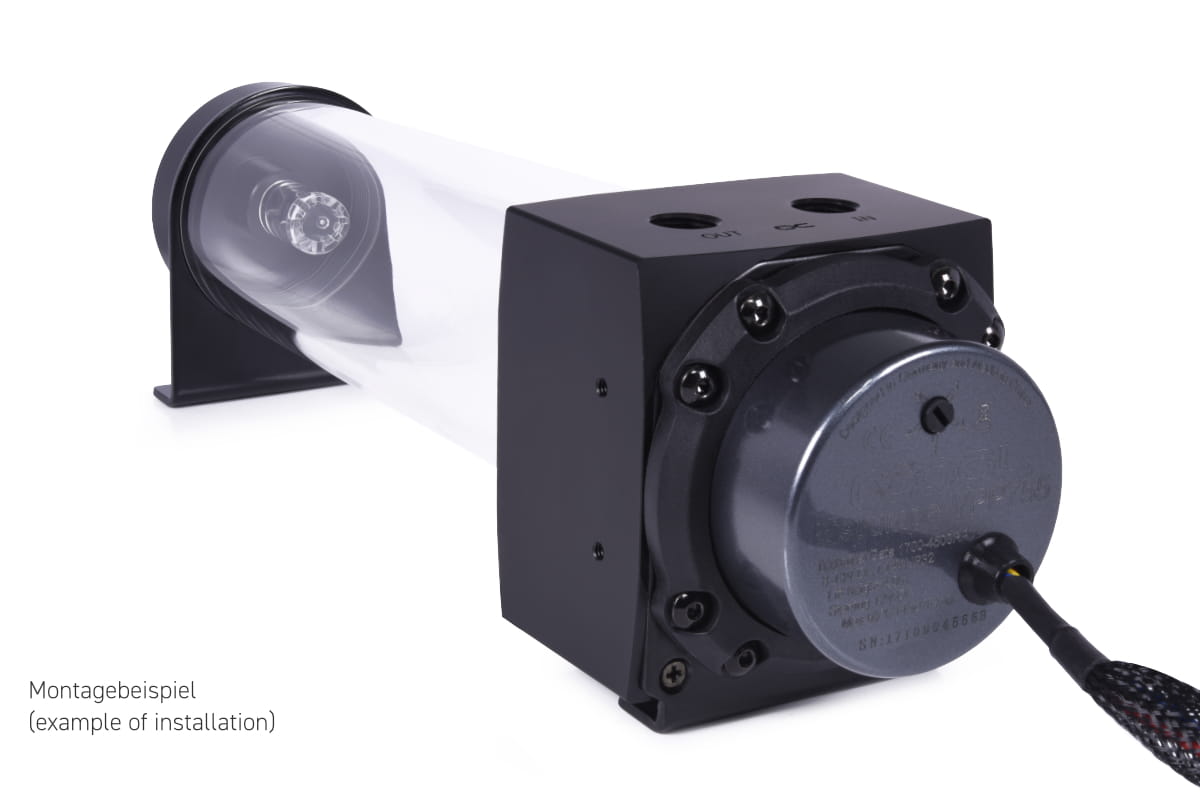

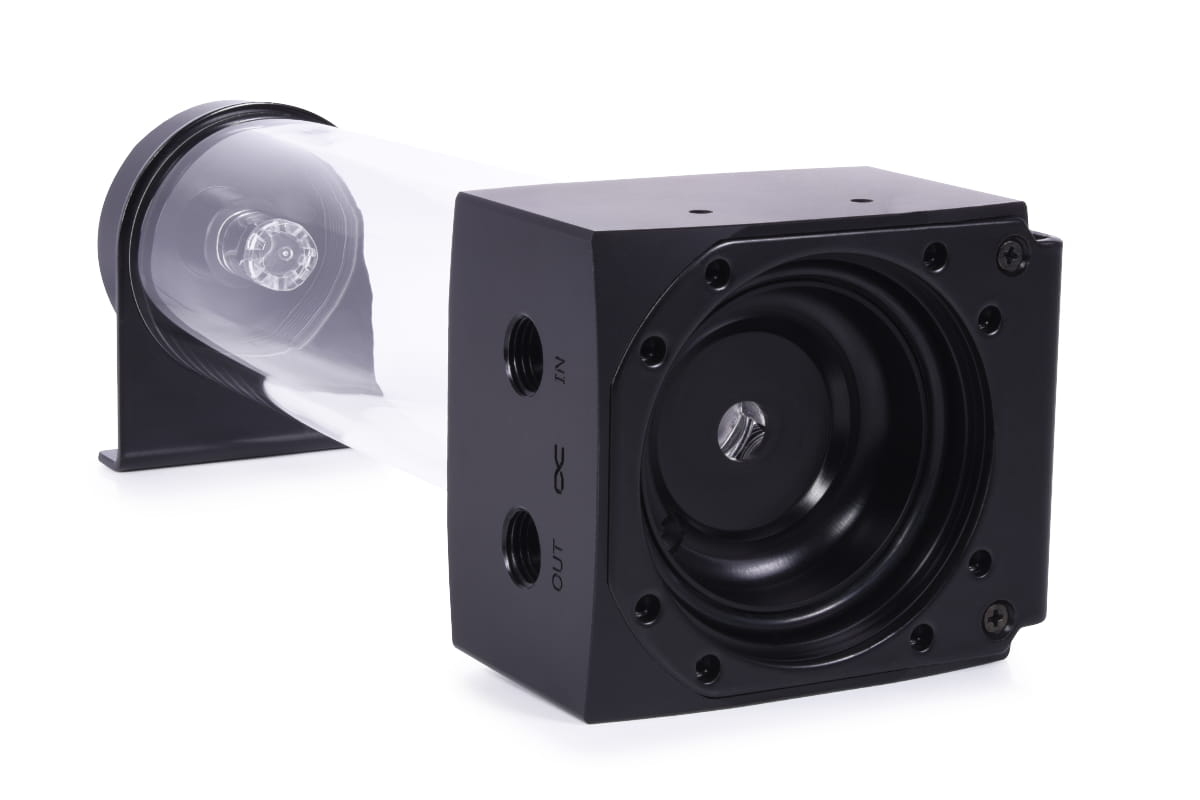

The Alphacool Core reservoir has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the delivery.

Technical data
L x W x H	251x76.5x76.5mm
Pump compatibility	D5
volume	400ml
Material pump top & lid	Acetal
Material tube	Acrylic

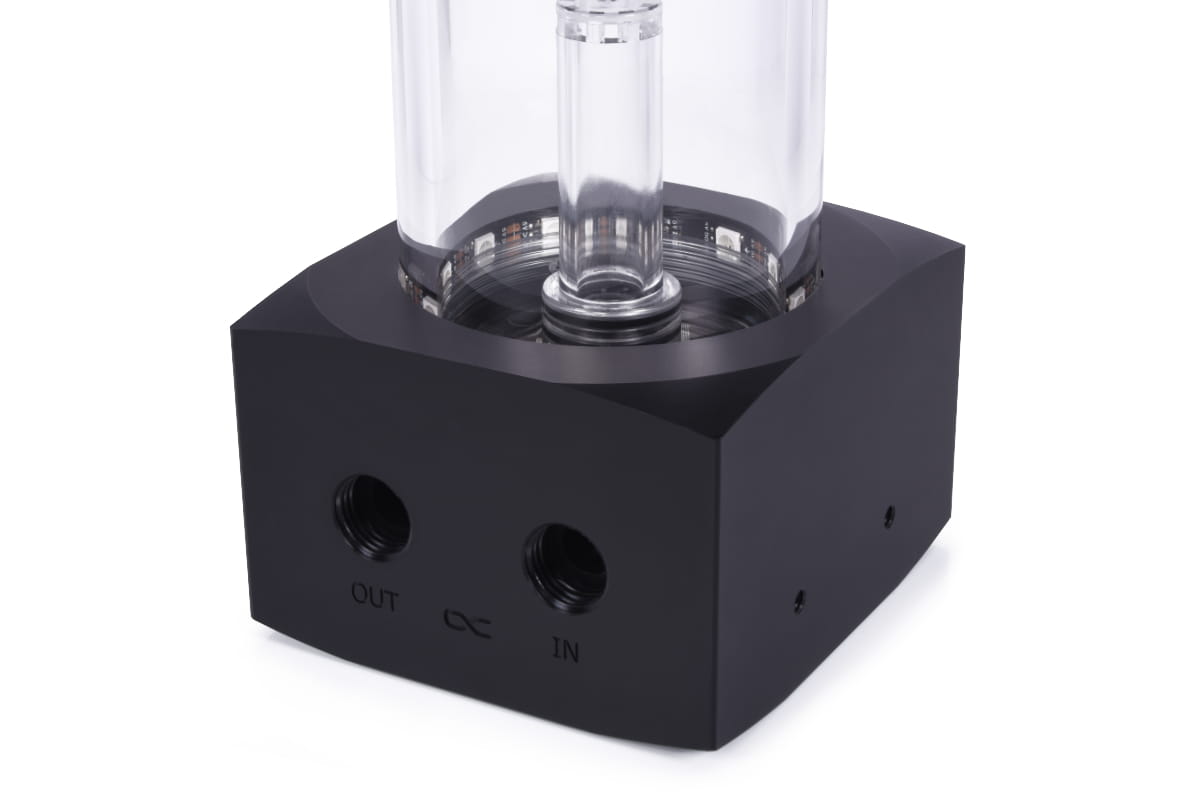

Connections	3x G1/4“ internal thread
Maximum working temperature	60°C
Pressure tested	0.8 bars
Number of digital aRGB LEDs	12
Voltage digital aRGB LEDs	5V
Power connection digital aRGB LEDs	3-Pin JST (male & female switch)
Weight	621g
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Material:	Acetal, Acryl
Pumpenkompatibilität:	für Durchflusspumpen
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
Anzahl Anschlüsse:	3
Abmessungen:	251 x 76,5 x 76,5mm
Volumen:	400ml
Farbe:	transparent
