Alphacool Core 1 Black

  • 13443
  • 4250197134439
  • 0,97 kg
  • Images may differ slightly from the original
€99.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
90334 Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
1x
Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
€59.98*
17454 Alphacool HF compression Fitting TPV Metall - 12,7/7,6mm Straight - Black - 6pcs Kit
1x
Alphacool HF compression Fitting TPV Metall - 12,7/7,6mm Straight - Black - 6pcs Kit
€27.98*
17475 Alphacool Eiszapfen PRO 13mm HardTube fitting G1/4 - deep black sixpack
1x
Alphacool Eiszapfen PRO 13mm HardTube fitting G1/4 - deep black sixpack
€44.98*
18651 Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
15480 Alphacool Core Distro Plate 360 Left with VPP Apex pump
1x
Alphacool Core Distro Plate 360 Left with VPP Apex pump
€249.98*
13470 Alphacool Core Geforce RTX 4090 Founders Edition with Backplate
1x
Alphacool Core Geforce RTX 4090 Founders Edition with Backplate
€199.98*
Alphacool presents the Core 1, a new generation of CPU water cooling. The latest desktop... more
Product information

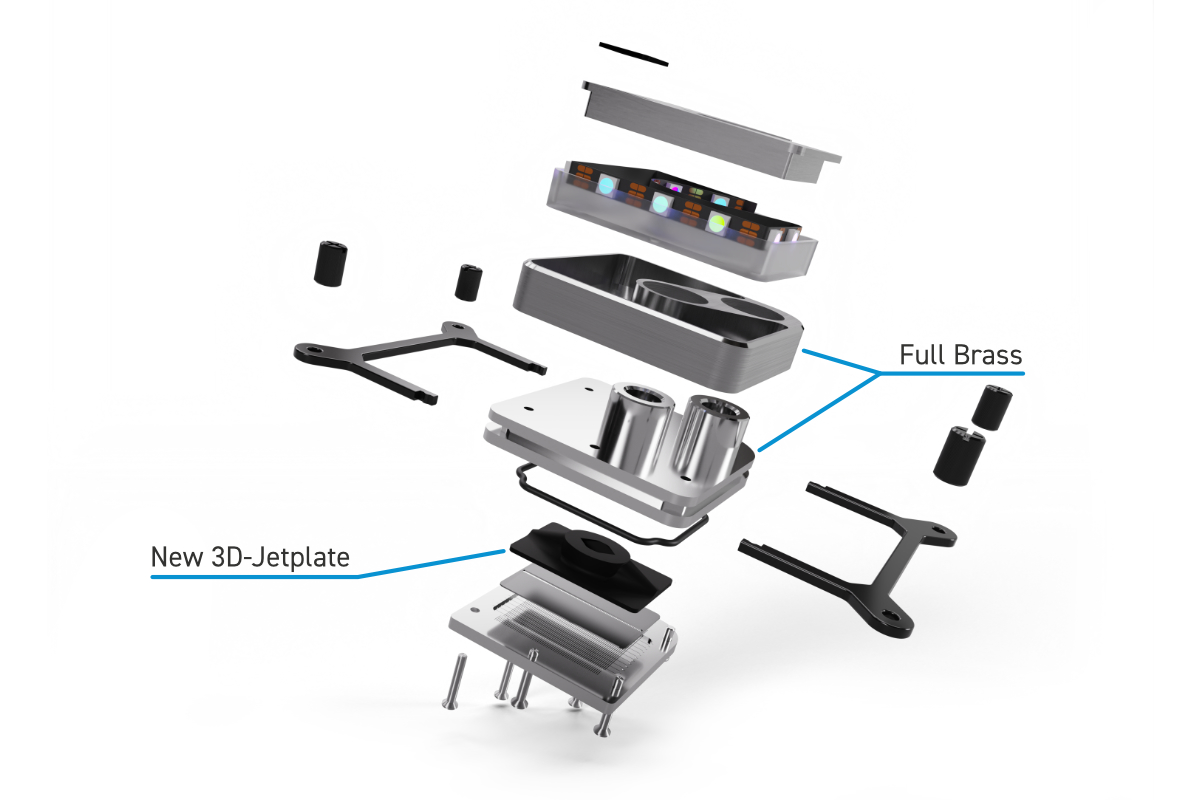

Alphacool presents the Core 1, a new generation of CPU water cooling. The latest desktop processors are continuously becoming more powerful, but also produce more and more waste heat. The Core 1 reliably solves this problem with the help of its entirely new 3D-Jetplate, which is also used in industrial applications. The all-metal CPU water cooler not only impresses with its elegant appearance, but also features a new mounting system that simplifies installation.

The best of new and old

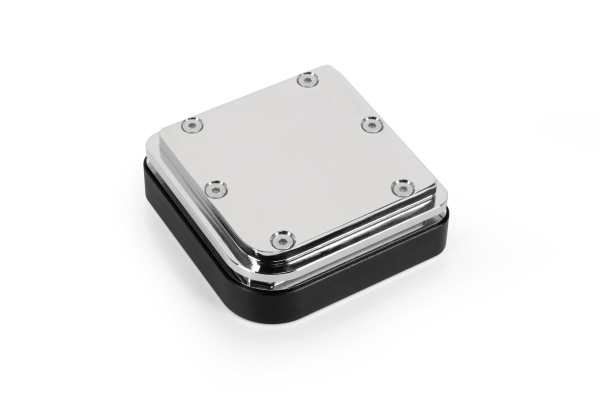

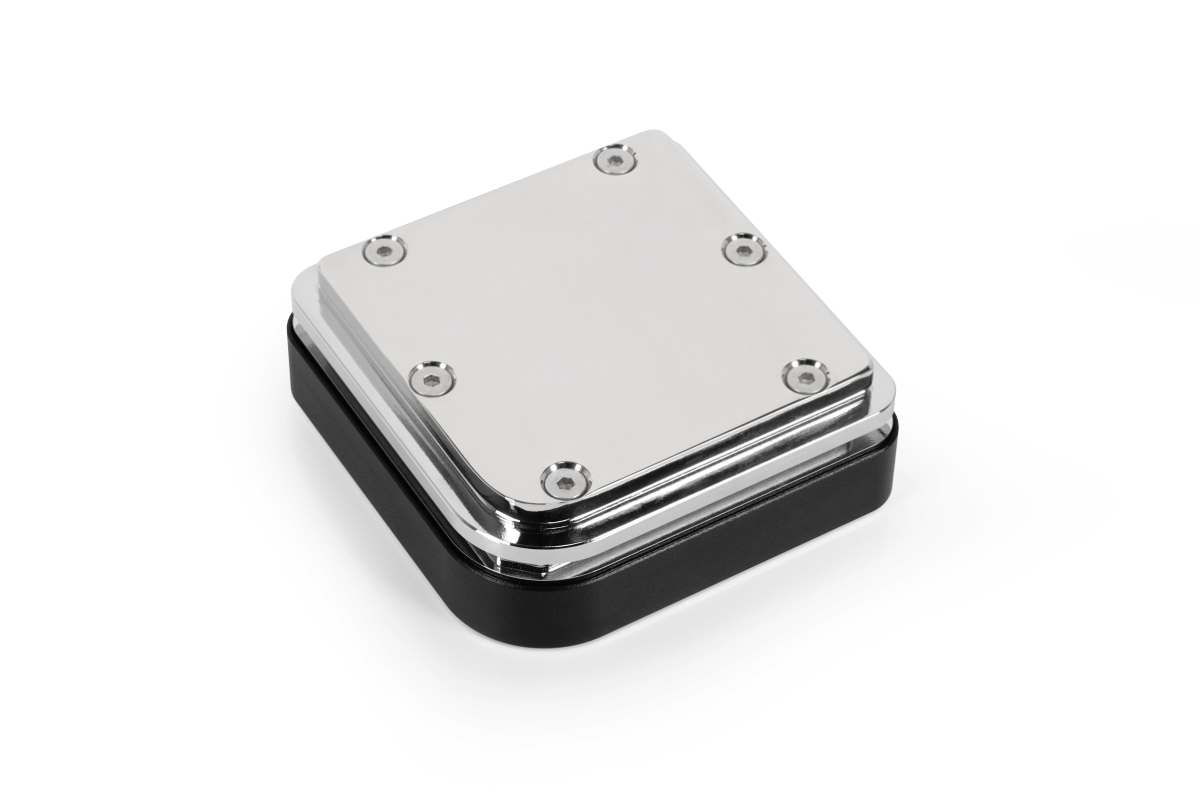

Alphacool brings the best of both worlds together with the Core 1. In addition to the new 3D-Jetplate, Alphacool returns to its roots by using a proven cross-slot technique to distribute coolant evenly across the redesigned cooler base. Inside the cooler, O-rings ensure precise water flow for effective cooling. The Core 1's housing is machined from a high-quality brass block and features nickel-plated connectors. The cooler's copper base, also nickel-plated, has been enlarged to ensure full coverage of large CPUs.

New Mounting System

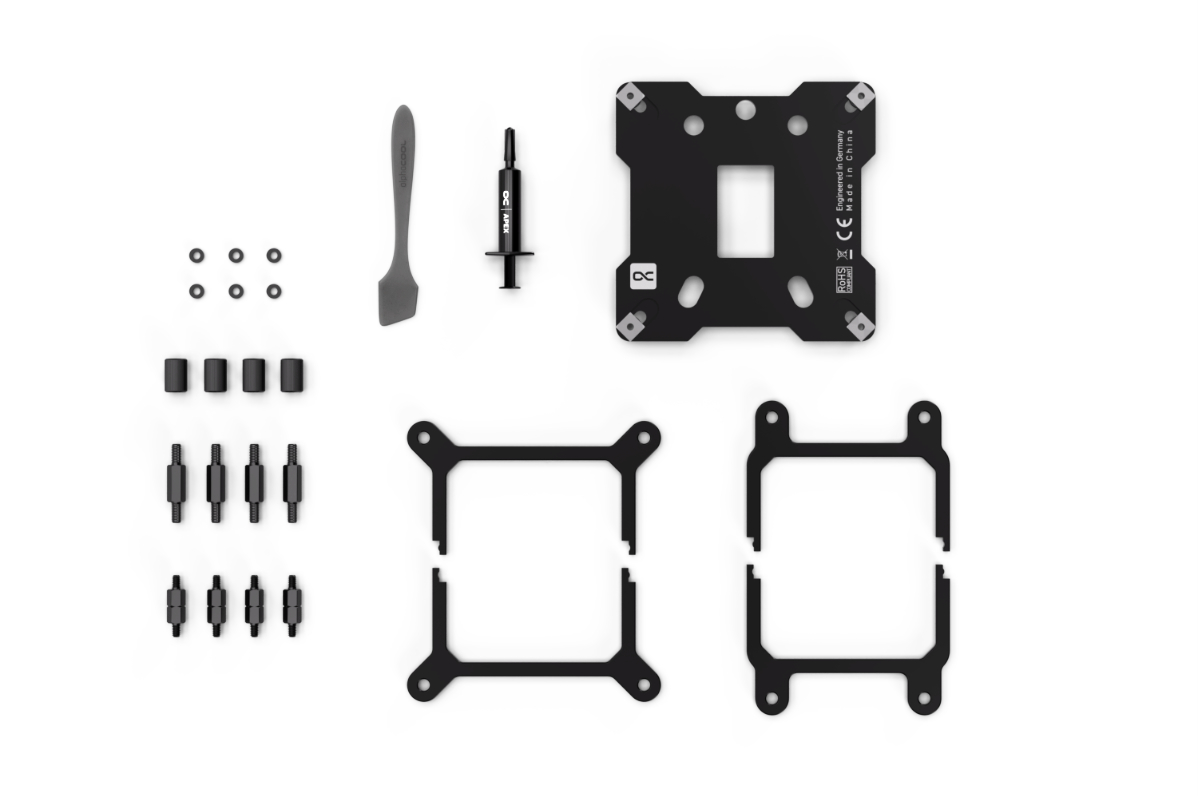

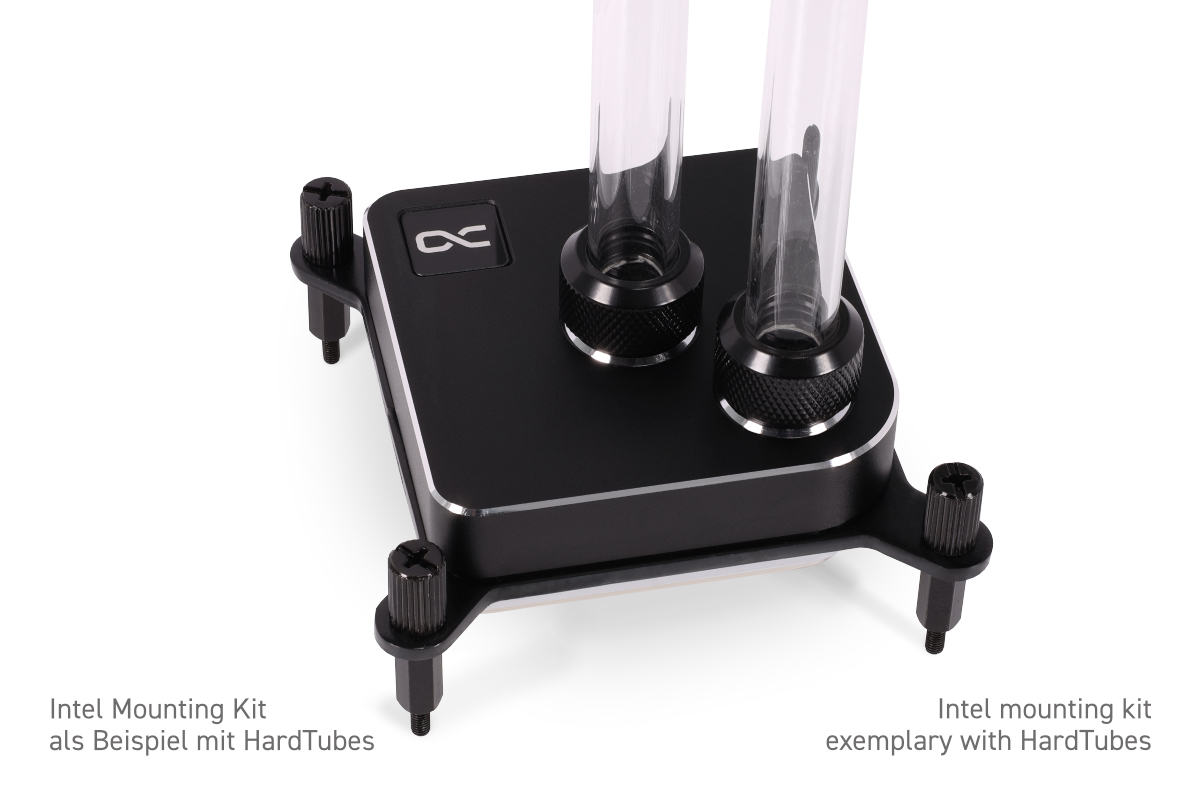

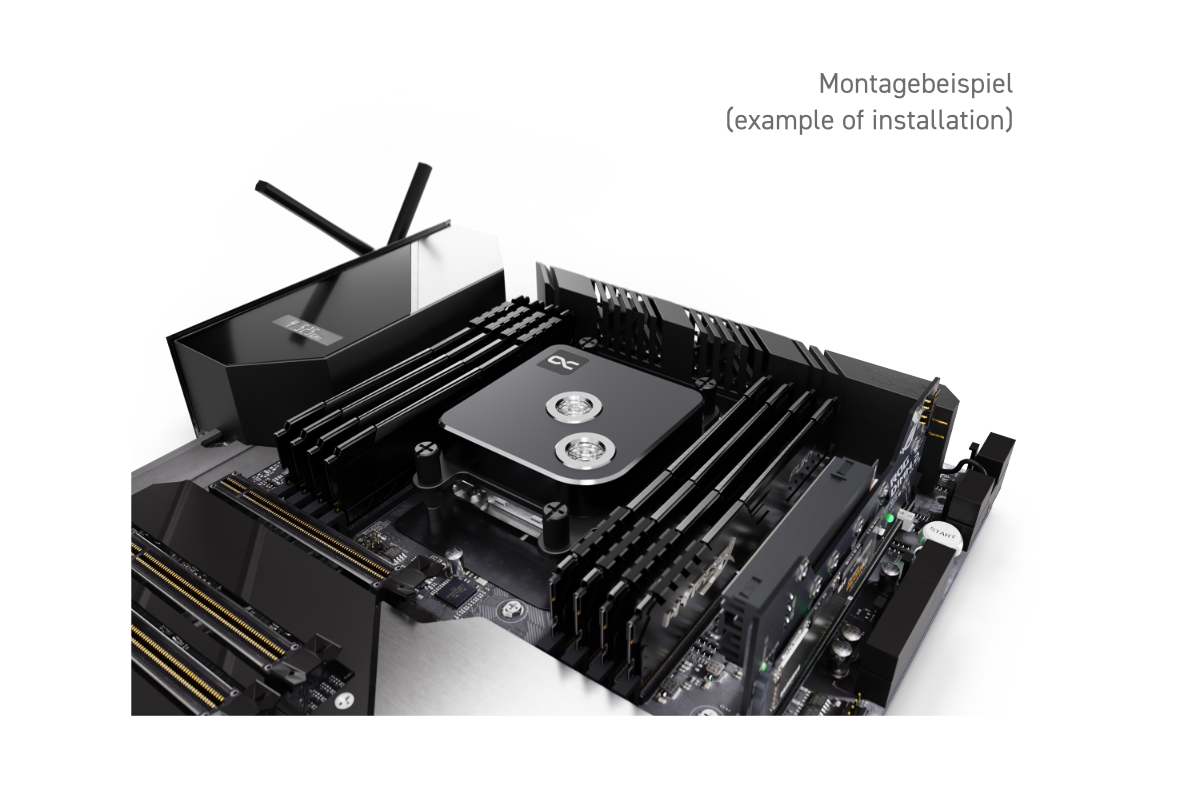

The mounting system has also been revised. Compared to previous Alphacool models, it requires fewer screws. First, the pre-assembly of the backplate (Intel) is done with four spacers. After that, the thermal paste is applied to the CPU. Then, the matching mounting frame is put on the CPU cooler and fastened with four nuts on the spacers.

Core Design

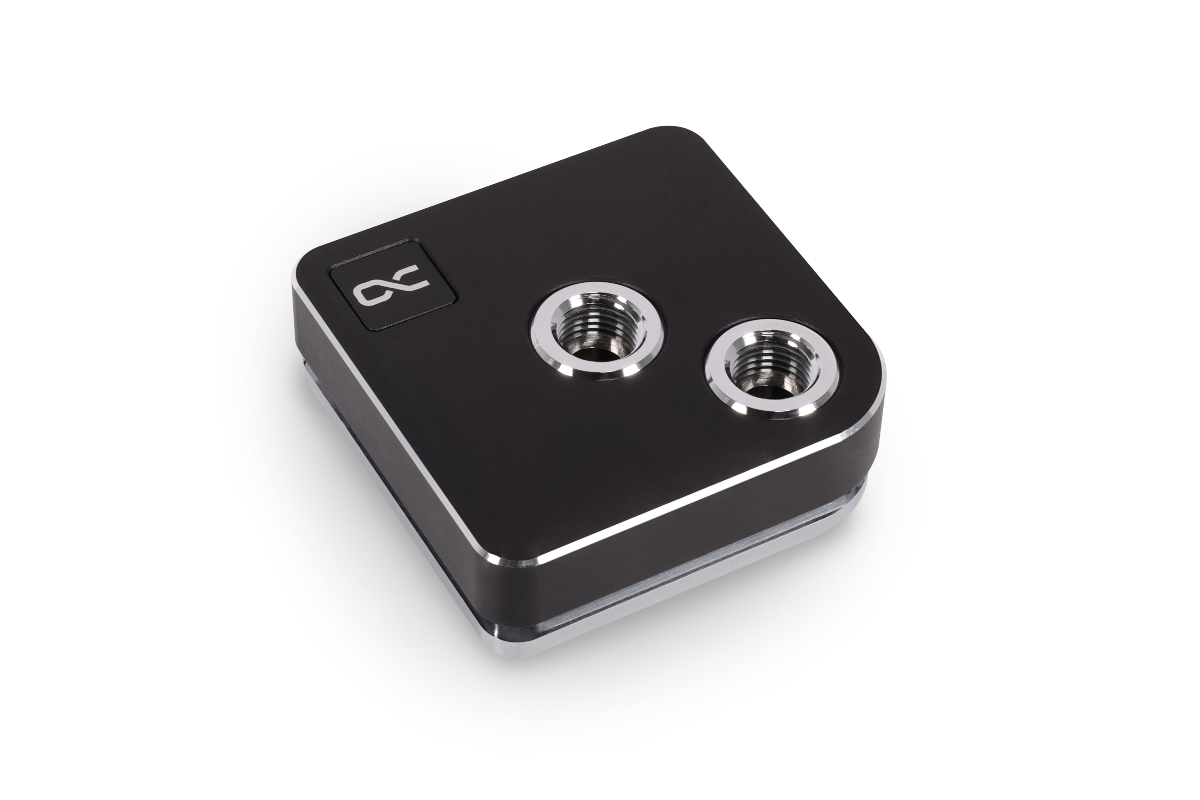

The functional and elegant design is a key element of Alphacool's Core series. The nickel-plated connectors and the discreet contour line stand out from the high-quality brass housing. The rounded corners add the perfect touch to the overall look. The Core 1 is available in various color designs, as well as in discreetly illuminated aRGB Aurora models.



Compatibility:
Intel: LGA 1700

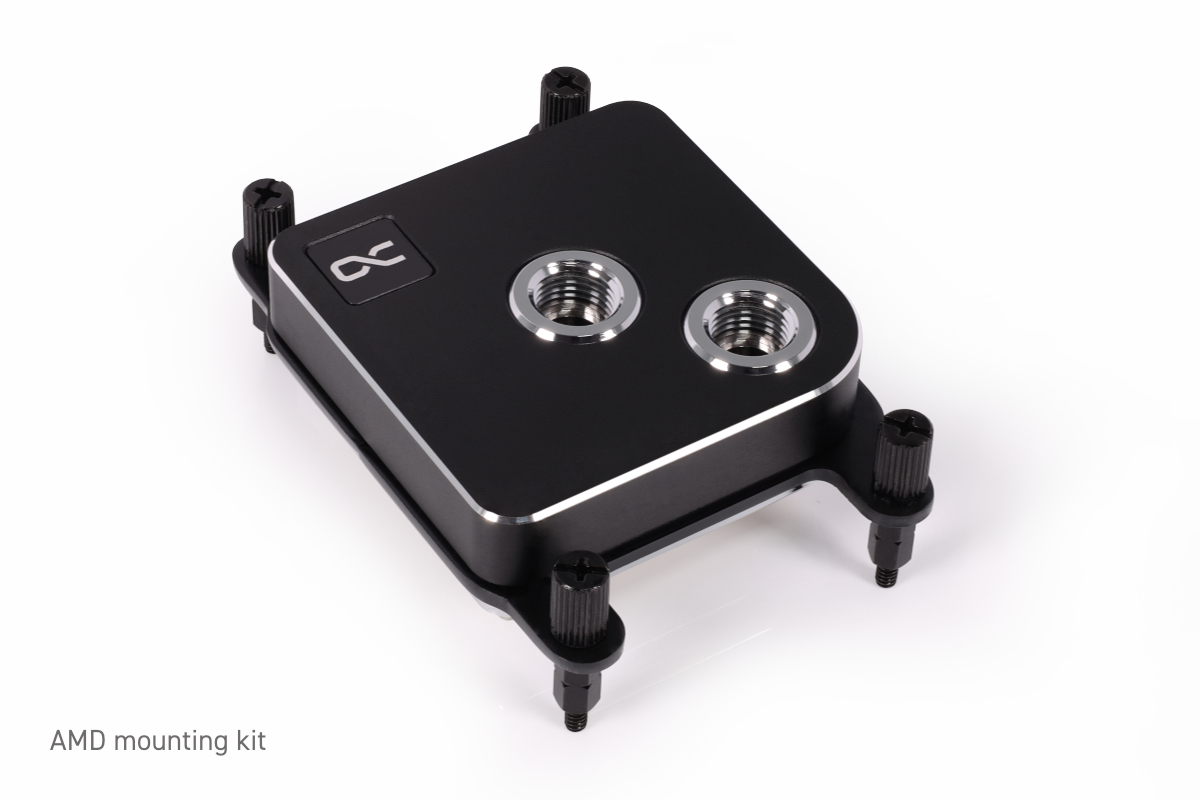

AMD: AM4 / AM5



Technical data

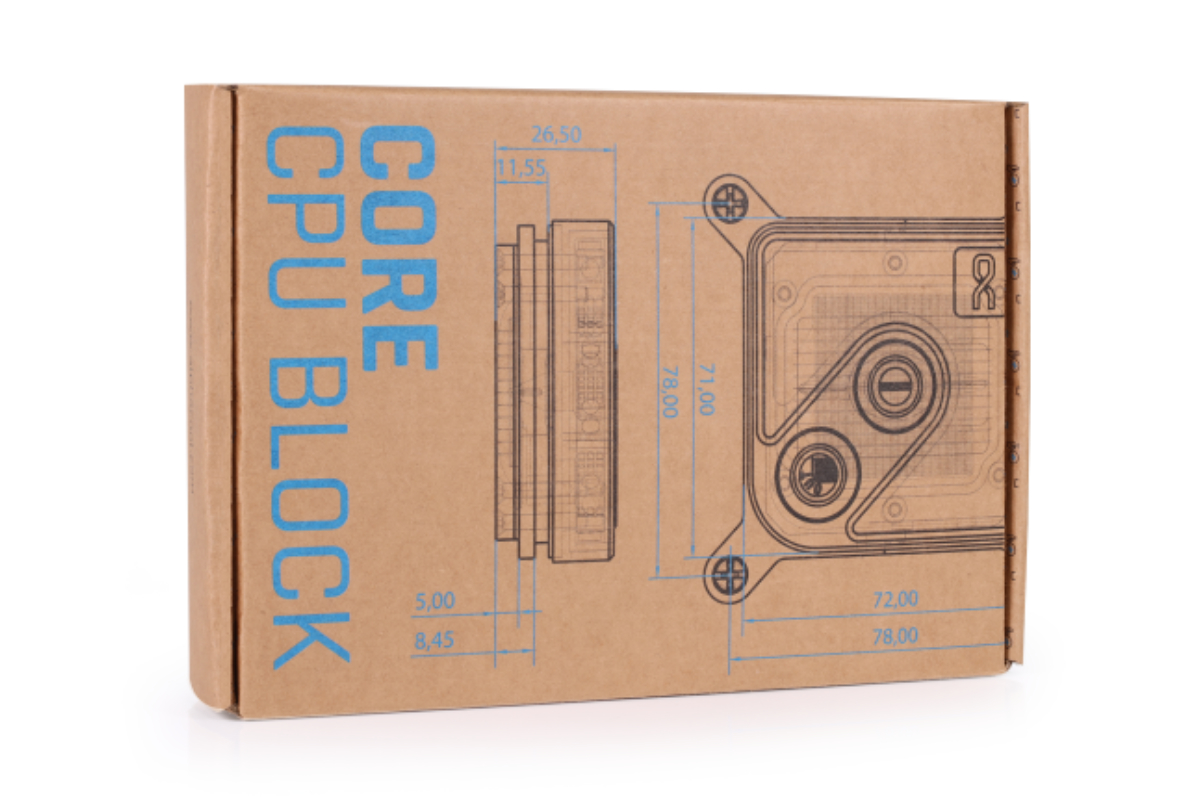

Dimensions (L x W x H)72 x 72 x 26,50mm
Material coolernickel plated copper
Material cooler topBrass
Material threadsnickel plated Brass
Threads2 x G1/4“
Fin thickness0,4mm
Fin distance0,4mm
Pressure tested0,8 bar
Max working temperature60°C
Weight540g
Colorblack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Material Bodenplatte: Kupfer vernickelt
Anschluss: 2x G1/4"
Hersteller: Alphacool
Sockel: AMD AM4;AMD AM5;Intel LGA 1700;
Material Deckel: Messing;
Abmessungen (L x B x H: 72 x 72 x 26,50mm
