Alphacool Leak Testing Tool incl. Pump

Article no.: SEN
EAN: 4250197174824
Weight: 0,001 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€34.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisplateau anti-static work and assembly mat 120x60cm

€59.98*

Alphacool Eistools assembly gloves size L - Black

€1.48*

spray bottle 1000ml PE-LD

€6.19*

Alphacool HF connection terminal TEE T-piece round G1/4 - Deep Black

€5.98*

Alphacool Eiszapfen 2-way ball valve G1/4 - Deep Black

€16.98*

After completing the water circuit, the last step is usually to fill the system. Every now and... more

Close menu

Product information

After completing the water circuit, the last step is usually to fill the system. Every now and then, it happens that some liquid leaks out somewhere. This is often because a hard tube or hose is not seated correctly or a connection has not been screwed in completely. With the Alphacool Leak Testing Tool, you can test the tightness of your water circuit before filling the system.

Construction

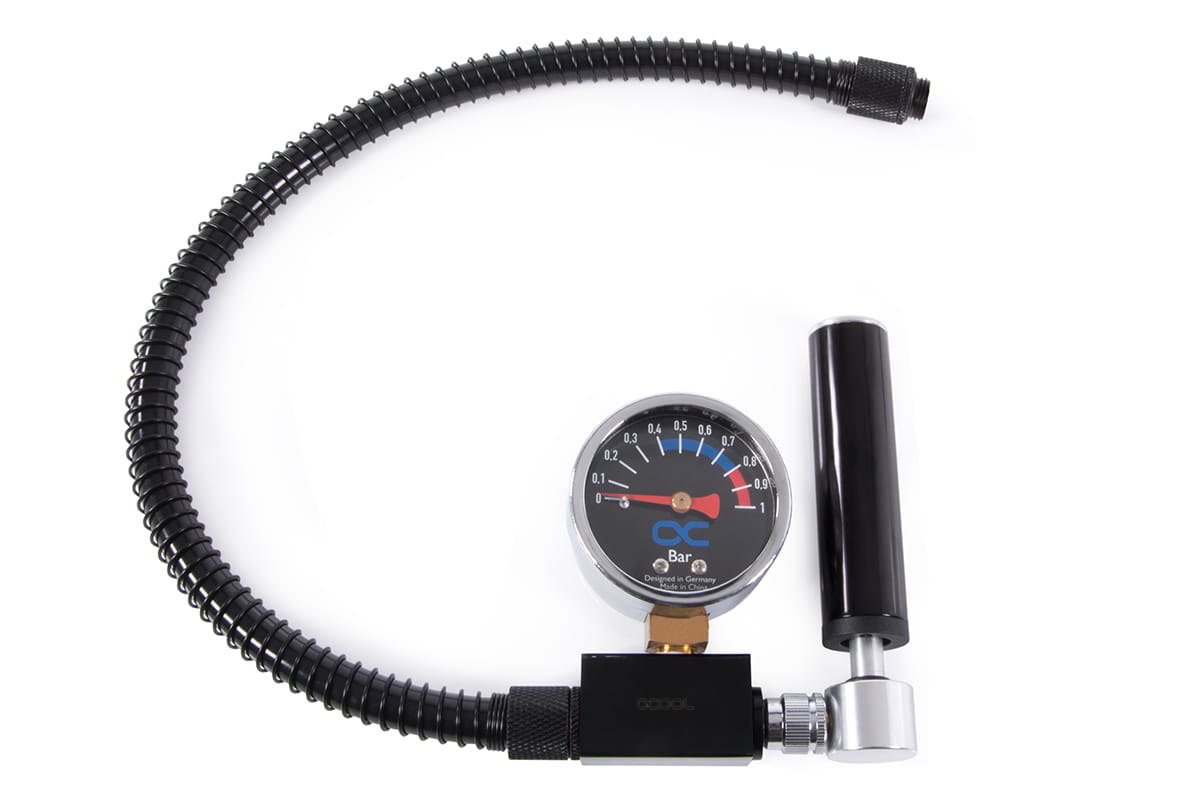

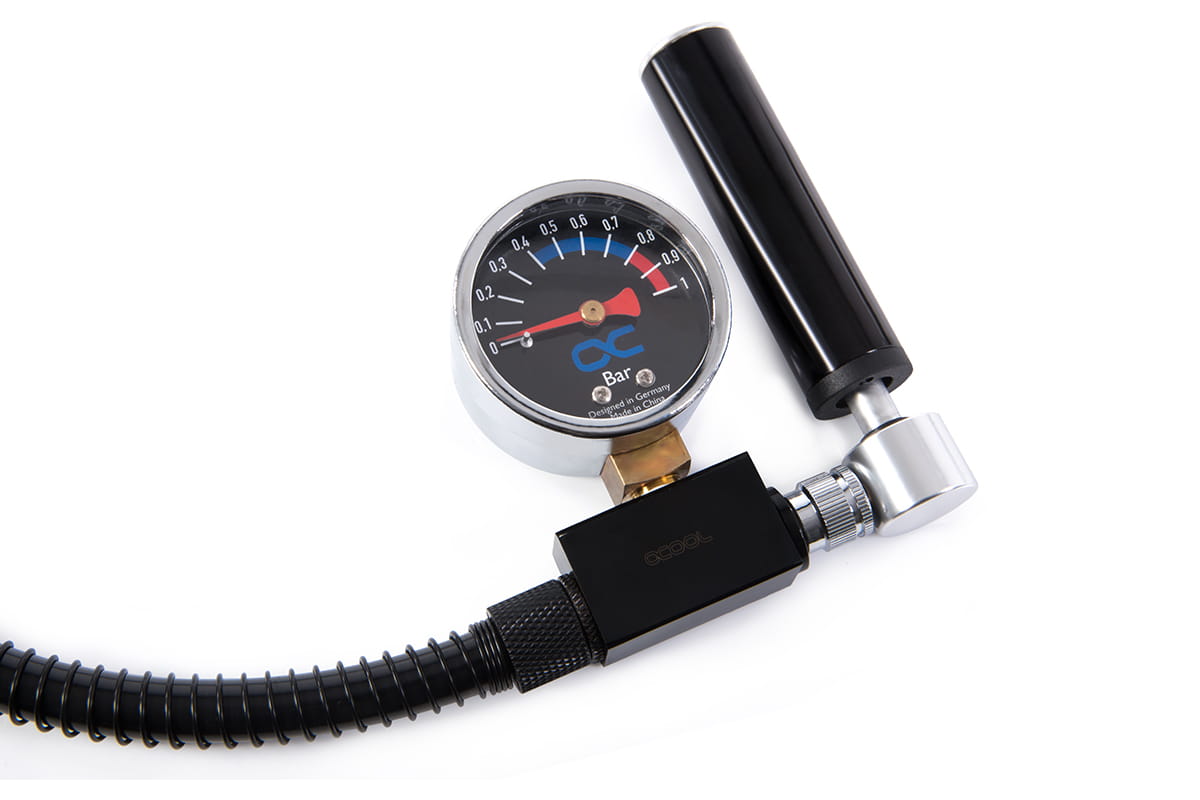

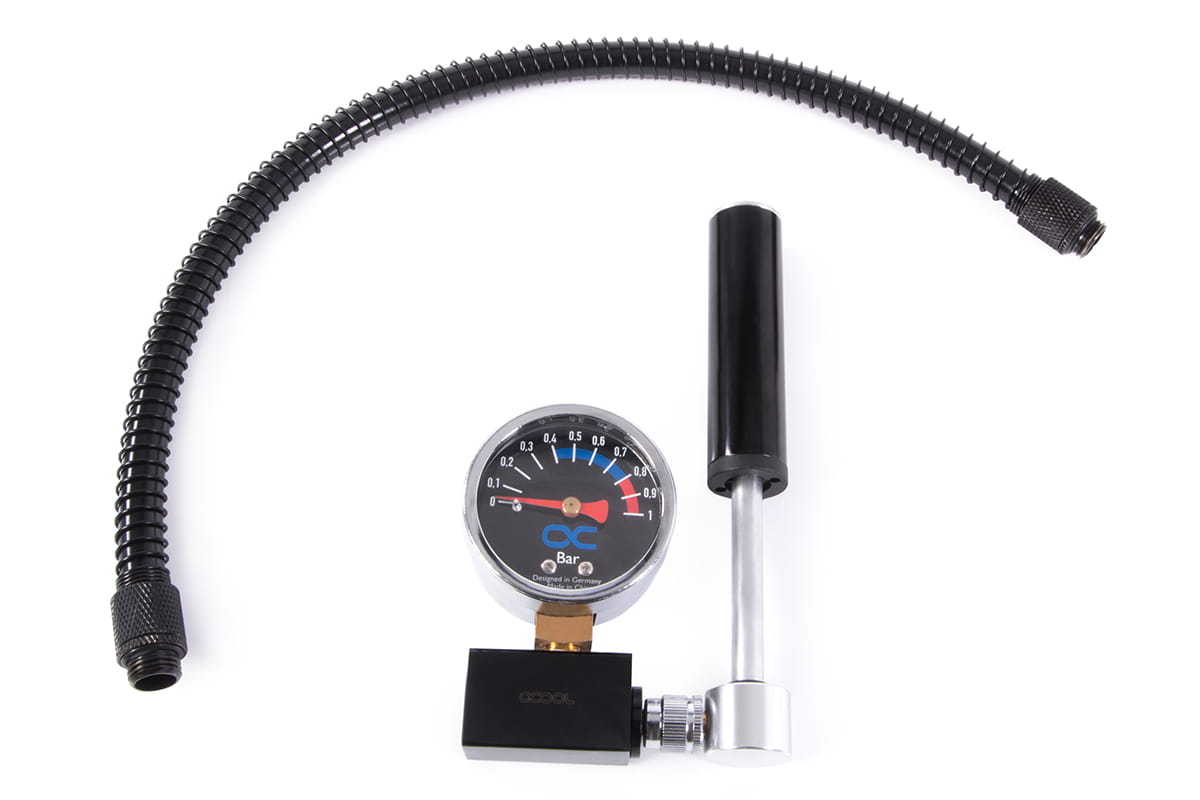

The leak testing tool consists of a hand pump, a pressure indicator, and an 11/8mm hose with a G1/4" thread connection at the end. The whole thing is connected using a TEE piece. The hose is 40 cm long and has an anti-kink spring.

Application

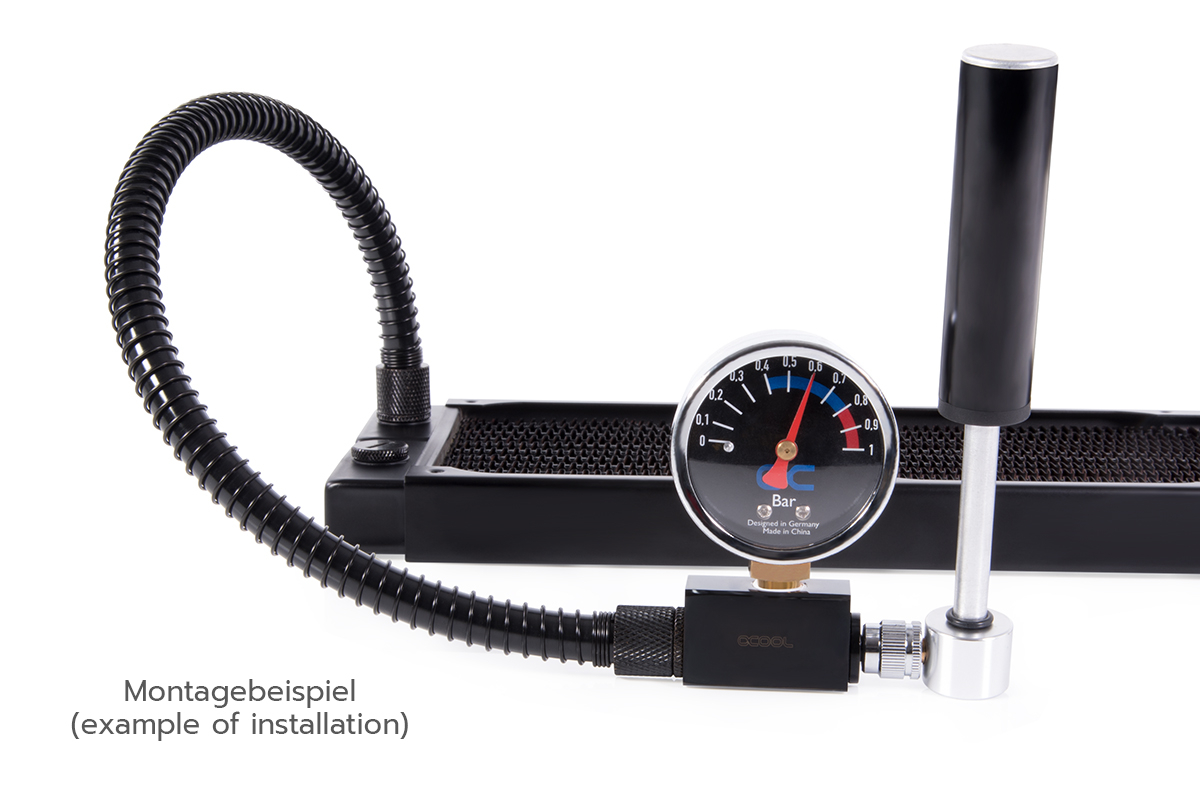

Connect the Alphacool Leak Testing Tool to a free G1/4" connection in the system and operate the hand pump until the desired pressure is reached. Please note that there may be different maximum specifications depending on the manufacturer. Now you should wait about 15 to 20 minutes. If the pressure has not dropped after this time, the water circuit is sealed.

Technical data:
Measuring range: 0 - 1 bar
Thread: G1/4" connection
Hose length: 40 cm

Download manual PDF: Alphacool Leak Testing Tool
Download data sheet PDF: Alphacool Leak Testing Tool
