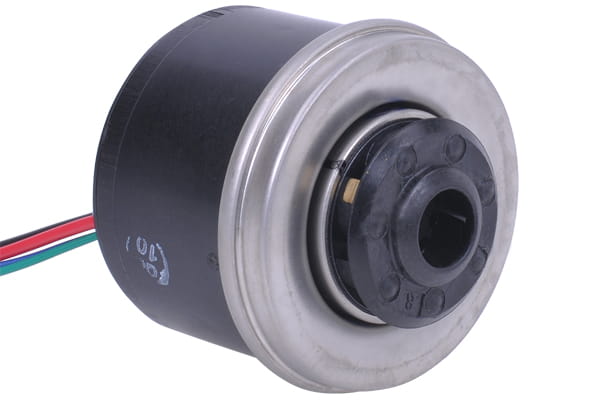

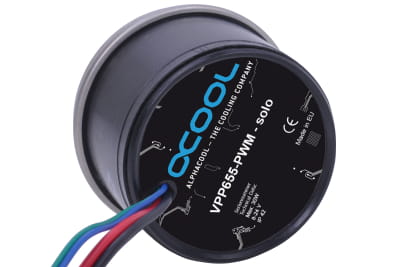

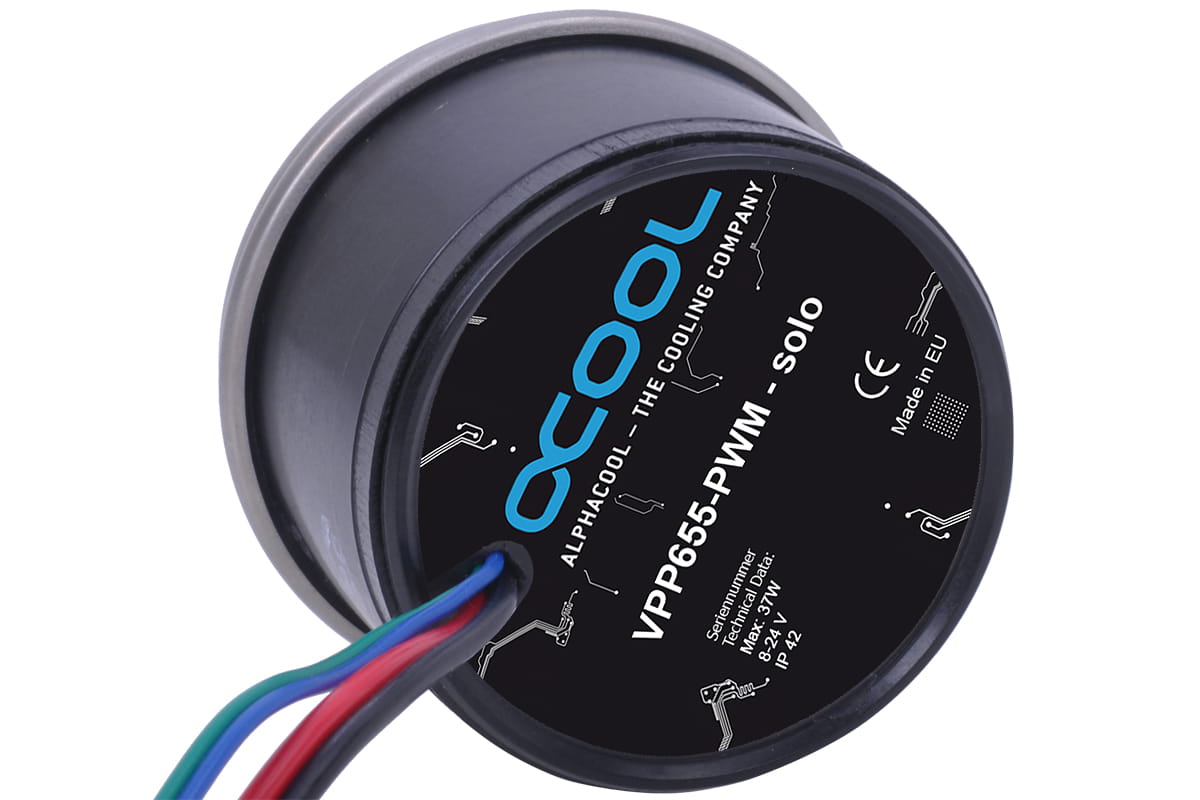

Alphacool VPP655 - PWM - Single Edition
- Article no.: 13169
- EAN: 4250197131698
- Weight: 0,282 kg
- Available: Akutell nicht Verfügbar - Mehr ist unterwegs
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
Liefertermin: in 2 - 3 Wochen
Alphacool's new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.
This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.

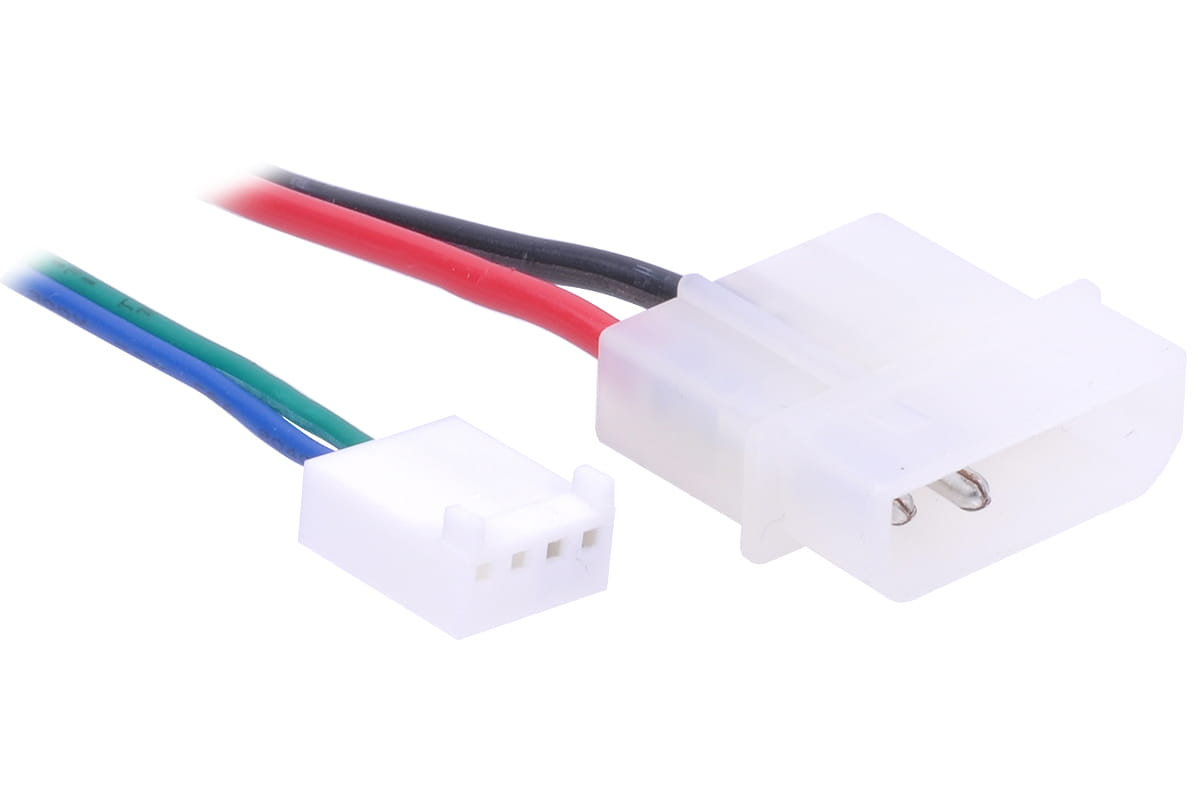

The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.
The special feature of this model is the fact that only the pump core itself is shipped. Why pay more for all the things you won't need when using this pump with a third-party pump top?
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
Technical data | |
Manufacturer | Alphacool |
Color | black |
Voltage | 12V DC |
Maximum delivery head | Good (2 to 4m) |
Maximum system temperature | 60°C |
Water inlet | not available |
Water outlet | not available |
Maximum flow rate | 1500 l/h |
Possible control range | 8-24V DC |
Approved liquids | Water/glycol mixture |
Power consumption | 30W |
Dimensions | 70 x 72 x 82mm |
Power connection | 4Pin PWM |
Material | Ceramic, plastic |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
Manufacturer: | Alphacool |
Dimensions: | 70 x 72 x 82mm |
Maximum discharge head: | Good (2 to 4m) |
Maximum system temperature: | 60°C |
Maximum flow: | 1500 l/h |
Possible control range: | 8-24V DC |
Color: | Black |
Tension: | 12V DC |
Power connection: | 4Pin PWM |
Water outlet: | Unavailable |
Water inlet: | Unavailable |
Approved liquids: | Water/glycol mixture |
Power consumption: | 30W |
Material: | Ceramics, Plastic |
