Alphacool icicle temperature sensor flat G1/4 - chrome
- Article no.: 17597
- EAN: 4250197175975
- Weight: 0,022 kg
- Available: There are more than 250 units available
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
in stock
The Alphacool Eiszapfen temperature sensor flat G1/4" is a simple water temperature sensor that can be easily integrated into any water circuit.
Integration made easy

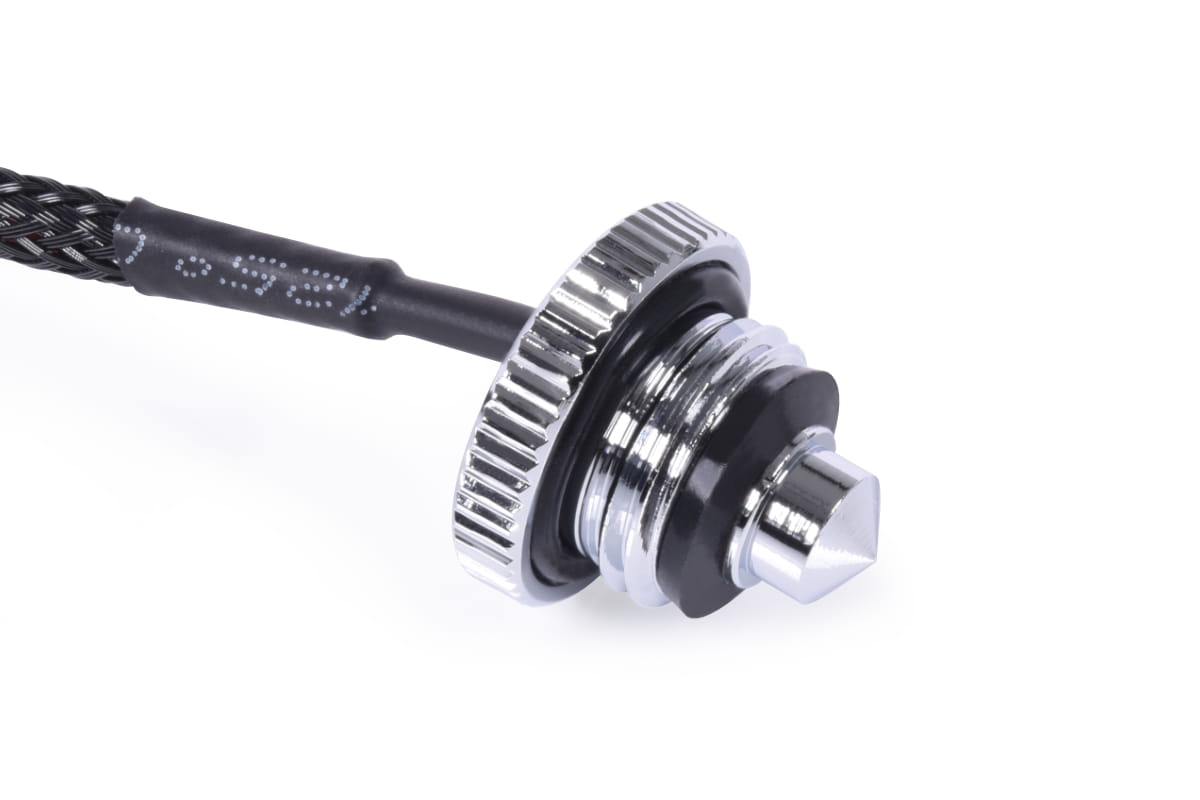

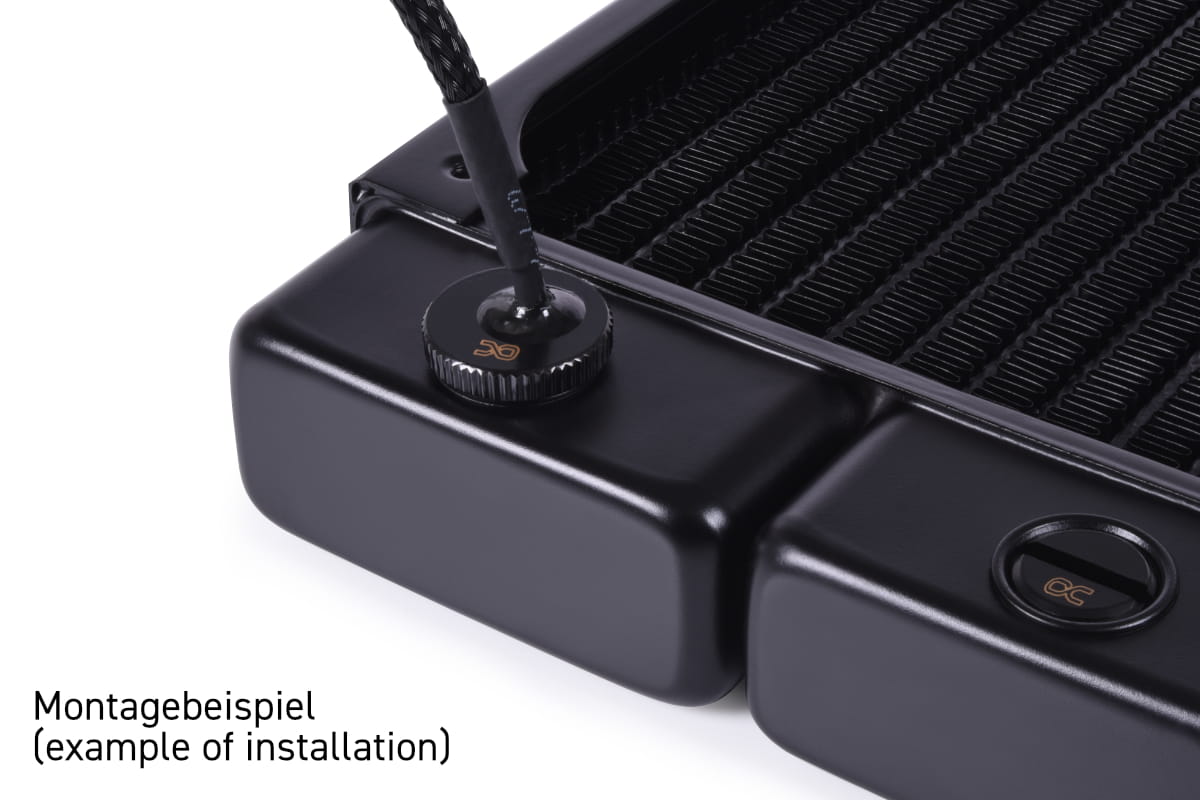

The temperature sensor is very compact and can be integrated into any water circuit thanks to its G1/4" external thread. It is simply screwed into the corresponding G1/4" connection at any position in the water circuit. Due to the small screw-in depth, it is compatible with all Alphacool products with a free G1/4" connection.
sensor

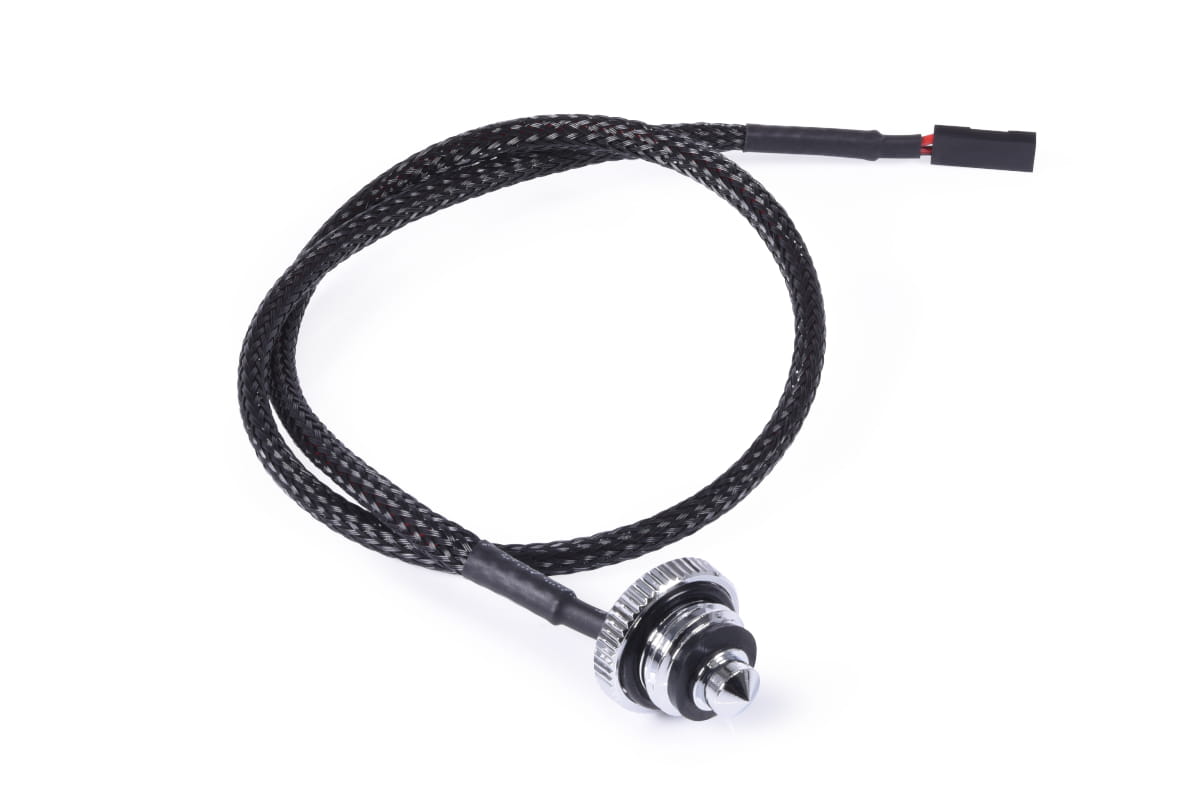

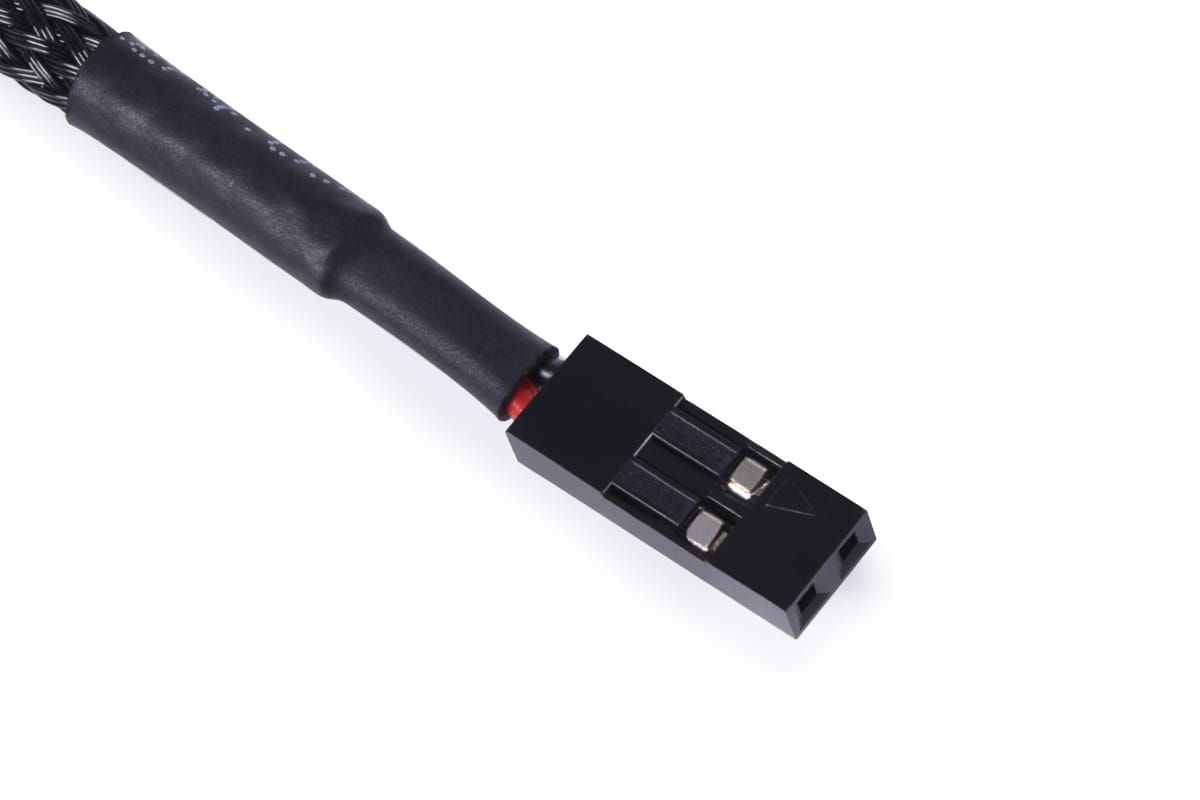

A classic NTC 10 kOhm thermistor is used as the sensor. The readable temperature range is between -40 and 125°C. The cable is 40 cm long and ends in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual for your mainboard. There are of course also various external controllers that offer a connection for the sensor.
design
The design is kept as simple as possible so that the temperature sensor can be installed almost invisibly in the system.
Compatibility:
G1/4" female connections
Technical data | |
H x D | 17mmx18mm |
material | Brass |
Color | chrome |
Cable length | 40cm |
Connection | 2-pin |
Thermistor | NTC 10 kOhm |
thread | G1/4" female |
Thread length | 5mm |
Total screw depth | 13mm |
RT Sensor Table: Open the PDF
Hersteller: | Alphacool |
1. Seite: | G1/4" Außengewinde |
2. Seite: | nicht vorhanden |
Anschlussstecker: | 2Pin |
Thermischer Widerstand (bei 25 Grad): | 10 kOhm |
