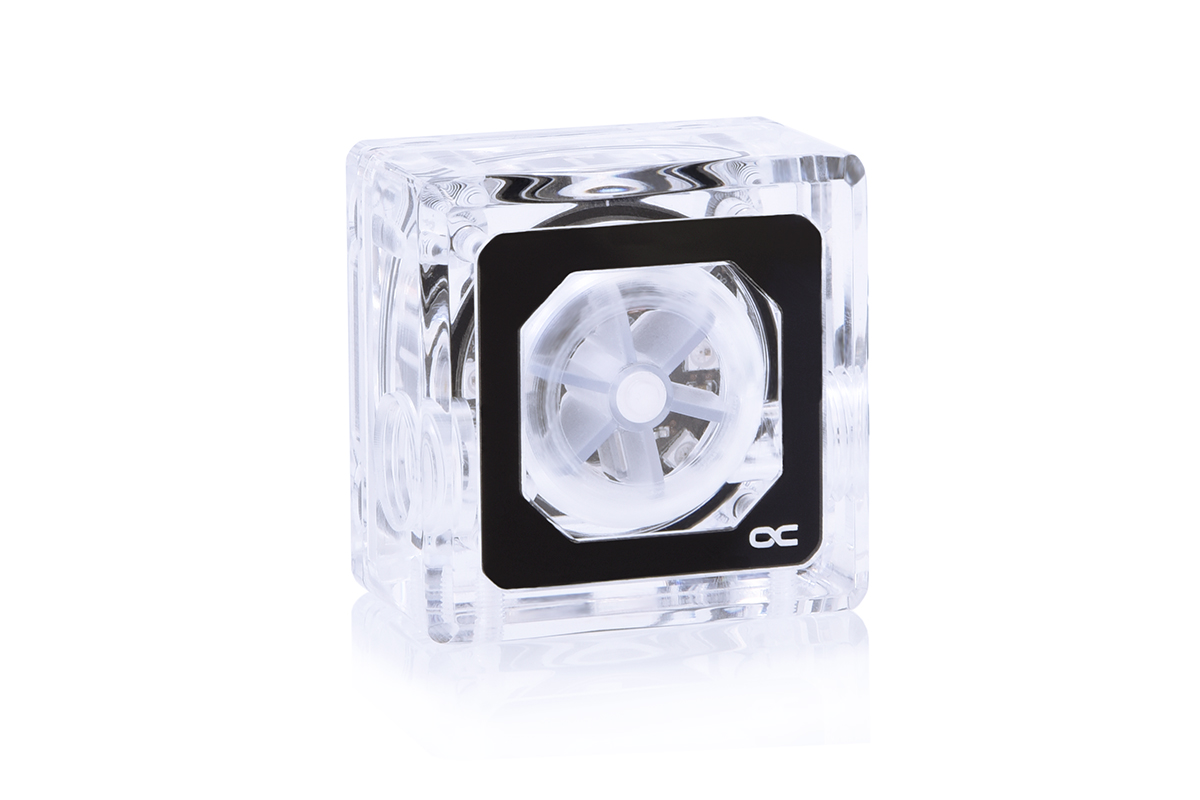

Alphacool Eisfluegel Aurora flow indicator "HighFlow" with speedometer signal

  • 17464
  • 4250197174640
  • 0,12 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€34.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black
1x
Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black
€5.99*
LED Alphacool Aurora Eiscontrol Addressable RGB Controller - Black
1x
Alphacool Aurora Eiscontrol Addressable RGB Controller - Black
€15.98*
KAB Alphacool Digital RGB LED Y-cable 3-way with JST connector - Black 30cm
1x
Alphacool Digital RGB LED Y-cable 3-way with JST connector - Black 30cm
€6.99*
KAB Alphacool connection cable 3Pin to 3pin Digital RGB - 15cm
1x
Alphacool connection cable 3Pin to 3pin Digital RGB - 15cm
€1.48*
ANS Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Deep Black Sixpack
1x
Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Deep Black Sixpack
€36.99*
LK connection cable 3-pin plug to 3-pin plug with speedometer signal 32cm EOL
1x
connection cable 3-pin plug to 3-pin plug with speedometer signal 32cm
€1.98*
For anyone who would like to measure their water flow and values a great look, the Alphacool... more
Product information

For anyone who would like to measure their water flow and values a great look, the Alphacool Eisfluegel Aurora is the perfect choice. It can be easily installed anywhere in the water cooling circuit and offers outstanding lighting.

High-Flow Sensor
The Eisfluegel is designed for high flow systems and can display a water flow of 70 to 300L/h. The speed of the Eisfluegel Aurora is read out via the 3-pin connection at a corresponding fan connection on the mainboard. This can then be used to determine the flow. Since the Eisfluegel is made of Plexi, the flow can also be easily determined visually.

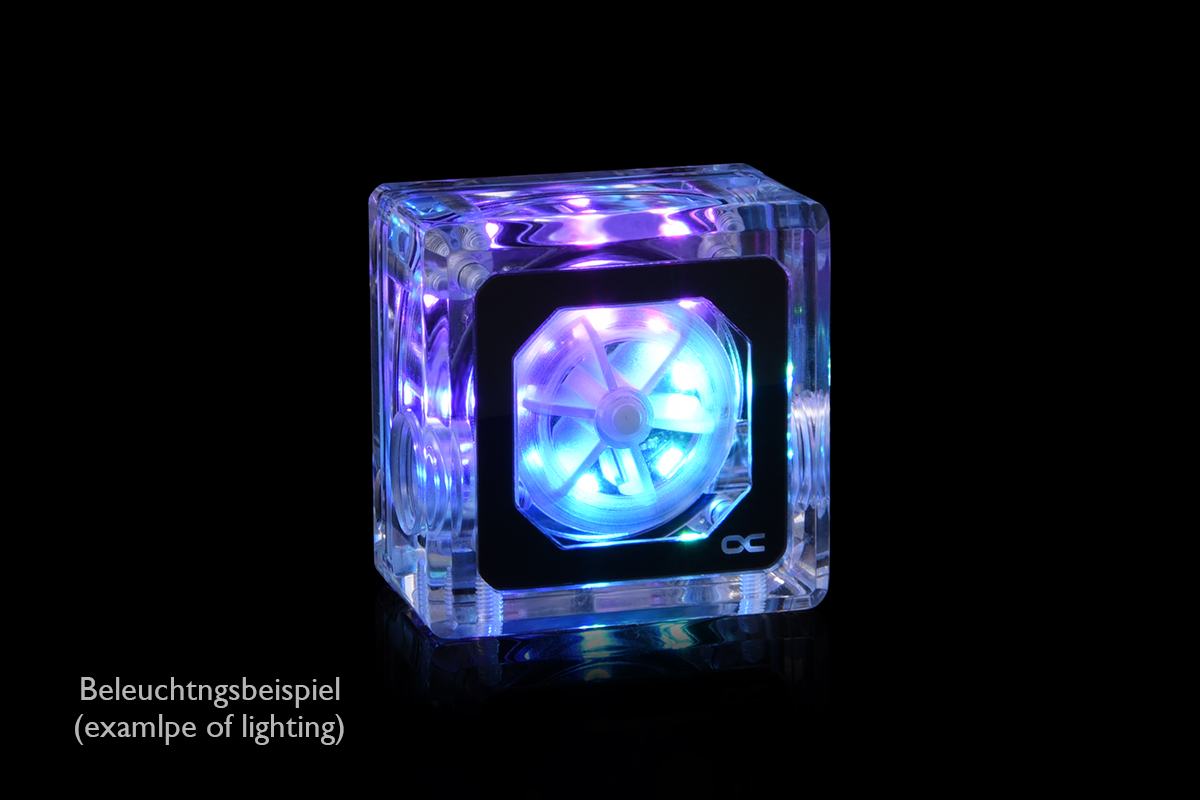

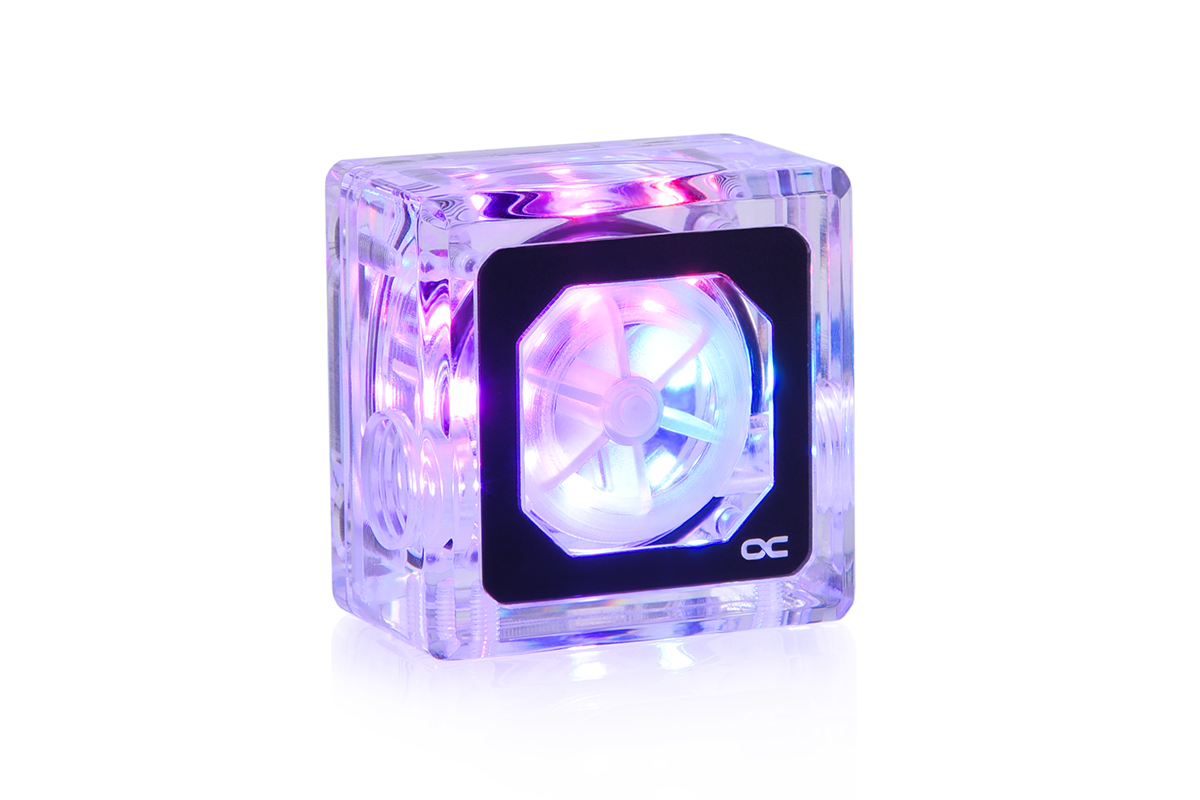

Digital RGB LEDs
The Eisfluegel has 8 addressable digital RGB LEDs that run around the impeller and form a circle. Since each LED can be controlled individually, any effect that the respective controller can produce can be created. The connection is made via a 3-pin JST plug, which makes the Eisfluegel compatible with all other digital RGB products from Alphacool. If you prefer to control it directly via the mainboard, for example, you can use the included 3-pin 5V adapter.

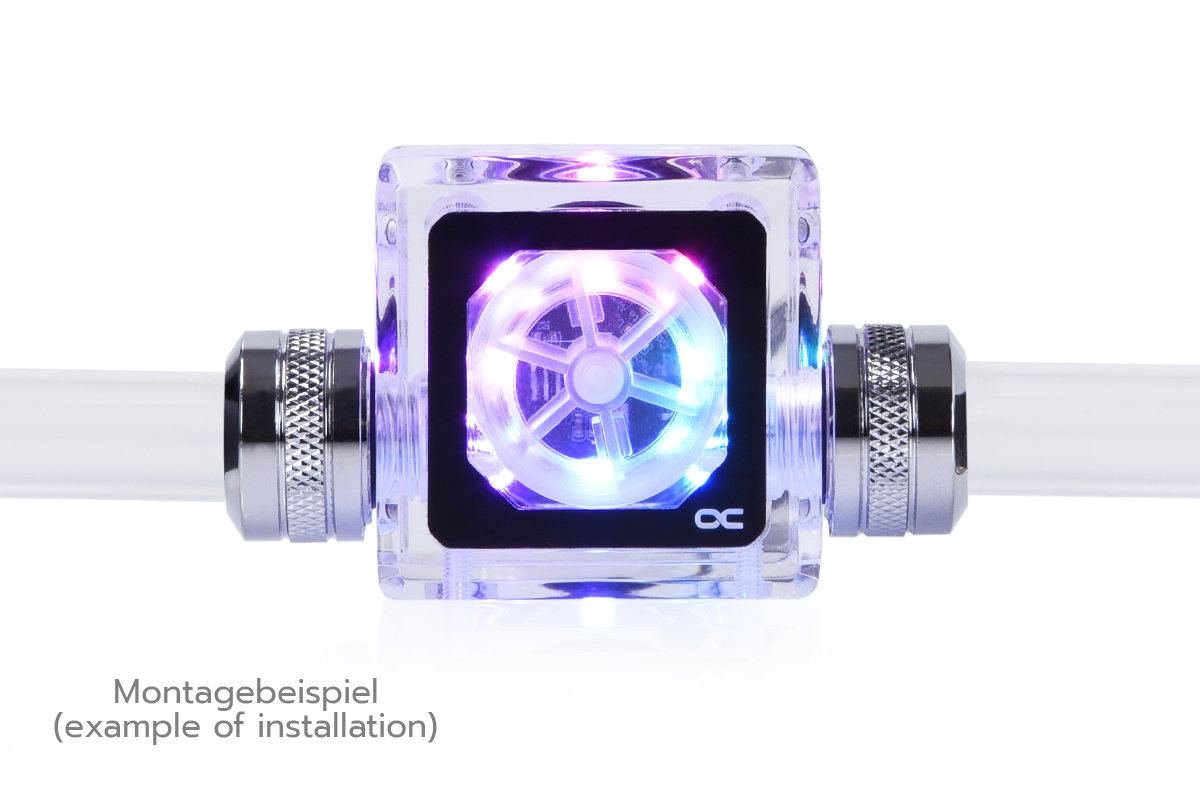

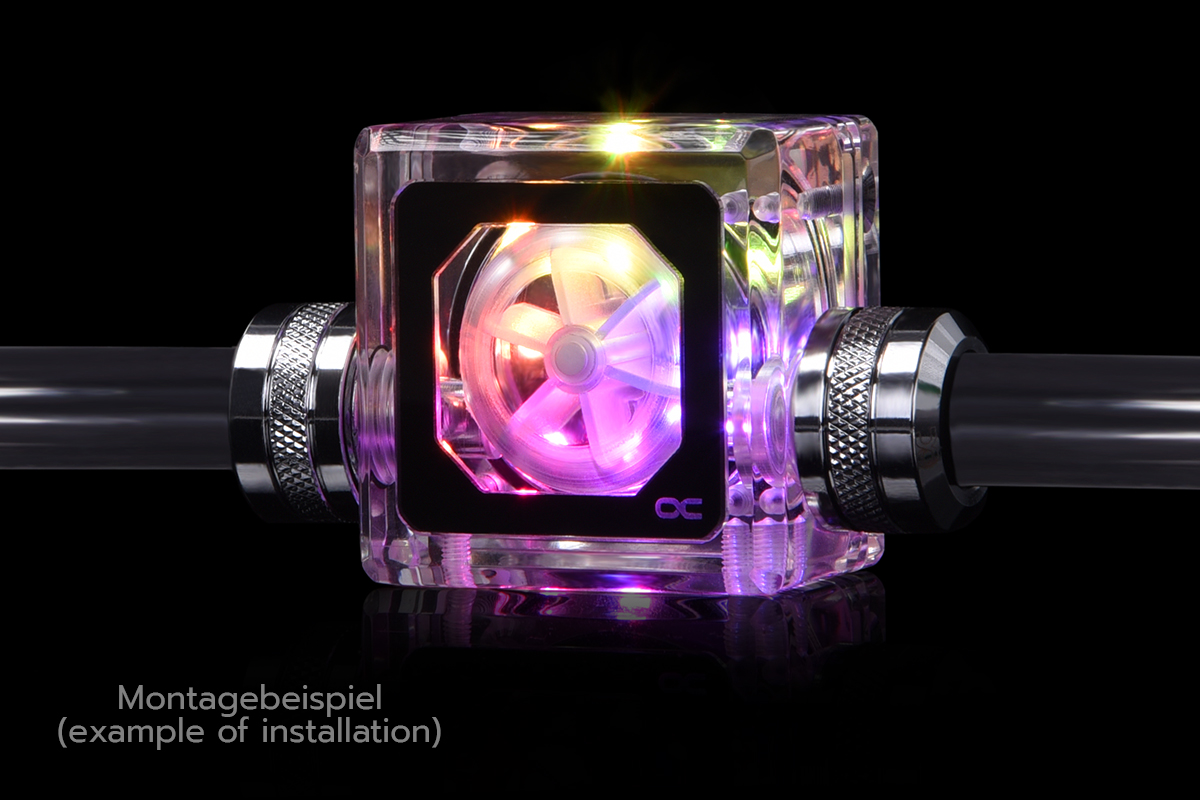

Integration into the water cycle

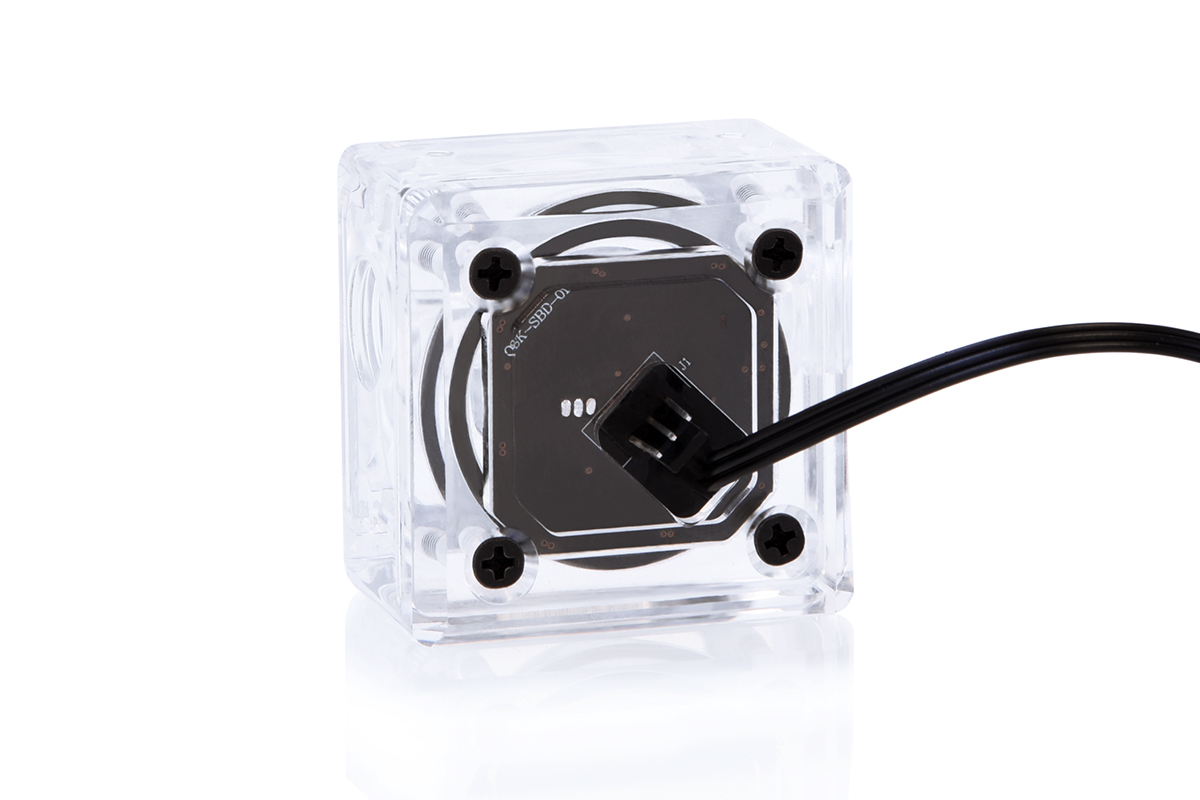

Two G1/4" threads are available for installation in a water circuit. It is up to the user to decide which is used as IN or OUT. The Eisfluegel flow sensor is light and can therefore be positioned freely hanging in the system. On the underside of the Eisfluegel there are two screwing options for the included M3 screws. This allows the flow sensor to be placed anywhere in the housing. The scope of delivery also includes a small self-adhesive Velcro mat that can also be used to mount the Eisfluegel.

Danger:
The Eisfluegel Aurora flow indicator "HighFlow" only works from a flow rate of 70L/h!


Technical data:
L x W x H: 45 x 45 x 39.4 mm
Material: Plexi
Connections: 2x G1/4"
Digital RGB LED connection: 3-pin JST (adapter to 3-pin 5V is included)
Speed sensor connection: 3-pin fan connector

Download manual PDF: Alphacool EIsfluegel Aurora manual
Download flow table PDF: Speed to flow table
Download data sheet PDF: Alphacool Eisfluegel Aurora "High Flow" flow meter Digital RGB

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
