Temperature sensor for water cooling cube shape

SEN Alphacool Temperatursensor Square Acetal

Article no.: 17555
EAN: 4250197175555
Weight: 0,044 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€14.98 * €17.98 * (16.69% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisfluegel flow indicator G1/4 square - Acetal

€17.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool Eisfluegel Aurora flow indicator "HighFlow" with speedometer signal

€34.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black

€6.49*

Alphacool Eiszapfen Acrylic/Acetal Inline Filter G1/4 IG

€9.98*

The Alphacool temperature sensor Square Acetal is a simple cube-shaped water temperature sensor... more

Close menu

Product information

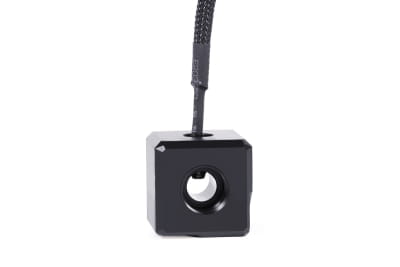

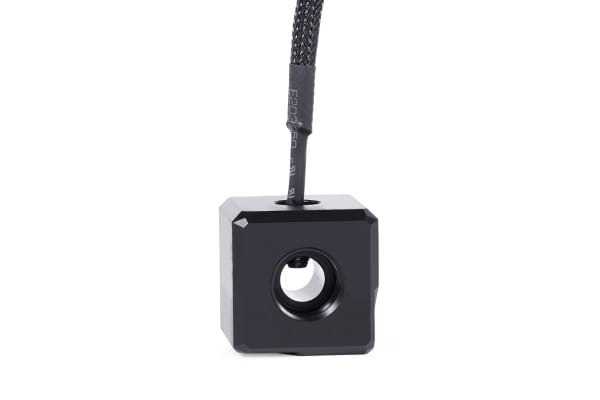

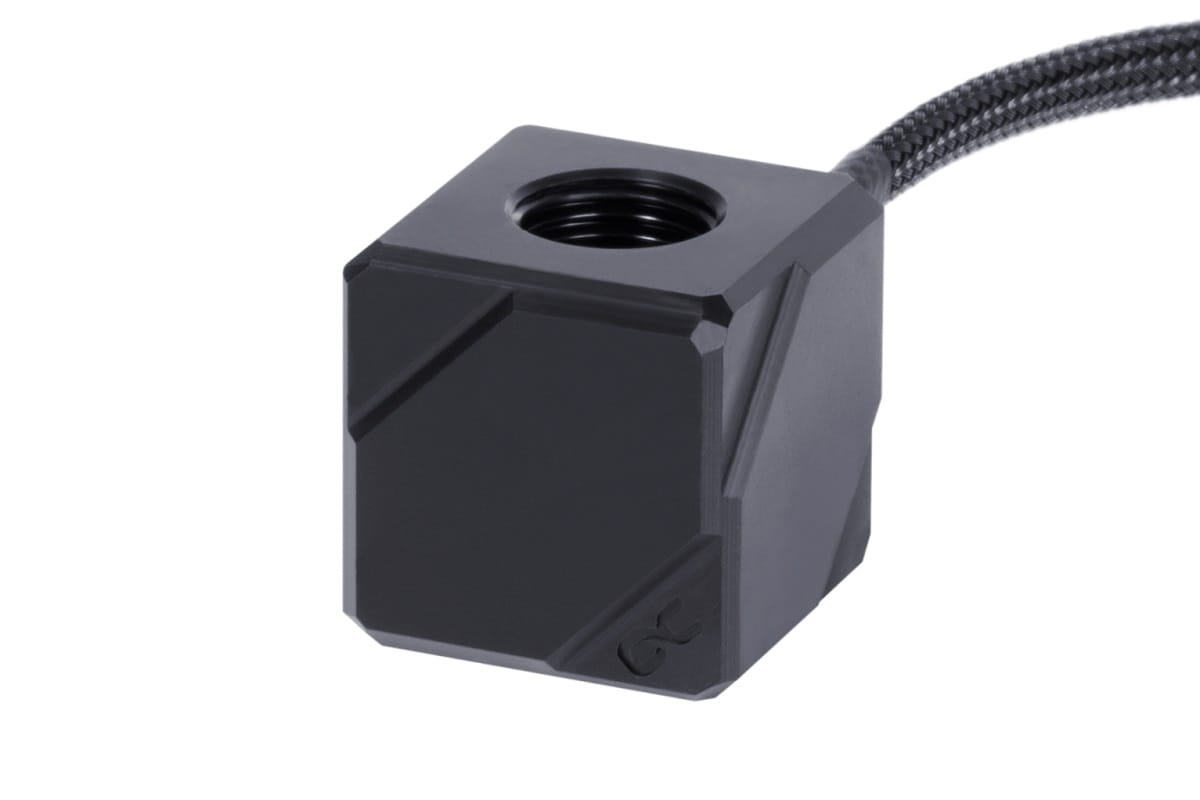

The Alphacool temperature sensor Square Acetal is a simple cube-shaped water temperature sensor that can be easily integrated into any water circuit.

Integration made easy

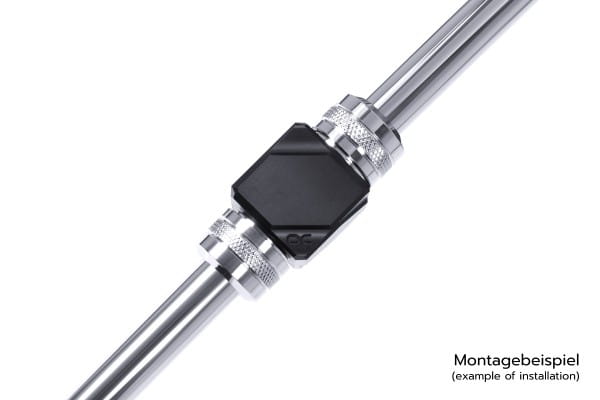

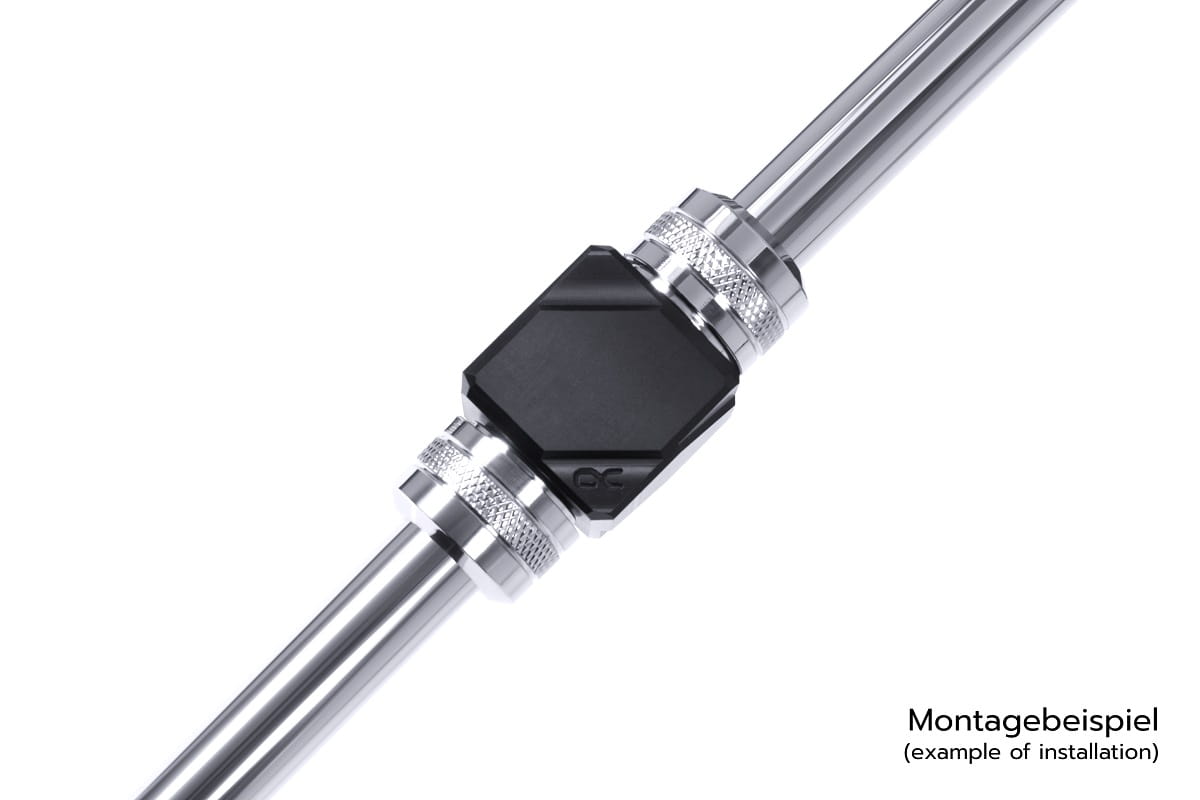

The temperature sensor is very compact and can be integrated into any water circuit thanks to its two G1/4" internal threads. It does not matter whether the system is equipped with hoses or hard tubes. The corresponding connections are simply screwed onto the sensor and then mounted at any position in the water circuit. By using acetal, the temperature sensor is extremely light at just 29g.

sensor

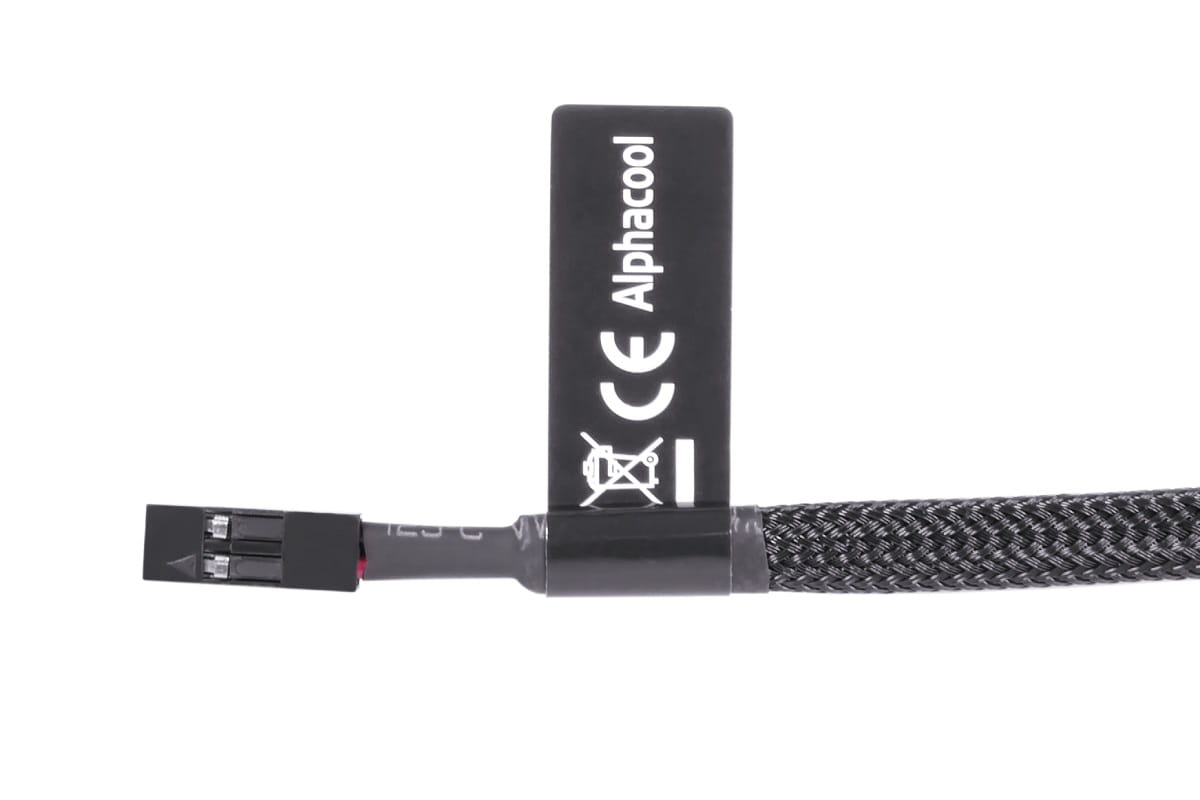

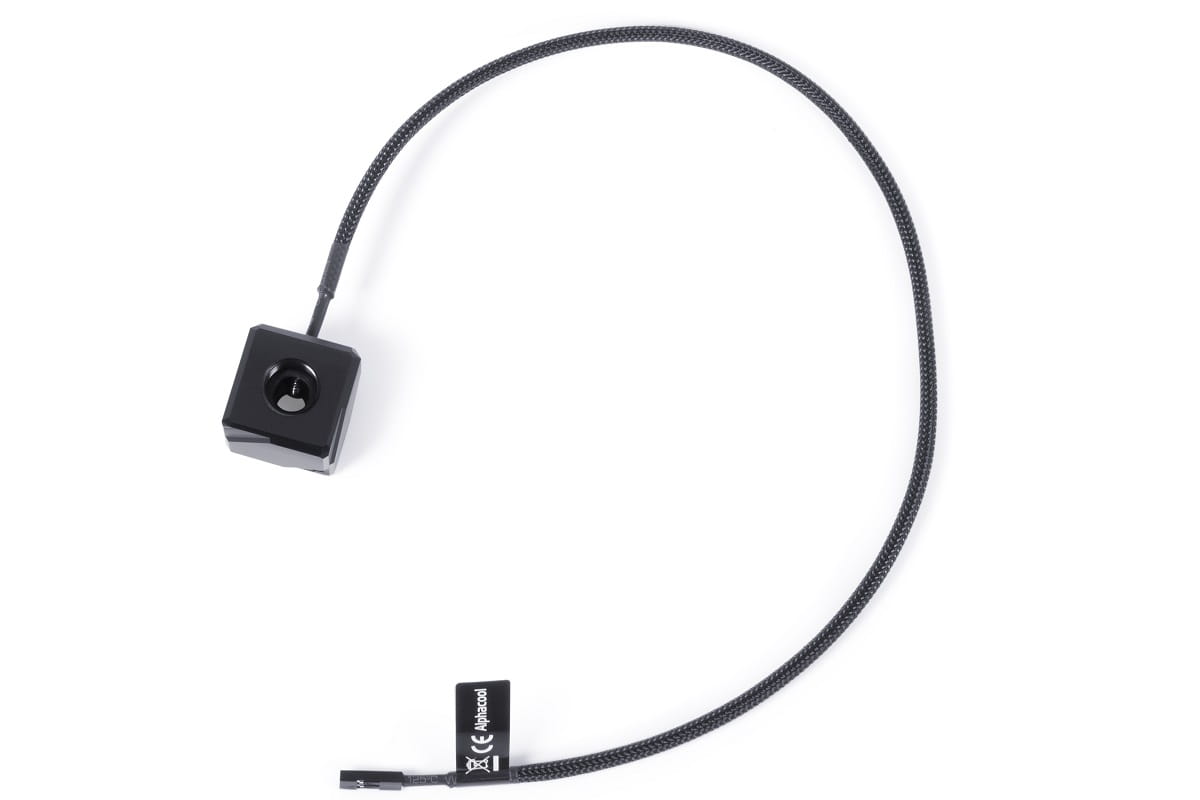

A classic NTC 10 kOhm sensor is used as the sensor. The readable temperature range is between -40 and 125°C. The cable is 40 cm long and ends in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual for your mainboard. There are of course also various external controllers that offer a connection for the sensor.

design
The new square design stands out from the usual, mostly round, sensors. Alphacool avoids large logo placements. The product should be in the foreground. The square design fits perfectly with the new Alphacool Eisblock graphics card water cooler series.

Technical data
L x W x H: 26.5 x 26.5 x 26.5 mm
Sensor: NTC 10 kOhm
Measuring range: -40 to 125°C
Connector: 2-pin
Cable length: 40 cm
Thread: 2x G1/4"

Download data sheet PDF: Alphacool temperature sensor Square Acetal

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
1st page:	G1/4" internal thread
2nd page:	G1/4" internal thread
Connector:	2Pin
Length of connection cable:	40cm
Thermal resistance (at 25 degrees):	10 kOhm
