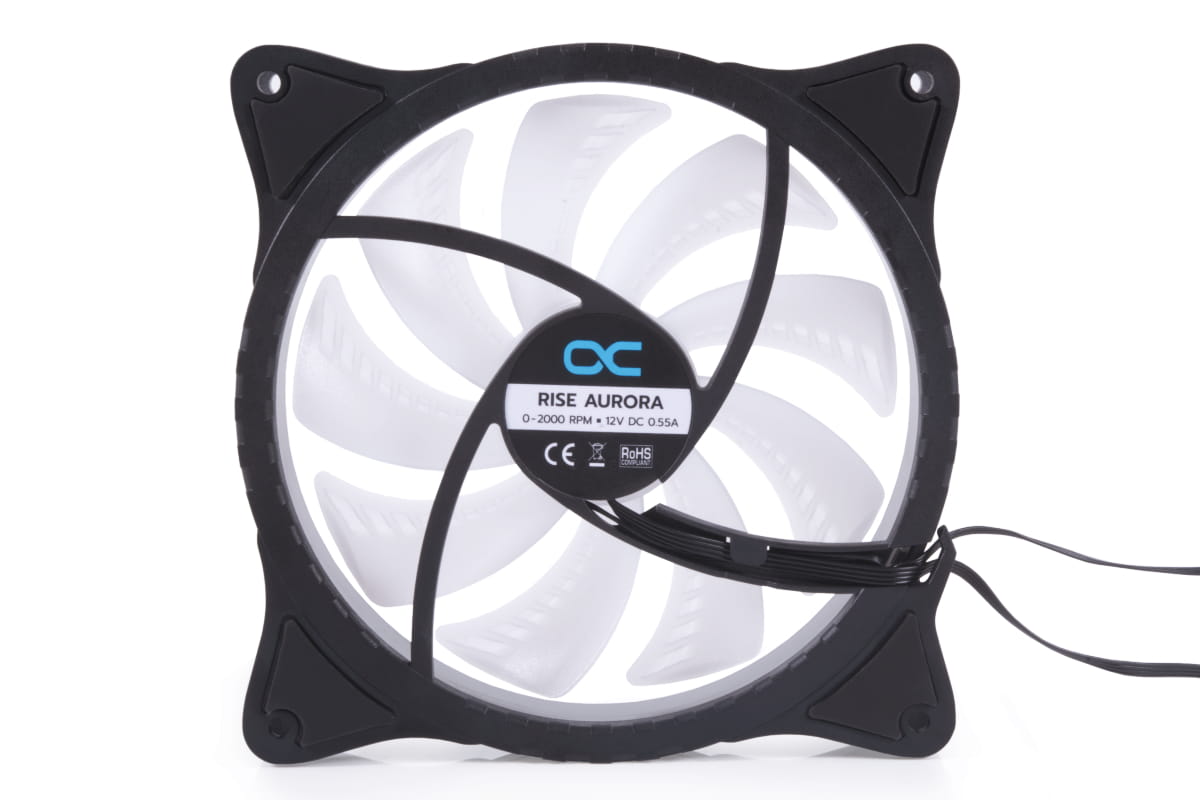

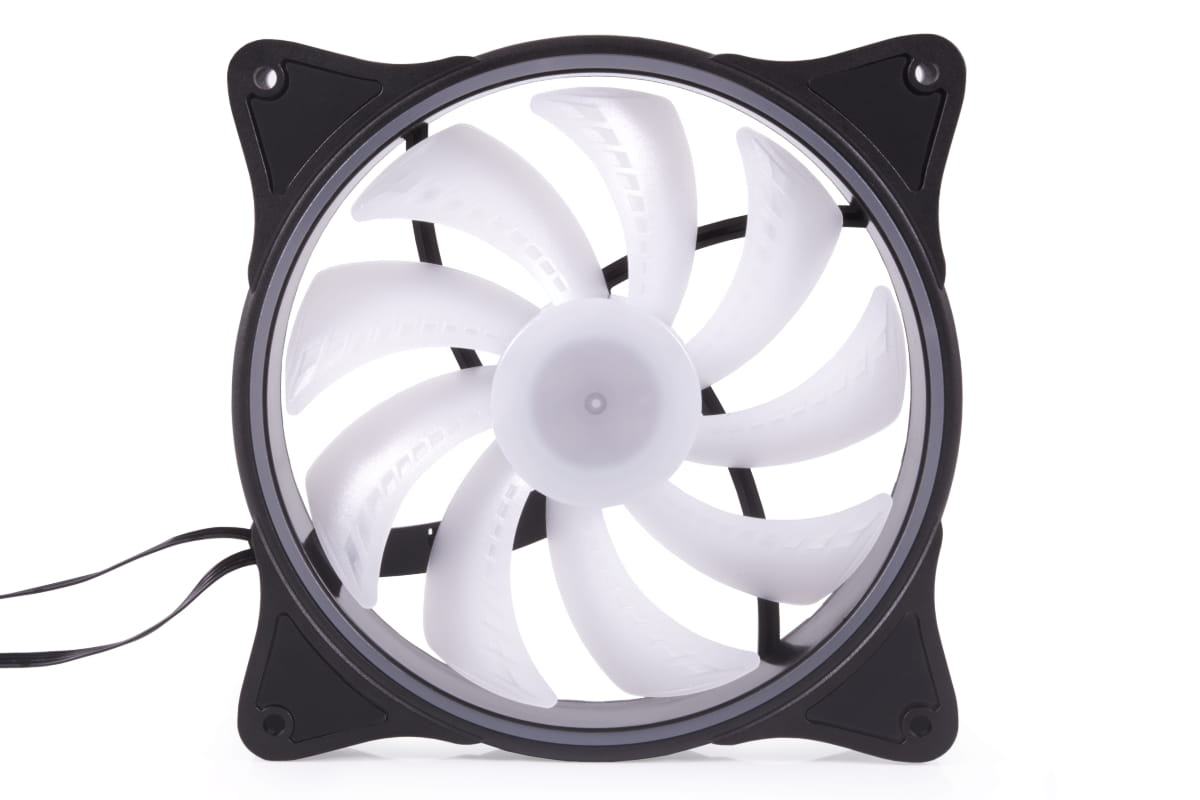

Alphacool Rise Aurora 140mm fan (140x140x25mm)
- Article no.: 24837
- EAN: 4250197135825
- Weight: 0,24 kg
- Available: There are more than 100 units available
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
in stock
In addition to a wide control range, the Alphacool Rise fan also offers outstanding digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the special design of the fan create unique effects.

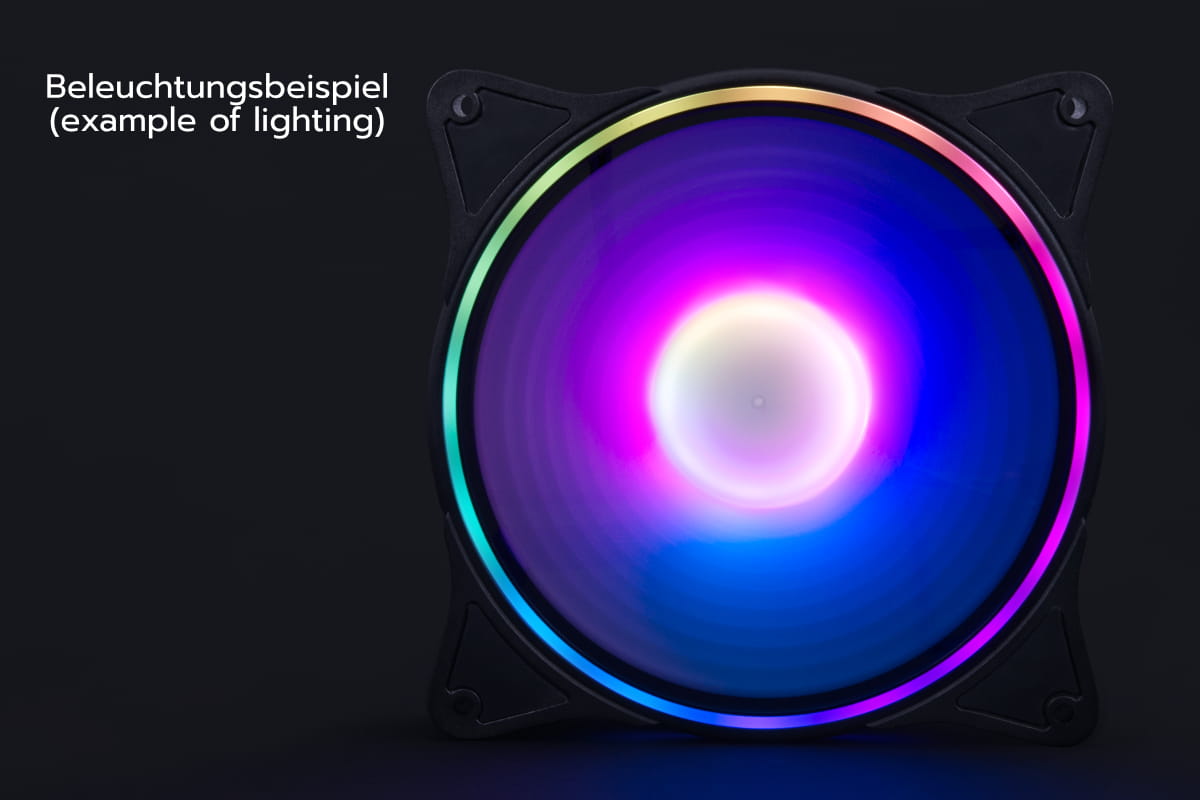

Brilliant lighting

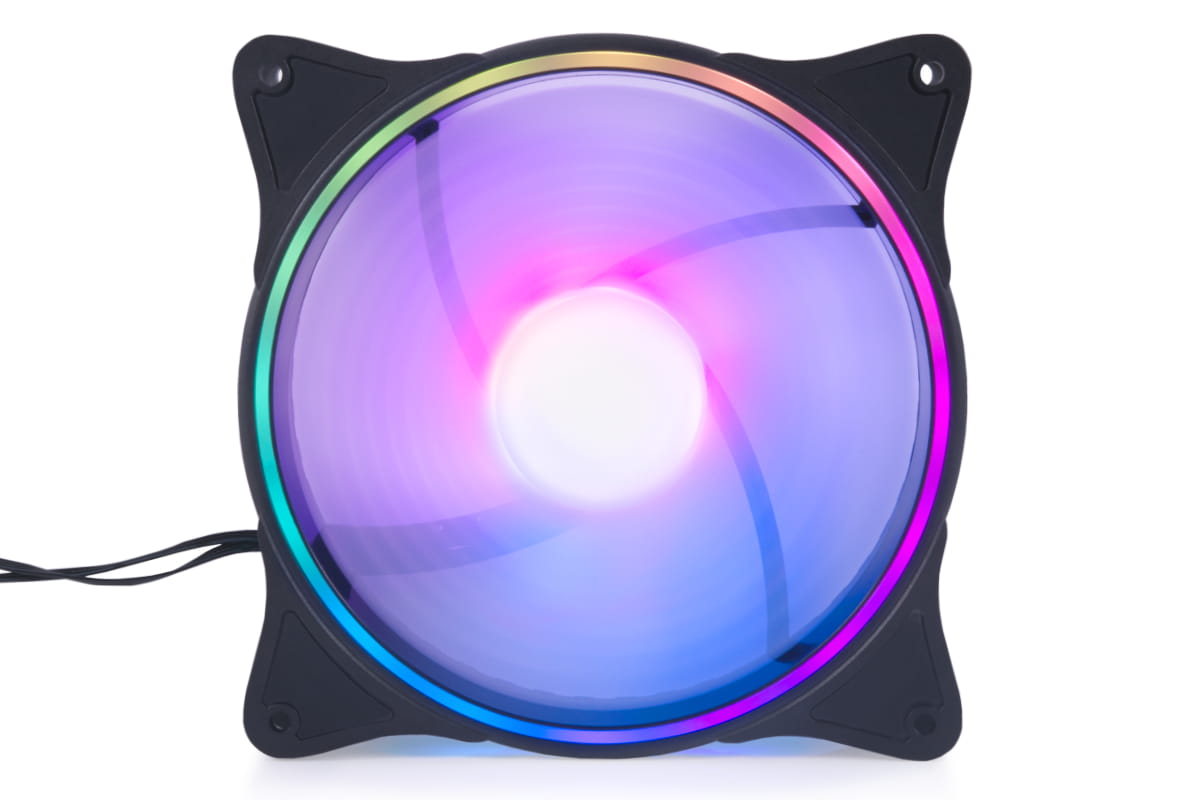

24 digitally addressable 5V RGB LEDs are installed in the frame and hub, which illuminate the entire fan. This creates a unique lighting that looks very classy. Thanks to the recessed diffusers, the light is distributed evenly. This avoids spotty illumination. Individual LEDs are no longer visible.
Wide control range and silent

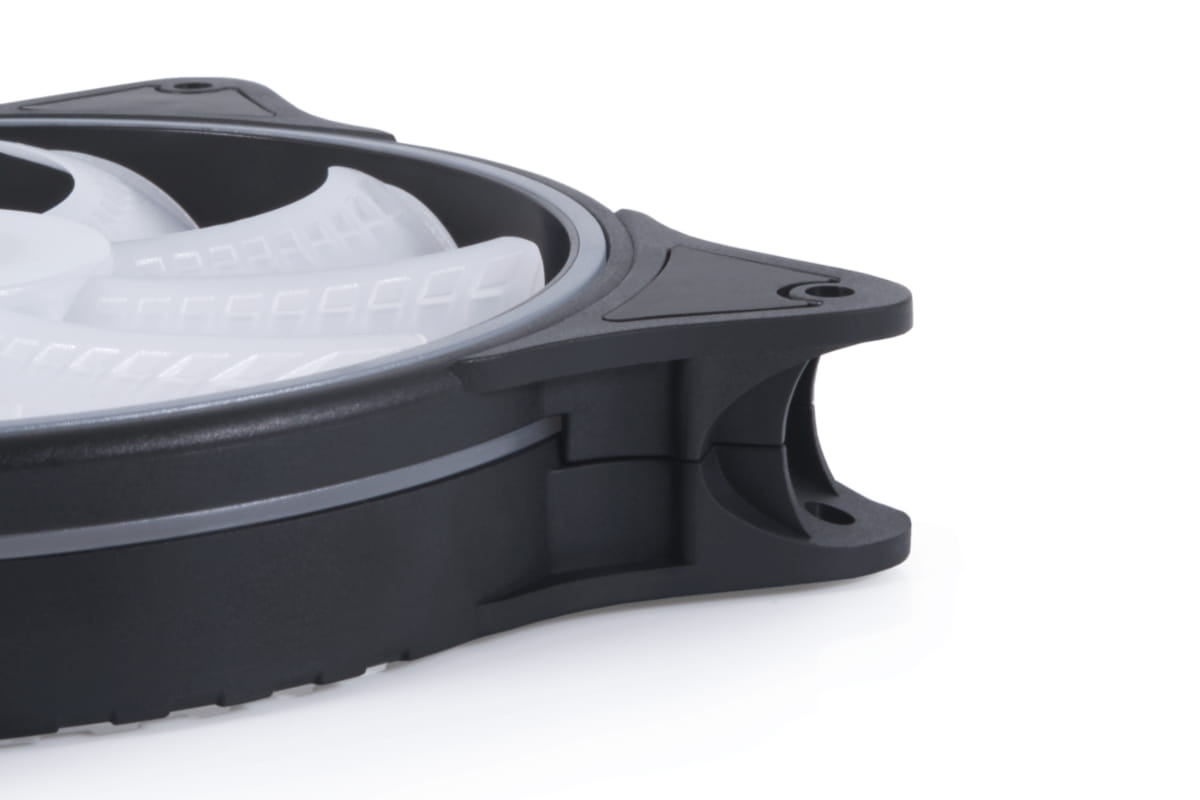

The fan can be controlled from 0 to 2000 rpm via the 4-pin PWM connection. It also offers a zero control with which the fan can be regulated down to 0 rpm and then starts at around 600 rpm. At 800 rpm the fan is almost silent. At 2000 rpm it enables an air flow of 154.1m 3 /h paired with a high static pressure of 2.20mm/H 2 O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case. There are decouplers directly on the frame. The soft foam padding reduces the transmission of vibrations to the case. Tear-off edges on the fan blades also ensure a significant reduction in background noise.
Connections?

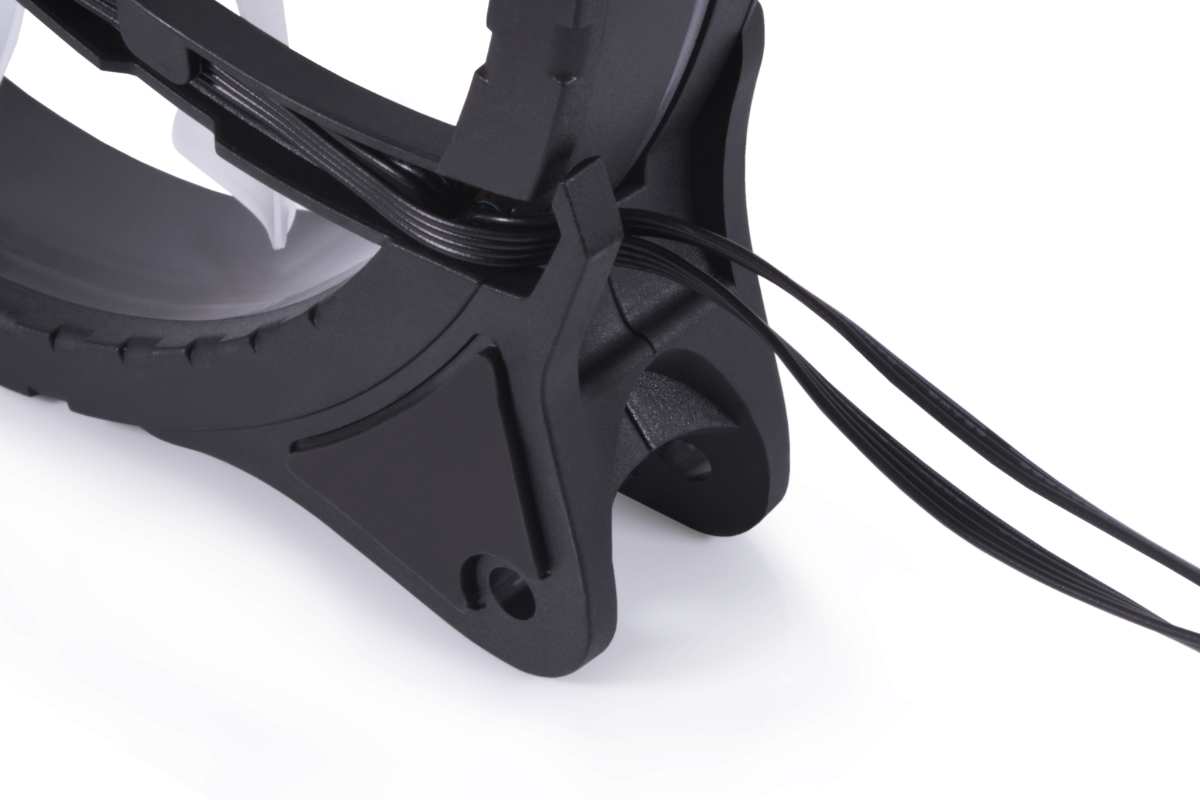

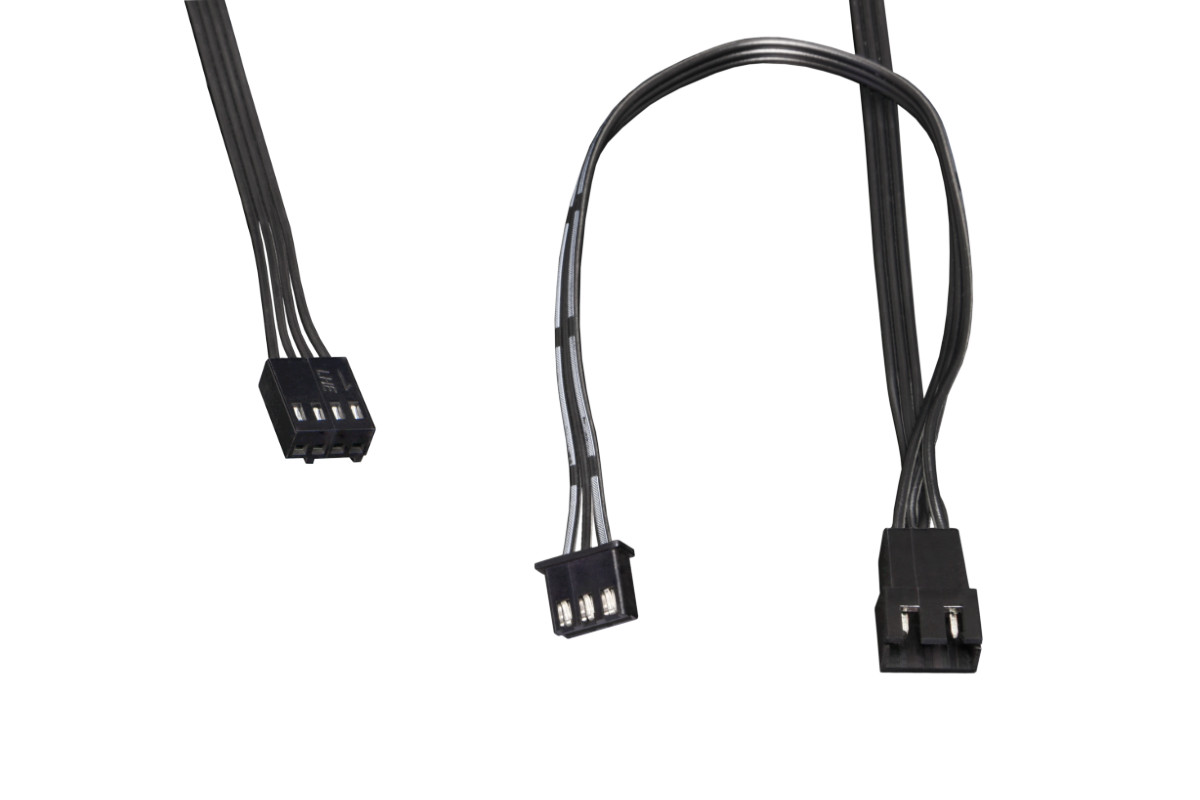

The fan is controlled via a 4-pin PWM connection. The cable is 40 cm long. This means that the fan can be connected to the mainboard or a special controller without any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector.
Technical data fan | |
L x W x H | 140x140x25mm |
Speed | 0 - 2000 (+/- 10%) |
Fan bearing | Bearing |
Connection | 4-pin PWM |
Cable length | 40cm |
Tension | 12V DC |
Max. current consumption | 6.6 watts (max) |
Rated current | 0.50A (0.55A Max) |
Static pressure | 2.20 mm H 2 O |
Air flow | 154.1 m³/h |
Volume max | max. 38.4 dB(A) |
MTBF | 30,000 hours |
Speedometer signal | Yes |
Auto restart | Yes |
Technical data aRGB | |
LED Type | 5V RGB |
Connection | 3-Pin JST |
Cable length | 50 cm (splinters after 40 cm) |
Max. current consumption | 3.5W |
LED number | Frame: 16 / Hub: 8 |
Download:
Datasheet PDF
Manufacturer: | Alphacool |
Rated speed range: | 0 - 2000 U/min |
Air flow rate: | 154,1 m³/h |
Pressure: | 2,20mm H2O |
Color Frame: | Black |
Color Rotor: | Black |
Nominal voltage: | 12V DC |
Size: | 140mm |
Volume: | 38,4 dB(A) |
RPM signal transmission: | Yes |
Power connection: | 4Pin |
Dimensions: | 140 x 140 x 25mm |
LED: | ARGB |
Power consumption: | 6,6W |
