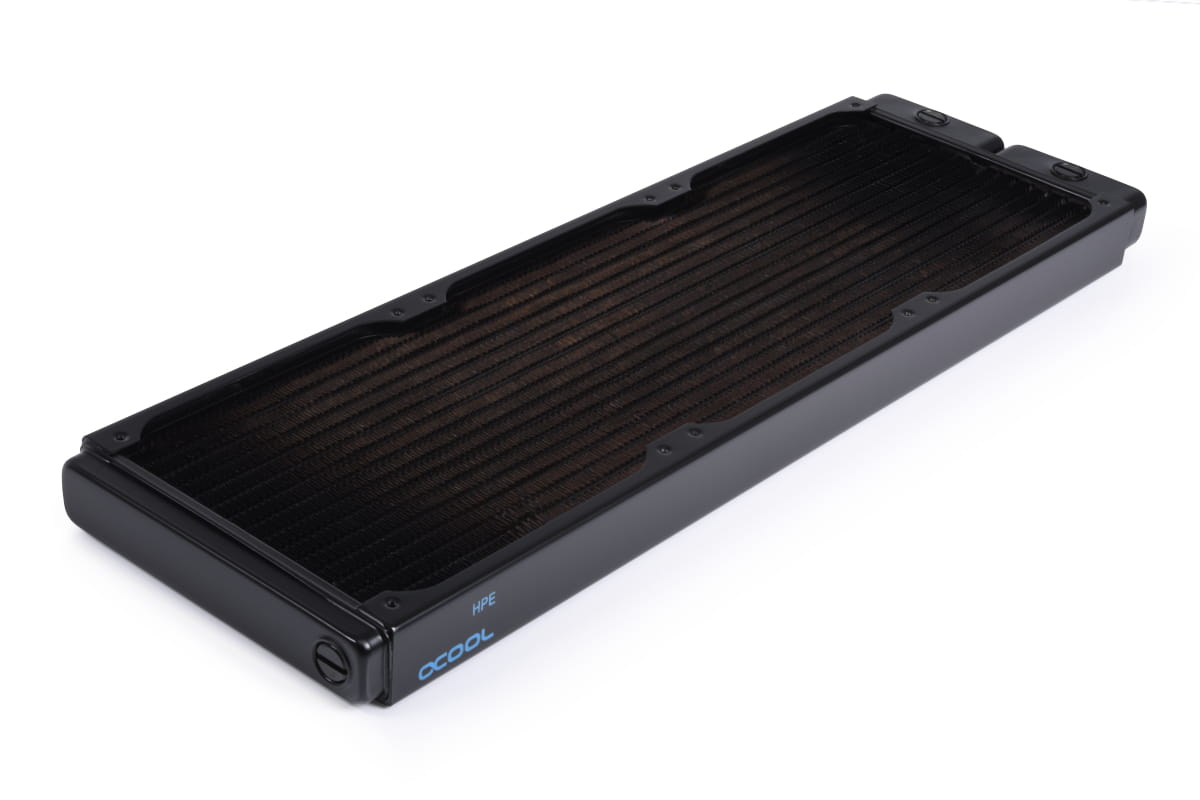

Alphacool NexXxoS HPE-30 Full Copper 420mm Radiator

  • 14379
  • 4250197143790
  • 1,239 kg
  • Images may differ slightly from the original
€121.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
90334 Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
1x
Alphacool Eisplateau Anti-Static work- and mounting mat 120x60cm
€59.98*
13295 Alphacool Eisstation VPP reservoir incl. Alphacool Eispumpe VPP755 V.3 pump
1x
Alphacool Eisstation VPP reservoir incl. Alphacool Eispumpe VPP755 V.3 pump
€79.98*
12948 Alphacool Eisblock XPX Aurora Edge - Acryl Black Digital RGB
1x
Alphacool Eisblock XPX Aurora Edge - Acryl Black Digital RGB
€74.98*
15379 Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm
1x
Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm
€99.98*
17482 Leak Testing Tool incl. Pump
1x
Leak Testing Tool incl. Pump
€34.98*
11944 Eisblock Aurora Acryl GPX-A Radeon RX 6800/6800XT/6900XT Reference with Backplate
1x
Eisblock Aurora Acryl GPX-A Radeon RX 6800/6800XT/6900XT Reference with Backplate
€72.63*
18651 Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator... more
Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests* with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

(* Test setup: NexXxos ST30 360mm radiator vs. NexXxos HPE-30 360mm radiator with Eisbaer cooler and 3x 120mm Rise Aurora fans and on Asus Prime x299 motherboard with Intel i9 10900x CPU with 350W waste heat)

Connection options & mounting

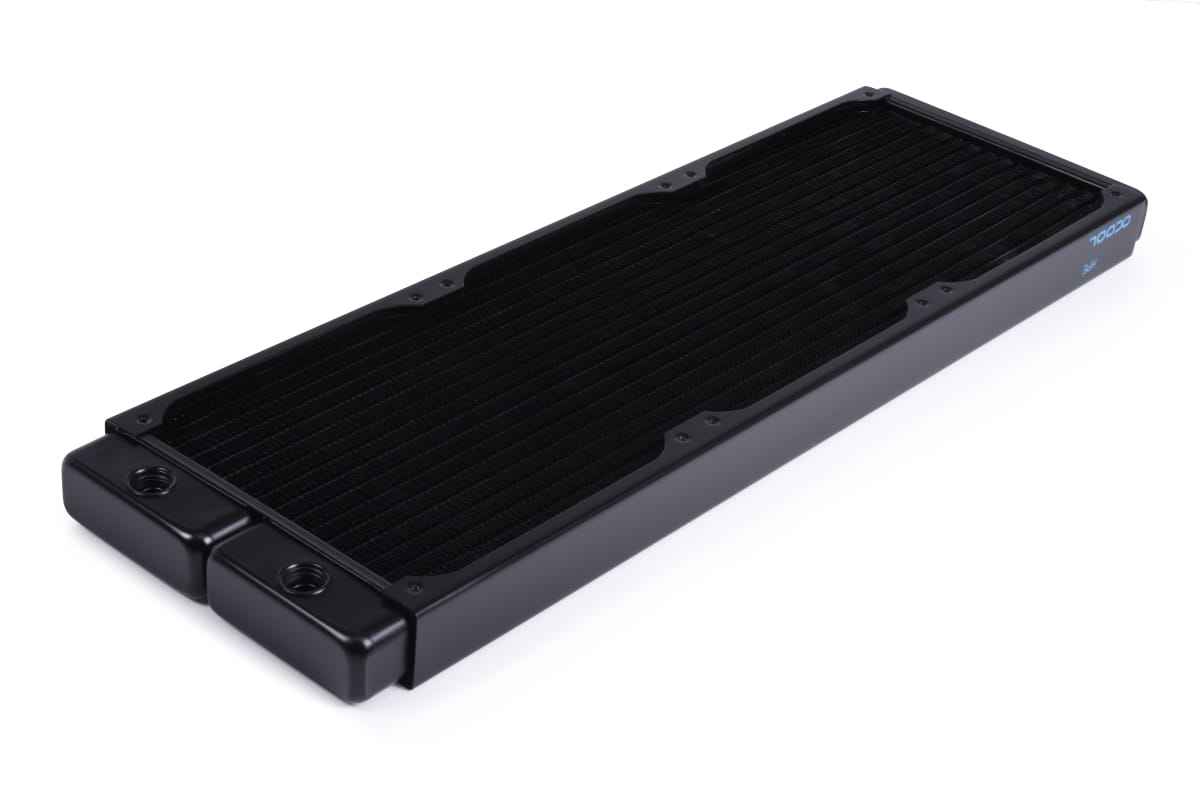

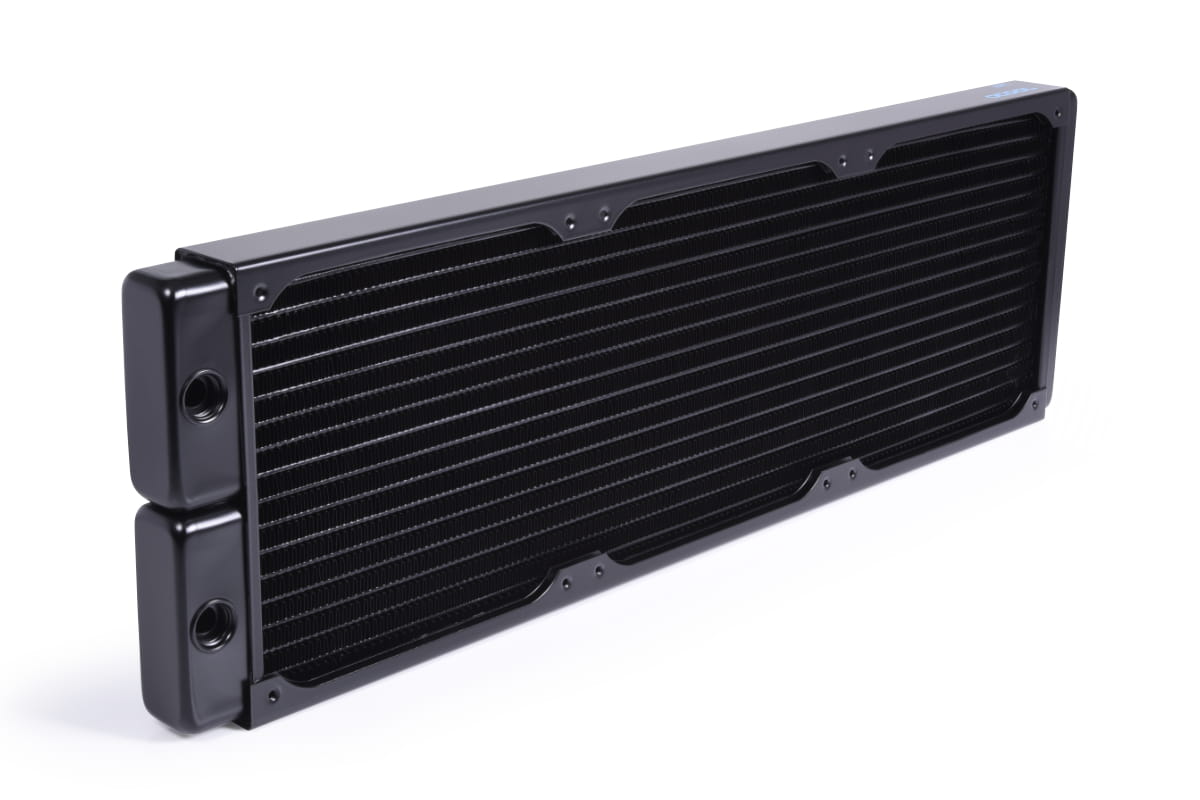

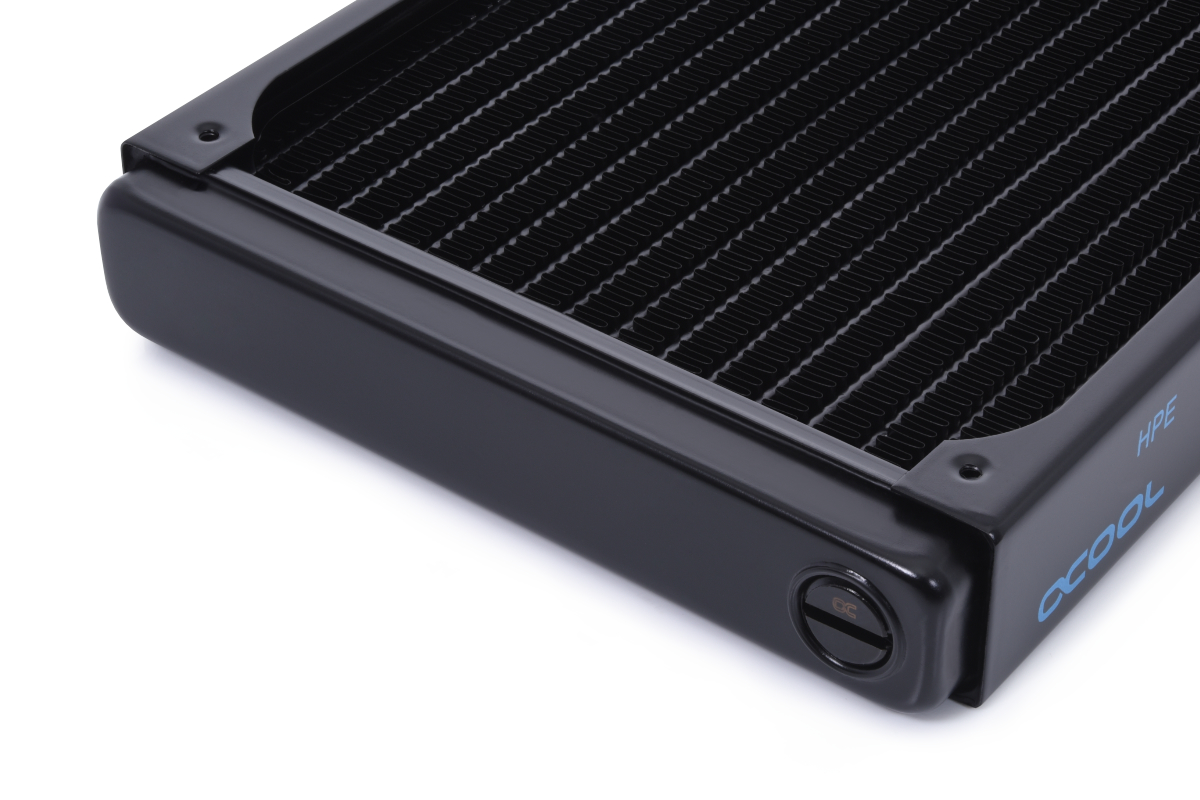

The NexXxoS HPE radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or drain port, which can be used for filling and draining the water circuit. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.

Safety first

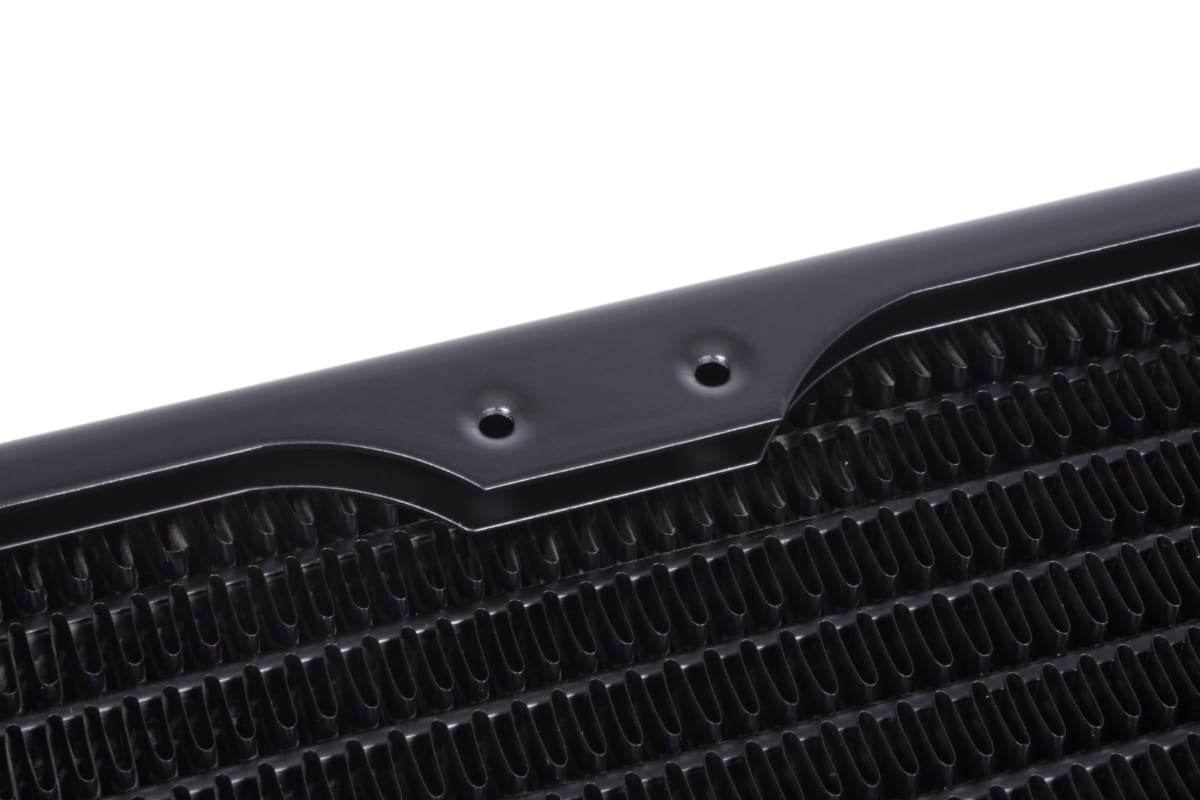

The NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage.

Patented screw plugs

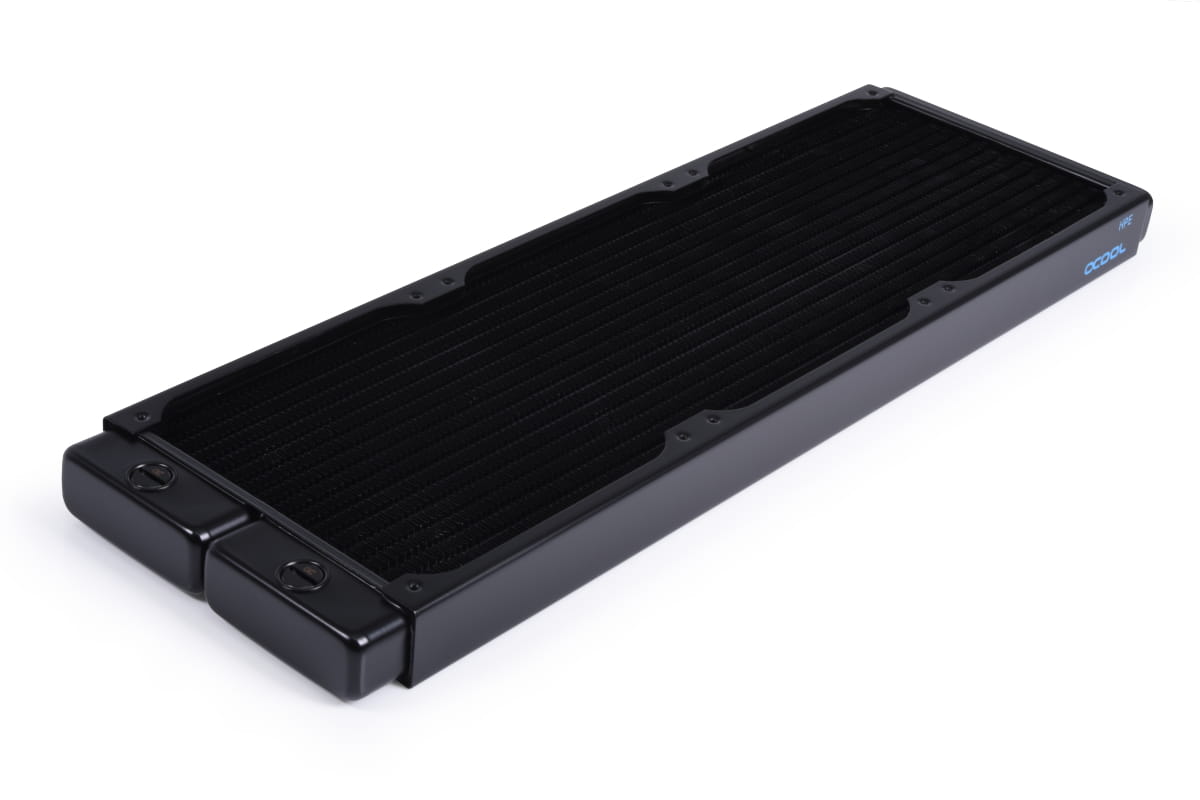

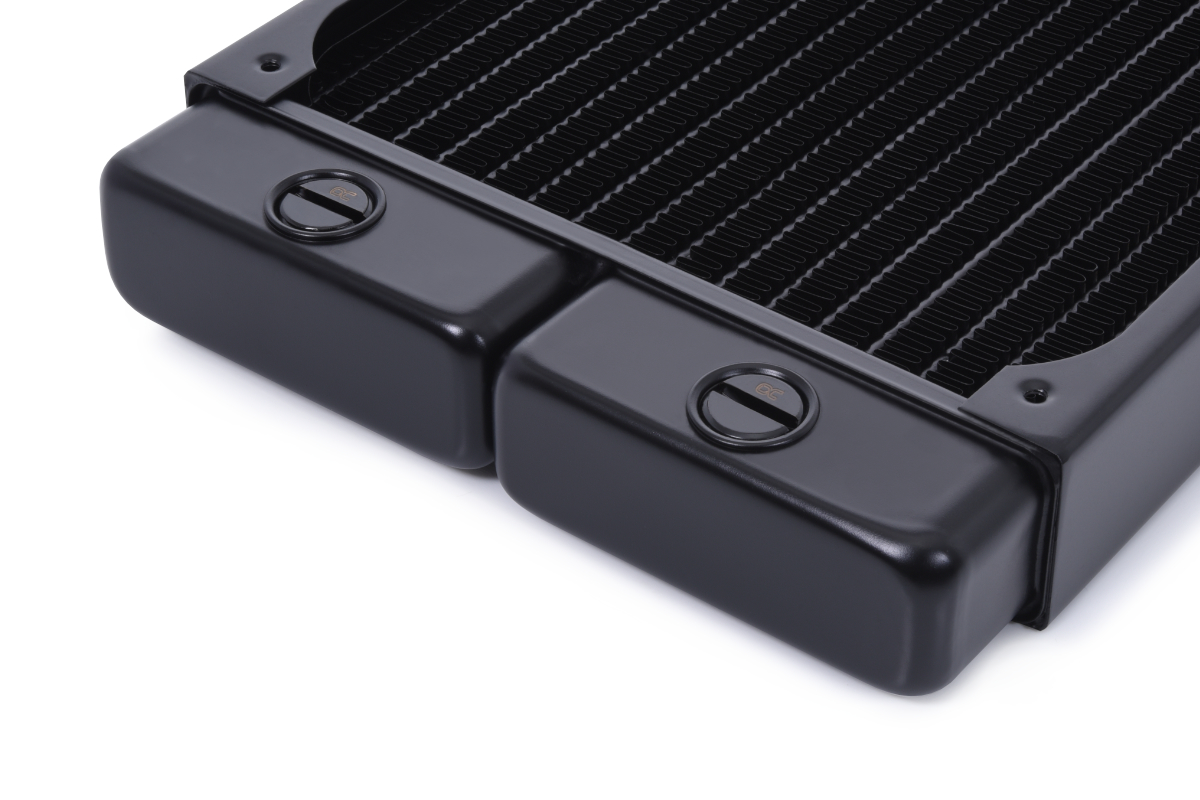

All NexXxoS HPE radiators use Alphacool's patented screw plugs. Protruding screw plugs often mean that the radiator cannot be laid flush. Alphacool's screw plugs are fully recessed into the radiator, flush with its surface and allow easy installation in the case.

Technical data radiator
L x W x H 455,5 x 144 x 30mm (+/- 3%)
Material cooling fins, pre-chambers & channels copper
Material threads brass
Material outer housing stainless steel
Threads 4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length)
Possible fan size 140mm
Possible fan assembly 3x one-sided / 6x both-sided
Thread size fan mounting M3
Pressure tested 0,8 Bar
Maximum working temperature 60°C
Fin density 18 FPI



Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Dicke: 29 - 39mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 0,8 bar
Lüftergröße: 140mm
Anschluss: 5x G1/4
Fins per inch: 18
Anzahl Lüfter: 3 ;6 ;
Abmessungen (L x B x H): 455,5 x 144 x 30mm
