Alphacool ice station VPP including Alphacool ice pump VPP755

PUM Alphacool Eisstation VPP inkl. Alphacool Eispumpe VPP755 V.3

Article no.: PUM
EAN: 4250197132954
Weight: 0,8 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€79.98 *

Prices incl. VAT plus shipping costs

in stock

With the Alphacool Eisstation, you get a compact reservoir that fits into nearly any case. It... more

Close menu

Product information

With the Alphacool Eisstation, you get a compact reservoir that fits into nearly any case. It comes in three different versions. A DDC, a D5, and a DC-LT version are available.

Highlights

The cap is made of sturdy Nylon
Three versions for all current pumps
Numerous mounting options

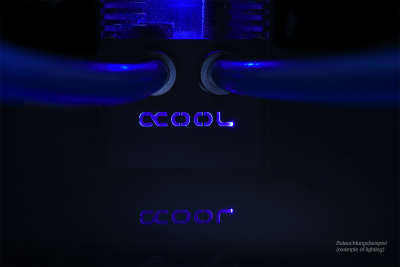

Illuminated logo and LED mounting options

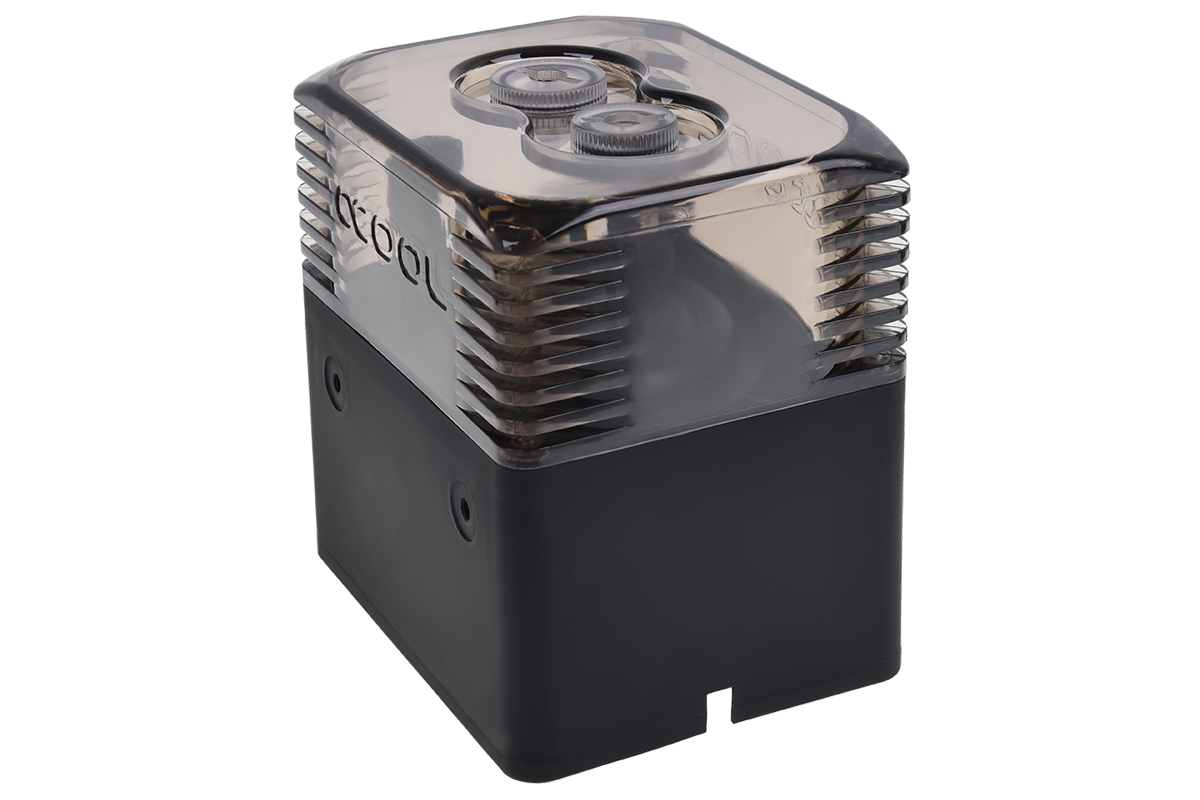

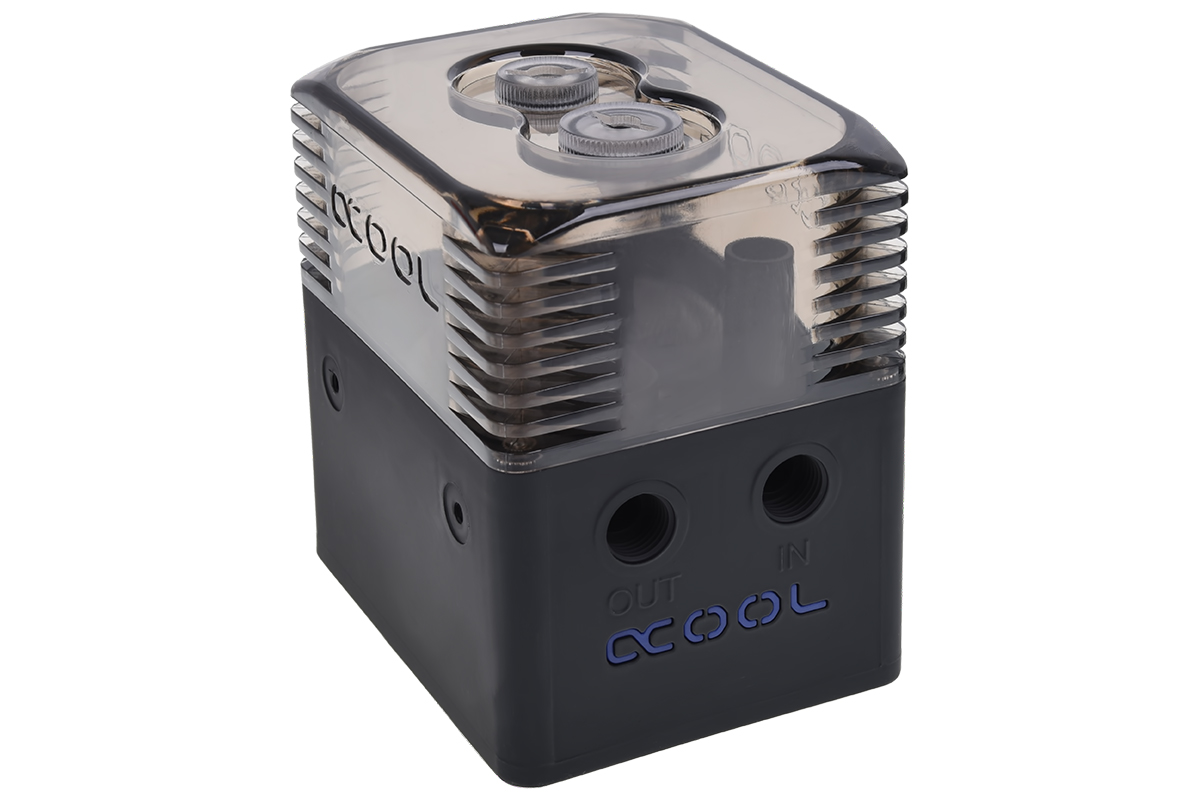

The Alphacool Eisstation reservoir is extremely compact and is available in three versions suited for different pumps. D5, DDC and DC-LT versions are available. Each pump is installed in the bottom of the Eisstation and is not visible from the outside. The bottom of the Eisstation is a metal plate that reduces vibrations and increases the stability of the Eisstation.

Mounting possibilities

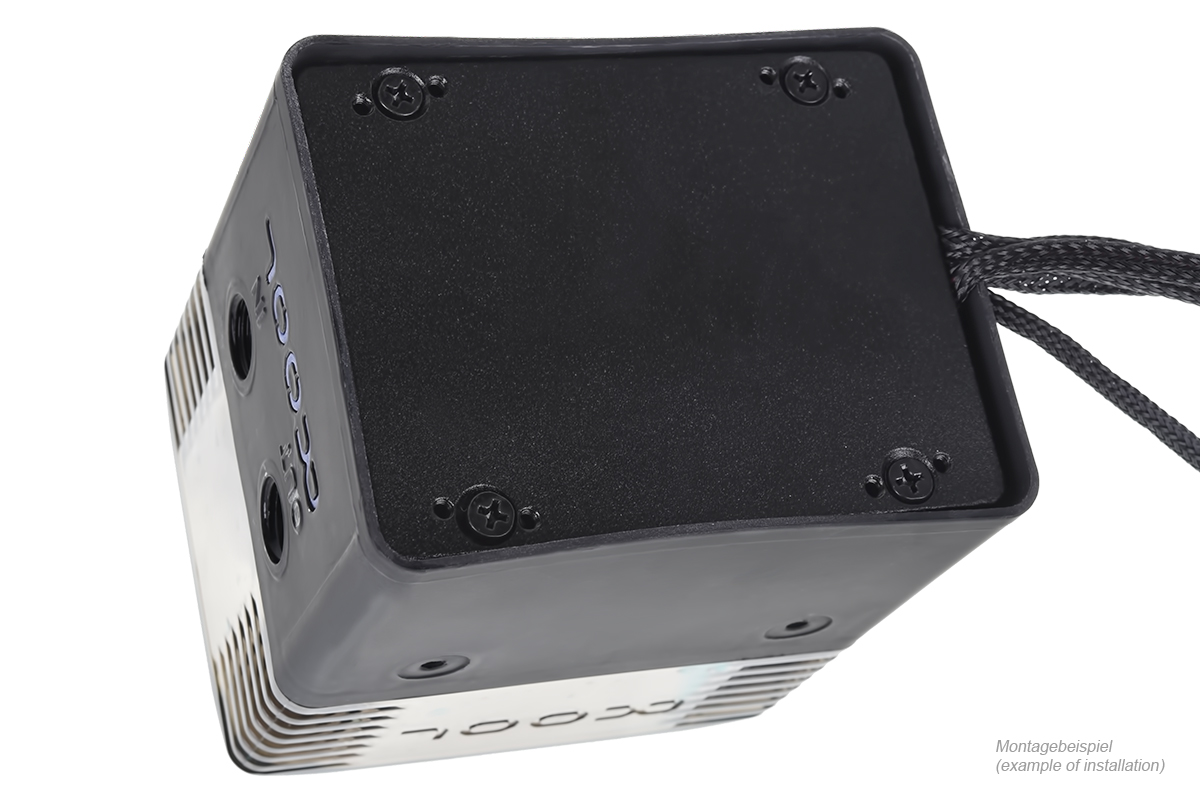

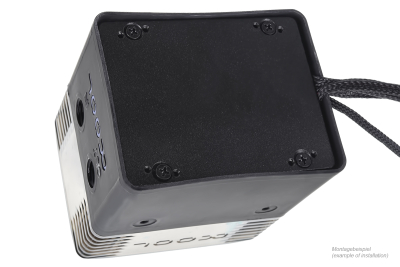

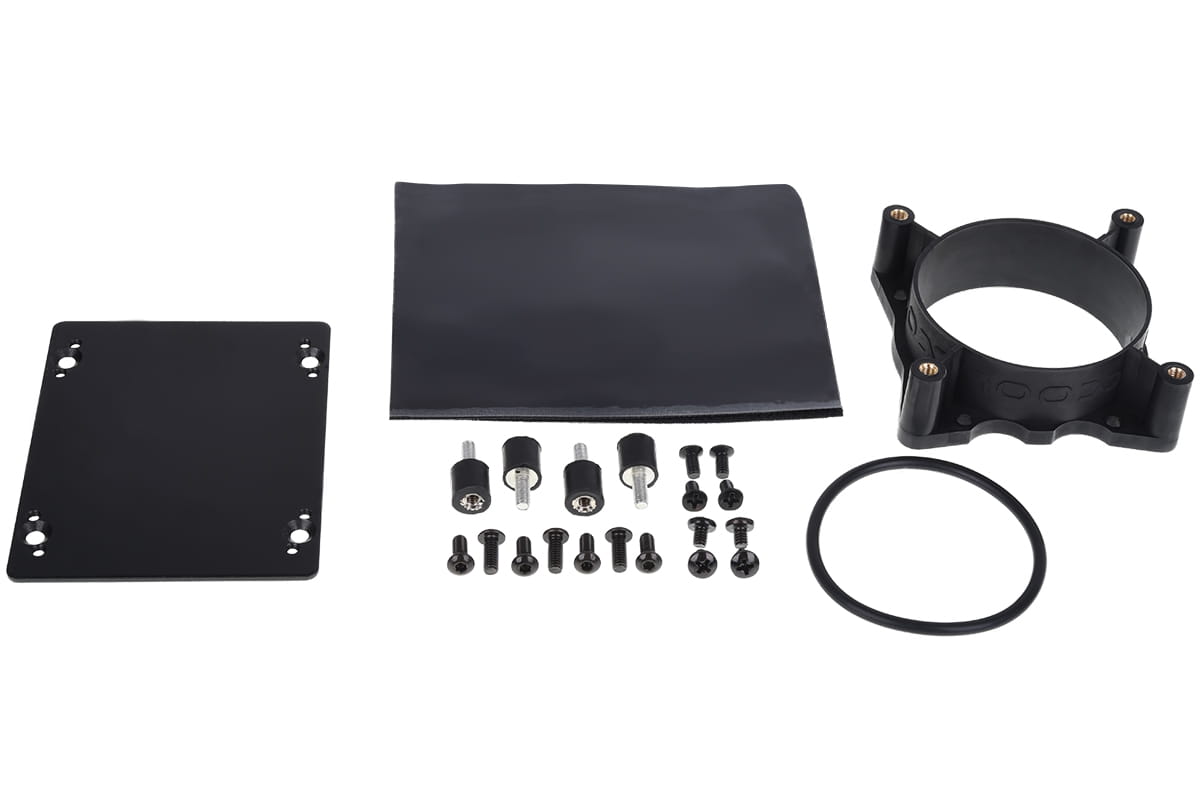

The installation options are numerous and comprehensive. The Eisstation can be screwed onto a 2.5” SSD bracket. It can also be mounted in a 3,5” bay. In either case, the special decoupling screws included with the Eisstation are used for mounting it. This minimises the transfer of vibrations to the case, lowering the operating volume significantly. Another installation option is the included Velcro fastener. One part of the Velcro is glued to the bottom of the Eisstation, while the other part is glued to the case. Then all that’s left is to press the Eisstation’s bottom against the corresponding Velcro on the case. The size of the Velcro ensures secure positioning even during transport.
The Eisstation can be mounted vertically or horizontally, depending on personal taste and available space.

Connection possibilities

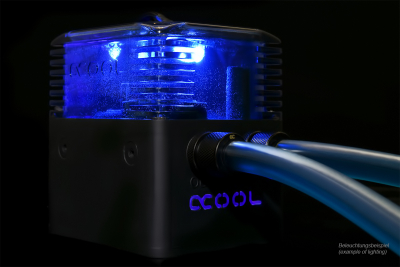

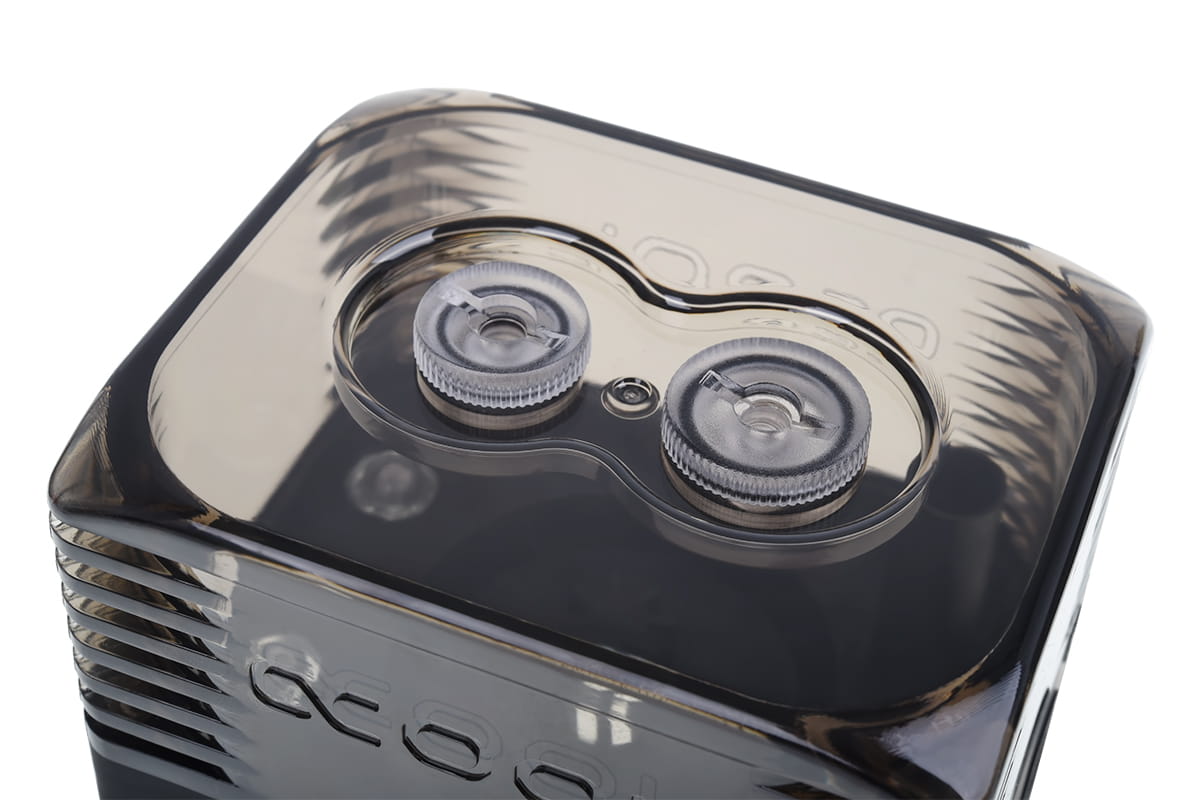

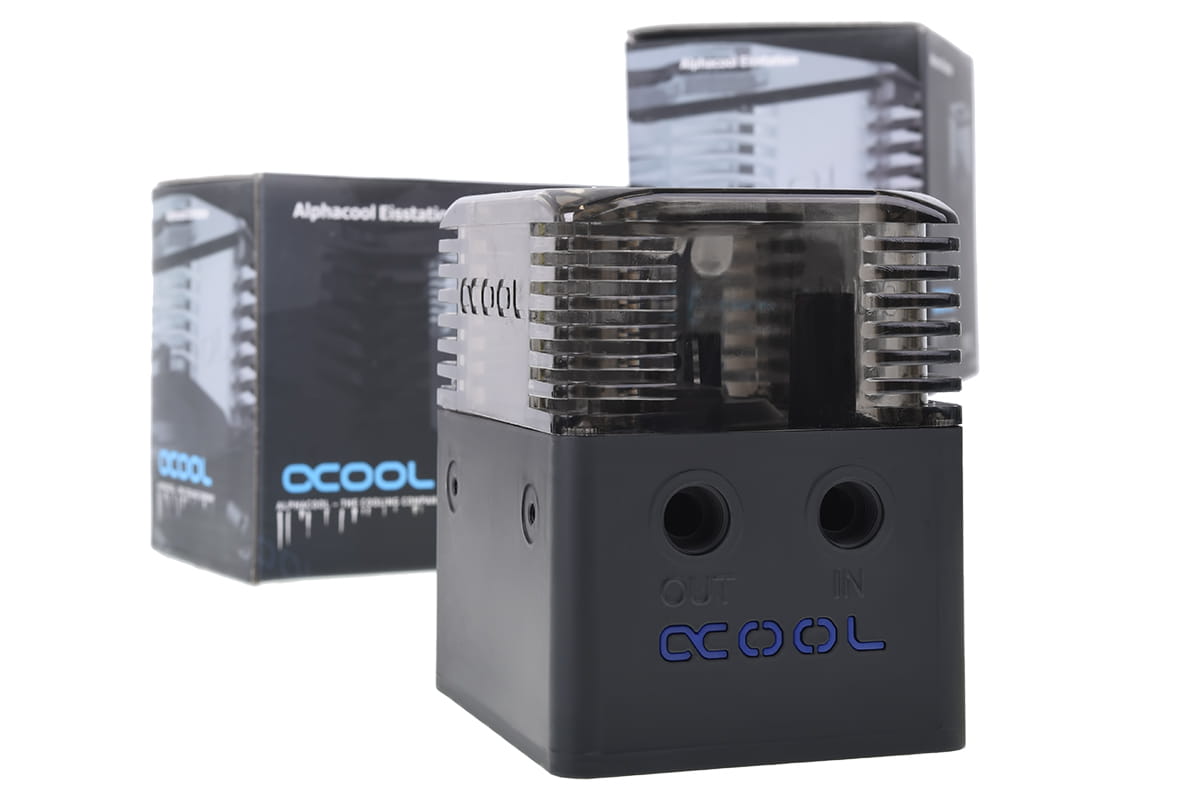

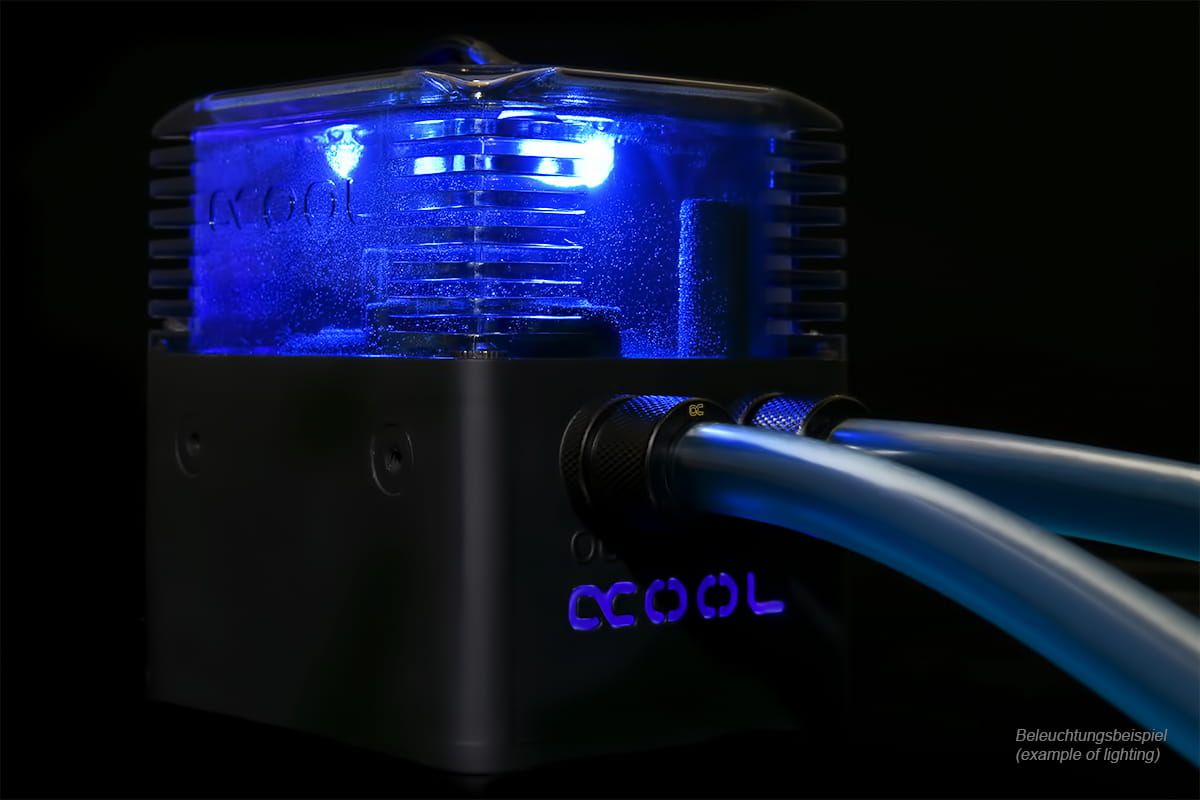

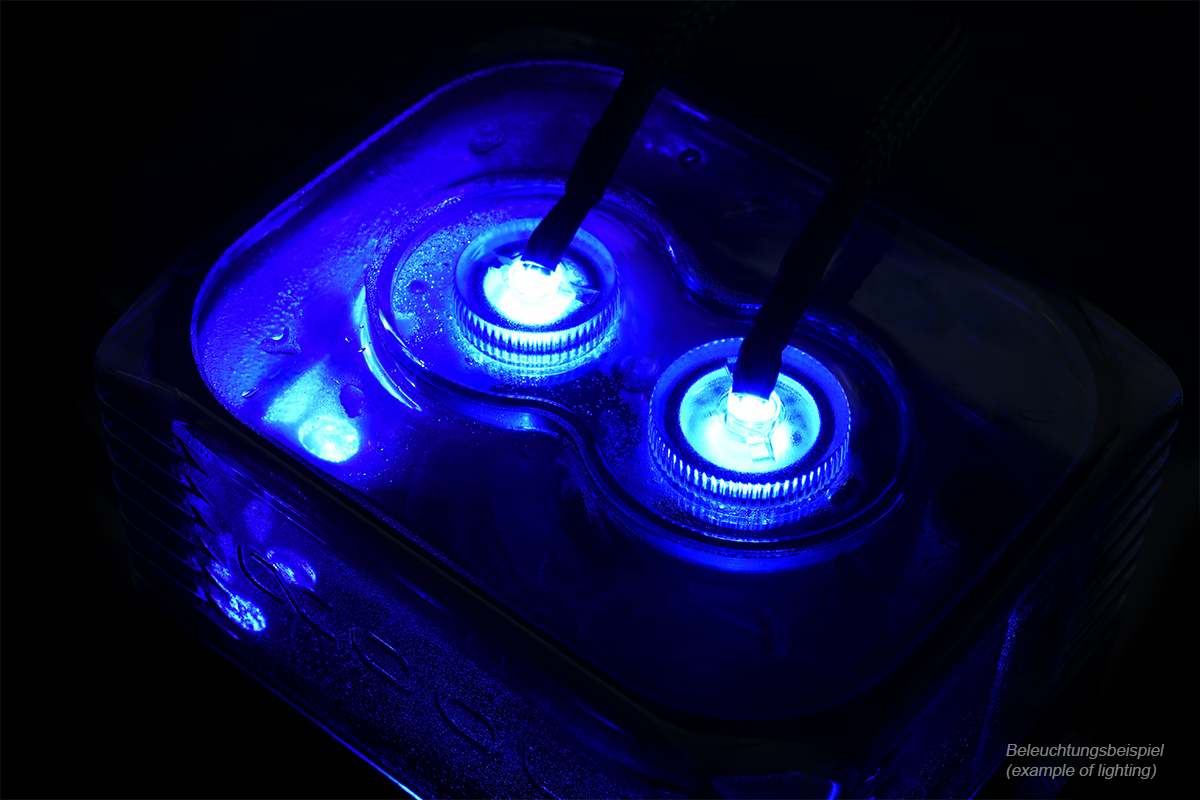

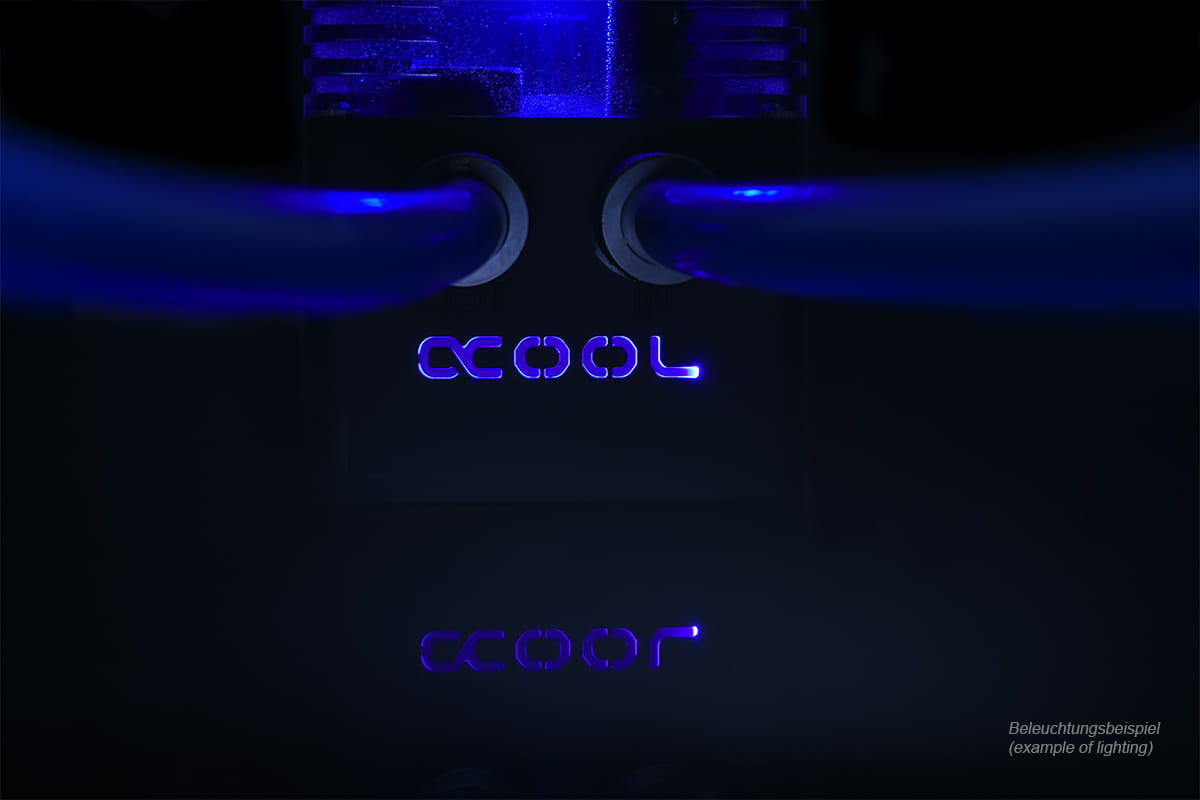

There are four possibilities for connection. An IN and an OUT with G1/4 threads are located on the top, with the illuminated logo. In the cap, there is one G1/4” and one G3/8” connection available. The G3/8” connection, with its larger size, simplifies filling the Eisstation and can also serve as a lighting module for 5mm LEDs. Two additional 5mm LED places can be found in the bottom of the reservoir and illuminate the water-filled portion from below.

A highlight of the Eisstation is the materials it is composed of. The bottom portion has a high-quality soft-touch surface which gives it an outstanding look and feel. The upper portion and the reservoir itself are not made of simple, easily breakable Plexiglas, but rather of extremely sturdy Nylon. While normal reservoirs made of glass or Plexiglas can break or crack due to falls, even from a small height, or due to improper handling, it is nearly impossible to damage the Eisstation’s clear container.

Technical data
Dimensions (L x W x H)	102 x 82 x 105mm
Material	Nylon / PMMA
Capacity	250ml
Thread	G1/4"
Connections	3x G1/4" / 1x G3/8"
Power connection LED Logo	3 Pin
Lighting modules	4x for 5mm LED
Color	black/transparent

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
