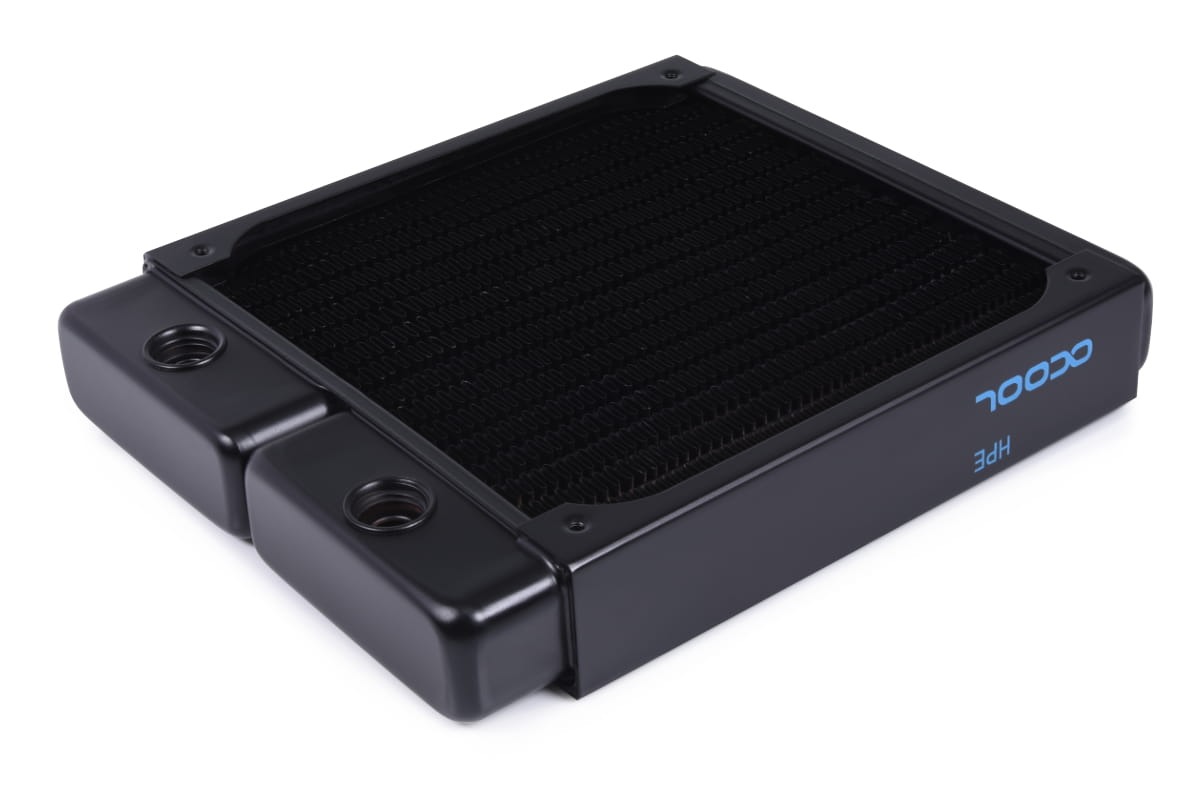

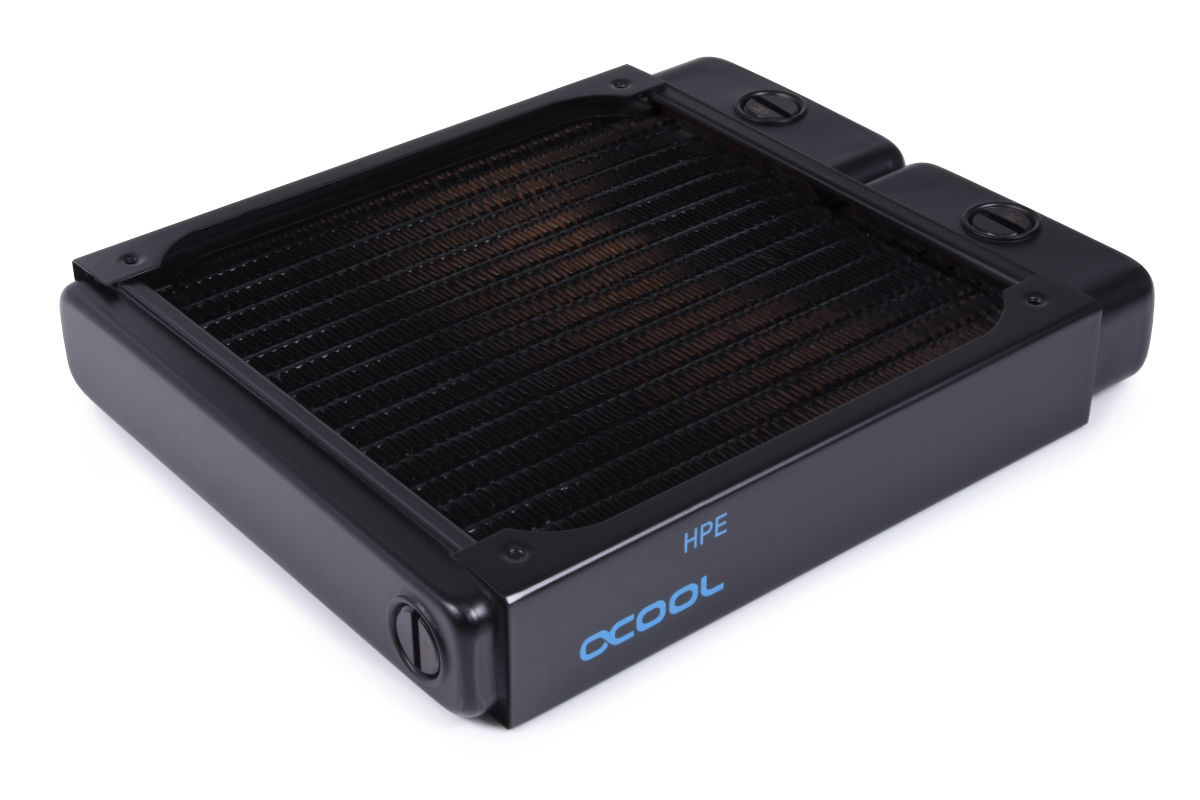

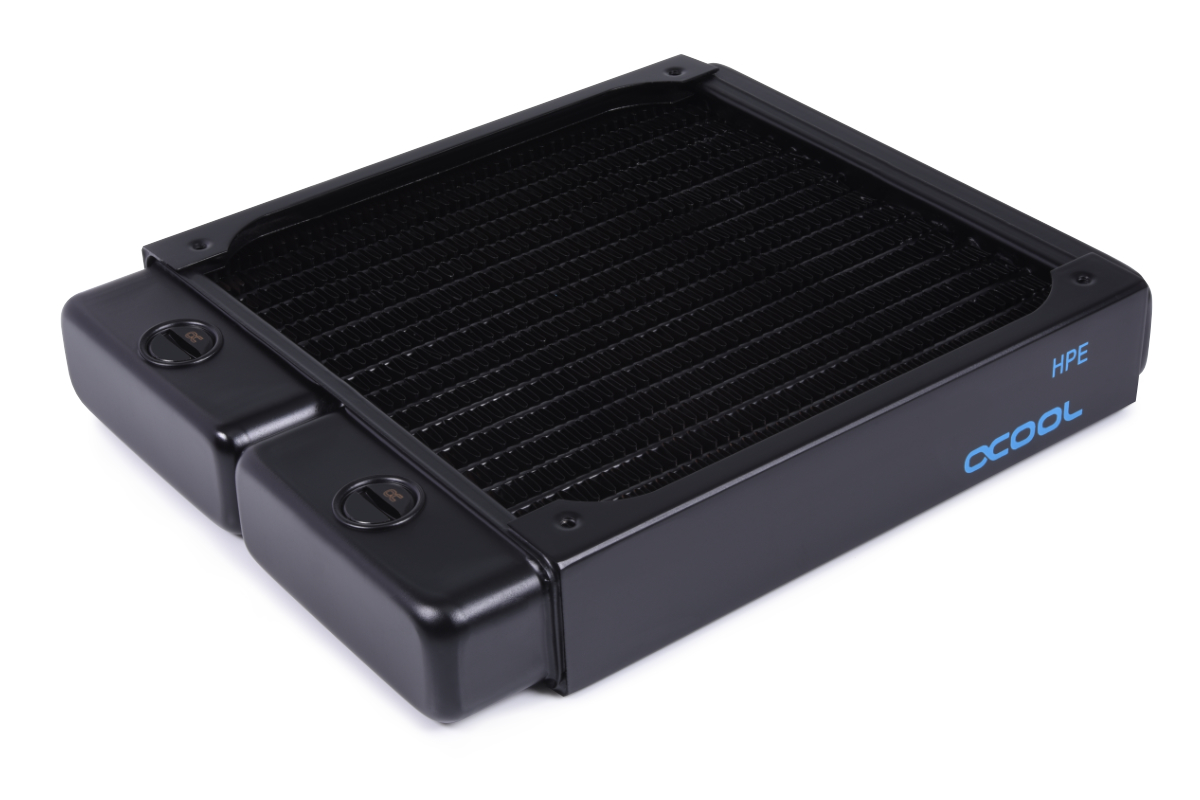

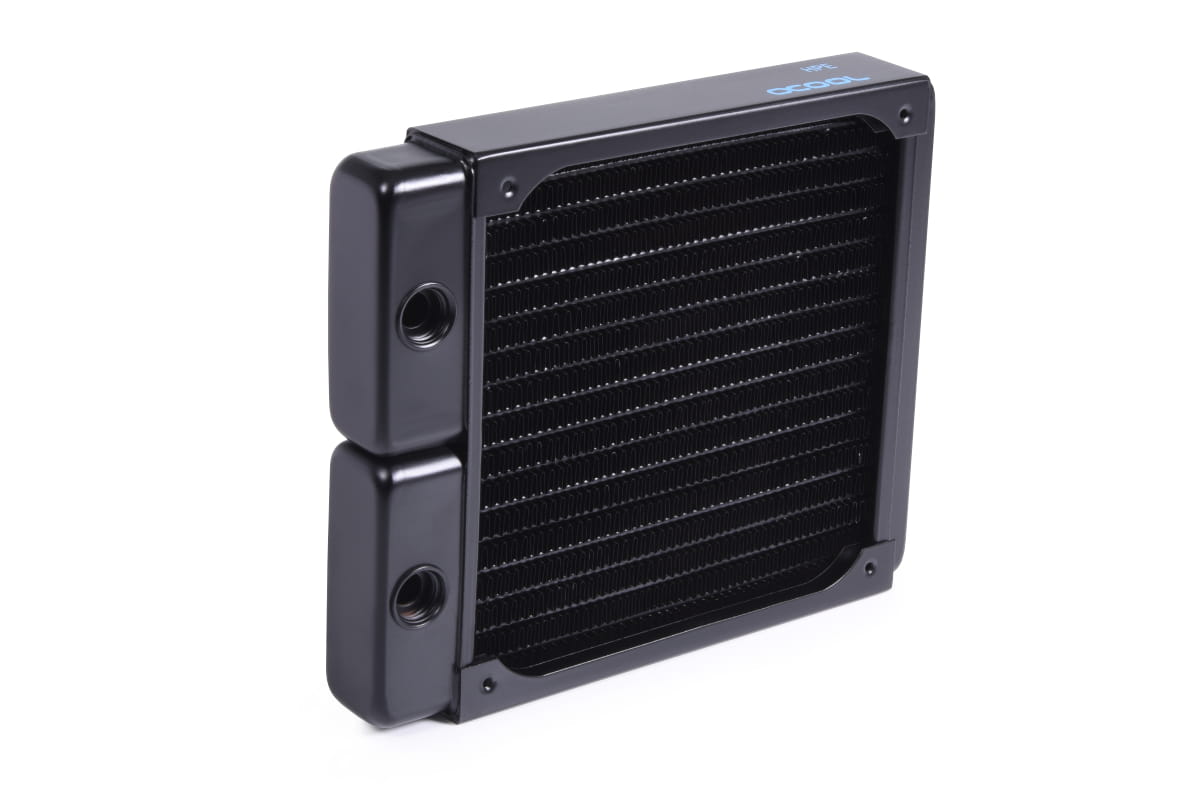

Alphacool NexXxoS HPE-30 Full Copper 140mm Radiator

  • 14470
  • 4250197144704
  • 0,635 kg
  • There are more than 10 units available
  • Images may differ slightly from the original
€79.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
WAC Alphacool Eisbaer Aurora (Solo) - Digital RGB
1x
Alphacool Eisbaer Aurora (Solo) - Digital RGB
€65.99*
WZS Alphacool Apex filling funnel G1/4"
1x
Alphacool Apex filling funnel G1/4"
€7.98*
L14 Alphacool Rise Aurora 140mm fan (140x140x25mm) PHT EOL
1x
Alphacool Rise Aurora 140mm fan (140x140x25mm)
€15.98*
WAK Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6800XT/6900XT Nitro+ with backplate PHT EOL
1x
Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6800XT/6900XT Nitro+ with backplate
€72.98*
WAZ Alphacool Apex Liquid ECO 1000ml clear
1x
Alphacool Apex Liquid ECO 1000ml clear
€14.98*
Terms and Conditions Alphacool Core 200 Aurora Reservoir D5/VPP Acetal/Acrylic
1x
and Conditions Alphacool Core 200 Aurora Reservoir D5/VPP Acetal/Acrylic
€49.98*
PUM Alphacool VPP655 - Single Edition PHT EOL
1x
Alphacool VPP655 - Single Edition
€69.98*
For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator... more
Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests* with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

(* Test setup: NexXxos ST30 360mm radiator vs. NexXxos HPE-30 360mm radiator with Eisbaer cooler and 3x 120mm Rise Aurora fans and on Asus Prime x299 motherboard with Intel i9 10900x CPU with 350W waste heat)

Connection options & mounting

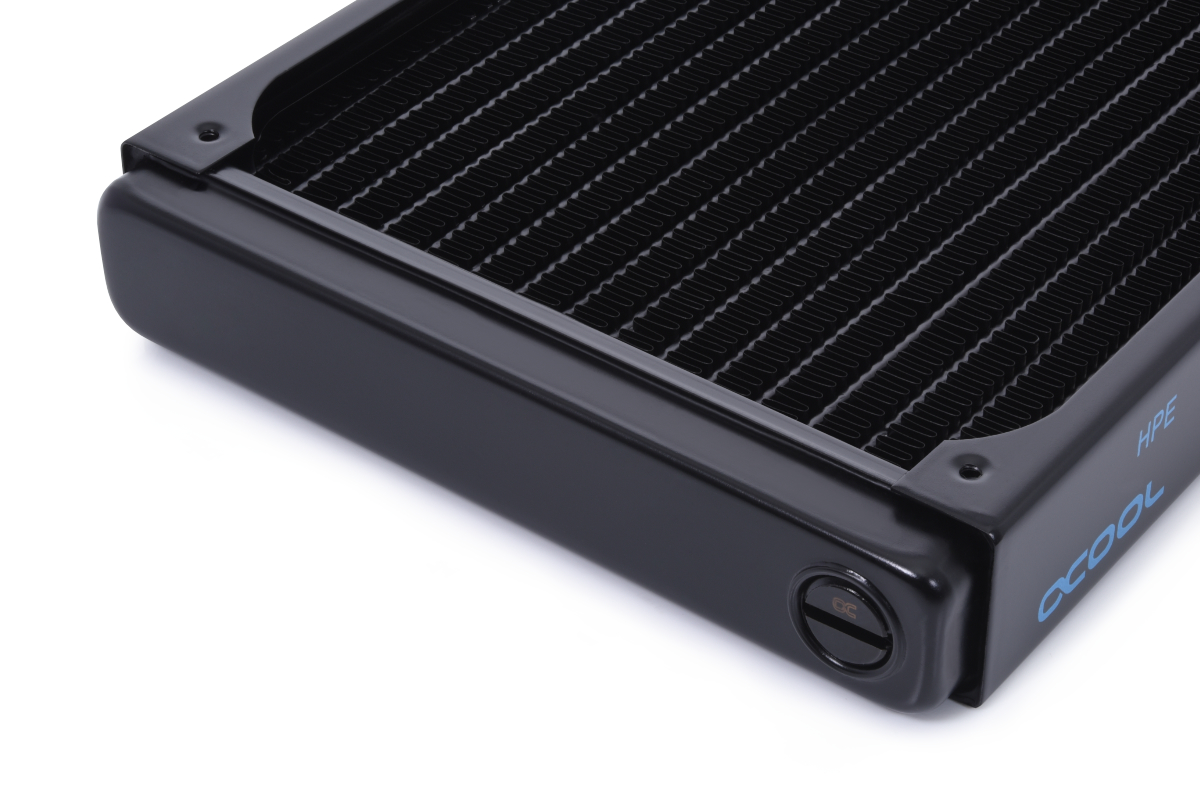

The NexXxoS HPE radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or drain port, which can be used for filling and draining the water circuit. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.

Safety first
The NexXxoS HPE radiator has special protective plates placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and water channels underneath from damage.

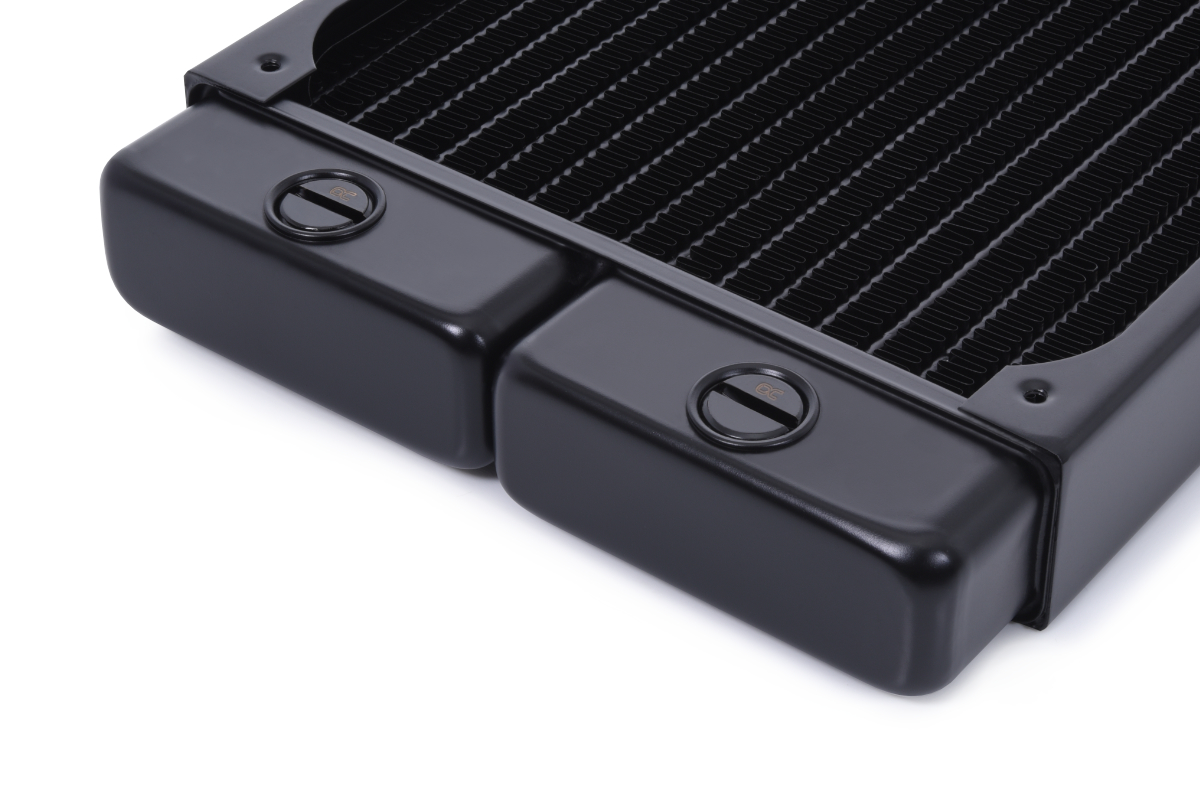

Patented screw plugs
All NexXxoS HPE radiators use Alphacool's patented screw plugs. Protruding screw plugs often mean that the radiator cannot be laid flush. Alphacool's screw plugs are fully recessed into the radiator, flush with its surface and allow easy installation in the case.



Technical data radiator
L x W x H173,5 x 144 x 30mm (+/- 3%)
Quantity of cooling channels14
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length)
Possible fan size140mm
Possible fan assembly1x one-sided / 2x both-sided
Thread size fan mountingM3
Pressure tested0,8 Bar
Maximum working temperature60°C
Fin density18 FPI
Weight496g
Colorblack

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 0,8 bar
Anzahl Lüfter: 1, 2
Dicke: 29 - 39mm
Anschluss: 5x G1/4"
Fins per inch: 18
Abmessungen (L x B x H): 173,5 x 144 x 30mm
Lüftergröße: 140mm
