Expansion tank with VPP D5 pump

PUM Alphacool Eisbecher Aurora D5 Acetal/Glas - 150mm inkl. Alphacool VPP Apex D5

Article no.: 13327
EAN: 4250197133272
Weight: 1,24 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€139.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack

€31.98*

Alphacool Eiszapfen 13/10mm screw-on nozzle 90° rotatable G1/4 - Deep Black

€7.98*

Alphacool Leak Testing Tool incl. Pump

€34.98*

Alphacool VPP Apex Pump

€65.99*

Alphacool spray bottle Core 500ml

€4.98*

Alphacool VPP655 - Single Edition

€69.98*

Alphacool VPP655 - PWM - Single Edition

€74.98*

Alphacool hose AlphaTube HF 13/10 (3/8"ID) - Clear sold by the meter

€6.98*

The Alphacool Eisbecher Aurora reservoir has an integrated pump top for powerful D5 pumps and is... more

Close menu

Product information

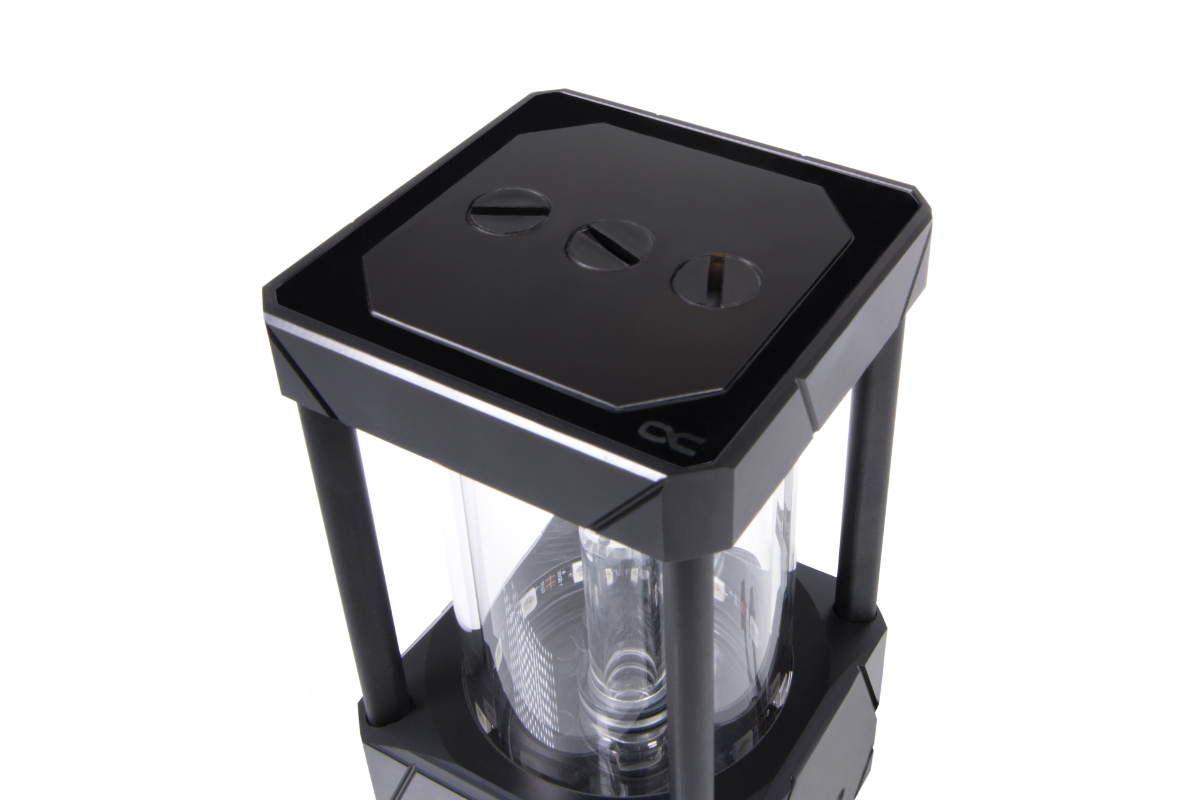

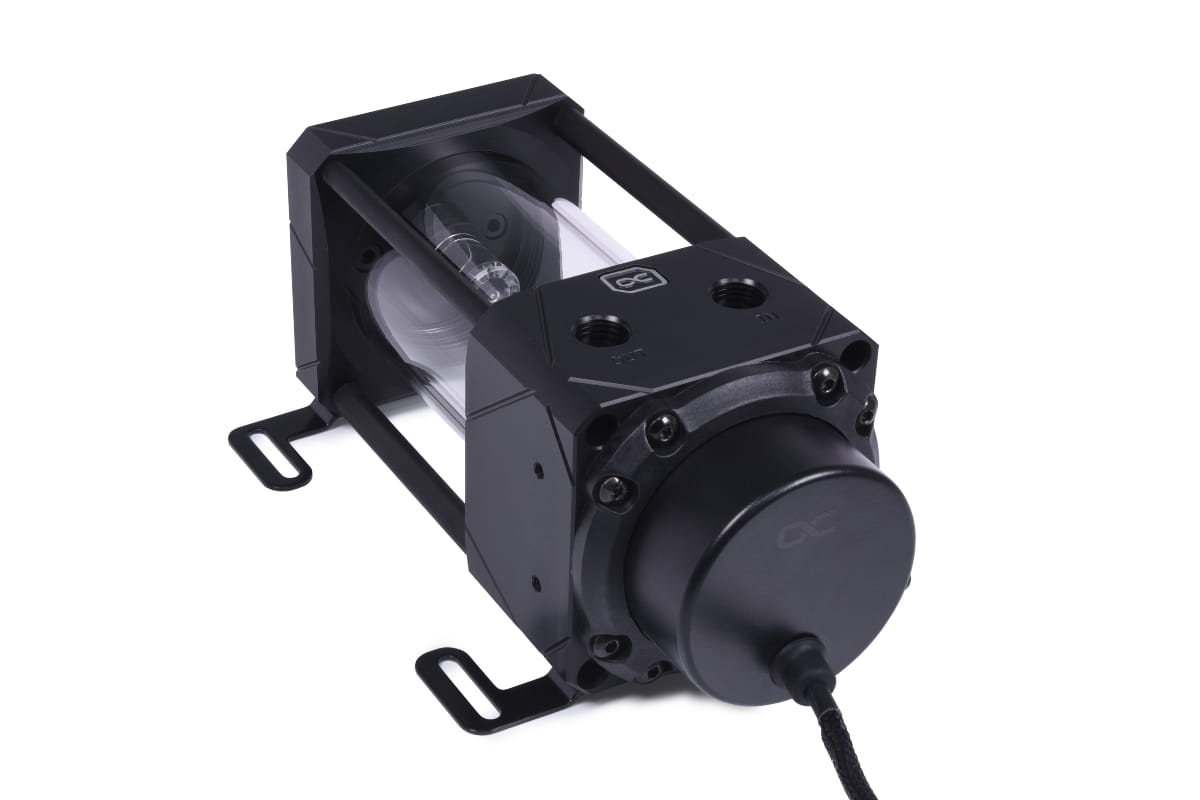

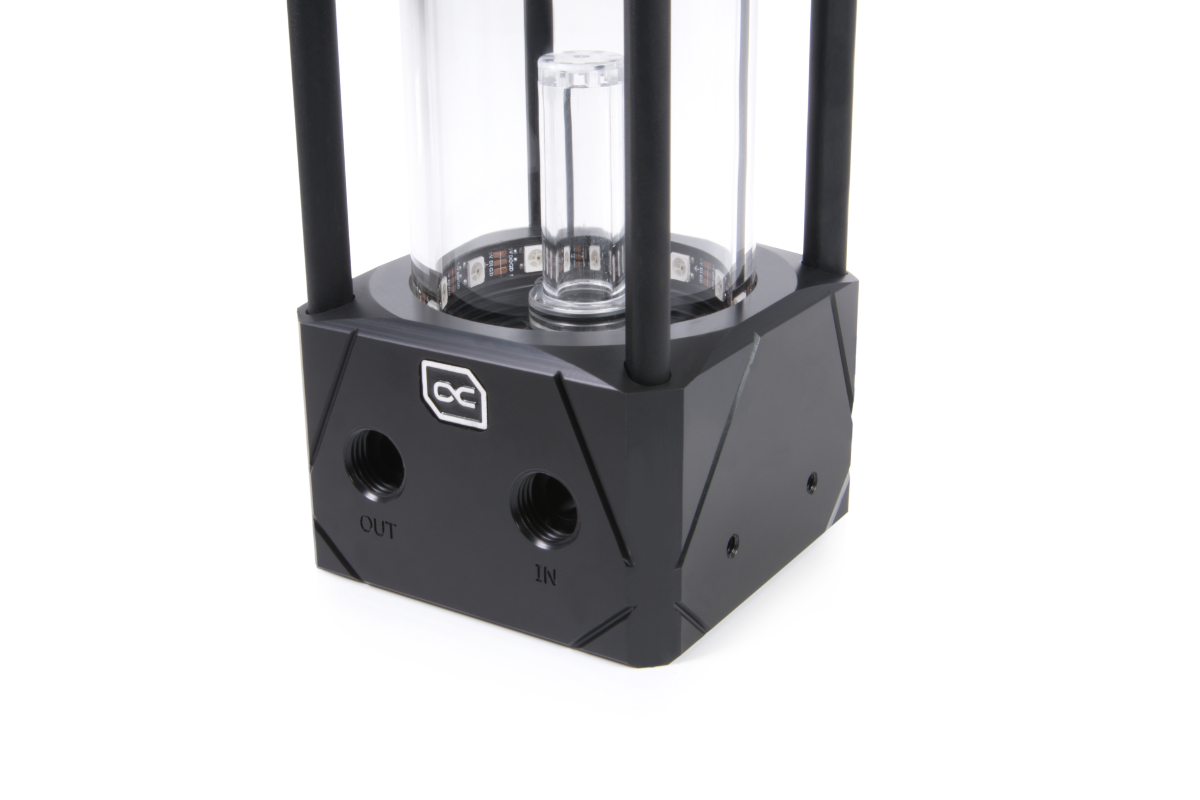

The Alphacool Eisbecher Aurora reservoir has an integrated pump top for powerful D5 pumps and is supplied with a VPP Apex pump. The reservoir tube is made of glass, the D5/VPP pump top and the lid are made of acetal. The combination of these two materials gives the reservoir a unique and elegant look. 12 digitally addressable RGB LEDs in the pump top and the light tower water effect inside the glass tube create the wow effect.

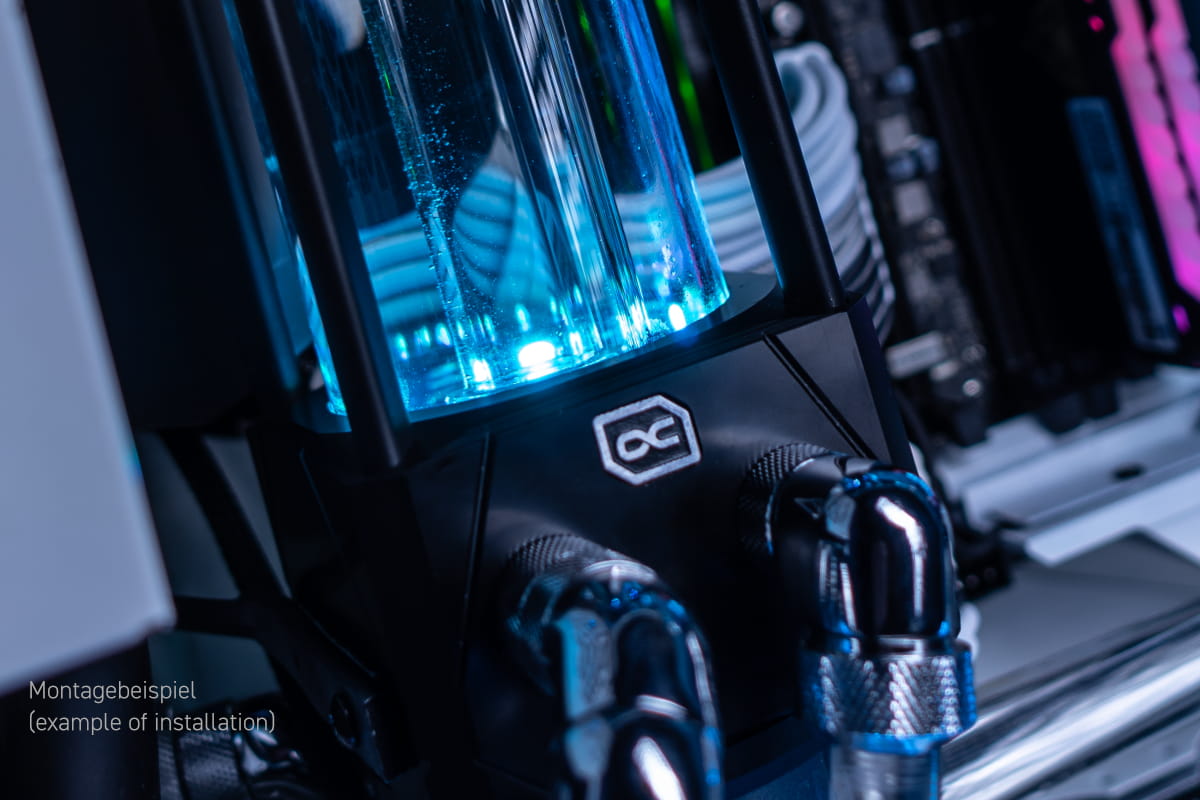

Extensive assembly options
Mounting option 1:

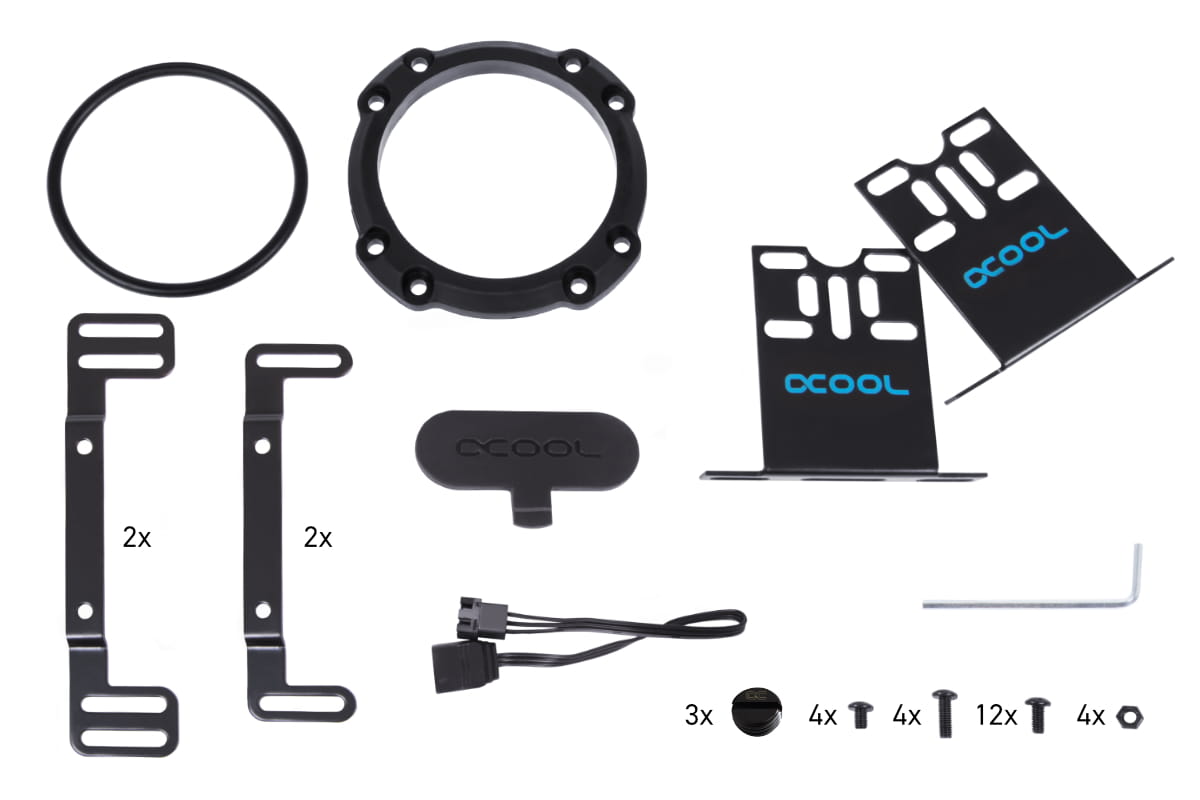

The scope of delivery includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.

Mounting option 2:
The scope of delivery includes 120mm/140mm mounting frames with which the Eisbecher Aurora expansion tank can be attached to any free fan slots, radiators or to the fans on radiators.

Digitally addressable RGB lighting

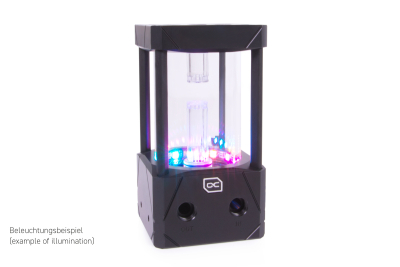

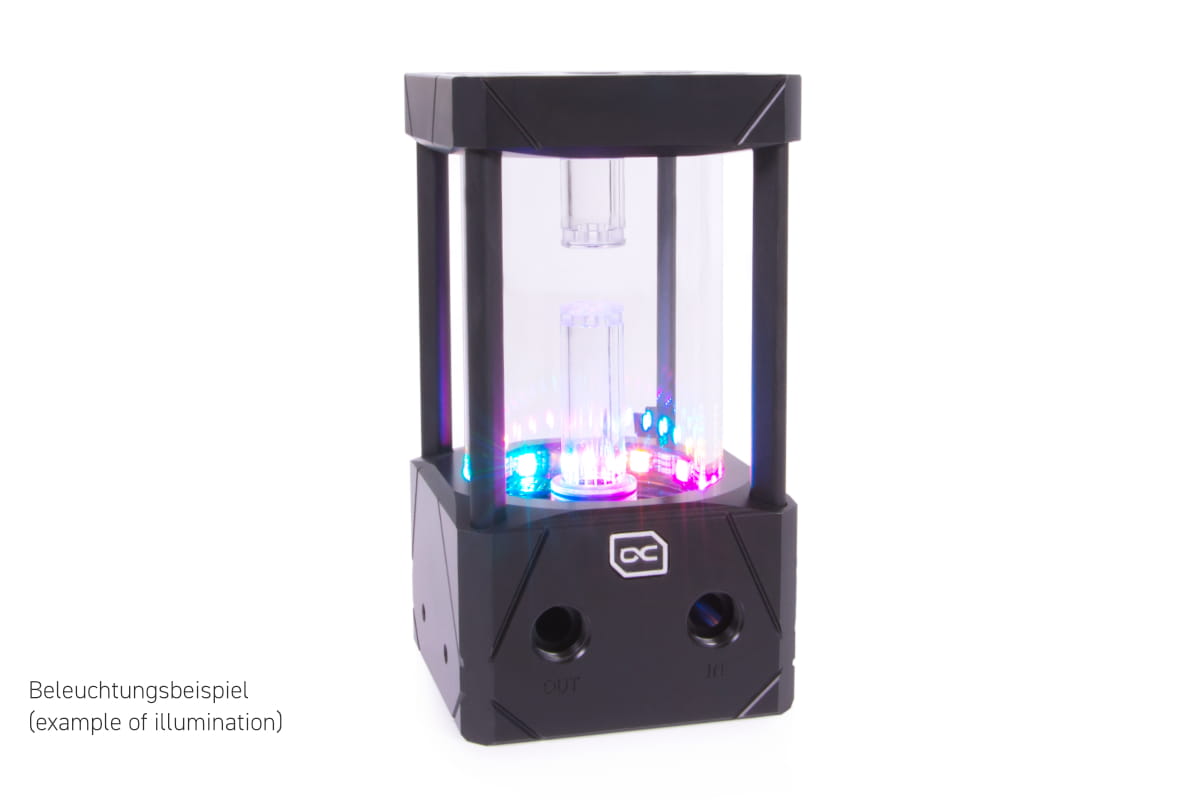

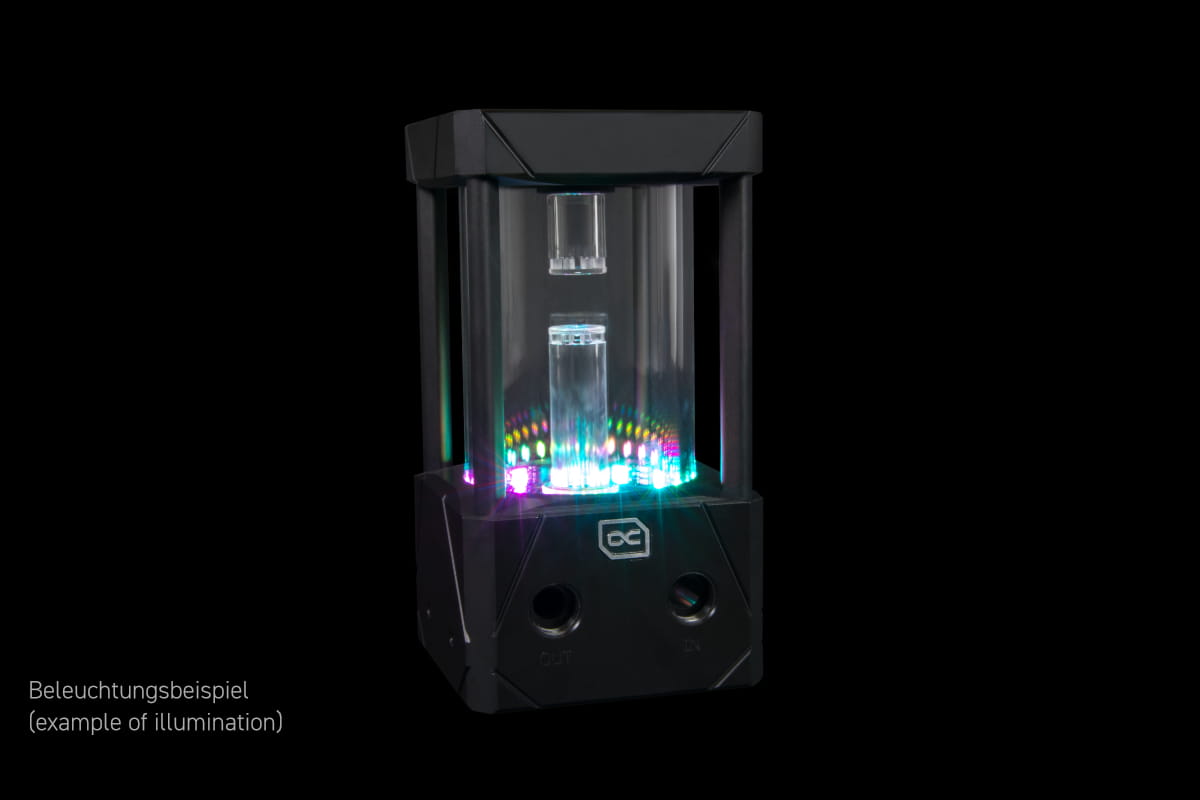

12 digitally addressable RGB LEDs illuminate the glass tube of the expansion tank. They are arranged in a ring at the lower end of the tube in the transition to the pump top and ensure brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. Particularly through the reflections in the real glass. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Lighttower water effect

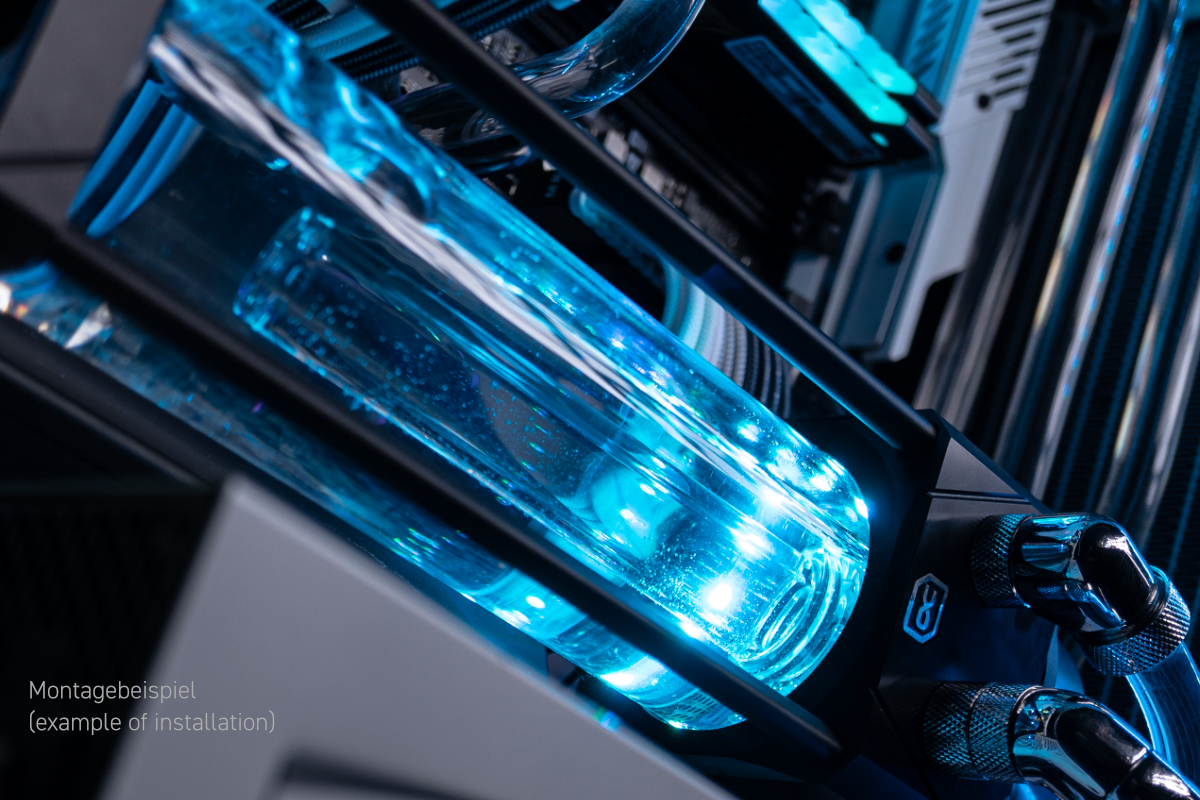

A special water effect is created in the ice cream sundae reservoir via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit.

pump

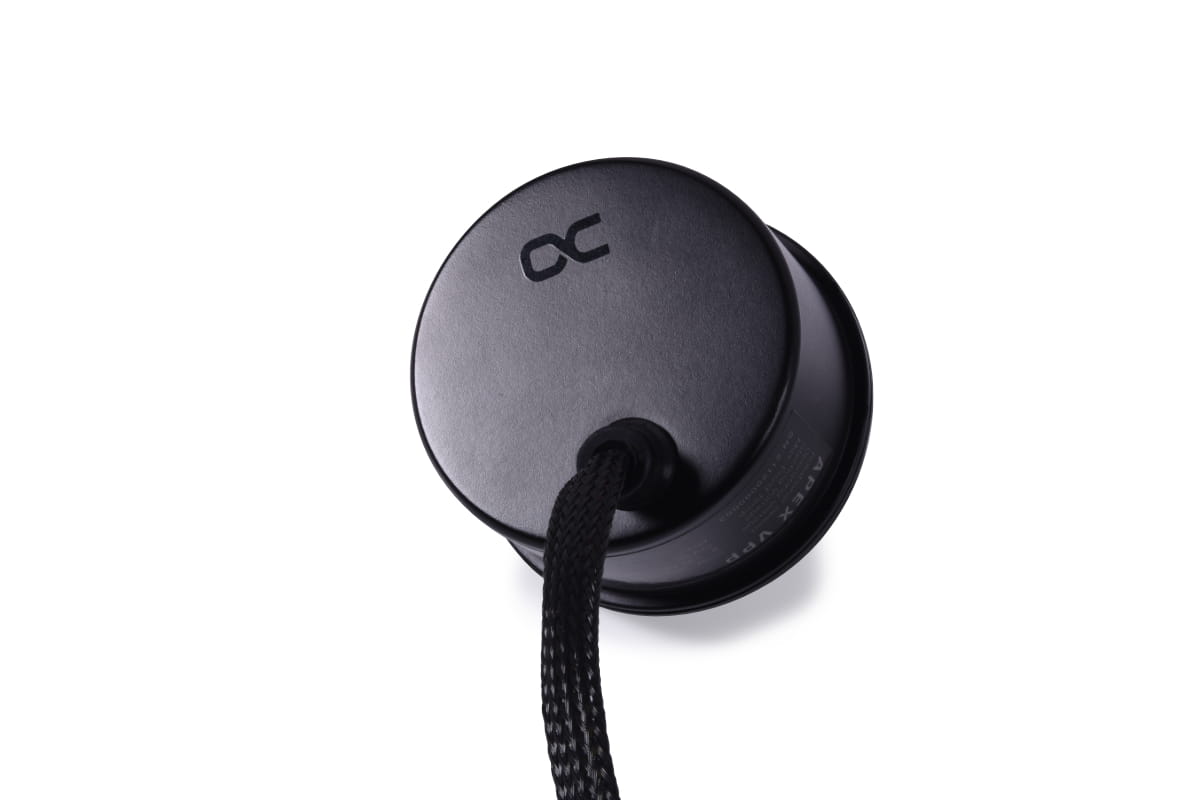

The VPP Apex pump does not have a spherical bearing and uses a ceramic axle. The motor coils have been moved from the inside to the outside. The changes mean that the pump is fundamentally more stable and runs more smoothly and vibrations have been significantly reduced. Another positive side effect is that power consumption has been almost halved. In comparison to Alphacool's ice pumps, the power supply is not via a 4-pin Molex connection. Instead, the Apex VPP pump is connected to the power supply using a SATA connection. The Apex VPP pump has a 4-pin fan connection that is connected to the mainboard or to an external controller. This allows the speed range of the pump to be controlled and read via PWM.

Technical data
L x W x H	142x77x77mm
Pump compatibility	D5
volume	180ml
Material pump top & lid	Acetal
Material tube	Glass
Material bridges	aluminum
Connections	1x G1/4“ internal thread IN / 4x G1/4“ internal thread OUT
Maximum working temperature	60°C
Pressure tested	0.8 bars
Number of digital aRGB LEDs	12
Voltage digital aRGB LEDs	5V
Power connection digital aRGB LEDs	3-pin JST + 3-pin 5V
Weight	567g
Color	black

Technical data VPP Apex
Dimensions (L x W x H)	65x65x41mm
Material pump	plastic
Material pump cover	aluminum
Material Axle	Ceramics
Power connection	4-pin PWM \| SATA
Control range	2500 - 4500 RPM
Cable lengths	4-Pin PWM - 48cm \| SATA - 48cm
Operating voltage	8-13V DC / 14W IP32
Starting voltage	12V DC
Maximum discharge head	4.25m
Maximum flow	340 l/h
Maximum working temperature	60°C
Net weight	276g
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Spannung:	12V DC
Maximale Systemtemperatur:	60°C
Maximale Förderhöhe:	Extrem (größer 4m)
Wassereinlass:	G1/4" Innengewinde
Wasserauslass:	G1/4" Innengewinde
Stromanschluss:	SATA
Maximaler Durchfluss:	340 l/h
Zugelassene Flüssigkeiten:	Wasser/Glykol-Gemisch
Leistungsaufnahme:	14W
Material:	Acetal, Aluminium, Keramik, Kunststoff
