Distro Plate mit Reservoir für VPP/D5 Pumpen

AGB Alphacool Core 140mm Reservoir mit VPP/D5 Pumpe

Article no.: 13889
EAN: 4250197138895
Weight: 1,34 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€169.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Ice Tube 16/13mm PETG HardTube 60cm - Set of 4 (240cm)

€18.98*

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Deep Black Sixpack

€36.99*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Apex Stealth Metal Power Fan 3000rpm Matt Black (120x120x25mm)

€21.98*

The Alphacool Core Reservoir not only looks sleek with its aRGB lighting, but can also be used... more

Close menu

Product information

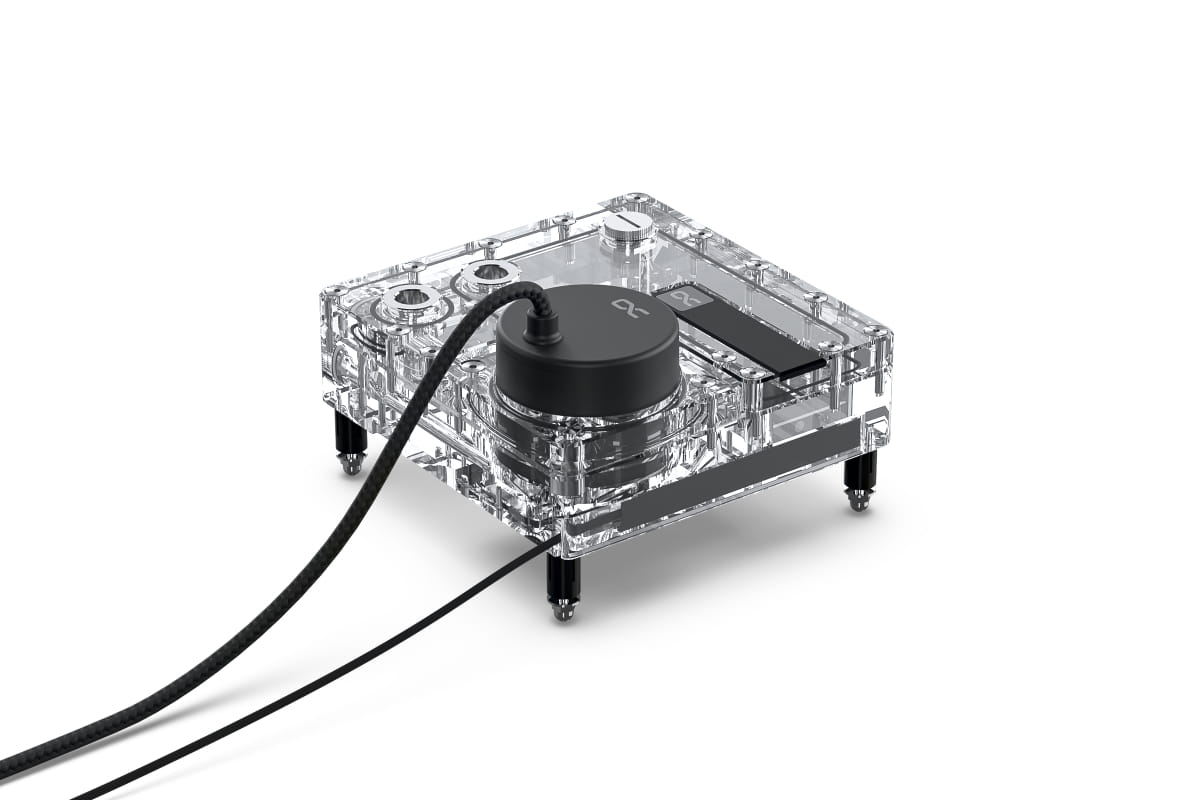

The Alphacool Core Reservoir not only looks sleek with its aRGB lighting, but can also be used flexibly thanks to its compact size. The reservoir is made entirely of acrylic. The installation of a D5 or VPP pump is required for operation. Due to its compact design, the Core Reservior also fits into small cases.

Core Design
A key element of Alphacool's Core Design series are the chrome-plated G1/4" connections made of brass. In the Core Reservoir, the connections are recessed rather than screwed into a thread, bypassing the problem of possible leaks due to cracking from the direct screwing of the connections into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute sealing of each connection, but also allows for the clear and functional appearance of the Alphacool Core Design series.

Easy installation
With the included Core Push Mounting kit, the Core Reservoir can be mounted on the case or on a radiator. The metal pins are attached to the radiator or case panel and the matching female sleeves are attached to the Reservoir (see manual). In the next installation step, the Reservoir is simply and tool-free pushed onto the pins. Alphacool's Push-Mounting allows for a secure fit of the reservoir on the case panel or on the radiator and allows for easy disassembly for maintenance or expansion projects.

Gamechanger
The Core Reservior is small and compact. This makes the reservoir ideal for custom water loops. An additional drain port is located on the side, allowing for easy and uncomplicated draining of the Reservoir.

High-quality material selection & brilliant lighting
Alphacool's Core Reservoir is made of high-quality acrylic glass, allowing for an unobstructed view of the coolant and brilliant illumination by the built-in digital addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacool's Aurora Eiscontrol aRGB controller (item number: 15360).

Technical data
Dimensions (L x W x H)	140.00 x 145.00 x 62.00mm
Volume (reservoir)	approx. 130ml
Material	Acryl
Pump compatibility	D5/VPP
Threads	3x G1/4“ inner thread / 1x drain port
Maximum working temperature	60 °C
Pressure tested	0.8 Bar
Quantity digital aRGB LEDs	5
Voltage digital aRGB LEDs	5V
Power connection digital aRGB LEDs	3-Pin JST + 3-Pin 5V
Weight	1120g
Color	transparent

Technical data pump
Material pump	synthetic material
Material pump cover	aluminium
Material axle	ceramics
Connections	4-Pin PWM \| SATA
Rotational speed	2500 - 4500 RPM
Cable lengths	4-Pin PWM - 48cm \| SATA - 48cm
Operating voltage	8-13V DC / 14W IP32
Starting voltage	12V DC
Maximum pumping head	4,25m
Maximum flow rate	340L/h
Maximum working temperature	60°C
Color	black

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Color:	Transparent
Material:	Acrylic
Dimensions:	140.00 x 145.00 x 62.00mm
Connection:	G1/4" internal thread
Pump pre-installed:	Yes
Pump compatibility:	For 1x D5
Volume:	130ml
