Alphacool Apex 1 CPU cooler AM5

  • 13893
  • 4250197138932
  • 1,214 kg
  • There are more than 25 units available
  • Images may differ slightly from the original
€169.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
14576 Alphacool Core Distro Plate 420 Left VPP/D5 with VPP Apex Pump
1x
Alphacool Core Distro Plate 420 Left VPP/D5 with VPP Apex Pump
€269.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
13470 Alphacool Core Geforce RTX 4090 Founders Edition with Backplate
1x
Alphacool Core Geforce RTX 4090 Founders Edition with Backplate
€139.98*
ANS Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack
1x
Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack
€33.97*
ANS Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome Sixpack
1x
Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome Sixpack
€33.97*
The Alphacool Apex series represents maximum cooling performance, exceptional design, and... more
Product information

The Alphacool Apex series represents maximum cooling performance, exceptional design, and premium material selection for high-end custom water cooling systems. The Alphacool Apex 1 is the first CPU water block in the Apex series and combines all its unique features in a robust CPU cooler.

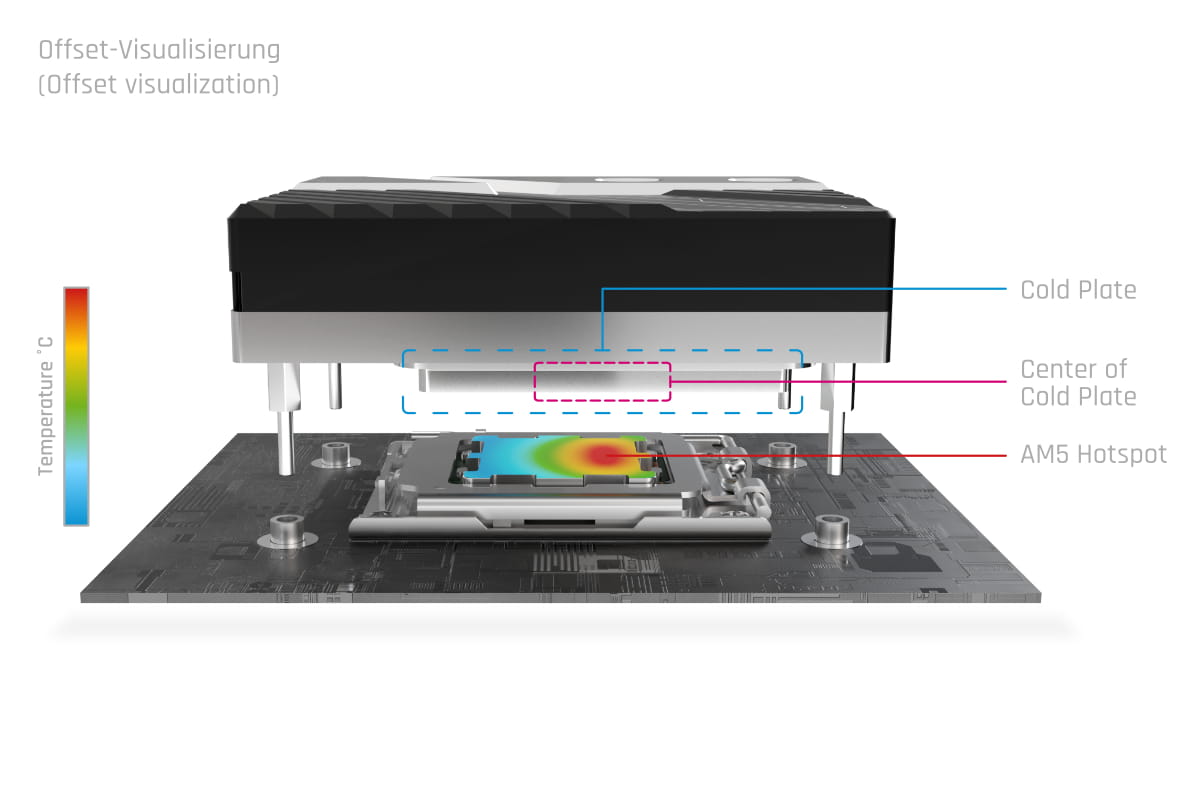

For the AMD AM5 version of the Apex 1 CPU cooler, Alphacool utilizes an offset cooler base that does not sit centrally on the CPU. This design ensures that the water injection is positioned directly over the CPU's hotspot, resulting in optimal cooling performance. Alphacool relies on its proven cross-slot technology and introduces the 3D Jetplate 2.0, an evolution of the original 3D Jetplate. The improved design of the Jetplate creates higher water pressure. Additionally, a pre-chamber located before the 3D Jetplate 2.0 calms the incoming water and evenly distributes it across the Jetplate and the cooling fins beneath the cooler base.

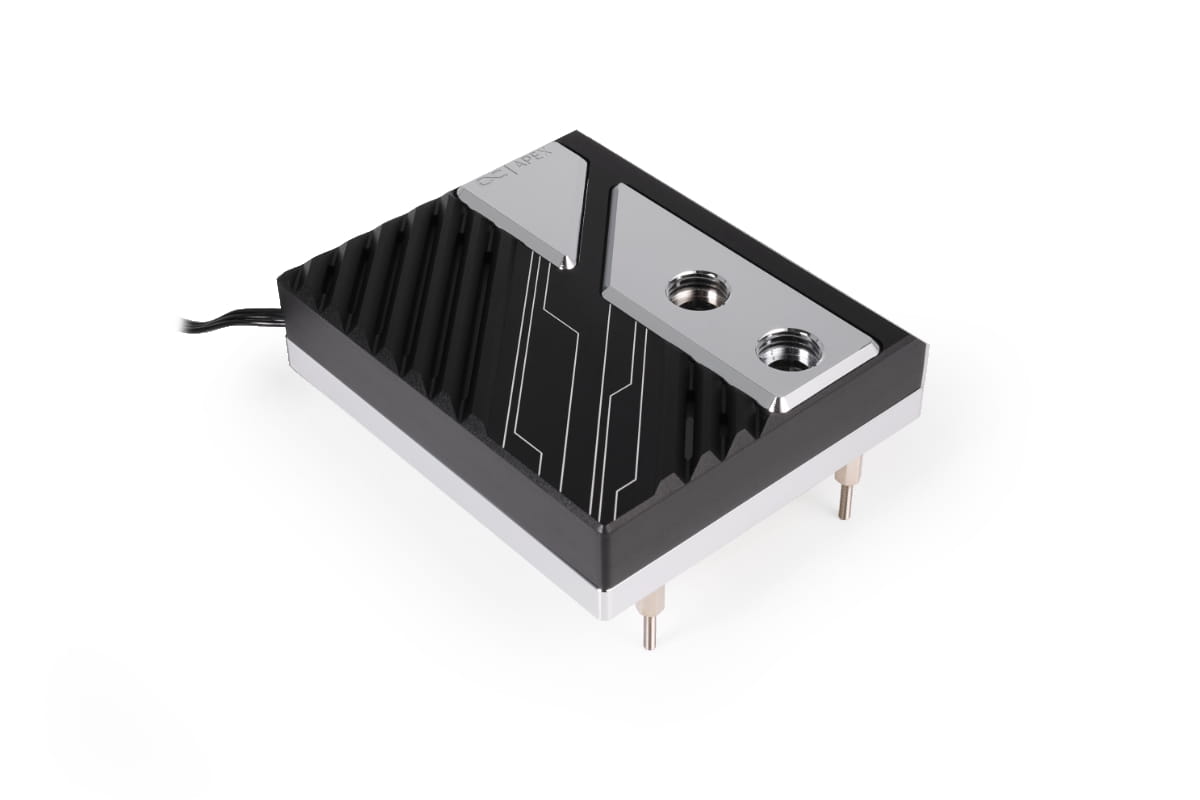

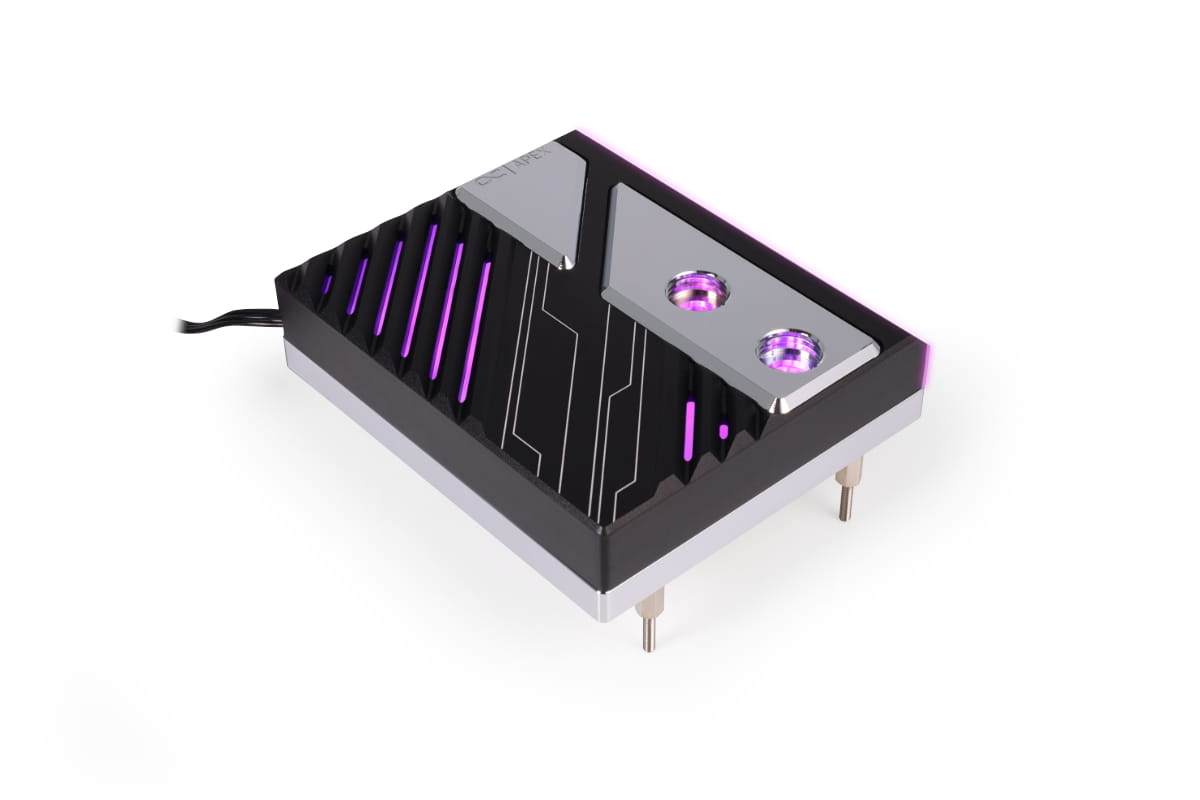

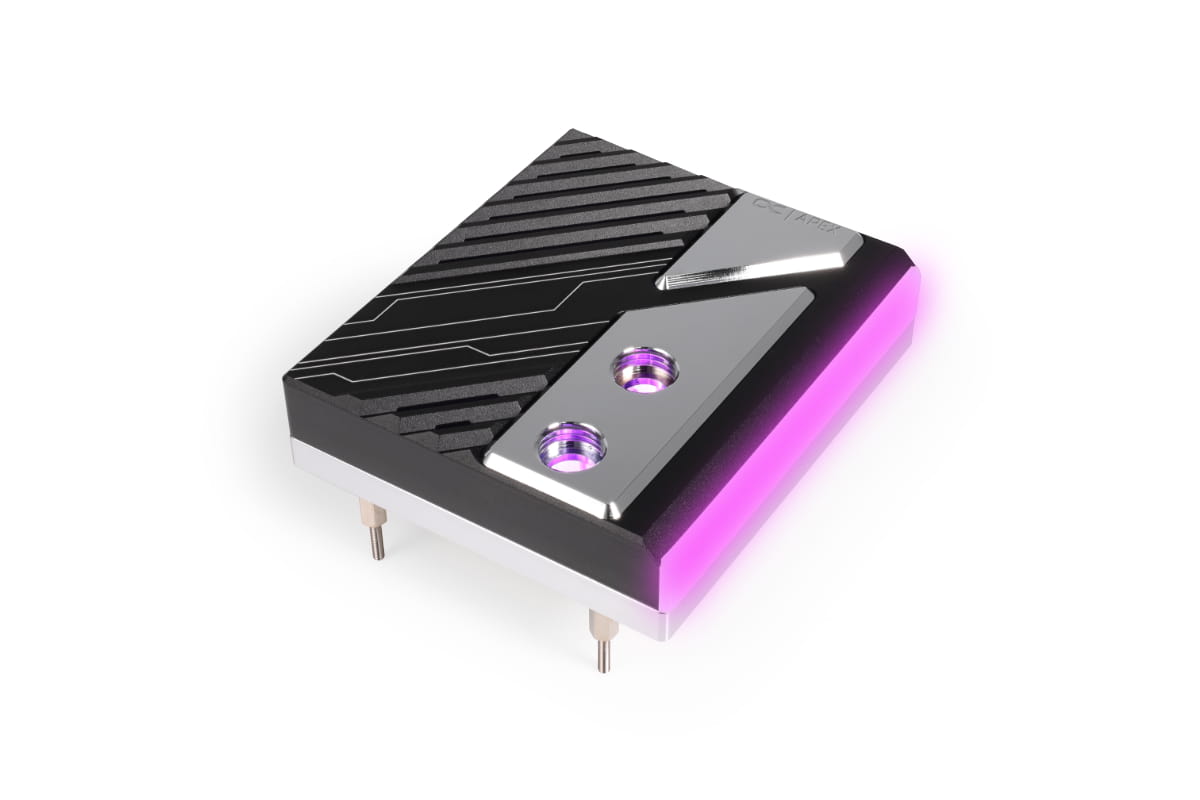

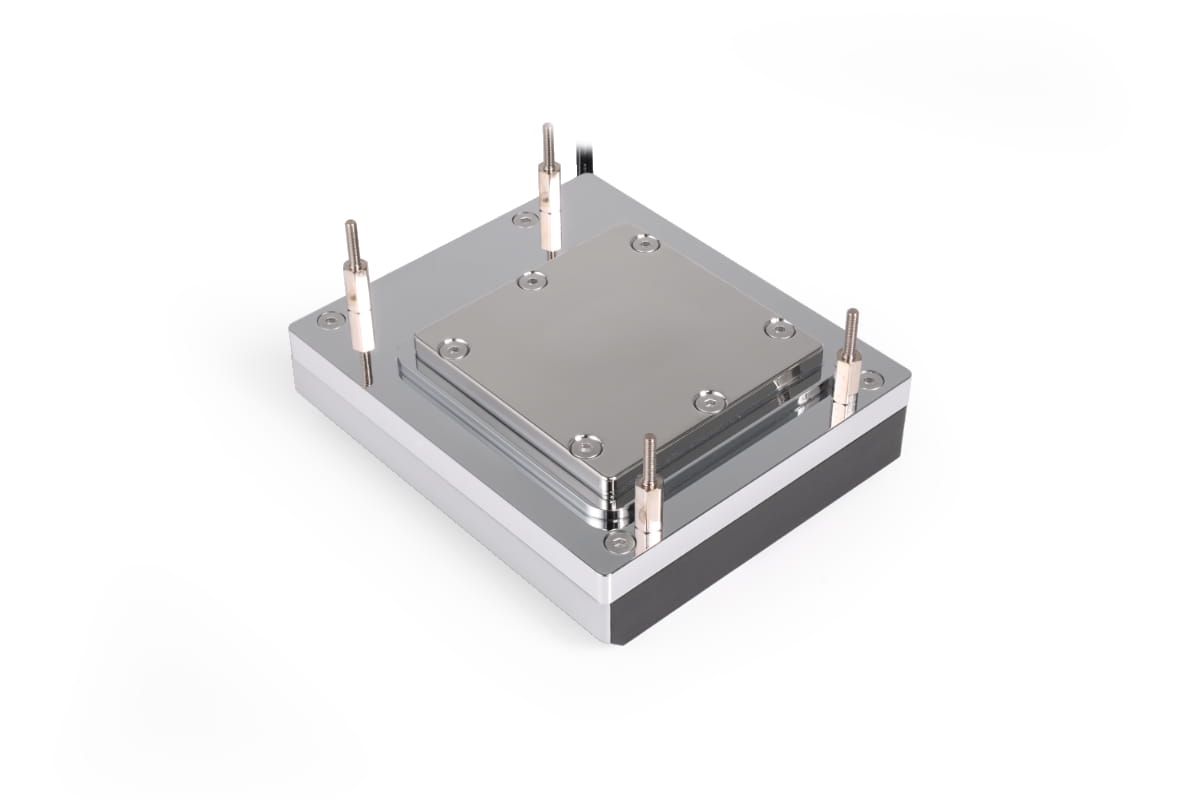

The lower part of the Apex 1 CPU cooler is crafted from a solid block of copper. The connection section is made from brass, and both components are precisely CNC-machined from their respective material blocks. The cooler is assembled with an aluminum cover that nearly encloses the entire unit. Fine Apex design elements on the top surface allow the uniform illumination of the aRGB lighting to shine through. Moreover, an additional lighting element on the right side of the cooler emits a diffused glow towards the RAM slots.

The Apex 1's cooling block is specifically designed to cover both the CPU socket and the mounting holes, giving it a sleek and seamless appearance. Despite this sophisticated design, installation remains straightforward: the cooler is positioned on the top of the motherboard while the backplate is secured from underneath using screws.



Compatibility:
AMD: AM5



Technical data
Dimensions (L x W x H)100,00 x 86,00 x 32,30mm
Cooler materialNickel-plated copper
Material cooler topAluminium
Material threadsNickel-plated Brass
Threads2 x G1/4“
Fin thickness0,4mm
Fin distance0,4mm
Maximum operating temperature60 °C
Weight995g
ColorBlack | Accent: Chrome

Warranty: 5 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Base: AMD AM5
Dimensions (L x W x H: 100.00 x 86.00 x 32.30mm
Connection: 2x G1/4"
Material base plate: Nickel-plated copper
Material Lid: Aluminum
