Alphacool Core Geforce RTX 5080 Reference with backplate

WAK Alphacool Core Geforce RTX 5080 Reference mit Backplate

Article no.: 10248
EAN: 4250197102483
Weight: 1,18 kg
Available: Currently there are 2 available - More is on the way
Images may differ slightly from the original

€199.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome Sixpack

€33.97*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Eiszapfen 13mm HardTube compression fitting 90° rotatable G1/4 for Acryl/Brass tubes - 4pcs Set Chrome

€31.98*

Alphacool Core 1 Aurora Silver

€119.98*

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce... more

Close menu

Product information

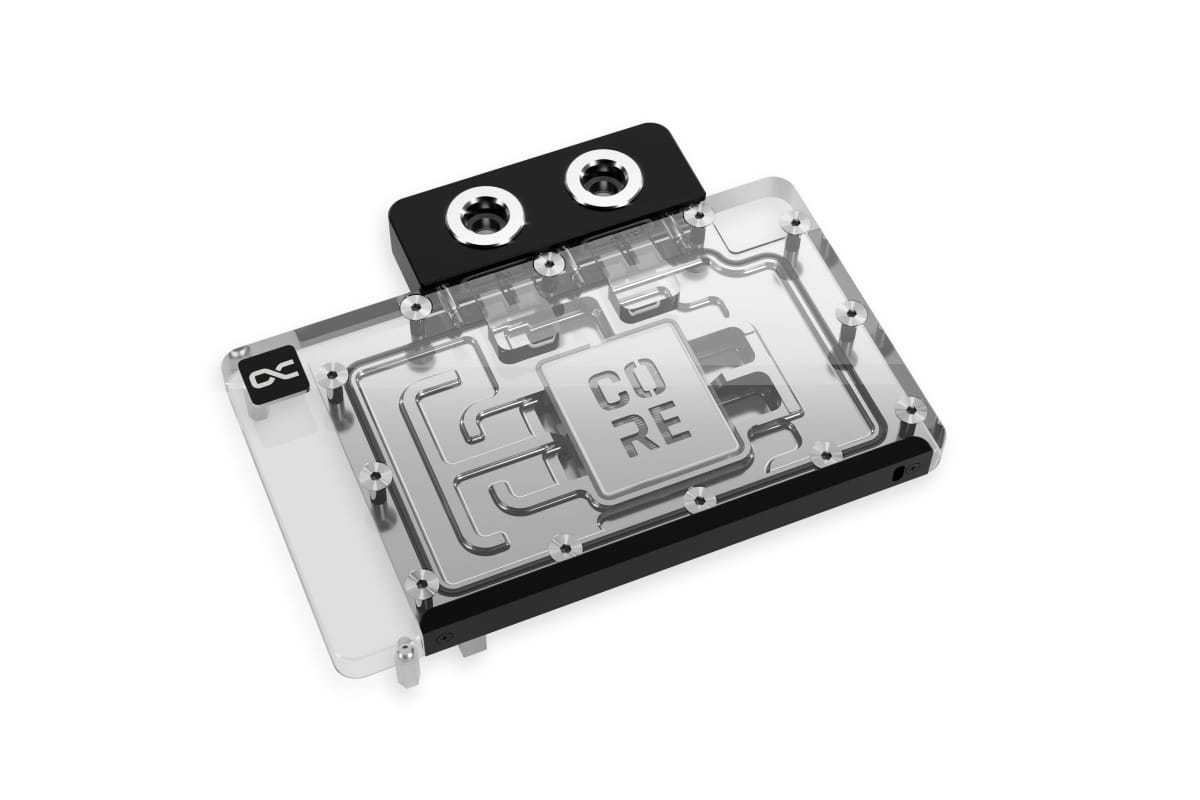

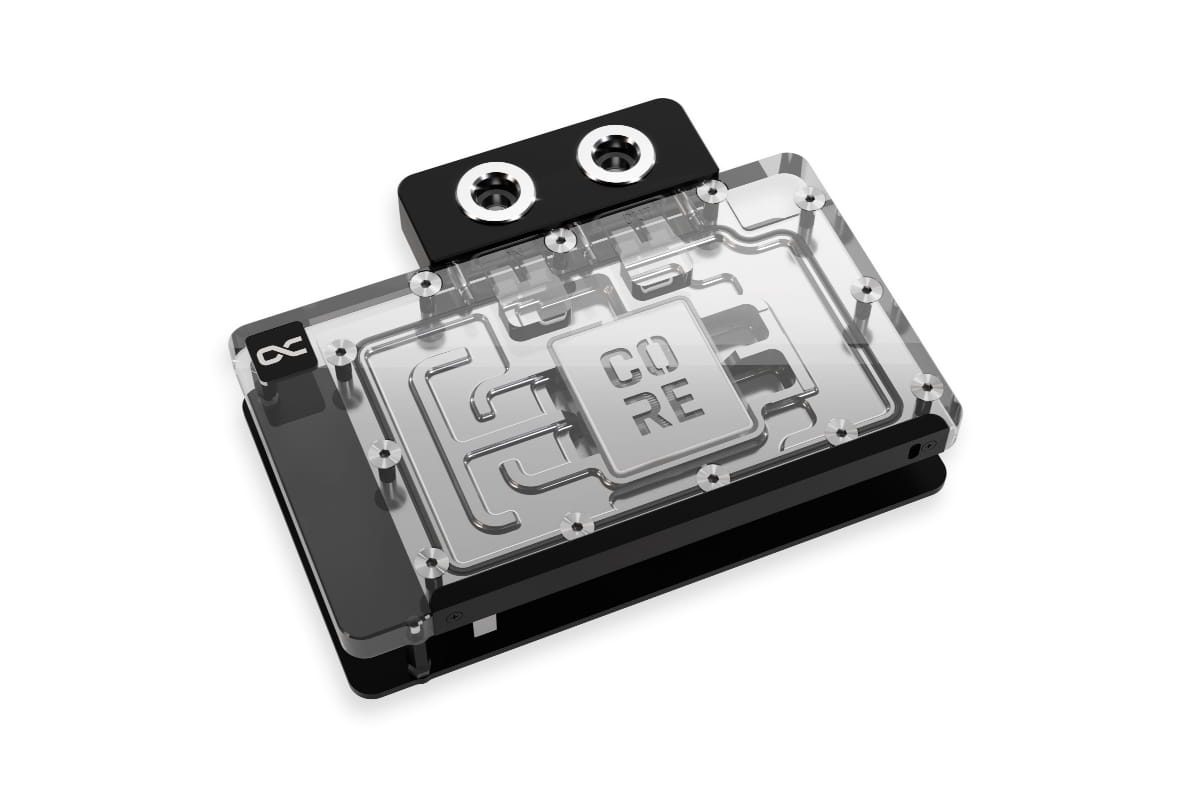

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

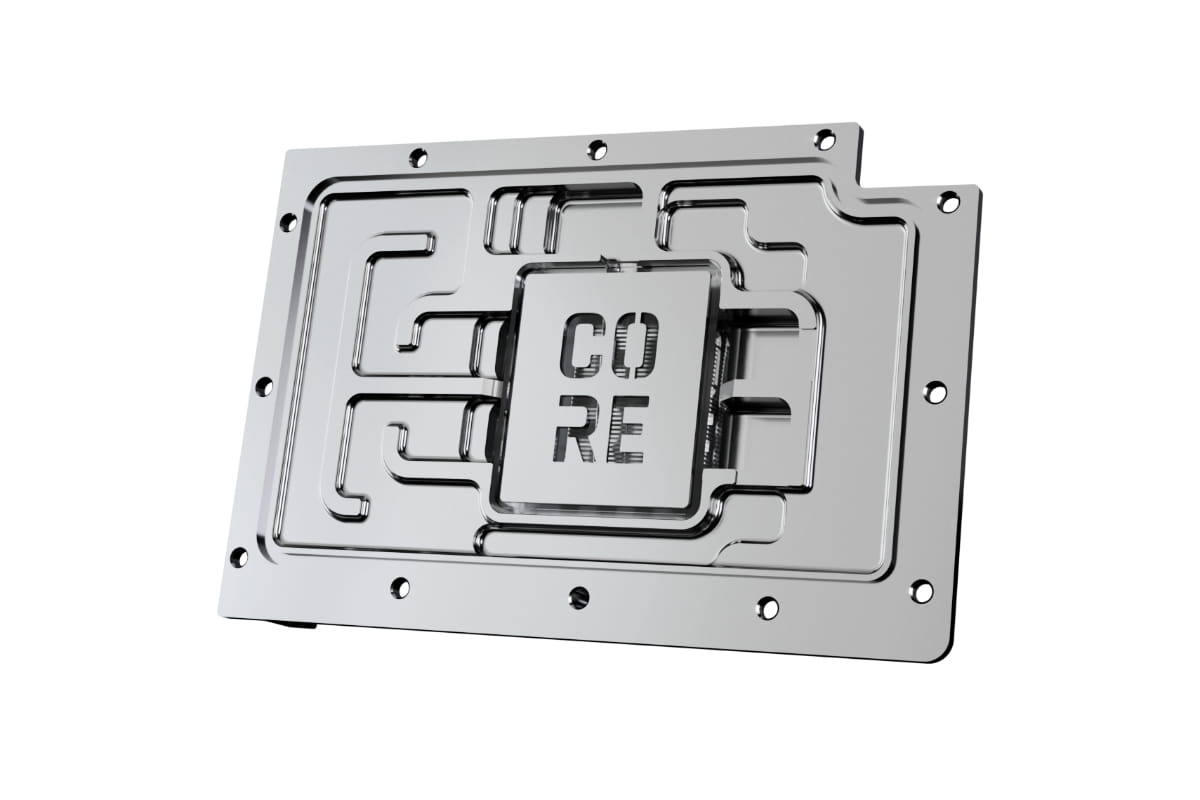

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler’s durability and provides a smoother, more radiant surface than traditional nickel plating.

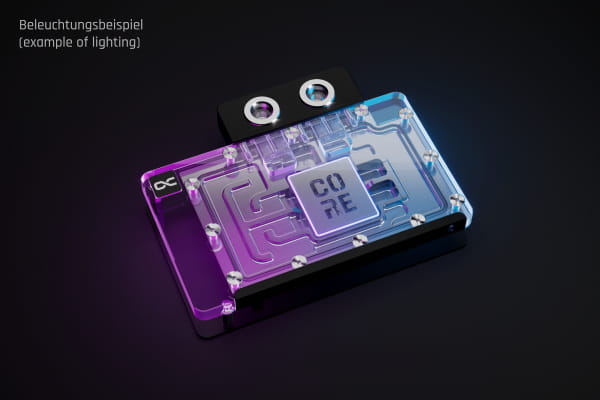

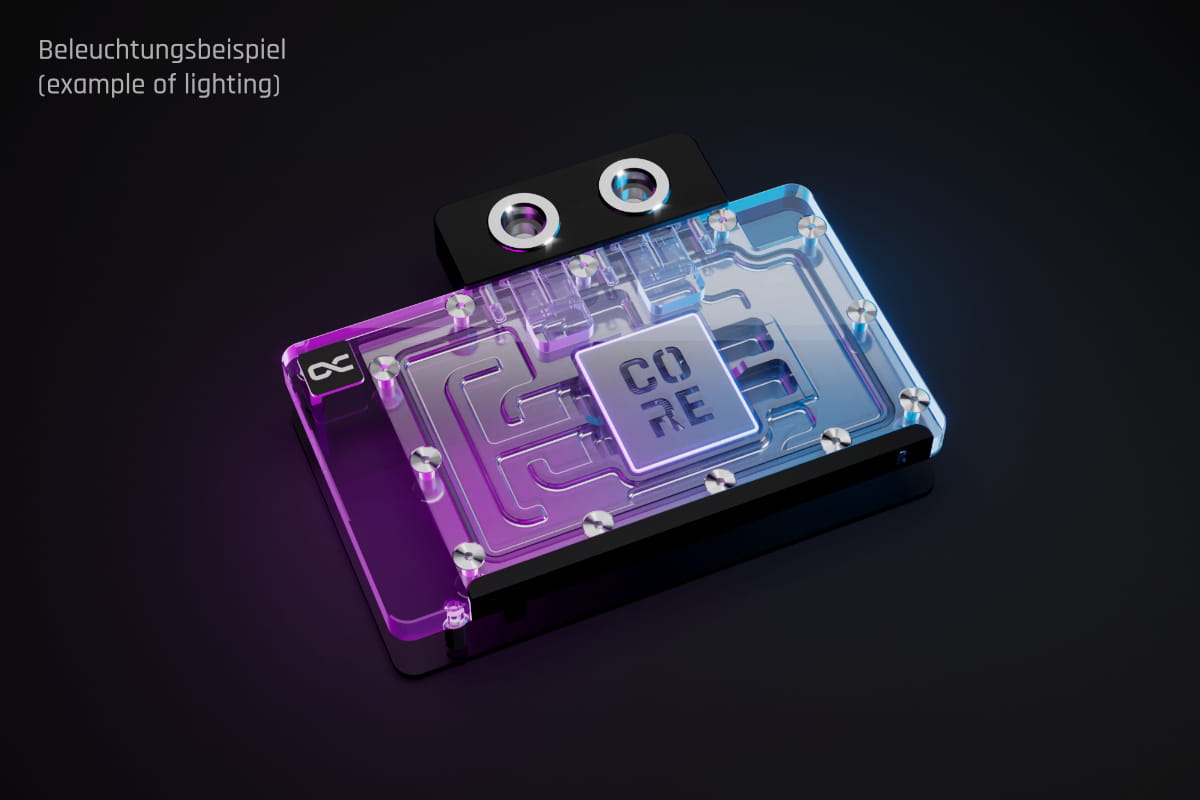

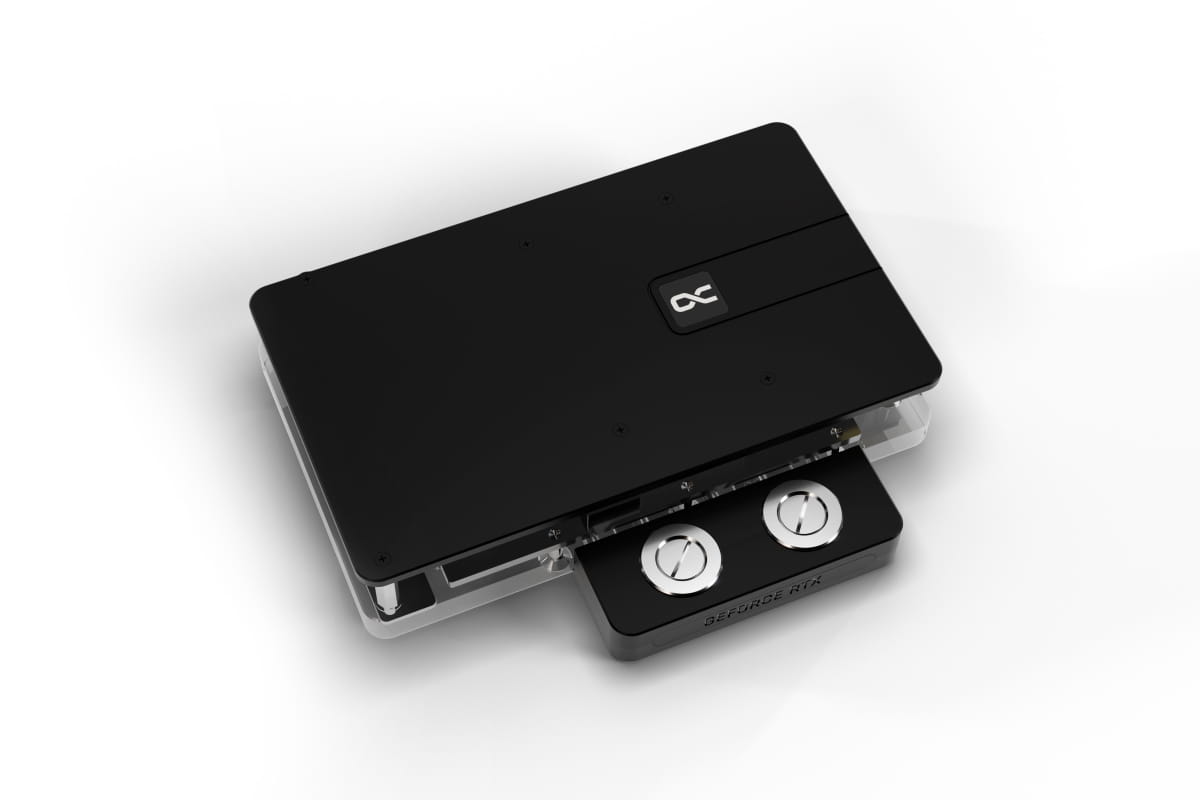

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.

The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- Inno3D Inno3D GeForce RTX™ 5080 iChill Frostbite (C50803-16D7X-1760FB)
- Inno3D Inno3D GeForce RTX™ 5080 iChill X3 (C50803-16D7X-176069H)
- Inno3D Inno3D GeForce RTX™ 5080 X3 (N50803-16D7-176068N)
- Inno3D Inno3D GeForce RTX™ 5080 X3 OC (N50803-16D7X-17603930)
- Inno3D Inno3D GeForce RTX™ 5080 X3 OC White (N50803-16D7X-17605211)

Technical data cooler
Dimensions total (L x W x H)	160 x 124,07 x 34,19mm
Material cooler	chrome-plated copper
Material cooler top	Acrylic
Material terminal	Acetal
Material Connection thread	Brass
Max working temperature	60°C
Pressure tested	0,8 bar
Threads	4 x G1/4"
Thickness cooler bottom	3,25mm
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	7
Color	transparent

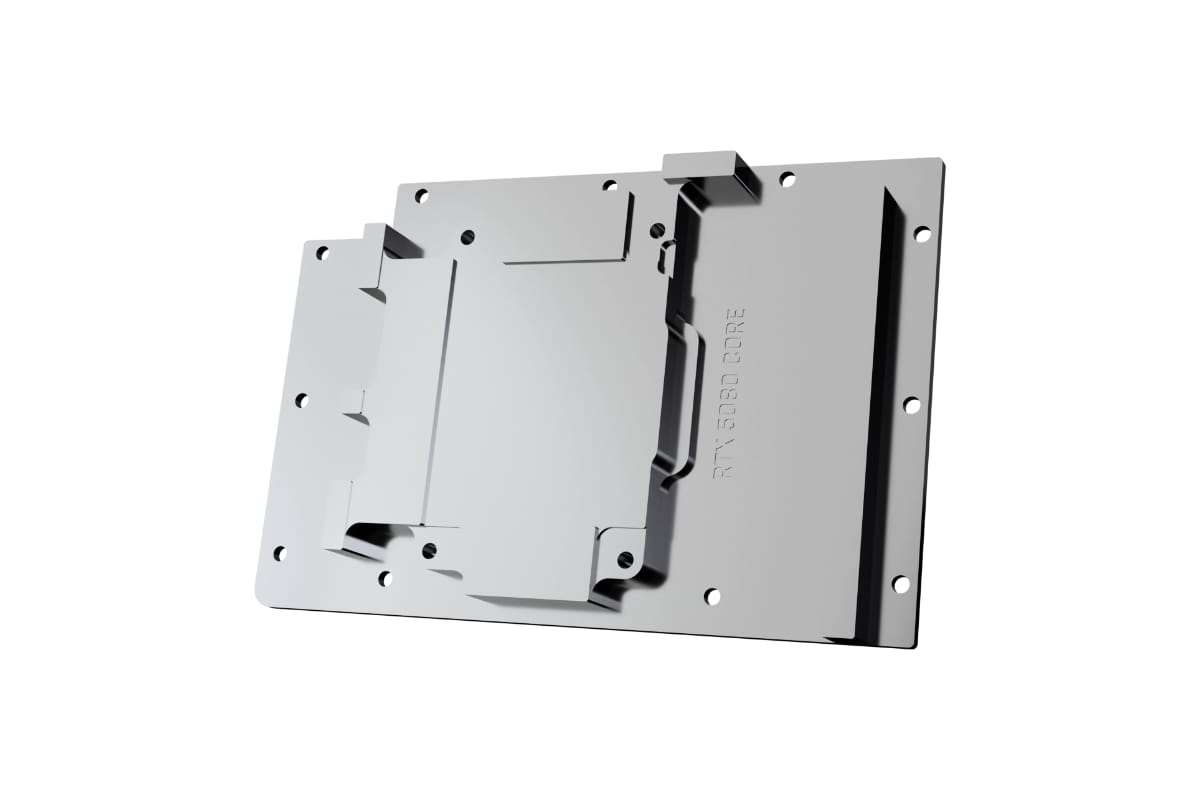

Technical data backplate
Dimensions (L x W x H)	160 x 95,36 x 6mm
Thickness backplate without spacers	3mm
Material	Aluminium

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Hardware Hersteller:	NVIDIA
Anschluss:	4x G1/4"
Material Bodenplatte:	Aluminium
Abmessungen:	160 x 124,07 x 34,19mm
Hardware Modell:	RTX 5080
