Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 with backplate (Reference)

  • 11934
  • 4250197119344
  • 1,128 kg
  • There are more than 10 units available
  • Images may differ slightly from the original
€65.99 * €149.98 * (56% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
1x
Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
€16.98*
ANZ Alphacool Eiszapfen screw plug V.2 G1/4 - Deep Black
1x
Alphacool Eiszapfen screw plug V.2 G1/4 - Deep Black
€2.98*
ANS Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack
1x
Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack
€33.97*
WAGZ Alphacool Eisblock Aurora Terminal flat straight - Acetal
1x
Alphacool Eisblock Aurora Terminal flat straight - Acetal
€16.98*
12996 Alphacool Subzero Thermal grease 3,5g
1x
Alphacool Subzero Thermal grease 3,5g
€8.98*
The Alphacool Eisblock Aurora Acryl GPX graphics card water cooler with backplate combines style... more
Product information

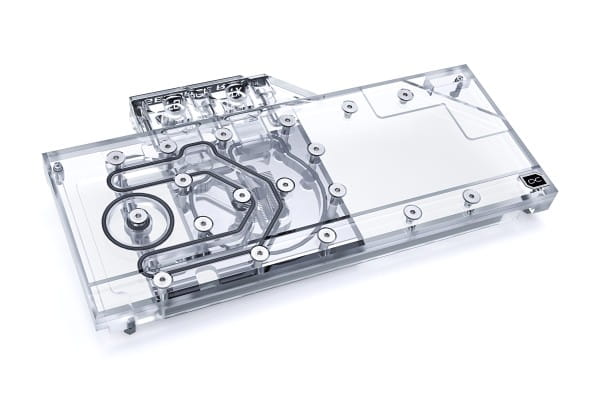

The Alphacool Eisblock Aurora Acryl GPX graphics card water cooler with backplate combines style with performance. Extreme cooling performance and extensive digital RGB lighting are what set it apart. Experience and technical know-how from more than a decade have gone into the development, without making any technical compromises. The Eisblock Aurora Acryl GPX is a major development of the previous Alphacool graphics card water cooler, which has been improved in every area.

Important note: The Reference cooler is not compatible with Nvidia's Founders Edition.

More performance!
When developing the Eisblock Aurora Acryl GPX graphics card water cooler, emphasis was naturally placed on increasing performance. In the first step, the cooler was brought closer to the individual components by reducing the thickness of the thermal pads. In the second step, the chrome-plated copper block was also made thinner. Step 3 involves the constant optimization of the water flow within the cooler. Result: All important components such as voltage converters and RAM are cooled much better and more effectively by the water and the cooling performance is significantly increased.

Brilliant design!

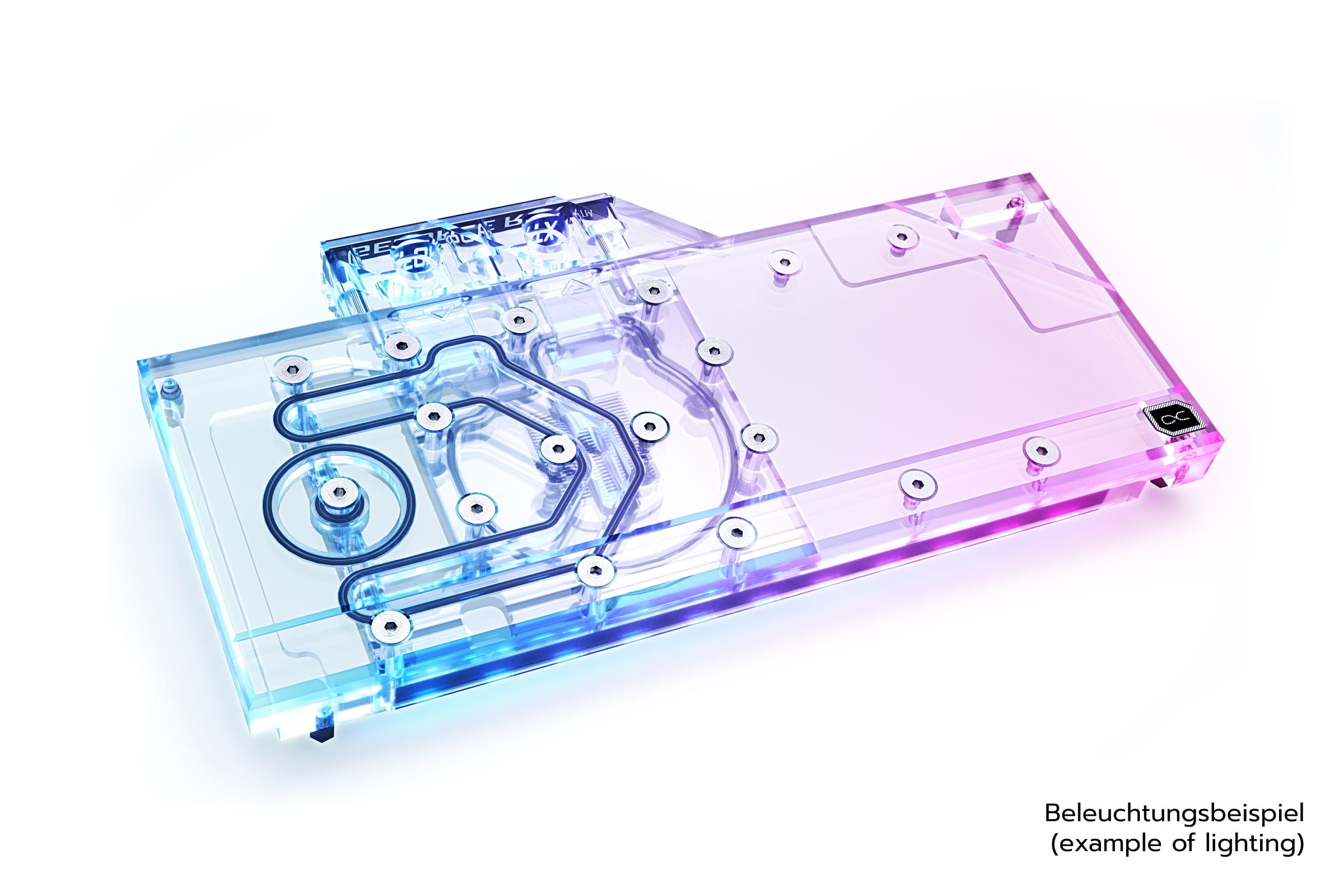

The addressable digital aRGB LEDs are embedded directly in the cooling block and run along the sides of the entire cooling block. The effect is lighting that encloses the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light scattering in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora Acryl GPX cooler a very unique visual touch.

Copper or aluminum?
Alphacool uses only copper for all water-carrying parts. Copper has almost twice the thermal conductivity of aluminum and is therefore the much better choice of material for water cooling. The cooler is made entirely of chrome-plated copper. Chrome plating is much harder than nickel plating and therefore less susceptible to acids, scratches and damage. The risk of nickel plating chipping off is therefore completely eliminated. In addition, chrome plating looks much more homogeneous and offers a shine that cannot be achieved with nickel plating.

Other special features
The Eisblock Aurora Acrylic GPX GPU cooler has patented locking screws that sit flush with the surface of the terminal. The Alphacool logo is in the corner on the top and is also fully illuminated. The corresponding designations of the compatible graphics card manufacturers can be seen on the front of the terminal. Of course, these are also fully illuminated by the addressable digital LEDs. IN and OUT are marked by small, discreet triangles. They are easy to recognize and fit perfectly into the overall visual line of the graphics card water cooler.

Compatibility:
- INNO3D GeForce RTX 3070 iCHILL X3, 8GB GDDR6, HDMI, 3x DP (C30703-08D6X-1710VA38)
- INNO3D GeForce RTX 3070 iCHILL X4, 8GB GDDR6, HDMI, 3x DP (C30704-08D6X-1710VA35)
- INNO3D GeForce RTX 3070 Twin X2 OC, 8GB GDDR6, HDMI, 3x DP (N30702-08D6X-1710VA32L)
- INNO3D GeForce RTX 3070 Twin X2, 8GB GDDR6, HDMI, 3x DP (N30702-08D6-1710VA32L)

Technical data cooler
L x W x H 239x122x25mm
Radiator base material chrome-plated copper
Material radiator top Acrylic
Connections 4xG1/4
Thick cooling fins 0.6mm
lighting digital RGB LEDs
Power connection digital aRGB LEDs 3-Pin JST
Voltage digital aRGB LEDs 5V
Number of digital aRGB LEDs 11

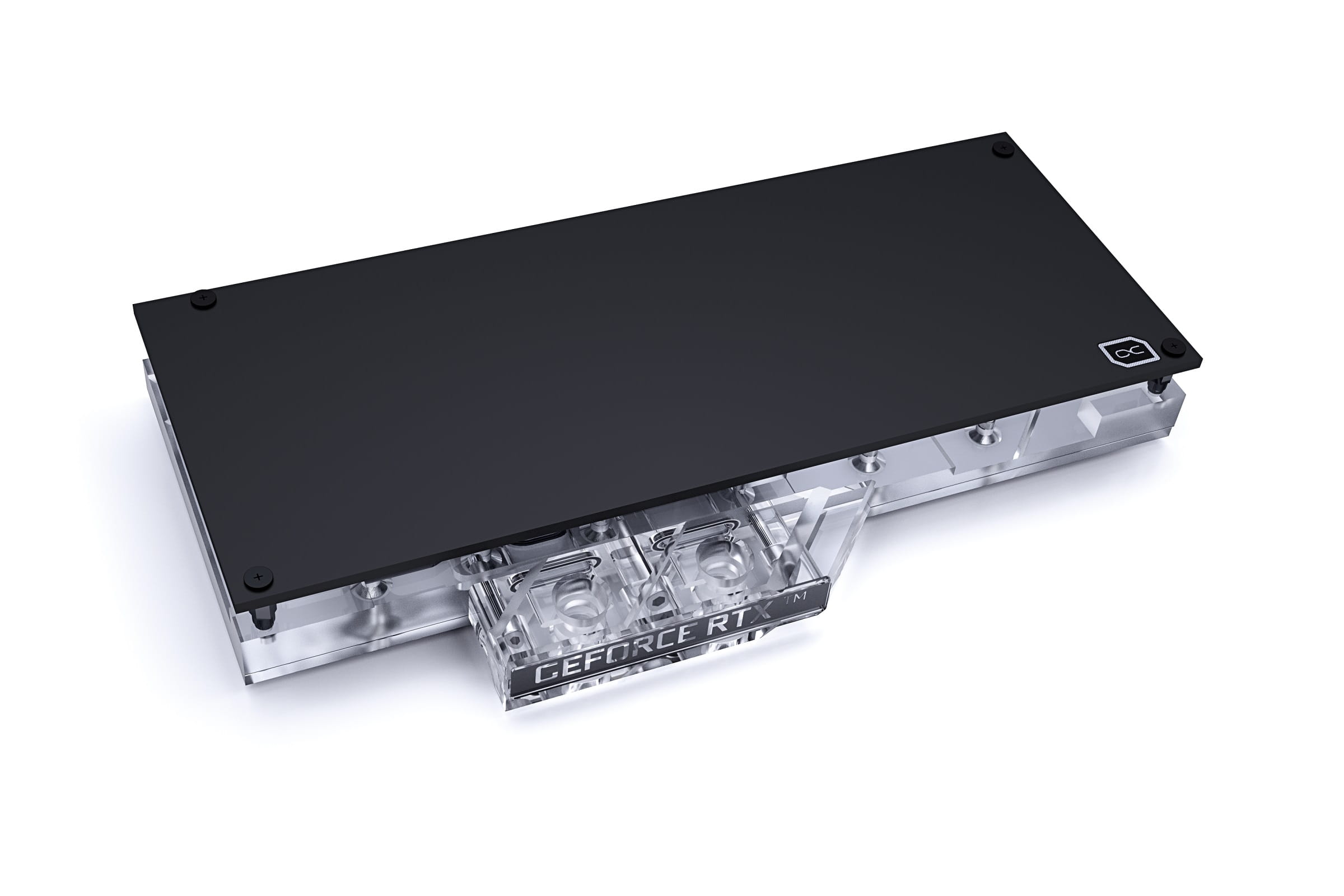

Technical data backplate
L x W x H 239x97x6mm
material aluminum
Color black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Hardware Hersteller: NVIDIA
SLI kompatibel: Ja
Kühlertyp: Komplettkühler
Anschluss: 4x G1/4"
Material Deckel: Acryl
Abmessungen: 239 x 122 x 25mm
Material Bodenplatte: Kupfer
Hinweis: Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell: RTX 3070
