Alphacool GPU Terminal flat straight - Acetal

  • 12987
  • 4250197129879
  • 0,052 kg
  • There are more than 25 units available
  • Images may differ slightly from the original
€16.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
1x
Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
€16.98*
ANS Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black
1x
Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black
€8.98*
WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 with Backplate (Reference) PHT EOL
1x
Alphacool Eisblock Aurora Acryl GPX-N RTX 3090/3080 with Backplate (Reference)
€66.99*
WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 with backplate (Reference) EOL
1x
Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 with backplate (Reference)
€65.99*
WAK Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6800/6800XT/6900XT Reference with Backplate PHT E
1x
Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6800/6800XT/6900XT Reference with Backplate E
€72.63*
The classic orientation of the connection options on the Alphacool graphics card water coolers... more
Product information

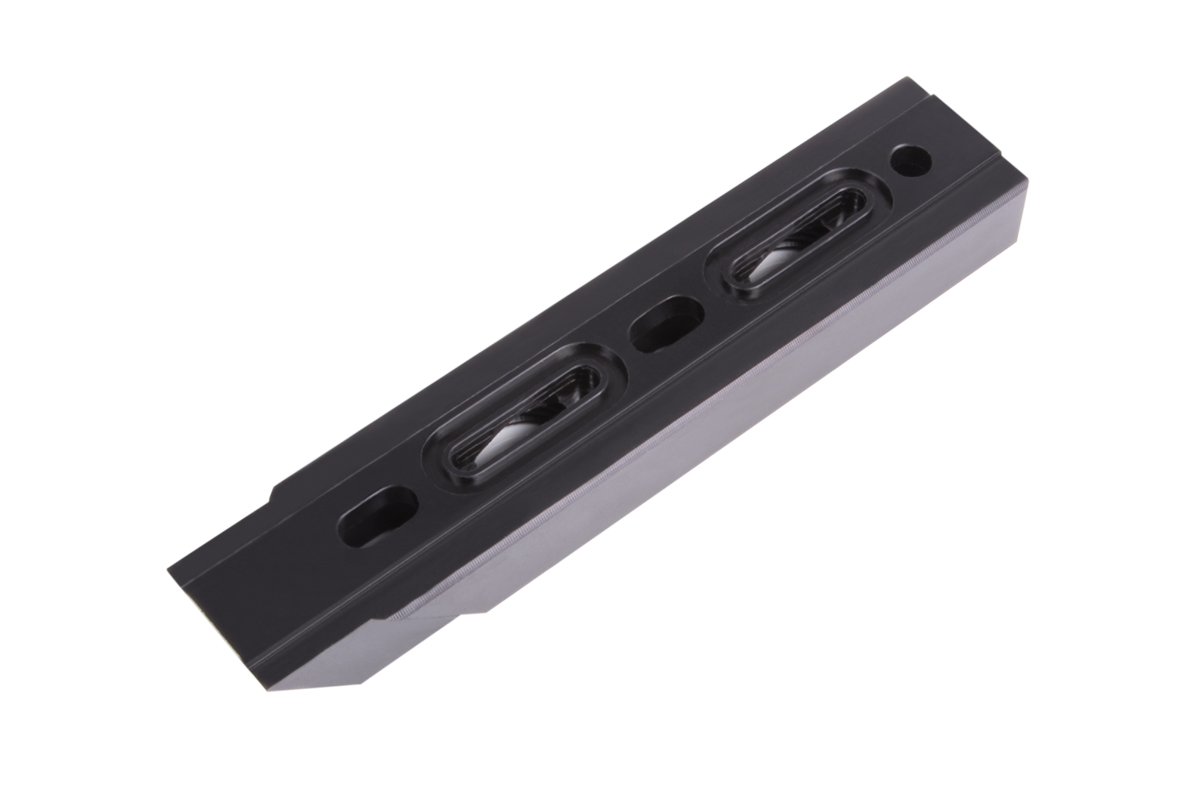

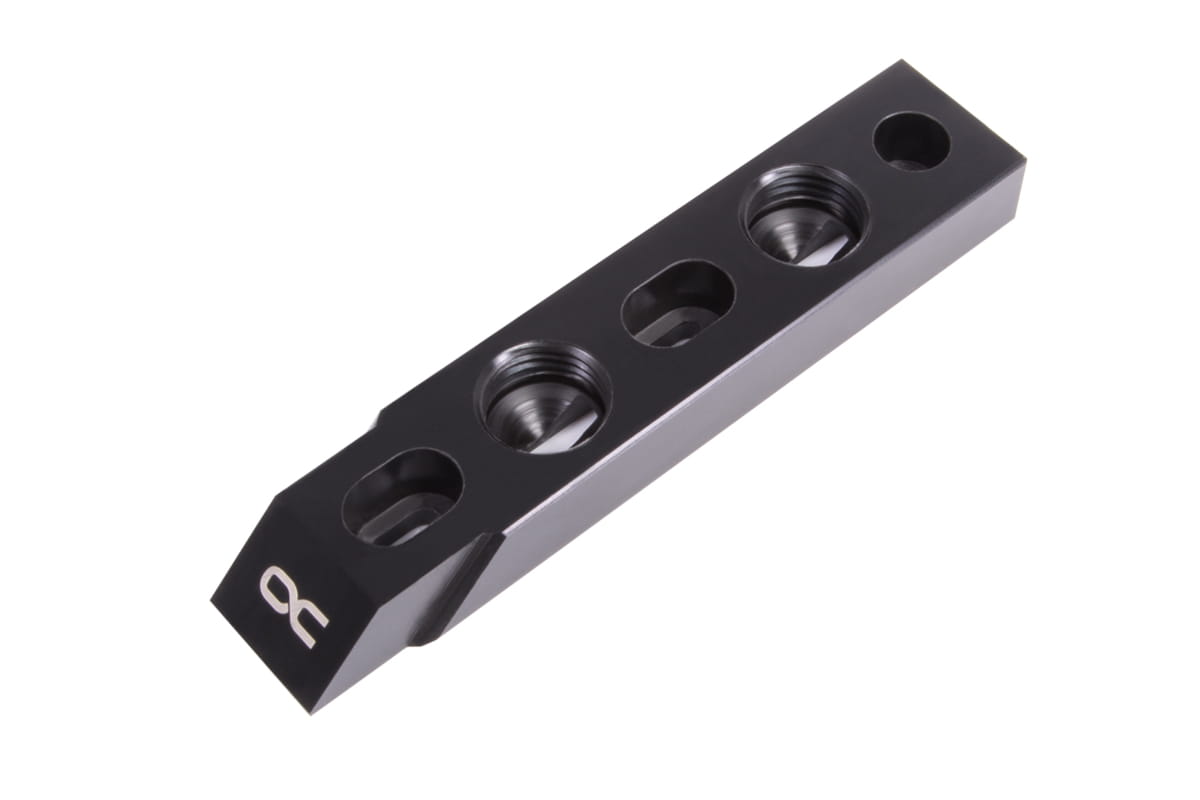

The classic orientation of the connection options on the Alphacool graphics card water coolers is vertical. If you prefer a horizontal orientation, you can now make your wish come true with the Alphacool GPU Terminal Flat. The terminal made of Acetal.

The terminal is only 19 mm wide and fits snugly against the graphics card water cooler. The connectors are far enough apart to provide enough space for the use of connectors with a total diameter of up to 28 mm without them colliding with each other.

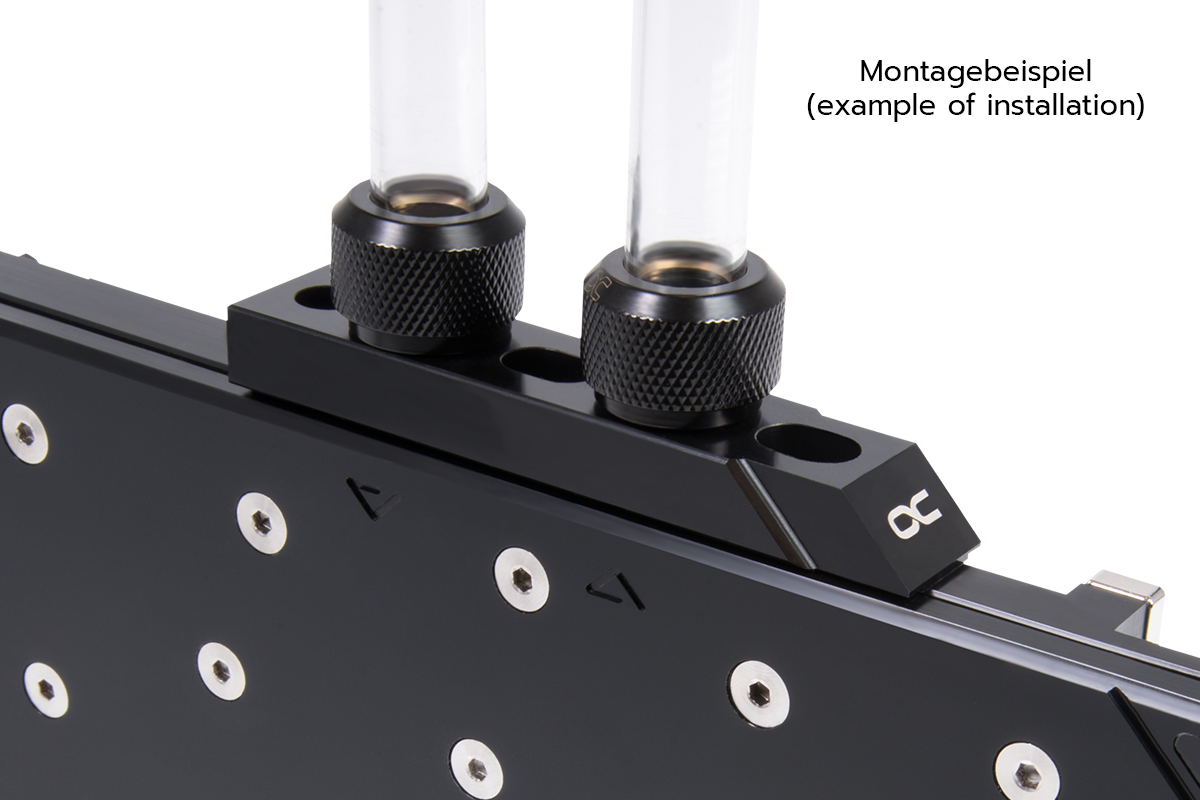

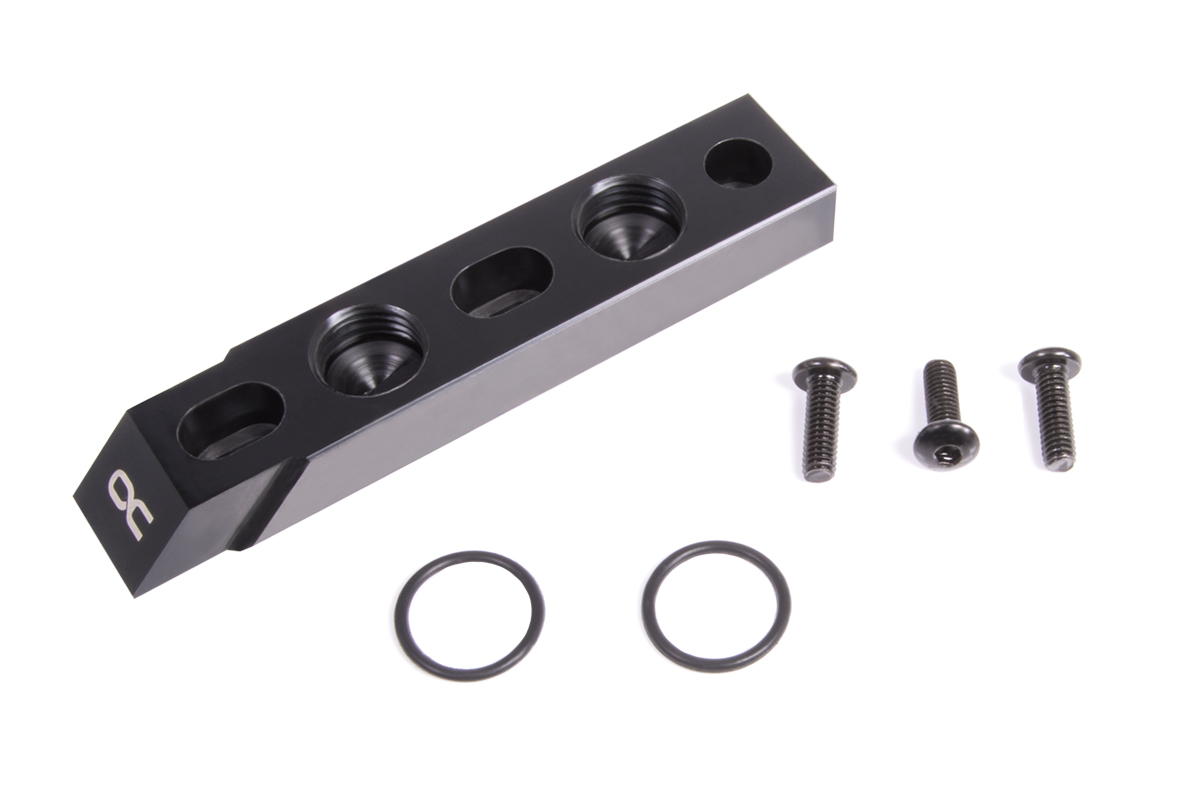

The assembly is quite simple. The two O-rings are simply placed in the respective groove on the side of the terminal, which is then placed on the graphics card cooler. The terminal is then placed on the side of the water cooler and mounted with the three screws. The conversion can be done in just a few minutes and can be done by anyone. To be on the safe side, we recommend using the Alphacool pressure tester (Alphacool Leak Testing Tool item number: 17482) for the reassembled block to ensure leak-free water cooling.

Compatibility:
All Alphacool Eisblock Aurora coolers
All Alphacool Core coolers for the RTX 5XXX and AMD RX 9XXX series

Attention
The terminal is not compatible with the Alphacool Core coolers of the RTX 4XXX and RX 7XXX series.

Note: Please follow the manual for the correct flow direction of the water.



Technical Data
Dimensions (L x W x H)92 x 19 x 10.5 mm
Weight18 g
MaterialAcetal
Threads2 x G1/4“

Warranty: 2 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
