Alphacool DC-LT 2600 Ultra low noise Ceramic - 12V DC

PUM Alphacool DC-LT 2 - 2600rpm Ceramic - 12V DC - (3 Phasen Sinus PCB)

Article no.: 13332
EAN: 4250197133326
Weight: 0,058 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€29.98 *

Prices incl. VAT plus shipping costs

in stock

and Conditions Alphacool Eisstation 40 DC-LT - Container

€33.98*

and Conditions Alphacool Eisstation 80 DC-LT - Container

€43.98*

and Conditions Alphacool Eisstation DC-LT - Solo Top

€23.28*

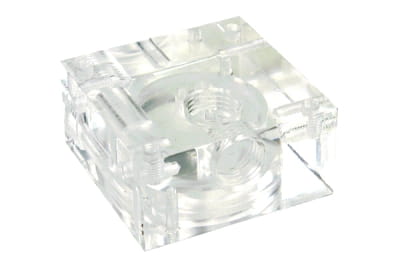

Alphacool DC-LT acrylic attachment

€22.98*

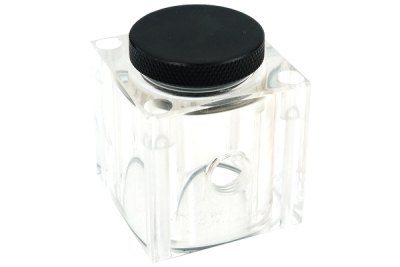

Alphacool expansion tank individually for DC-LT pumps

€21.98*

In the world of water cooling, it's not always just about getting the maximum performance out of... more

Close menu

Product information

In the world of water cooling, it's not always just about getting the maximum performance out of your hardware. The overall volume of a system can also be reduced to an inaudible level with the right water cooling components.

What is that?

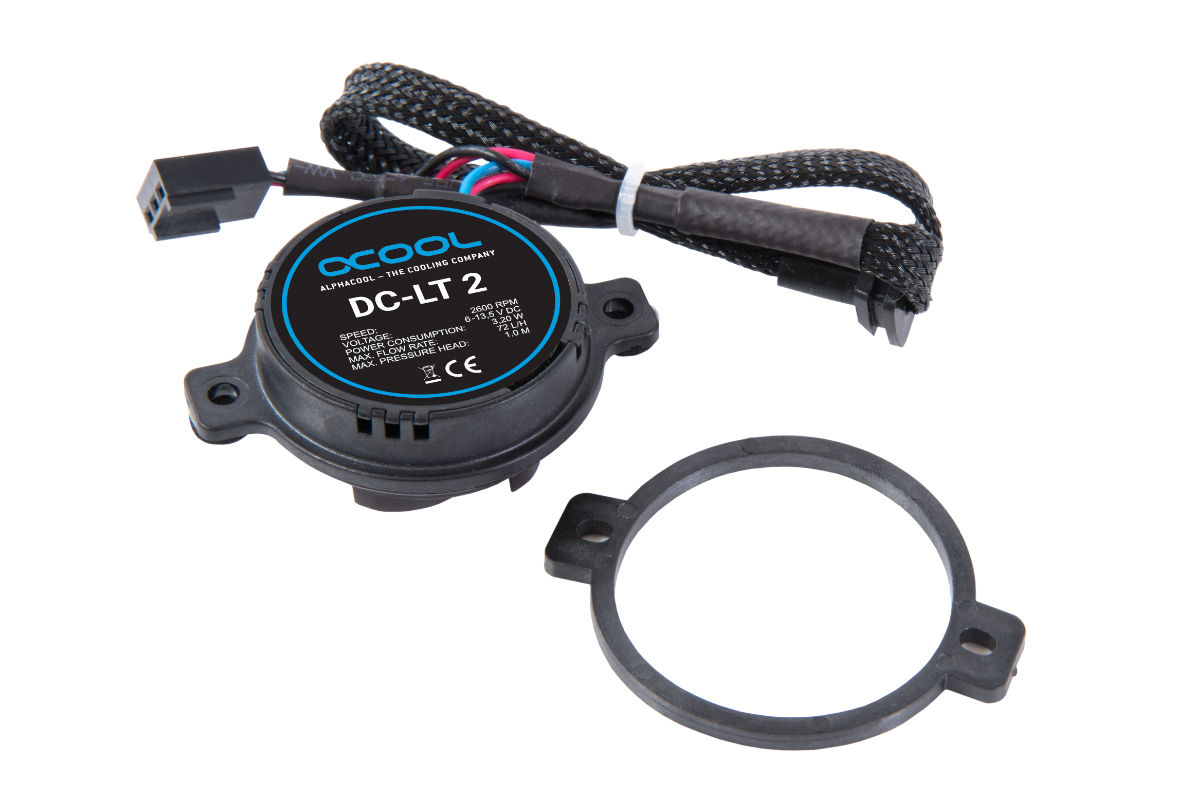

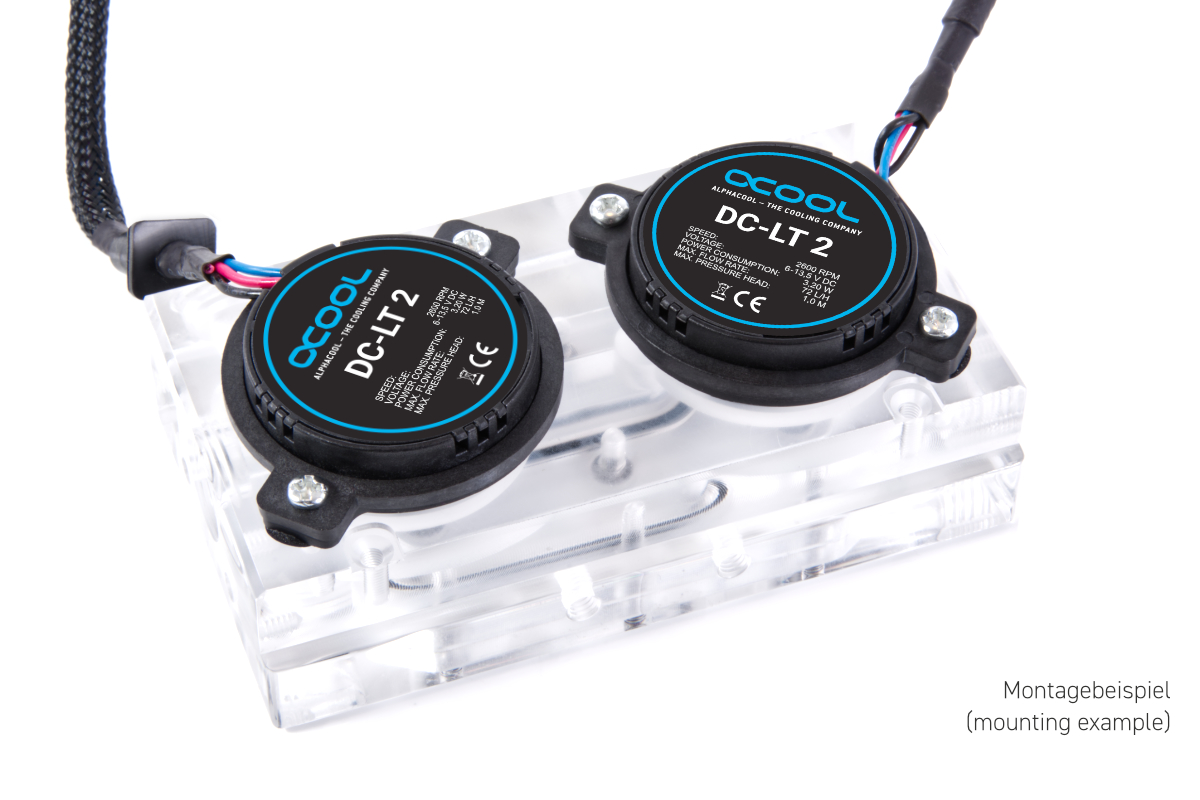

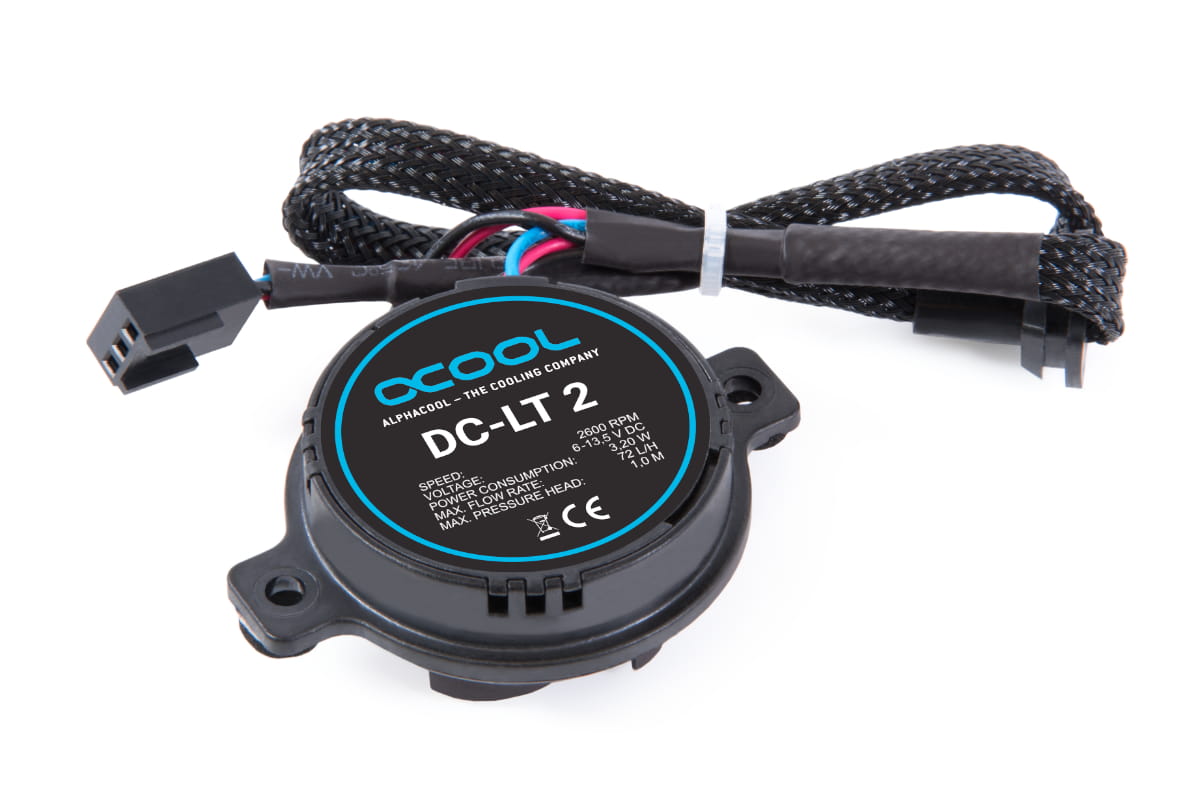

The Alphacool DC-LT 2 2600rpm Ceramic is a pump designed for use in computer water cooling systems. The previous model was already considered a quiet little miracle. Now, thanks to the experience it has gained, Alphacool has significantly improved this product. Small to medium-sized water circuits can be operated practically silently with this pump. Alphacool has already successfully used this pump in the GPU-AiO Eiswolf 2, which was classified as inaudible in various independent tests.

How is the smooth running of this pump achieved?

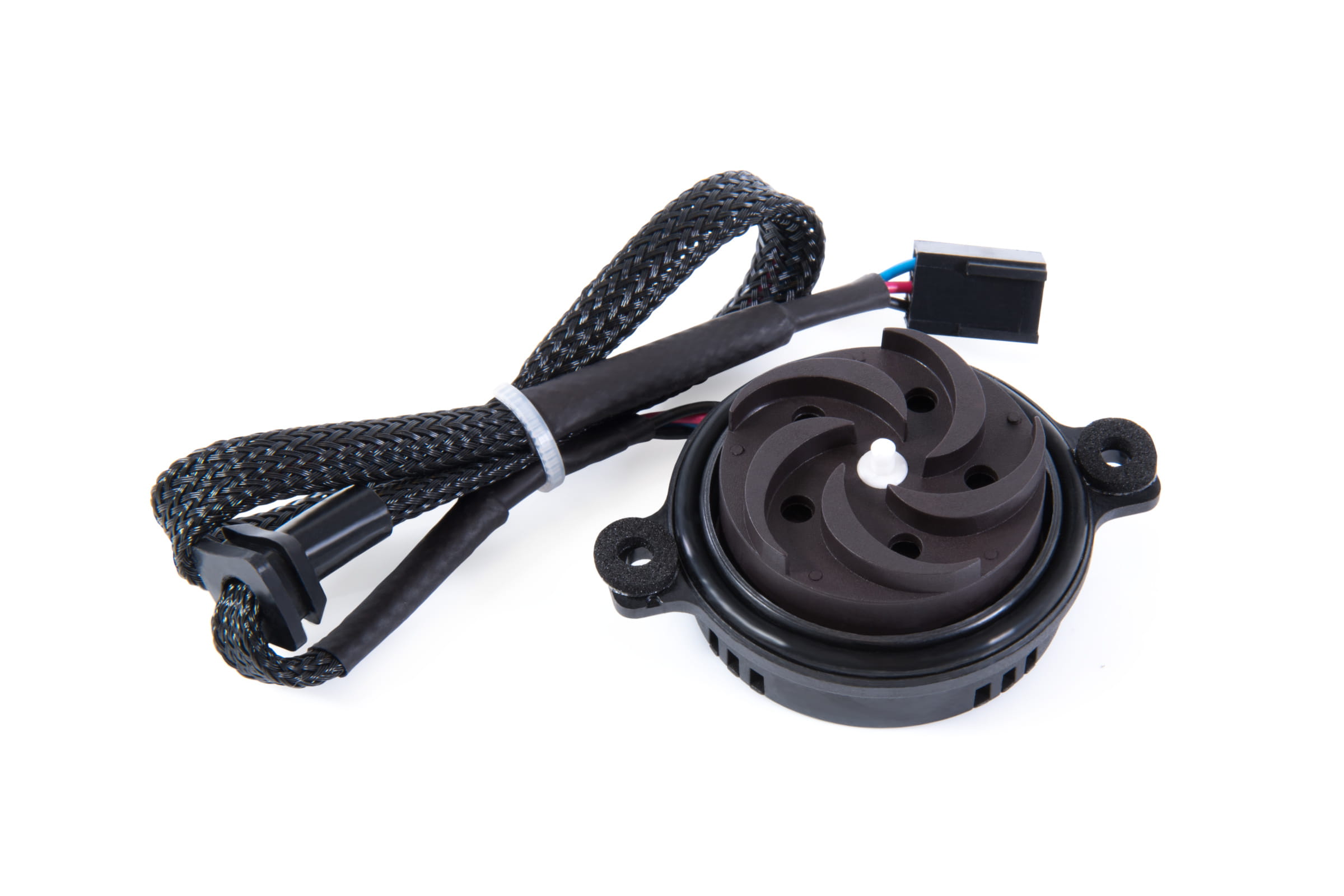

There are several points to mention: The real 3-phase sine control of the pump contributes to the extremely smooth running of this pump. The impeller is suspended on a ceramic axis with two magnets. The ceramic axis is manufactured with high precision and the impeller is neatly balanced. All of these details contribute to the fact that the Alphacool DC-LT 2 2600rpm Ceramic Pump operates practically silently.

What else is special about this pump?
The pump control, the mechanics and therefore the pump itself are highly efficient. The power consumption is significantly lower compared to other models with the same or higher power output. It has a wide control range and starts reliably from a voltage supply of just 6V.

Technical data
speed	2600 RPM
Dimensions (WxHxD)	52 x 41 x 18mm (without cable)
Cable length	30cm
Weight	39g
Tension	6-13.5V DC
Power consumption	3.2W
Maximum flow	72L/h
Maximum discharge head	1m
Power connection	3-pin fan connector
MTBF	50,000 hours

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Stromanschluss:	3Pin
Farbe:	schwarz
Spannung:	12V DC
Maximaler Durchfluss:	72 l/h, 480 l/h
Wassereinlass:	nicht vorhanden
Wasserauslass:	nicht vorhanden
Leistungsaufnahme:	3,2W
Maximale Förderhöhe:	Standard (kleiner 2m)
Abmessungen:	51 x 48 x 9mm
Maximale Systemtemperatur:	65°C
Möglicher Regelbereich:	7-13,5V DC
Zugelassene Flüssigkeiten:	Wasser/Glykol-Gemisch
Material:	Keramik, Kunststoff
