240mm High Performance Radiator

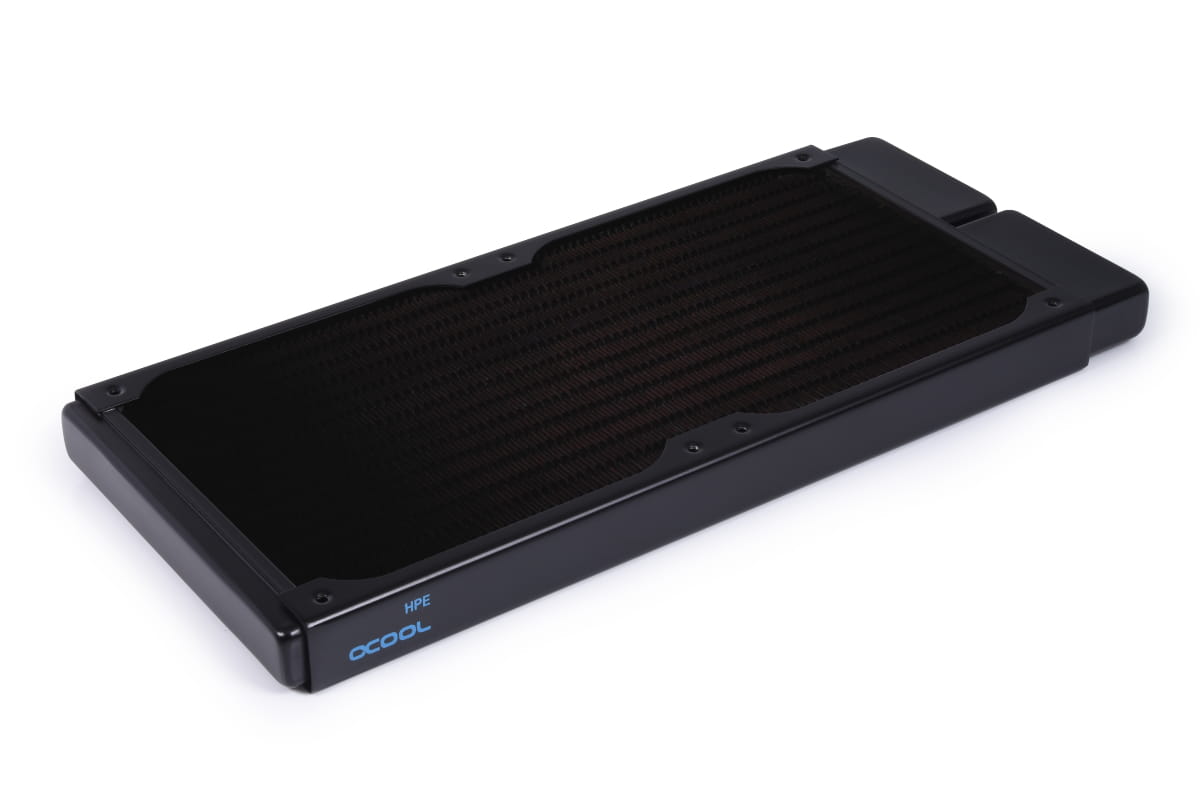

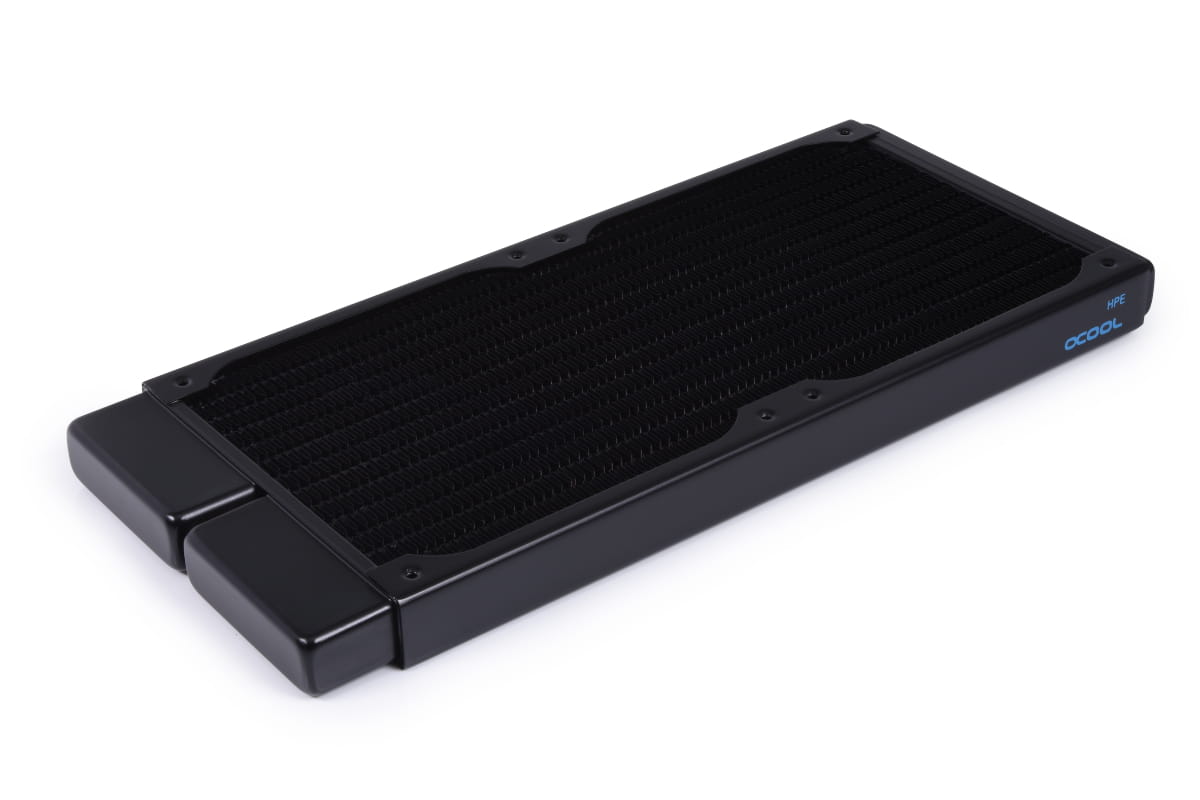

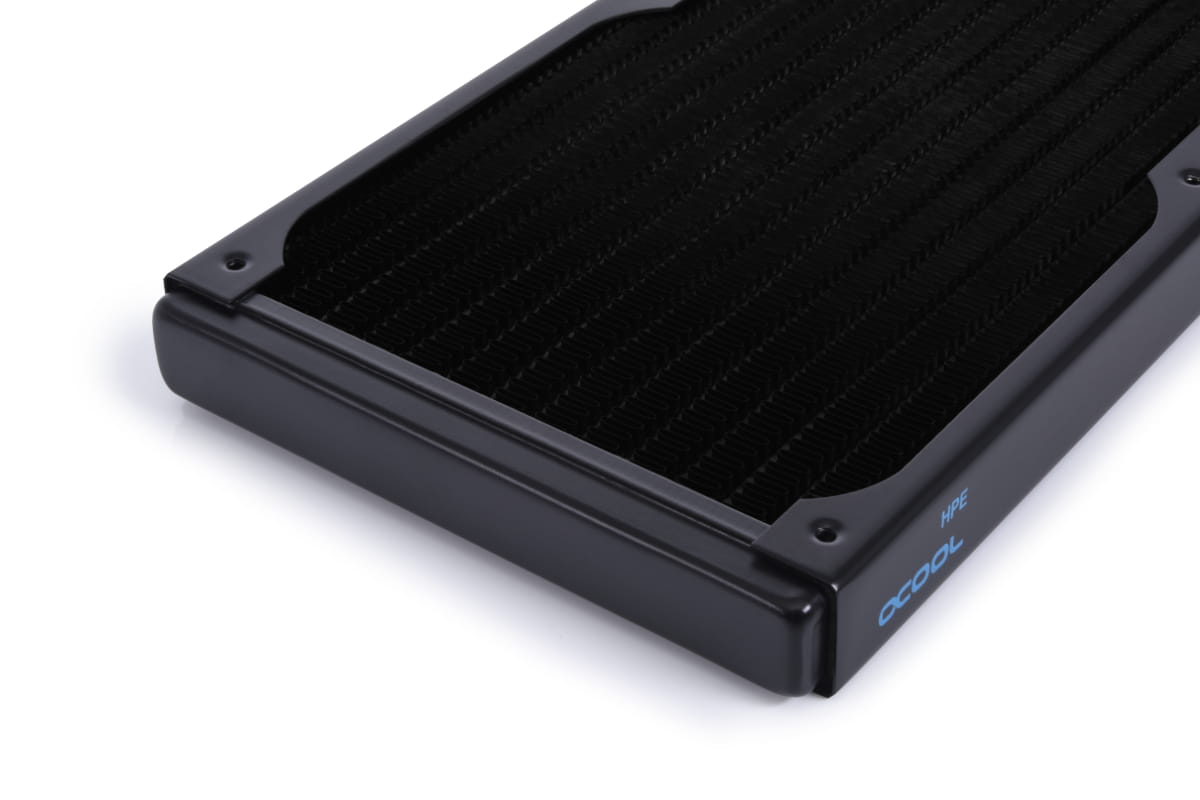

RAD Alphacool NexXxoS HPE-20 Full Copper 240mm Radiator

Article no.: 14436
EAN: 4250197144360
Weight: 0,608 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€75.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisblock XPX CPU - deep black

€39.98*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

and Conditions Alphacool Core 100 Aurora Reservoir D5/VPP Acetal/Acrylic

€45.98*

Alphacool Ultra Pure Water 1000ml

€6.98*

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator... more

Close menu

Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

Space-saving & flexible to use
The compact slim radiators can be mounted very flexibly in even the tightest cases thanks to their low overall height of only 20mm.

Connection options & mounting

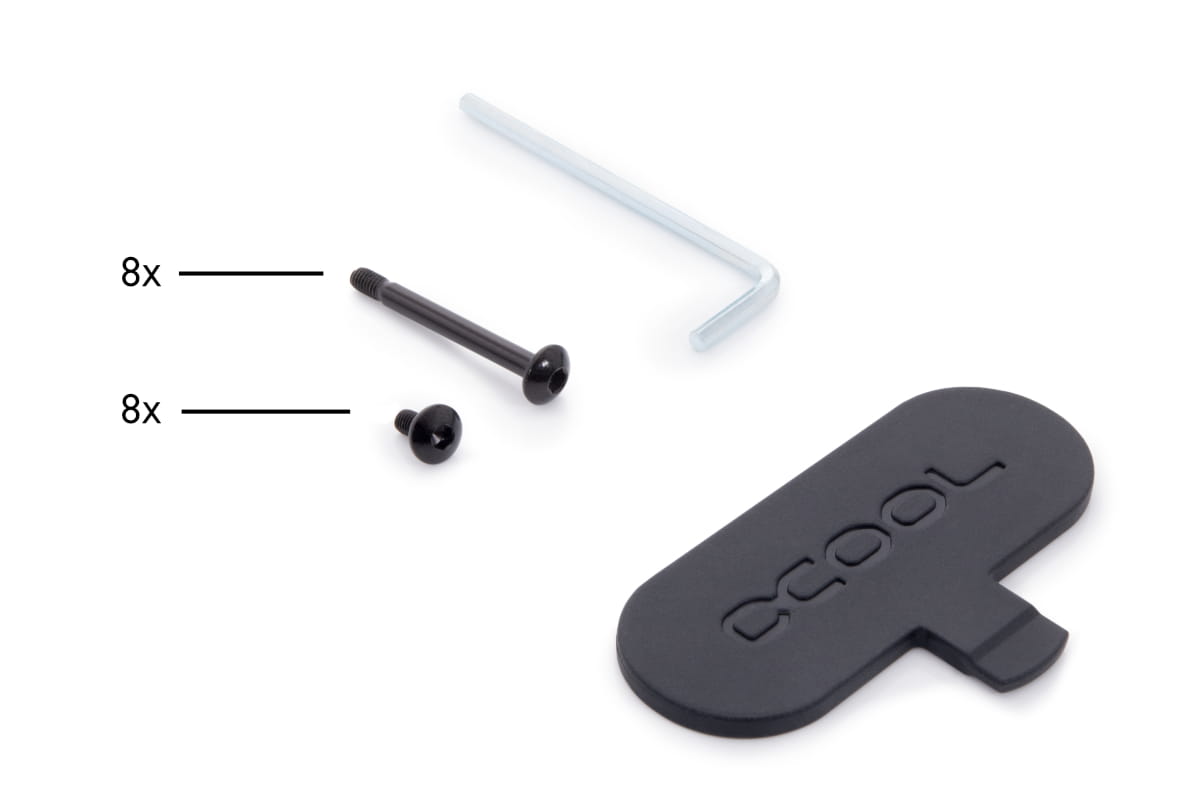

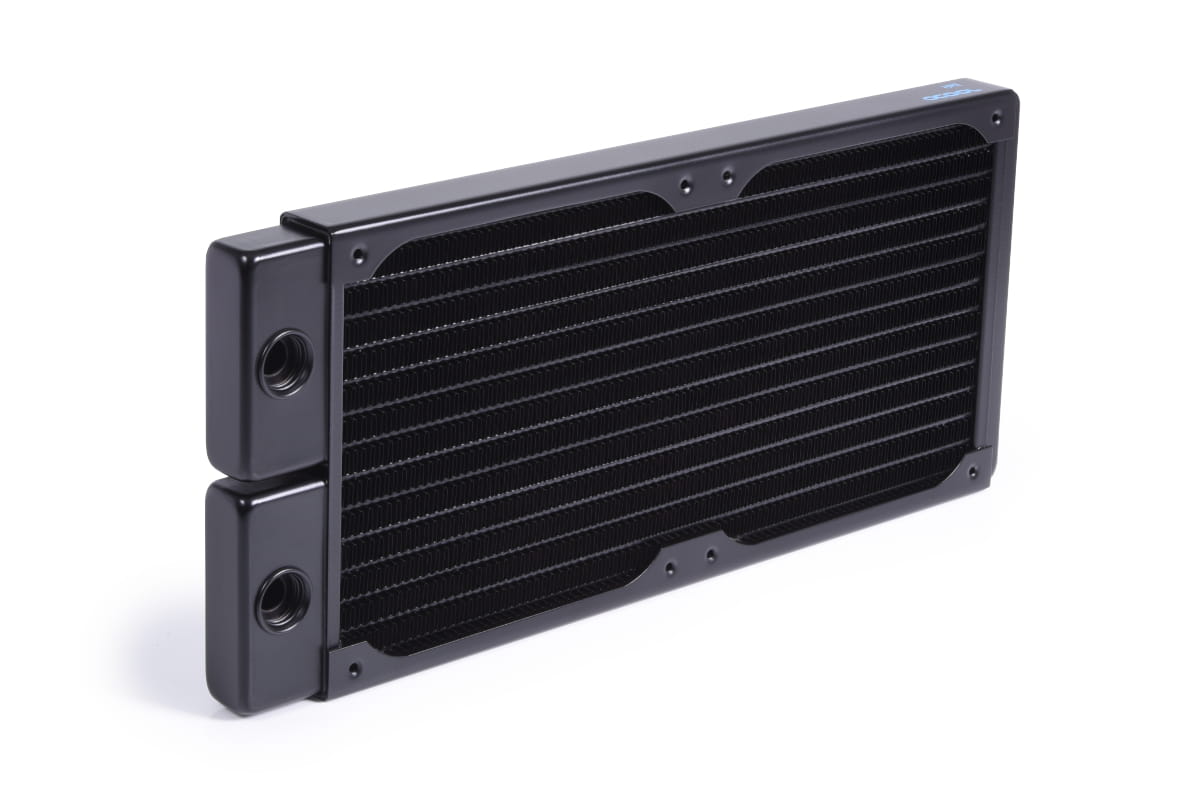

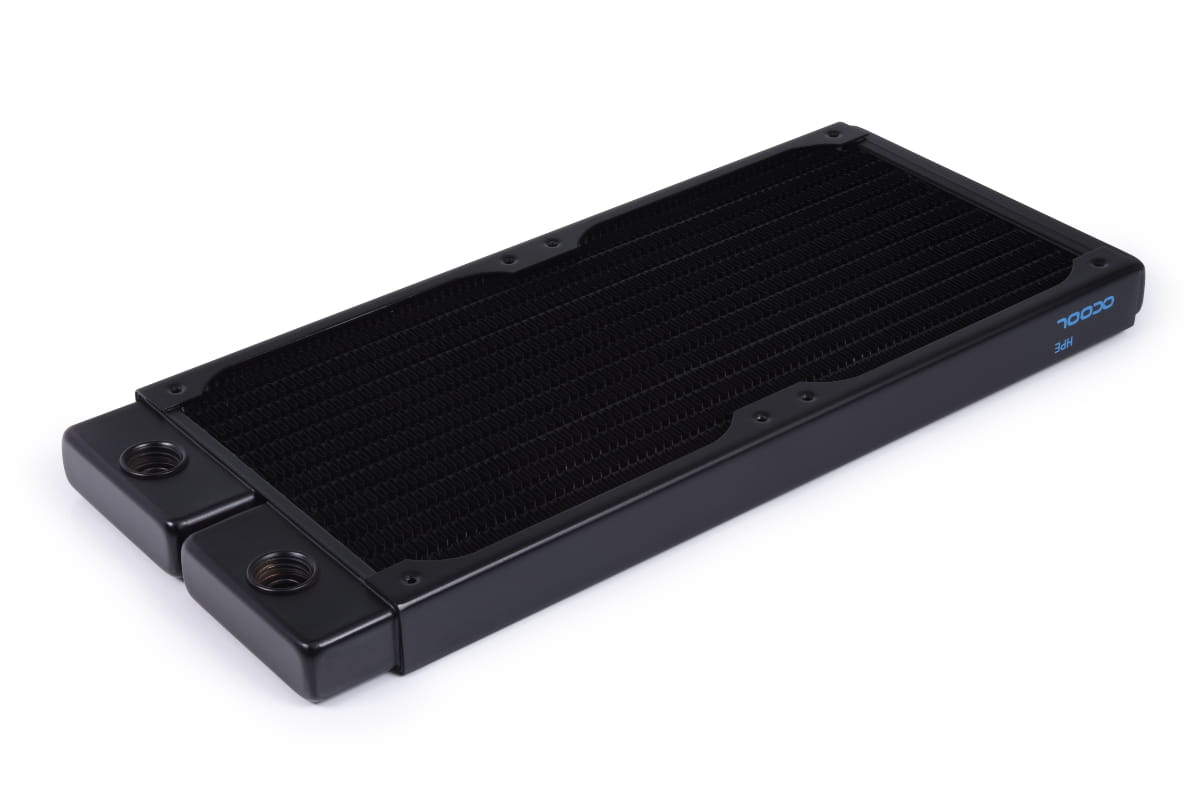

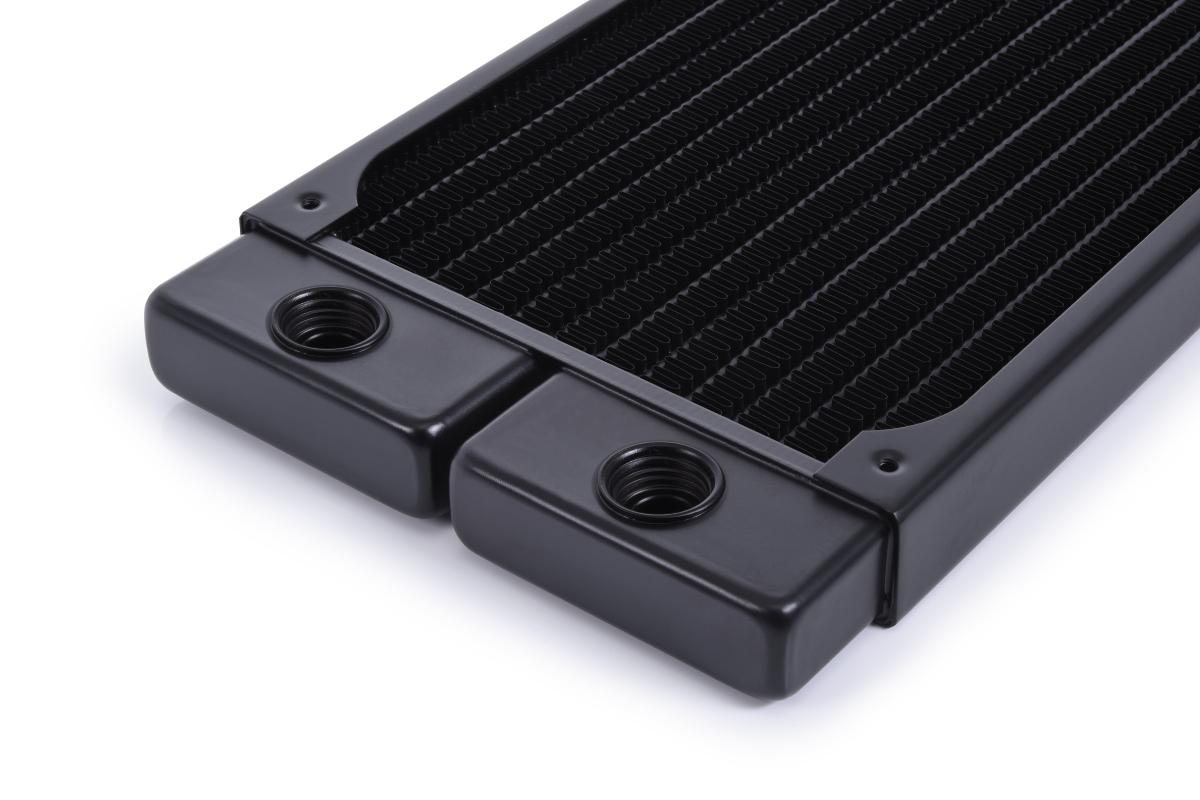

The NexXxoS HPE radiator has one IN and OUT connection with G1/4" threads in the pre-chamber area. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.

Technical data radiator
L x W x H	270 x 120 x 20mm
Quantity of cooling channels	12
Material cooling fins, pre-chambers & channels	copper
Material threads	brass
Material outer housing	stainless steel
Threads	2x G1/4" IN/OUT (max. 5mm thread length)
Possible fan size	120mm
Possible fan assembly	2x one-sided / 4x both-sided

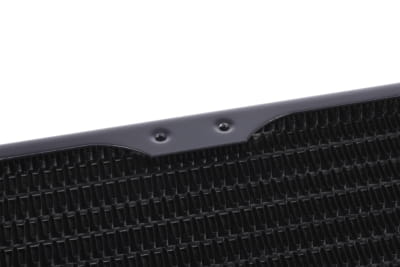

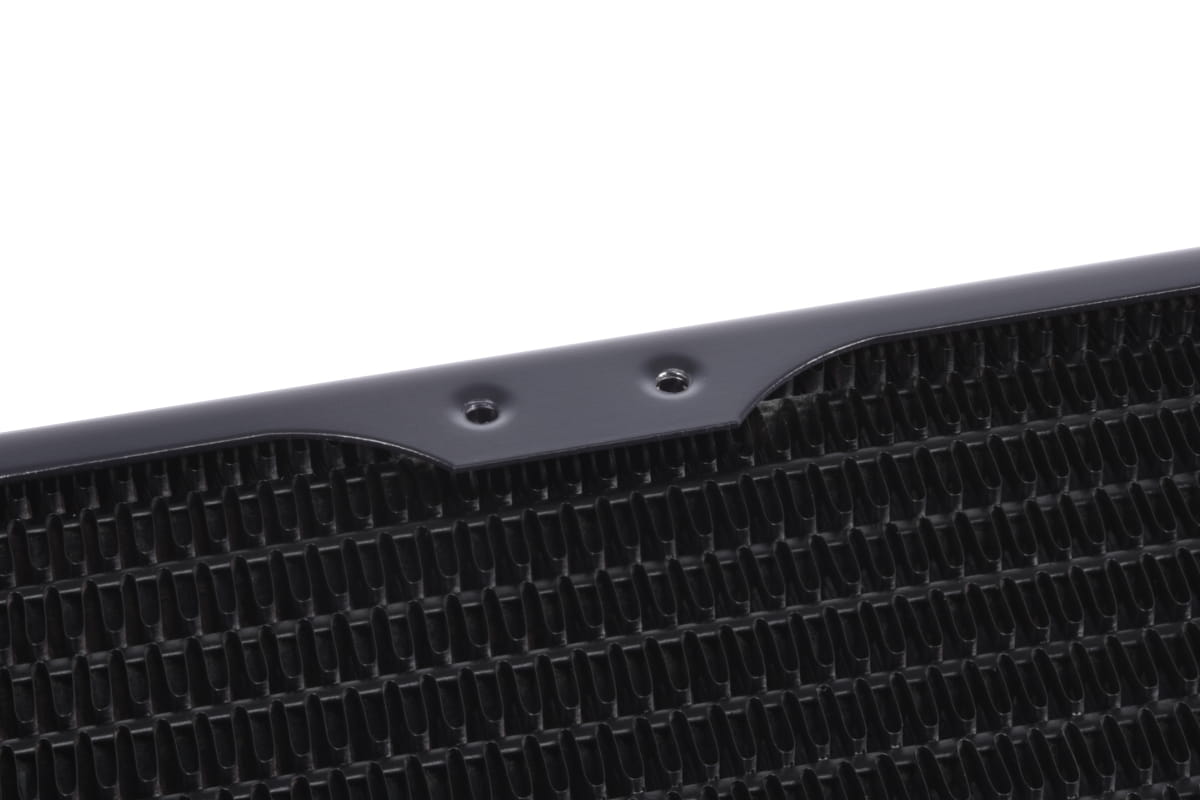

Thread size fan mounting	M3
Pressure tested	0,8 Bar
Maximum working temperature	60°C
Fin density	19 FPI
Weight	454g
Color	black

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Anschluss:	2x G1/4"
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	0,8 bar
Anzahl Lüfter:	2
Dicke:	0 - 29mm
Fins per inch:	19
Lüftergröße:	120mm
Abmessungen (L x B x H):	270 x 120 x 20mm
