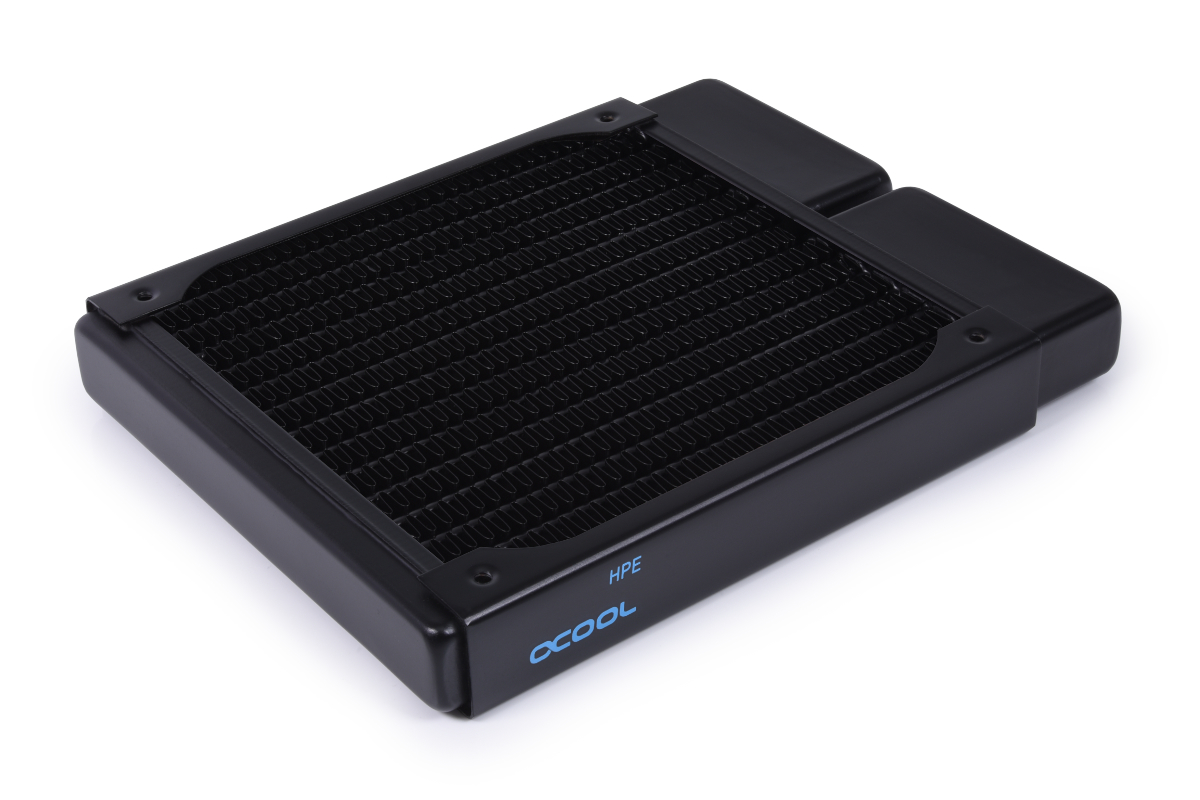

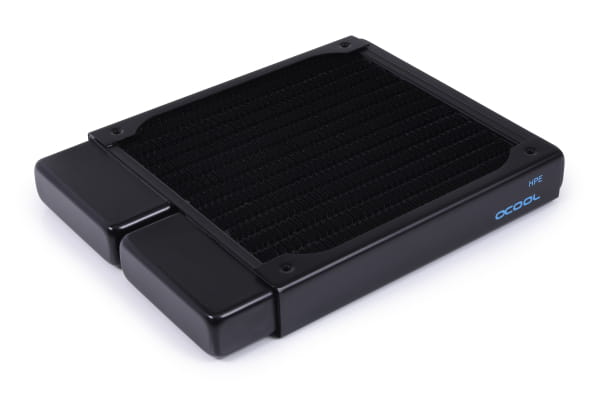

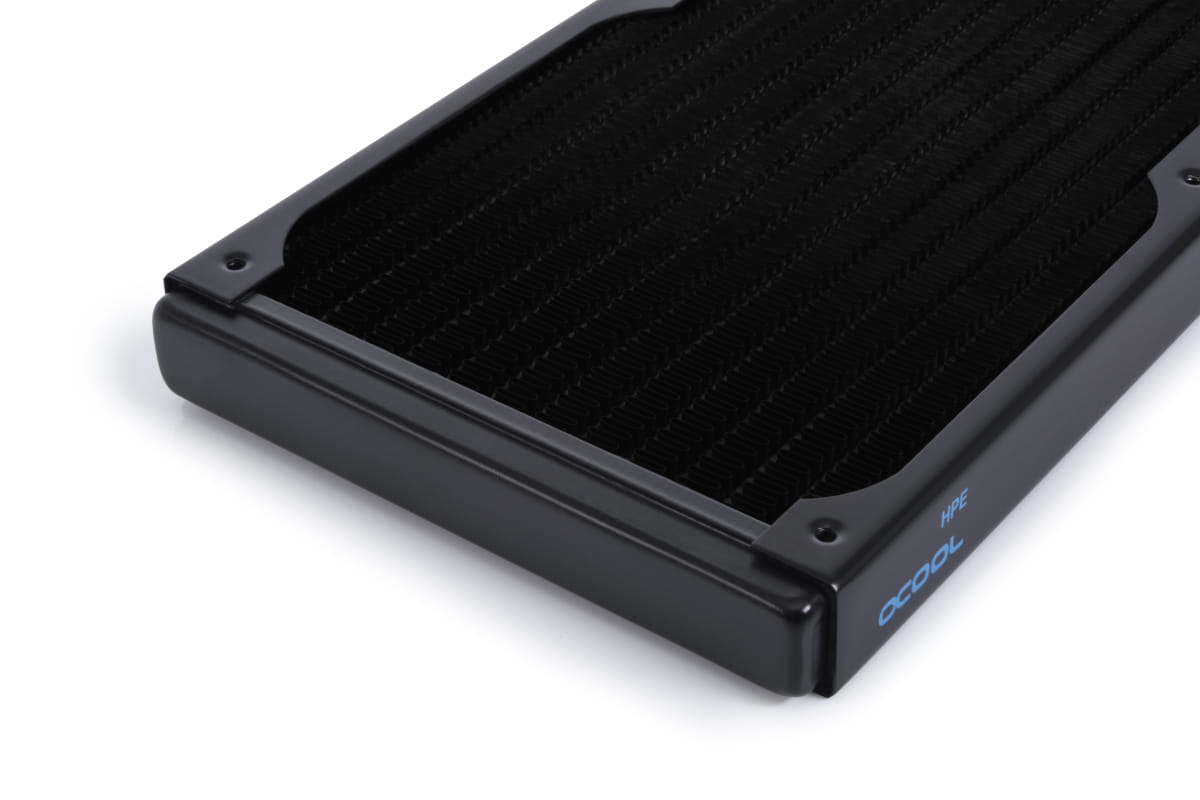

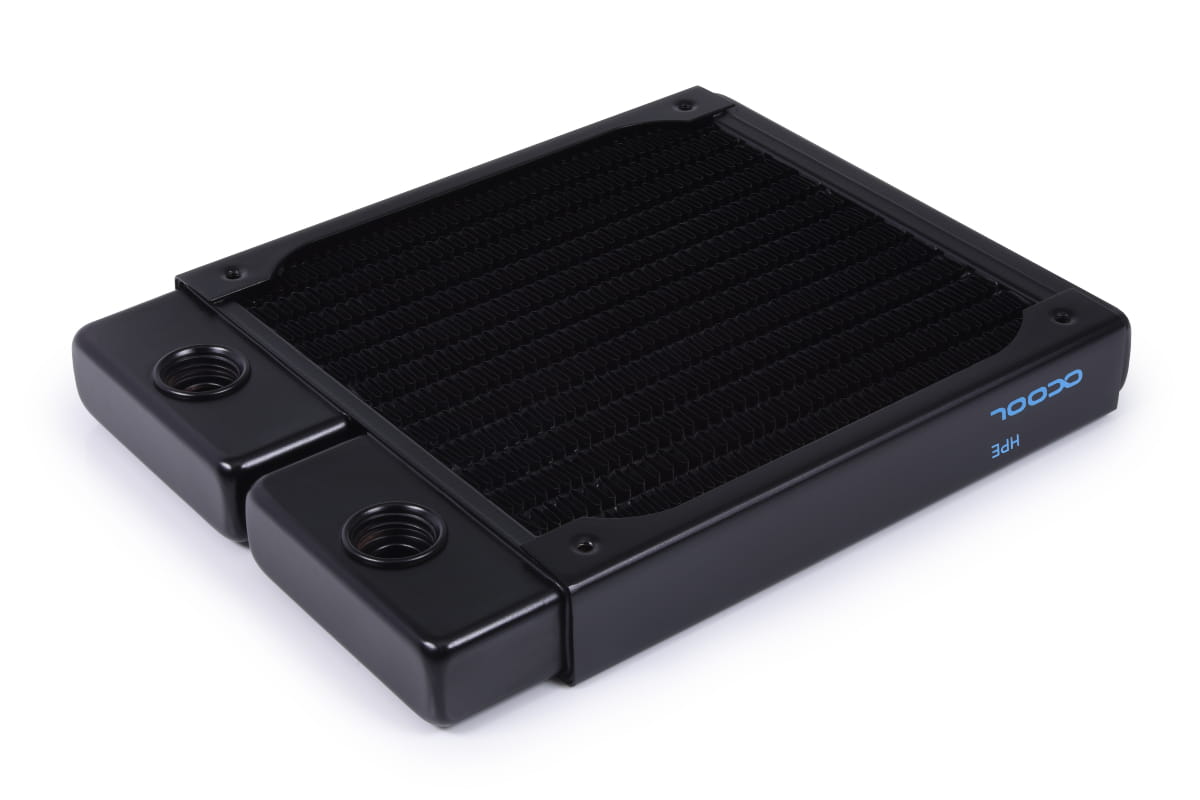

Alphacool NexXxoS HPE-20 Full Copper 120mm Radiator

  • 14435
  • 4250197144353
  • 0,398 kg
  • Images may differ slightly from the original
€55.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
12548 Alphacool Eisbaer Quick-Connect Extension Kit
1x
Alphacool Eisbaer Quick-Connect Extension Kit
€21.98*
12565 Alphacool Eisblock XPX CPU - deep black
1x
Alphacool Eisblock XPX CPU - deep black
€54.98*
15379 Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm
1x
Alphacool Eisbecher Aurora D5 Acetal/Glas - 250mm
€99.98*
24836 Alphacool Rise Aurora 120 mm fan (120x120x25mm)
1x
Alphacool Rise Aurora 120 mm fan (120x120x25mm)
€11.98*
18640 Alphacool Apex Liquid ECO 1000ml clear
1x
Alphacool Apex Liquid ECO 1000ml clear
€14.98*

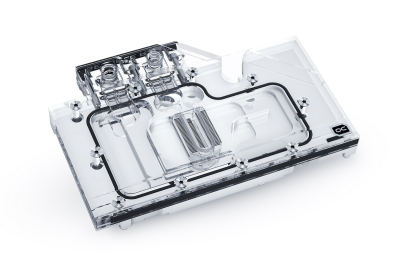

13081 Alphacool Eisblock Aurora Acryl GPX-N RTX 3070TI Heavy Founders Edition with Backplate
1x
Alphacool Eisblock Aurora Acryl GPX-N RTX 3070TI Heavy Founders Edition with Backplate
€74.46*
For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator... more
Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

Space-saving & flexible to use
The compact slim radiators can be mounted very flexibly in even the tightest cases thanks to their low overall height of only 20mm.

Connection options & mounting

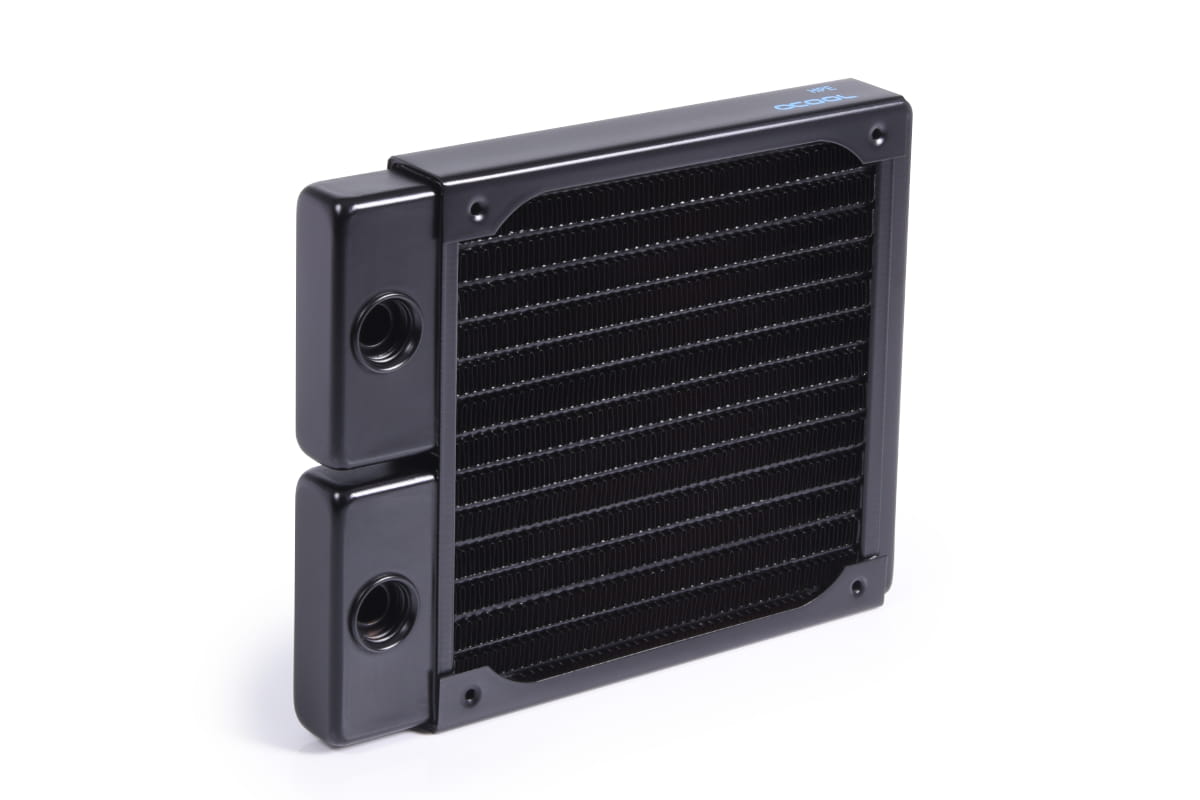

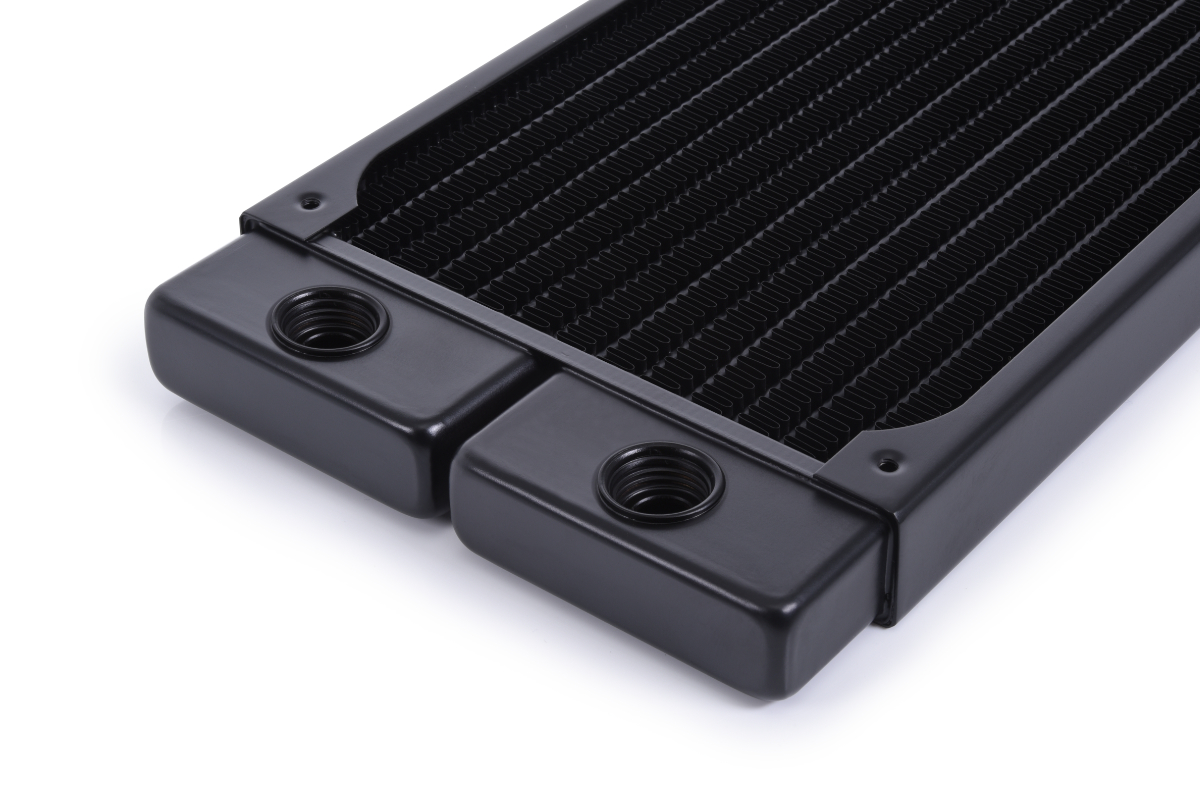

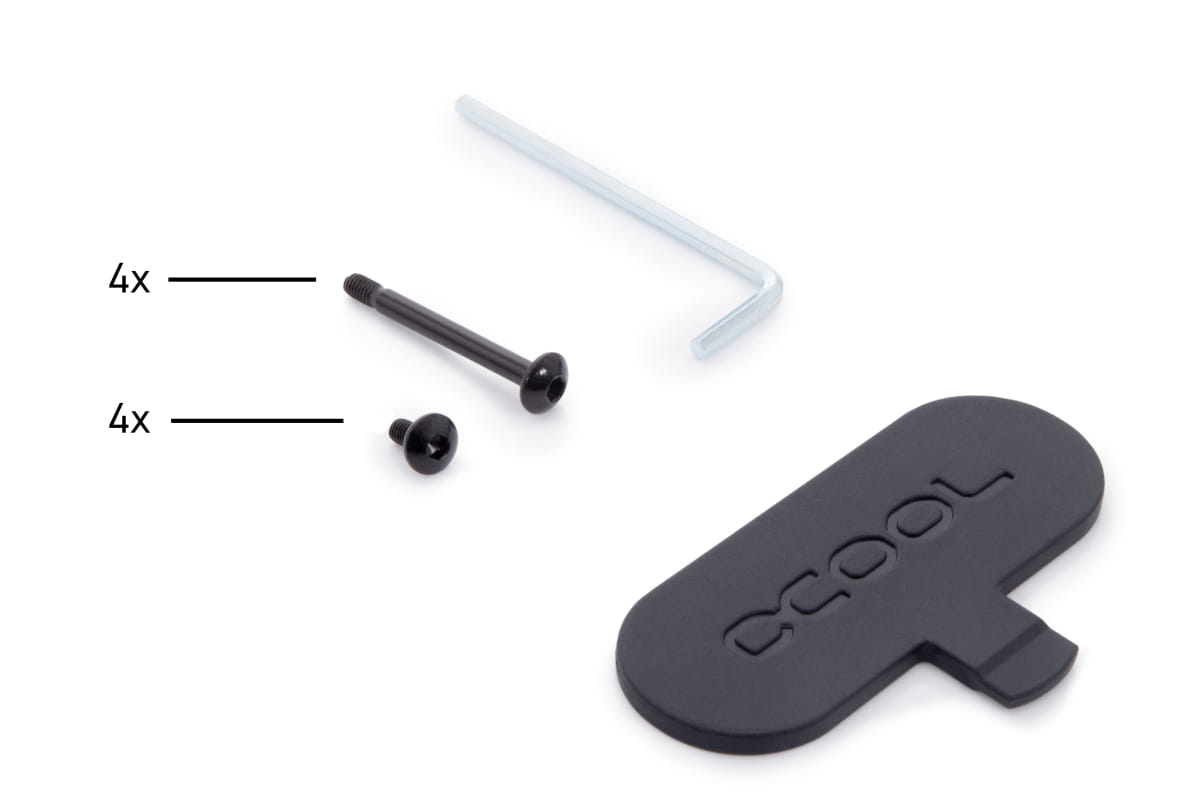

The NexXxoS HPE radiator has one IN and OUT connection with G1/4" threads in the pre-chamber area. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.










Technical data radiator
L x W x H150 x 120 x 20mm
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads2x G1/4" IN/OUT (max. 5mm thread length)
Possible fan size120mm
Possible fan assembly1x one-sided / 2x both-sided
Thread size fan mountingM3
Pressure tested0,8 Bar
Maximum working temperature60°C
Fin density19 FPI
Weight290g
Colorblack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Anschluss: 2x G1/4"
Hersteller: Alphacool
Farbe: schwarz
Lüftergröße: 120mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 0,8 bar
Dicke: 0 - 29mm
Fins per inch: 19
Anzahl Lüfter: 1 ;2 ;
Abmessungen (L x B x H): 150 x 120 x 20mm
