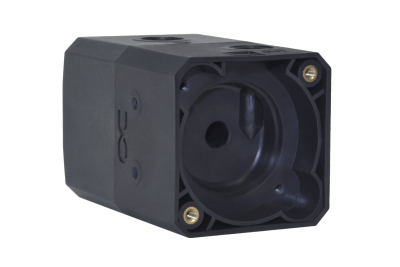

AGB Alphacool Eisstation 80 DC-LT - Behälter

Article no.: 15371
EAN: 4250197153713
Weight: 0,344 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€43.98 *

Prices incl. VAT plus shipping costs

in stock

and Conditions Alphacool Eisstation 40 DC-LT - Container

€33.98*

and Conditions Alphacool Eisstation DC-LT - Solo Top

€23.28*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black

€9.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

The Eisstation DC-LT Solo Top from the Enterprise Solutions series is an extremely compact... more

Close menu

Product information

The Eisstation DC-LT Solo Top from the Enterprise Solutions series is an extremely compact pump top and is very powerful together with the DC-LT pump. Its strengths are evident wherever there is little space or a pump needs to be housed in a space-saving manner. The top is compatible with the DC-LT pump series and is also well suited for small water cooling systems. It even fits in 1U server racks. If the upper aluminum plate is removed, the top can also be extended to include an expansion tank. Under the plate there is also an insert for a bubble-down filter, which minimizes the suction of air bubbles. With the AGB combination, the pump top corresponds to the Eisstation 40 DC-LT series. The installation is also very practical and versatile, so the accessories also include a Velcro mat with which the top can be fixed anywhere in the housing. The Velcro mat adheres very well and provides a secure hold. If you would rather use mounting feet, you can order them separately and install the Eisstation at a 30 degree or 90 degree angle. To install the pump, the plate on the bottom is removed and the O-ring is inserted. The pump is then screwed in place and the plate is reattached. This means that the pump is completely covered by the top and protected from all sides.

The Eisstation 40 DC-LT from the Enterprise Solutions series corresponds to the Solo Top above and is therefore also extremely compact. But it comes with the expansion tank. It also fits in 1U server racks, but can also be mounted directly on a radiator. Together, the Solo Top and AGB are only 6 cm long, 4 cm wide and 4.1 cm high. Therefore, it also fits on a 40 mm Alphacool X-Flow NexXxoS radiator. But despite its size, almost 29 ml of coolant still fits in the tank. However, since it is connected directly to a radiator, the Eisstation functions as an extended AGB. As with the Solo Top, the filter prevents air bubbles from reaching the pump. The included double nipple allows the station to be connected directly to one of the four G1/4" threads on the side or front inlet of the radiator. This means that the ice station, together with a NexXxoS 40 mm X-Flow radiator, fits easily into a 1U server case. The installation of the pump is identical to the Solo Top above.

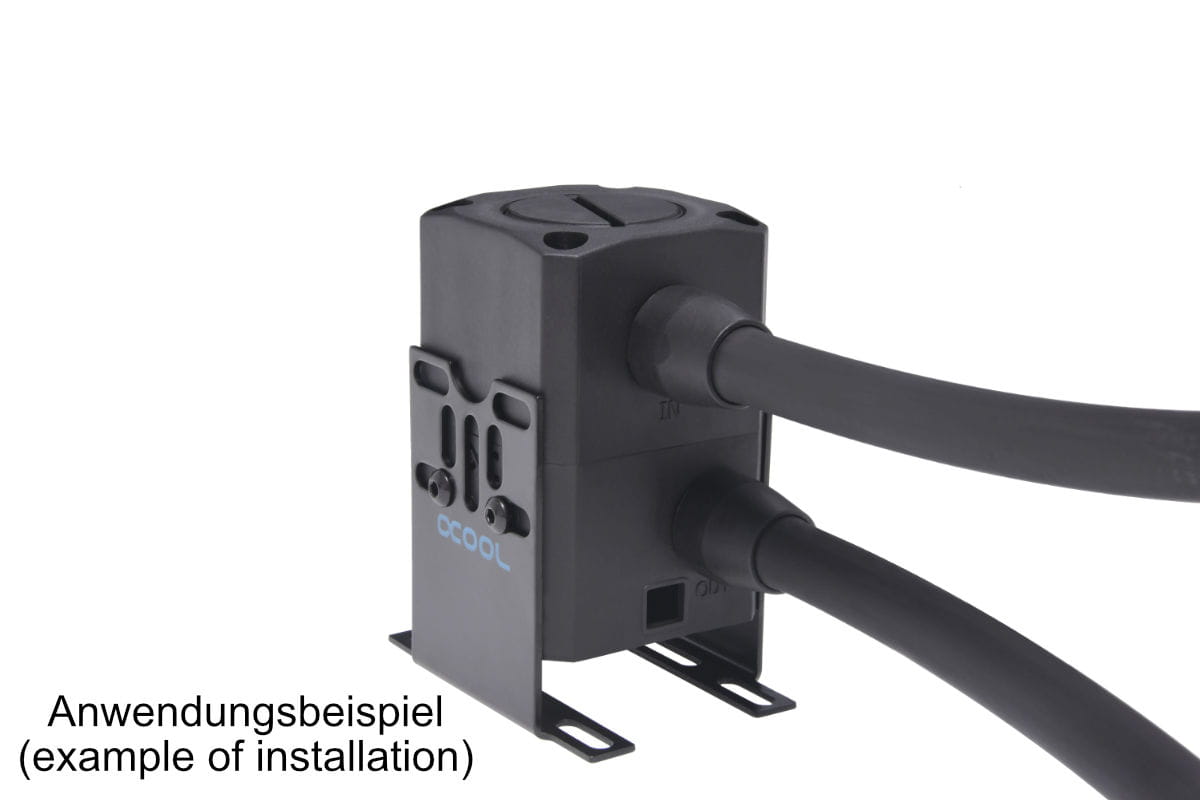

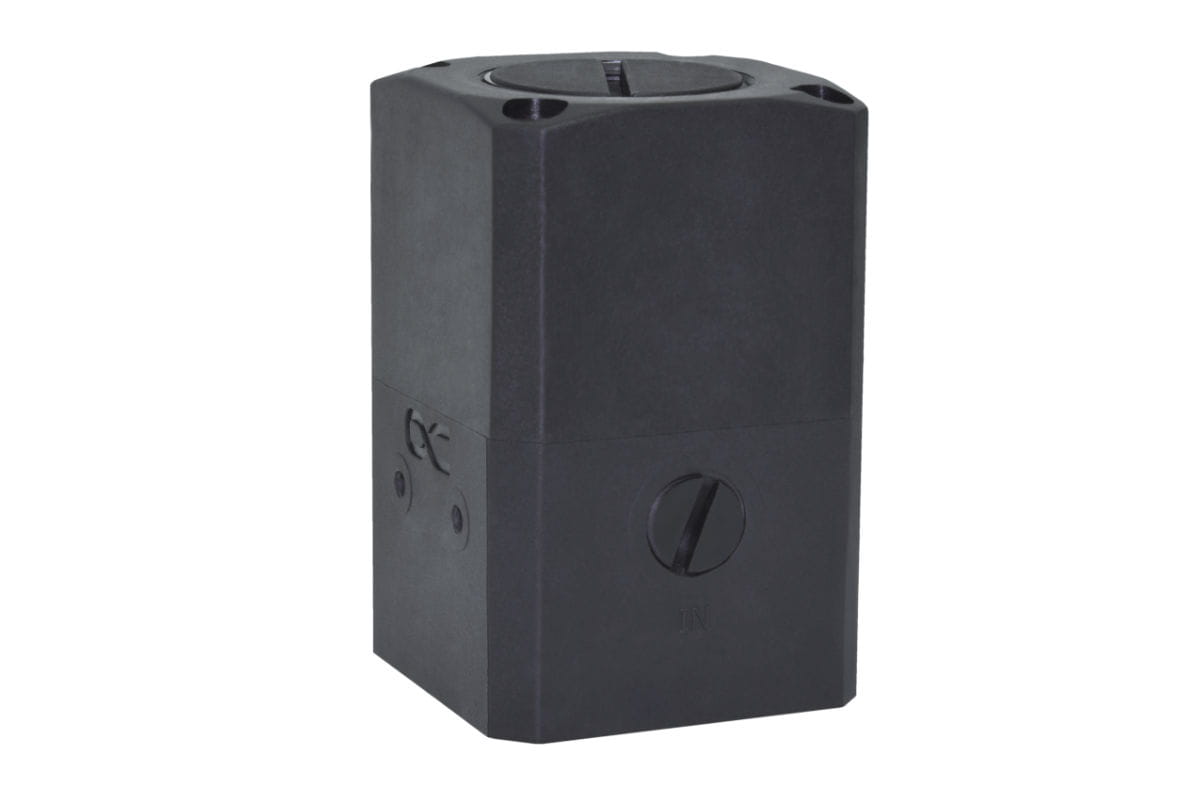

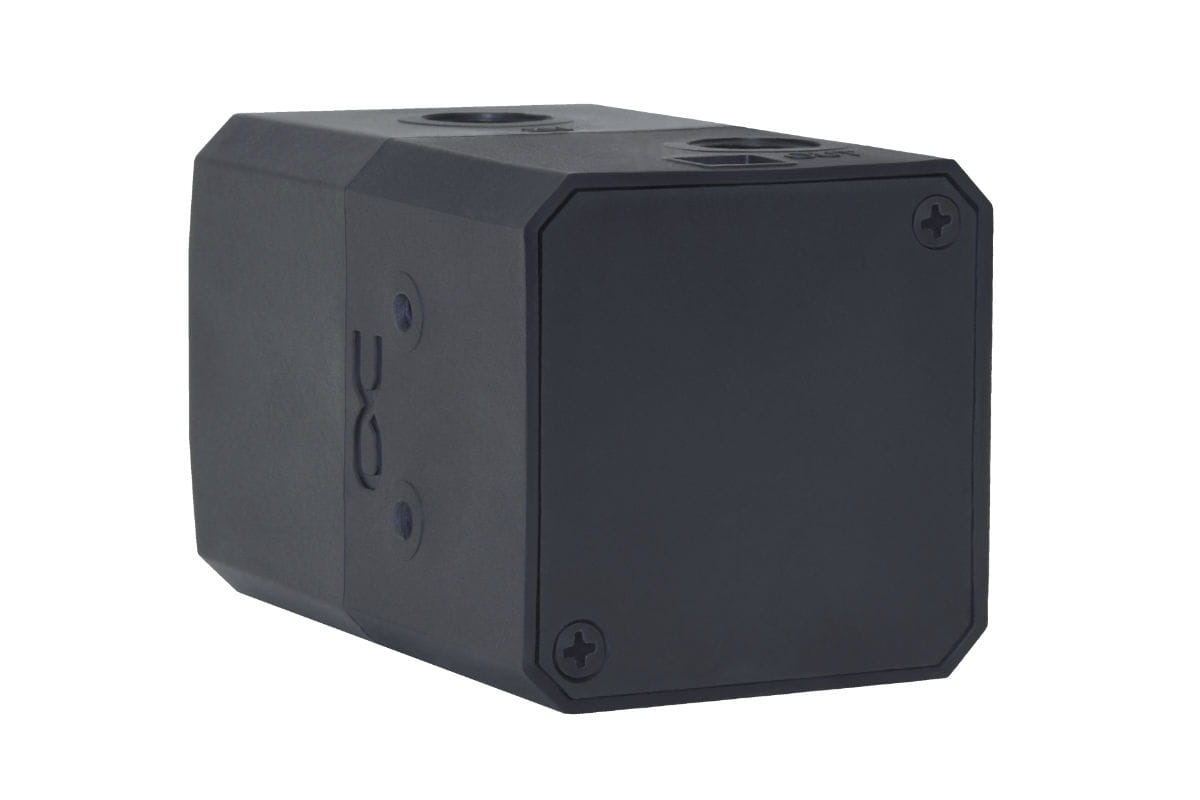

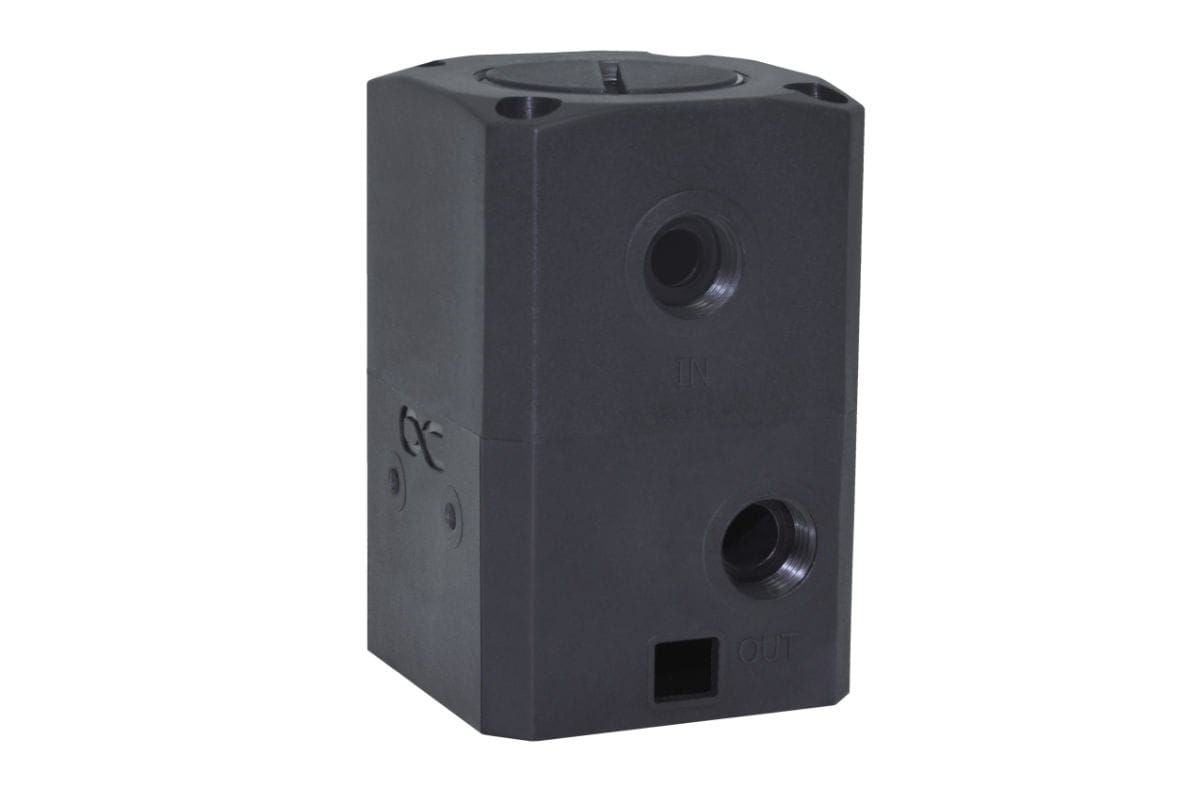

The ice station 80 DC-LT from the Enterprise Solutions series, on the other hand, still fits into 2U server racks, depending on the installation variant. The entire ice station is made of acetal, making it extremely robust and durable. As with the Solo Top, a Velcro mat is included with which the ice station can be fixed in any position without losing its compact design. Unlike the other ice station, mounting feet are included with which the height can be adjusted. Installation at a 30 degree or 90 degree angle is also possible. The volume can be reduced using the included decoupling feet. The pump is installed in the same way as the other two items. Only filling is easier, as the 25mm filling opening means that spray bottles or funnels can be used without any problems. If the pump top is used together with the AGB, the inlet is on the side of the AGB and the outlet is on the side of the pump top. If IN and OUT are to run in a certain direction, the expansion tank can also be dismantled and turned to any position. If the AGB is not used, there is an additional entrance on the opposite side of the OUT.

Ice Station 80 DC-LT

Scope of delivery:

1x expansion tank
1x locking screw G1/4“
1x locking screw G1"
2x M3x8 screws
8x M4x6 screws
2x M3x5 screws
1x locking screw tool
1x hexagon key
1x Velcro mat
2x feet
4x M4 nuts
4x vibration dampers

Technical Data:

Dimensions: 50.62 x 50.62 x 77 mm (W x D x H)
Net weight: 144 g
Maximum working temperature: 60 °C
Connections: 3x G1/4“
Pressure tested: 1.5 bar
Certificates: CE, FC, ROHS

Information & Assembly instructions EN (The instructions can be found on page 3.)

Information & Assembly instructions EN (See page 3 for manual.)

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
LED Bohrungen:	nicht vorhanden
Behältertyp:	Sonstige Behälter
Pumpenkompatibilität:	für DC-LT
Material:	Acetal
