Alphacool Laing DDC310 - Complete Edition Ice Cover - black/Acetal

  • 13196
  • 4250197131964
  • 0,66 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€59.98 * €79.98 * (25.01% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
PUM Alphacool Laing DDC310 - Single Edition - silver
1x
Alphacool Laing DDC310 - Single Edition - silver
€55.98*
PUM Alphacool Laing DDC310 - Single Edition - black
1x
Alphacool Laing DDC310 - Single Edition - black
€55.98*
PUM Alphacool ES Laing DDC310 Pump - Single black plastic bottom
1x
Alphacool ES Laing DDC310 Pump - Single black plastic bottom
€64.98*
PUM Laing DDC pump 12V DDC 4.2 PWM
1x
Laing DDC pump 12V DDC 4.2 PWM
€74.98*
Alphacool's new Low Noise Edition of the Laing DDC for absolute silence! The widely used... more
Product information

Alphacool's new Low Noise Edition of the Laing DDC for absolute silence!

The widely used Laing DDC pumps are getting a new addition. Freshly packaged, this pump can start its life with a lot of confidence. A few details have been changed. Firstly, a lot of power has been saved in order to remedy a widespread problem: the noise! Hardly any other pump can compete with this one in terms of noise generation. For the most common water cooling system consisting of cooling for the CPU and GPU, this pump should be the first choice.

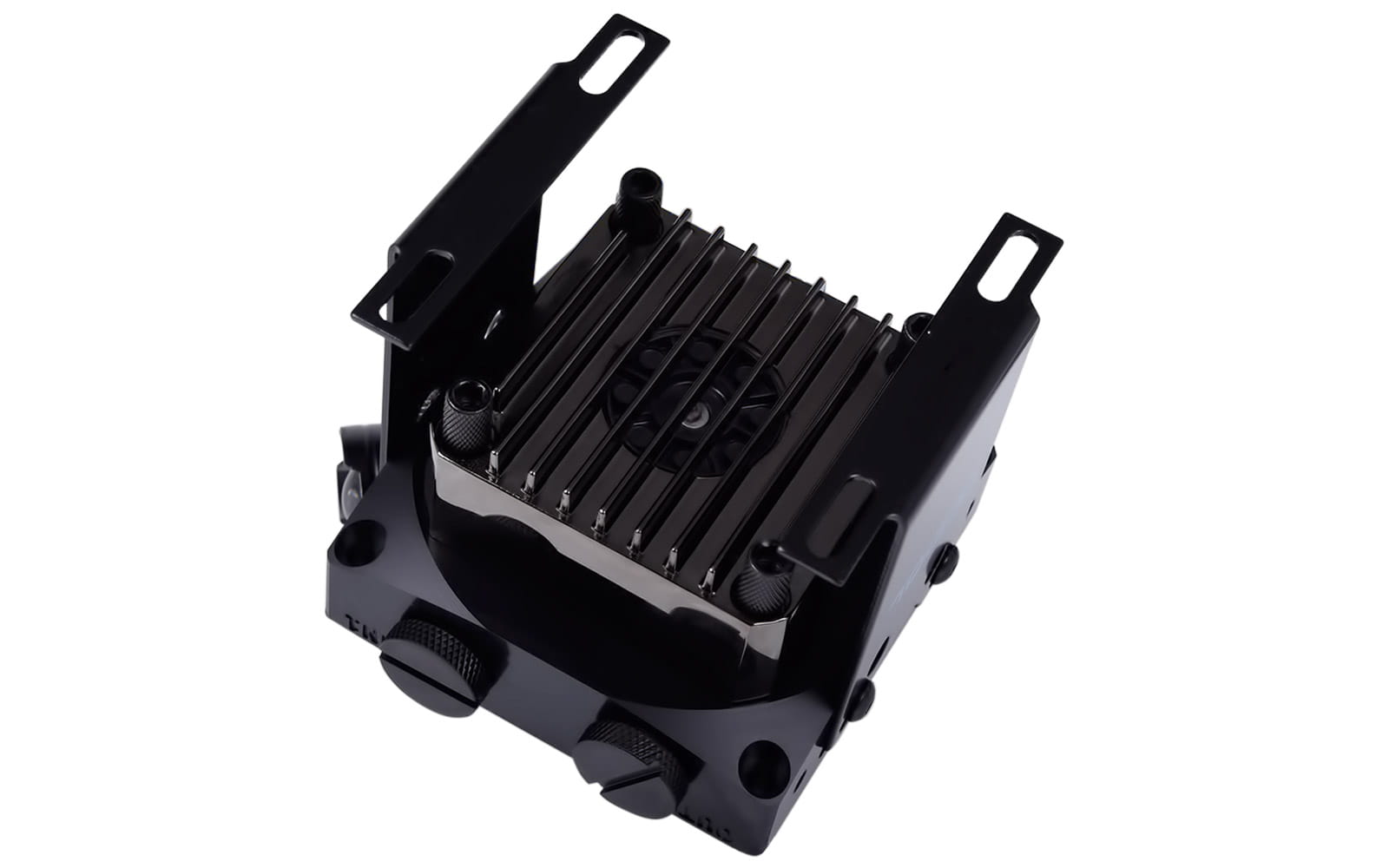

This pump no longer comes in the familiar plastic housing. What is new is the perfectly coordinated brass housing that adorns the exterior. This new housing promises a longer service life for the pump. Air flows through the cooling fins and is passed directly to the pump board via an internal thermal pad.

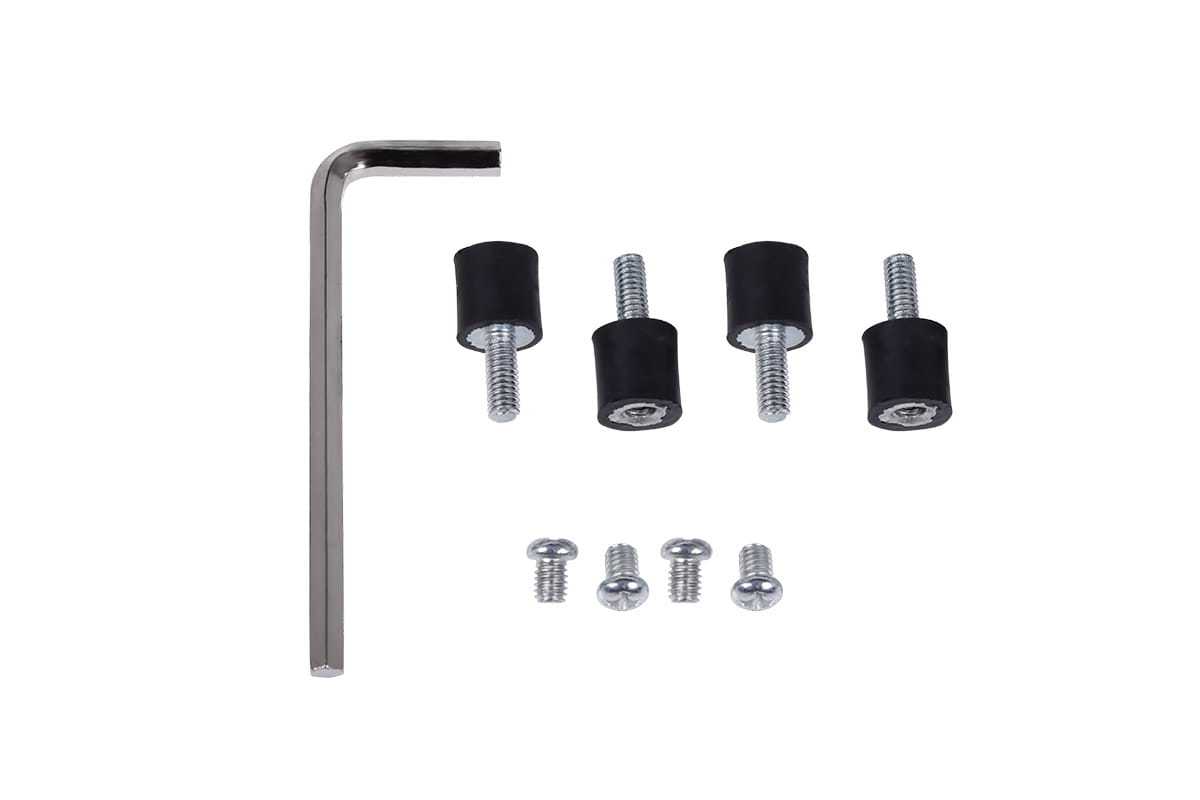

Another feature is the included decoupling option. Using the special M4 screws, the included decoupling can be screwed into the head of the screw, which in turn is connected to the housing.

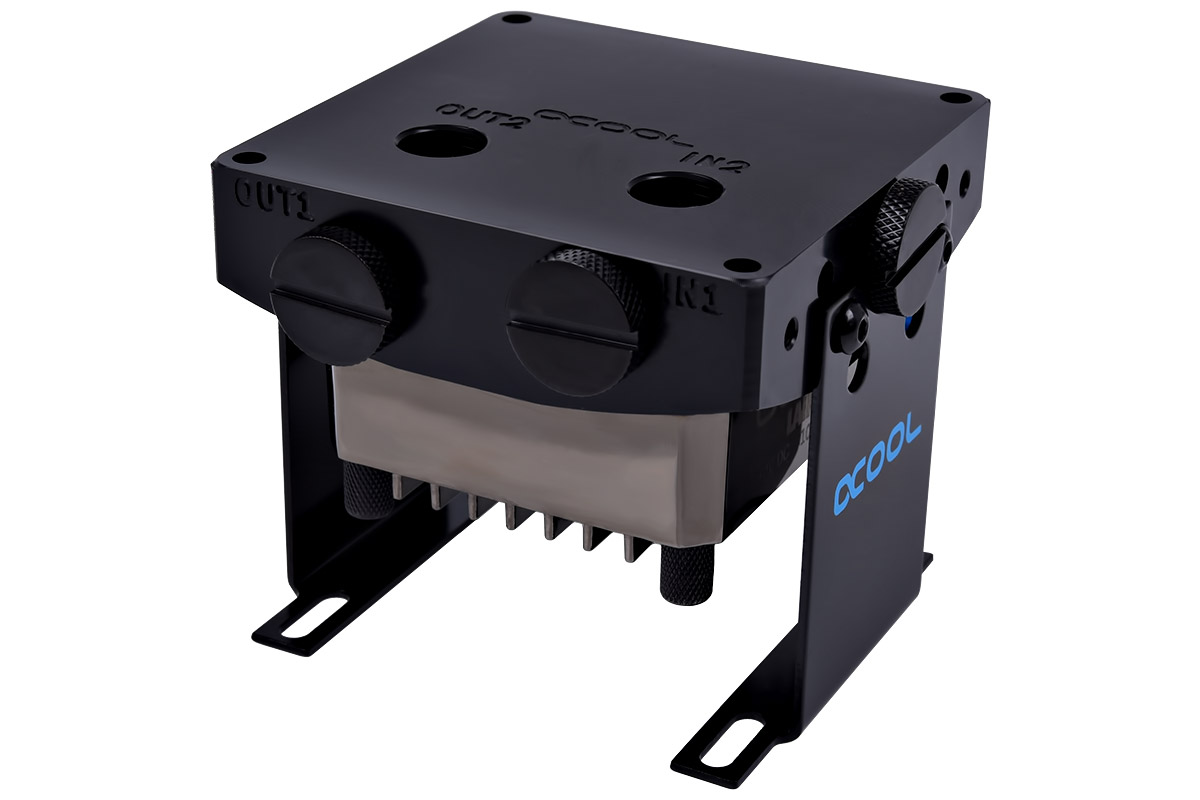

The innovation in this set is that the V.2 of the Alphacool Eisdecken were used, which offer the possibility of three G1/4" connections for the inlet and two G1/4" connections for the outlet.
Inlet options: front, side, top
Outlet options: Front, Top

In addition, three G1/4" screw plugs are included in delivery to close the unused in/out connection options.

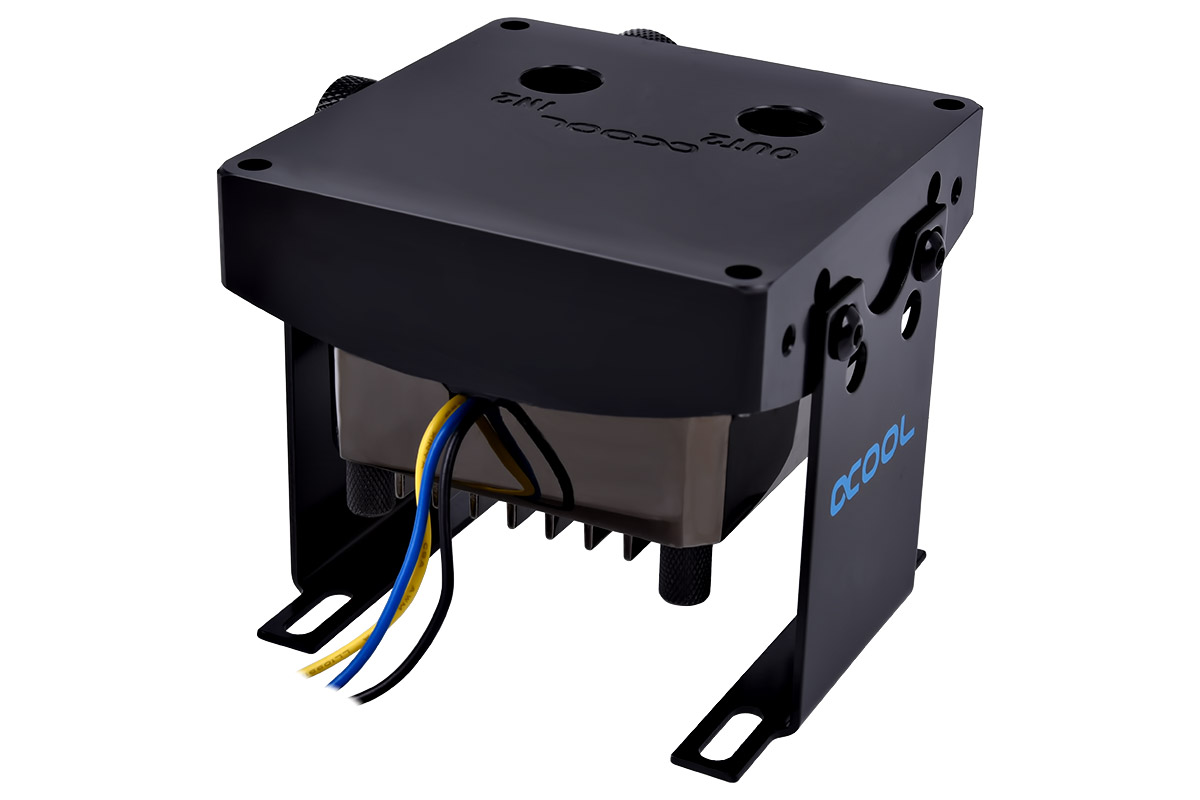

Another feature is the pre-assembled bracket, as we know it from the previous sets or the new ice cream bowls. This means that this pump set can also be mounted directly to the base of the housing.

Now available in combination with the proven Alphacool Eisdecke Laing DDC acrylic or acetal top!

Technical details

  • Dimensions: 89 x 85 x 75mm
  • Colour: Black Nickel / Black
  • Power consumption: 10W
  • Material: brass, stainless steel, aluminum oxide, hard carbon
  • Maximum discharge head: 2.44m
  • Maximum system temperature: 60°C
  • Maximum flow: 200l/h
  • Voltage: 12V DC

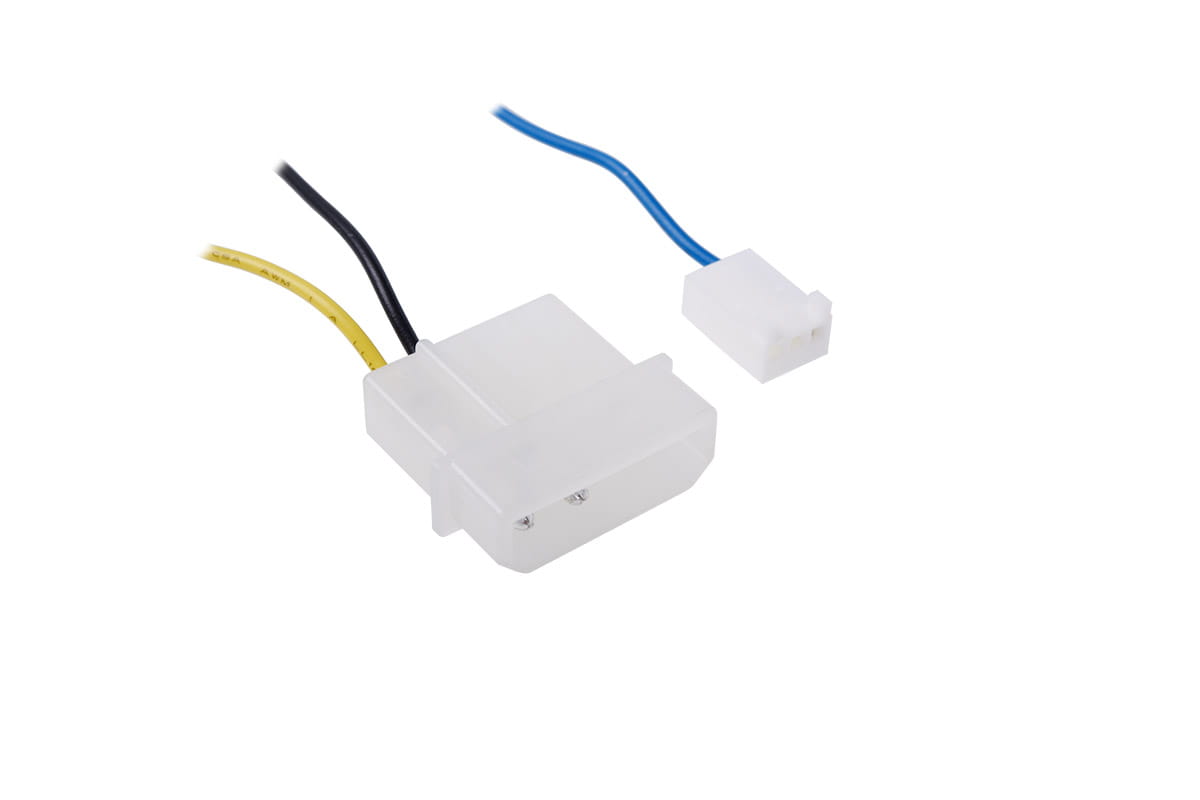

  • Power connector: 4 pin Molex
  • Speedometer signal: 3 pin Molex

Scope of delivery

  • 1x Alphacool Laing DDC310 pump
  • 1x Alphacool Laing DDC metal bottom - black nickel
  • 1x Alphacool Eisdecke Laing DDC Acetal attachment V.2
  • Decoupling set
  • Mounting material

Notice
Not suitable for continuous use with liquids containing titanium dioxide or glycerine. Many pastel colors typically use these additives.

Technical data sheet of the DDC310 pump: Please click here!

Assembly instructions

Download 3D file (.stp)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Stromanschluss: 4Pin
Farbe: schwarz
Spannung: 12V DC
Maximale Förderhöhe: Gut (2 bis 4m)
Maximaler Durchfluss: 200 l/h, 480 l/h
Maximale Systemtemperatur: 60°C
Wassereinlass: G1/4" Innengewinde
Wasserauslass: G1/4" Innengewinde
Leistungsaufnahme: 10W
Abmessungen: 61 x 60 x 21mm
Zugelassene Flüssigkeiten: Wasser/Glykol-Gemisch
Material: Aluminiumoxid, Hartkohle, Messing
