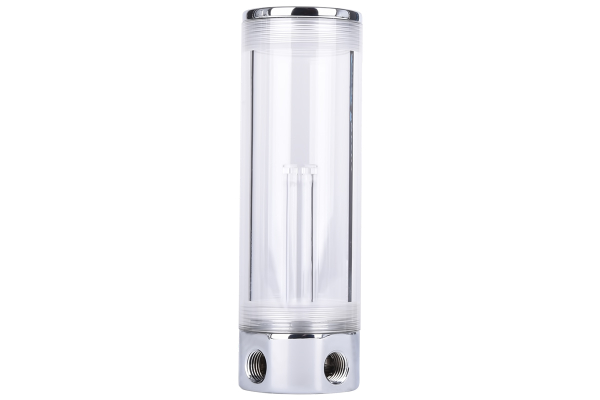

AGB Alphacool Cape Corp Coolplex HF Metall 15 - Chrome EOL

Article no.: 15268
EAN: 4250197152686
Weight: 0,719 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€26.99 * €41.39 * (34.79% Saved)

Prices incl. VAT plus shipping costs

in stock

What is that? The Alphacool Cape Corp Coolplex HF Metal is the first expansion tank from... more

Close menu

Product information

What is that?

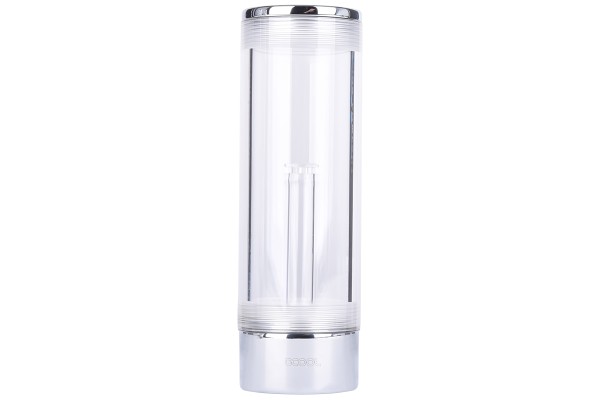

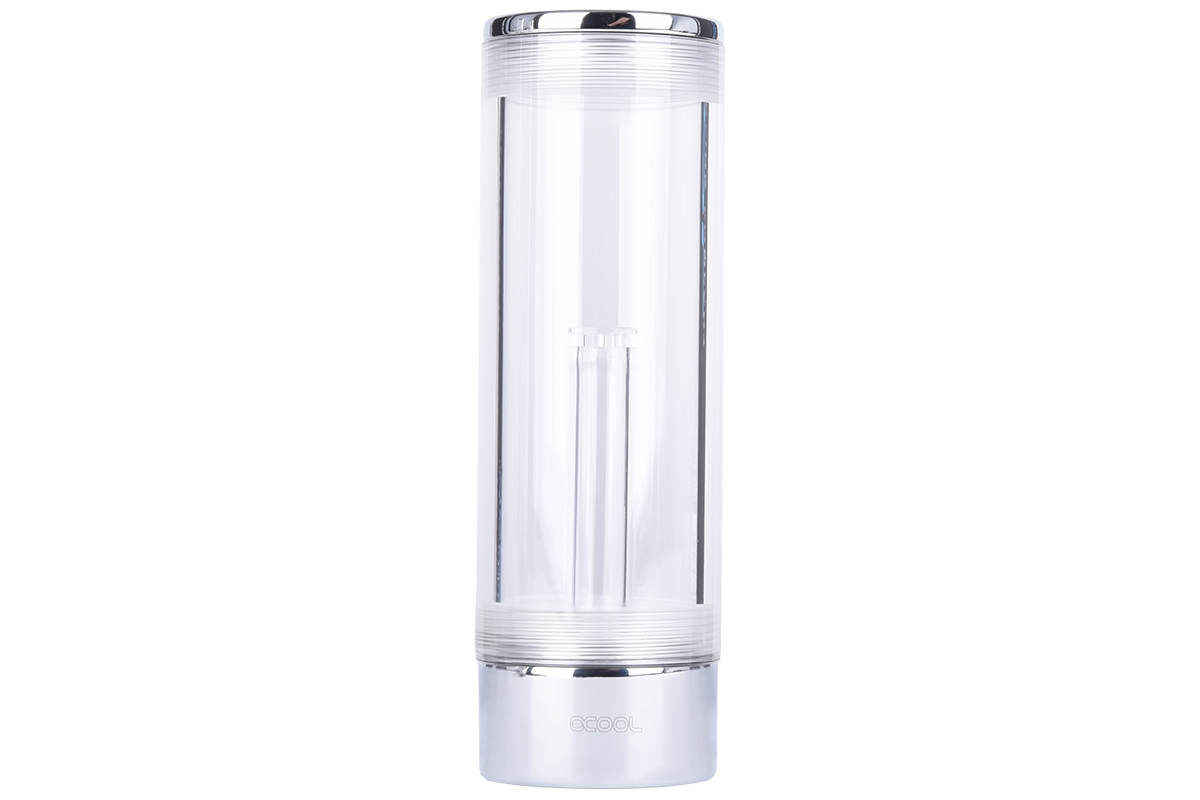

The Alphacool Cape Corp Coolplex HF Metal is the first expansion tank from Alphacool whose base and lid are made entirely of brass and of course also has the Lighttower water effect.

Highlights:

Base and lid made of brass
Lighttower water effect
Three sizes in two colors
Many connection options

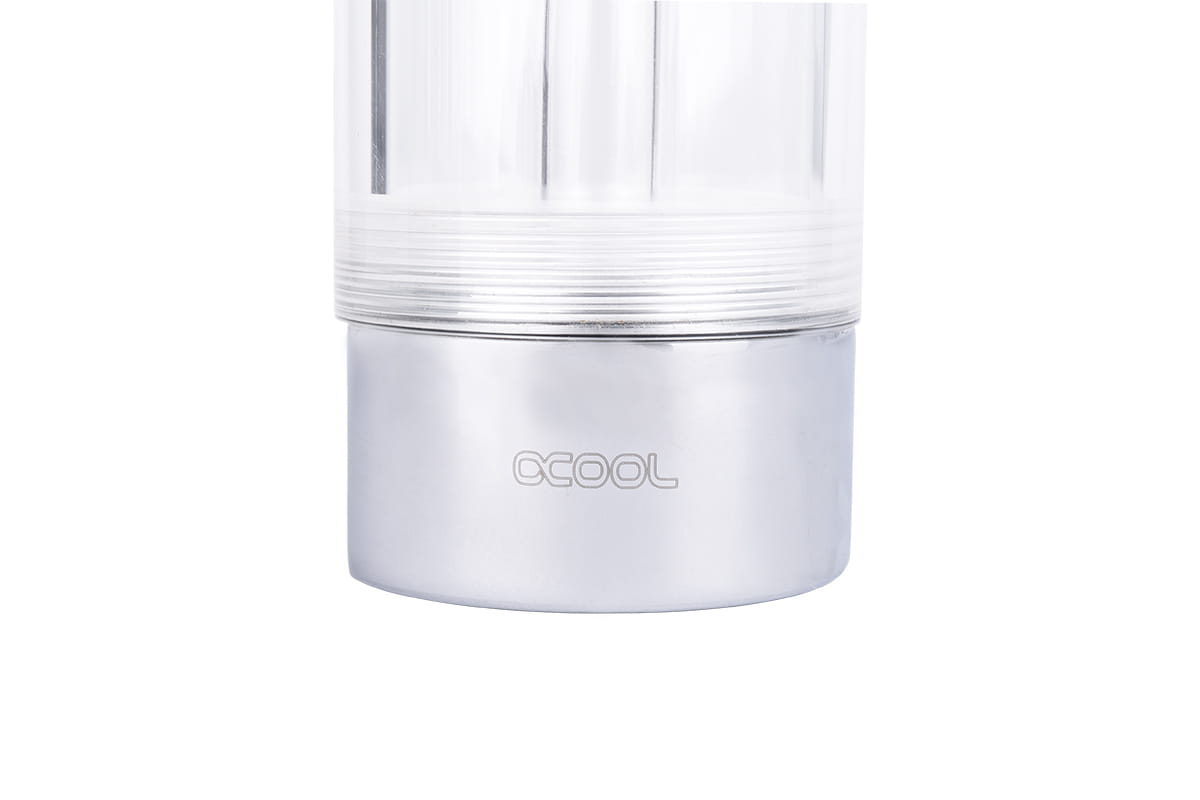

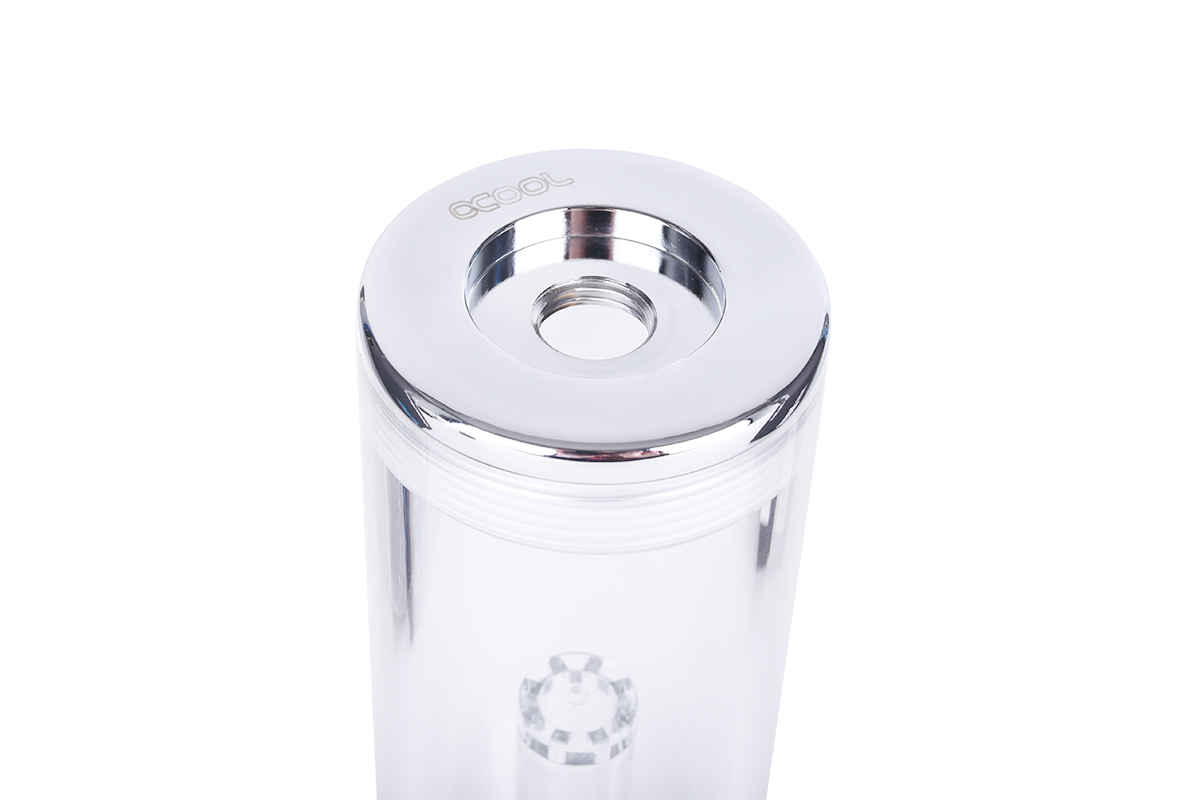

With the Alphacool Cape Corp Coolplex HF Metal you get an expansion tank in a classy brass design. The base and lid are made of solid, nickel-plated brass. This gives your computer a particularly classy look. The Cape Corp Coolplex HF Metal impresses with its simplicity, elegance and the materials used.

Nevertheless, the Cape Corp Coolplex HF Metal offers another visual highlight that is now hard to imagine the Alphacool series without. The Lighttower water effect can also be found here. The water jets emerging from the side of the riser pipe hit the transparent acrylic glass of the expansion tank and create a unique bubbling effect that can change depending on the water flow. If you don't want to use the effect, you can simply fill the expansion tank above the riser pipe.

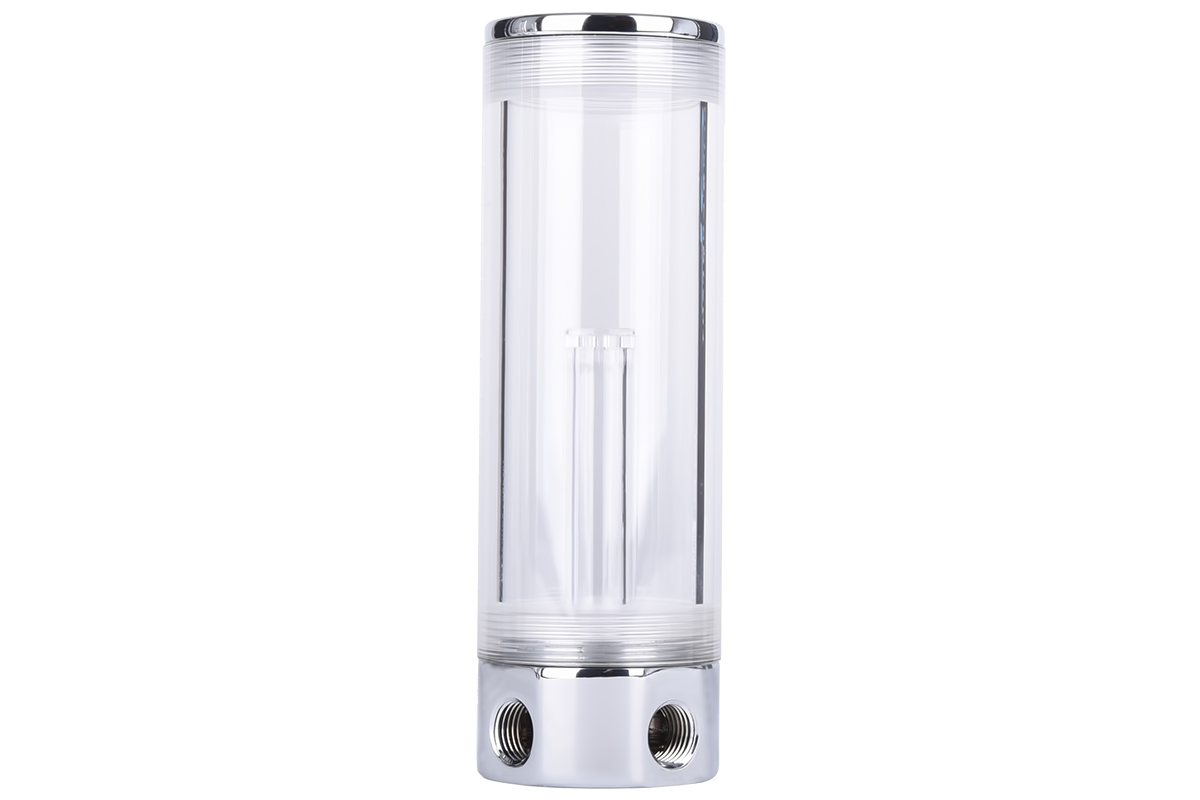

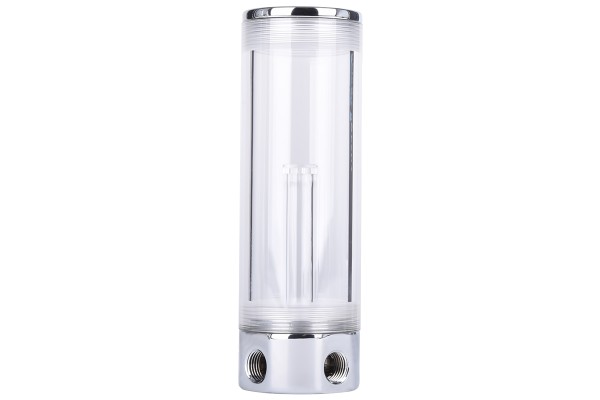

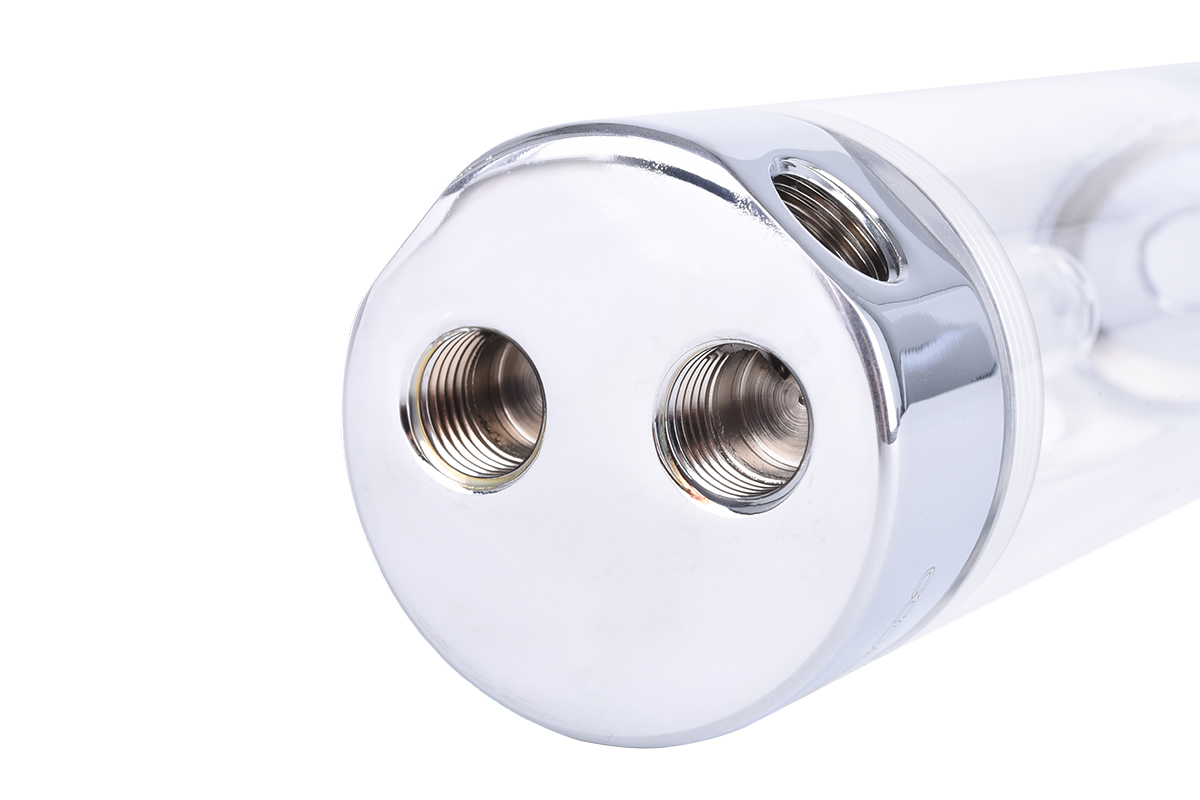

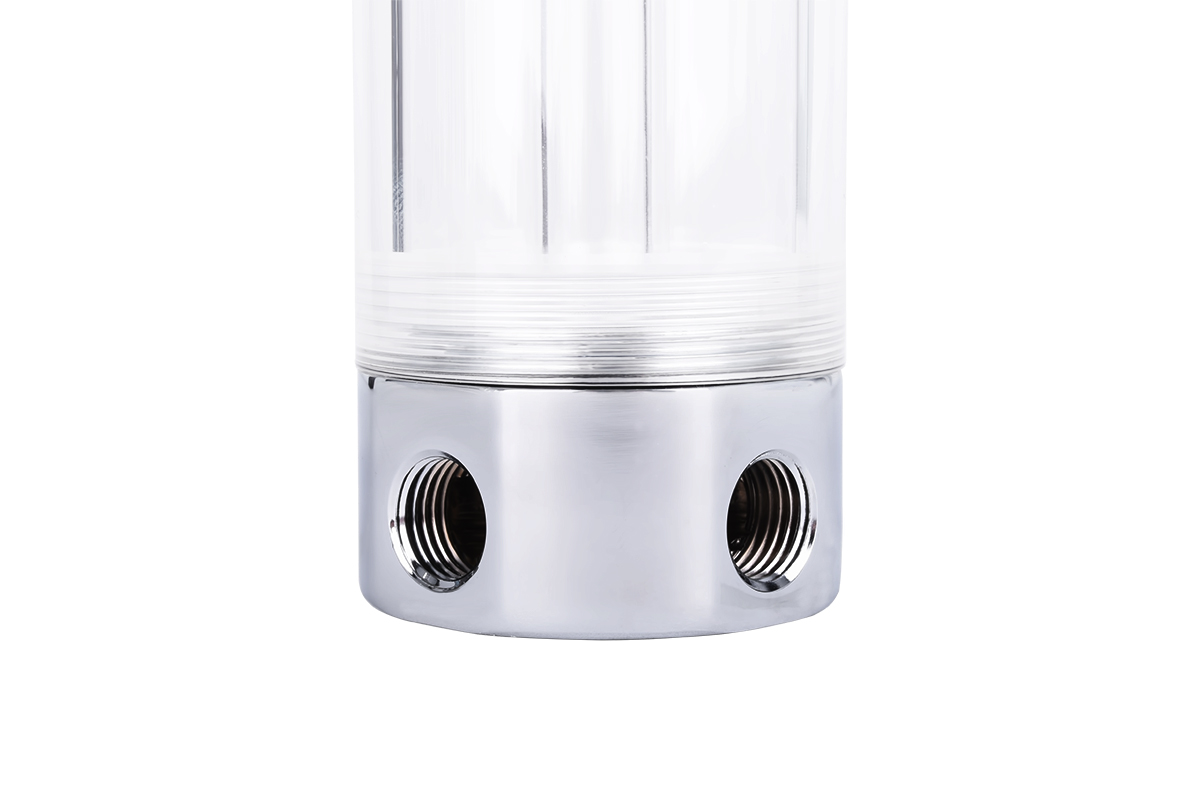

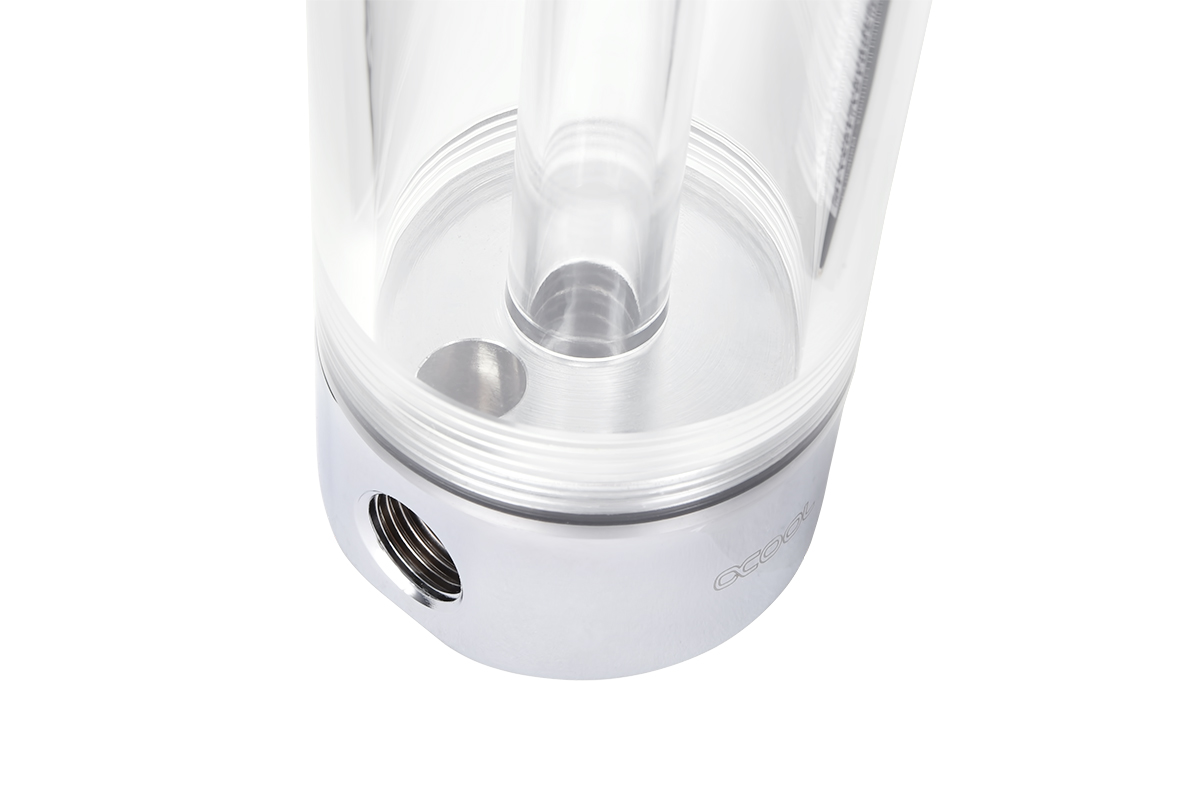

There are two ways to connect IN and OUT on the floor. Either on the side of the floor or directly into the floor from below. This gives you several options for designing your system to suit your own needs. It is also possible to lead the water into the expansion tank via the lid, provided you want to ignore the disadvantages of this setup. With this setup you have to do without the light tower water effect and of course you have to expect that air will move upwards into the circuit when the system is switched off.

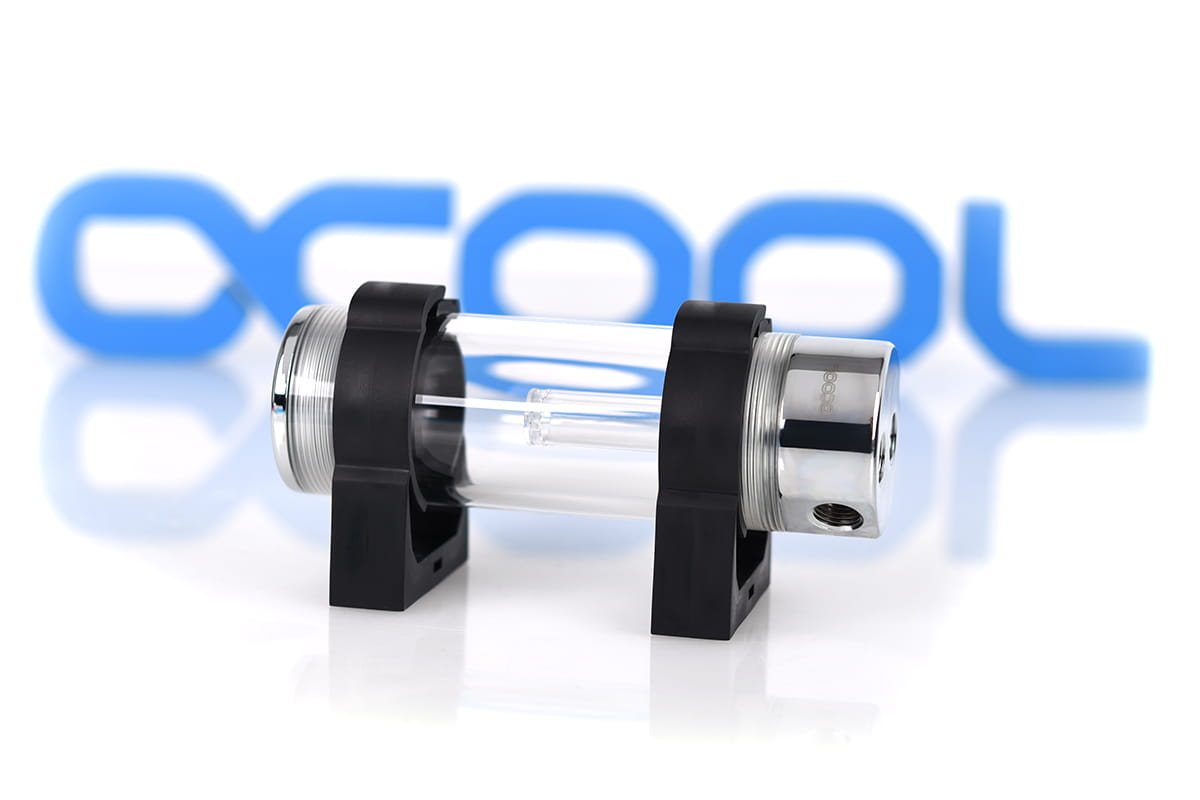

The included clip-on brackets make installation extremely easy. The brackets themselves are simply attached to the desired location with an M4 screw. If your case does not have the corresponding holes in the right place, these can simply be drilled. The expansion tank is then simply clipped in. When the Cape Corp Coolplex HF Metal is exactly at the desired height, you can tighten the clips to fix the expansion tank in place. It couldn't be easier. The Alphacool Cape Corp Coolplex HF Metal is available in Chrome and Deep Black. Alphacool also offers three different sizes. From the extremely compact Metal 10, to the medium-sized Metal 15, to the generously large Metal 25, you have a free choice to find the right version for your own system.

Technical details

Dimensions: 49 x 49 x 154mm
Material: brass, acrylic glass
Connections: 5x GI/4"
Mounting: 2x Universal Clip-On Bracket
Color: Chrome
Capacity: 140ml

Scope of delivery

1x Alphacool Cape Corp Coolplex HF Metal 25 - Chrome
2x bracket
3x locking screws
Mounting material

Assembly instructions

Datasheet

Download 3D file (.stp)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Material:	Acryl
Pumpenkompatibilität:	für Durchflusspumpen
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
LED Bohrungen:	nicht vorhanden
Behältertyp:	Röhrenbehälter 50mm
Anzahl Anschlüsse:	3
Abmessungen:	50 x 50 x 150mm
Farbe:	silber
