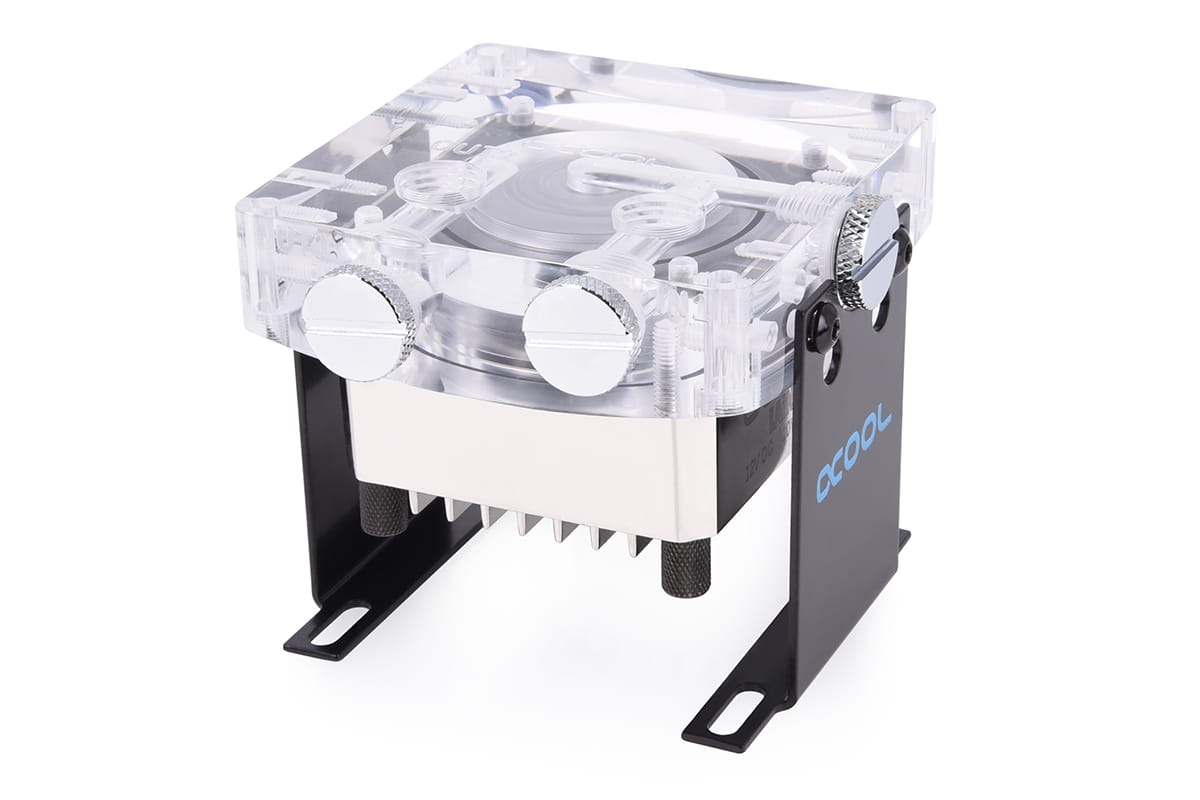

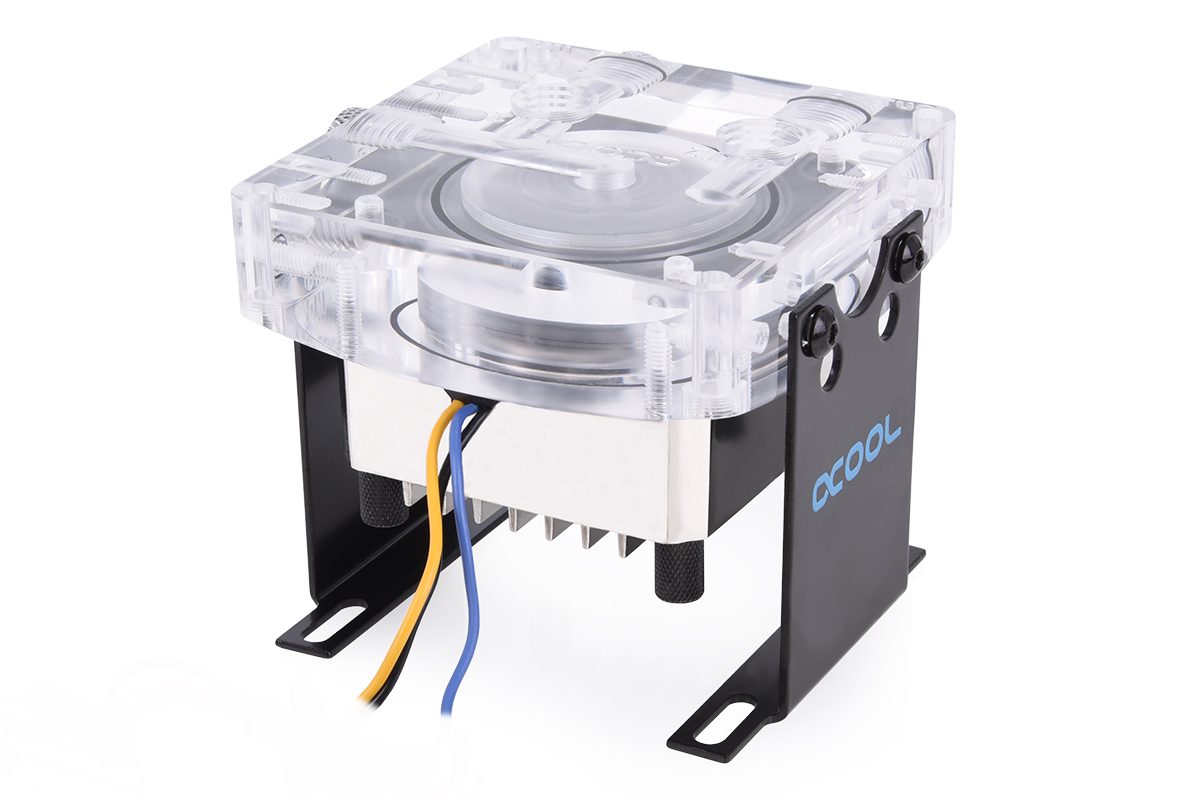

Alphacool Laing DDC310 - Complete Edition Ice Cover - silver/acrylic

PUM Alphacool Laing DDC310 - Complete Edition Eisdecke - silber/Acryl

Article no.: 13197
EAN: 4250197131971
Weight: 0,631 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€79.98 * €107.08 * (25.31% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Laing DDC310 - Single Edition - silver

€55.98*

Alphacool Laing DDC310 - Single Edition - black

€55.98*

Alphacool ES Laing DDC310 Pump - Single black plastic bottom

€64.98*

Laing DDC pump 12V DDC 4.2 PWM

€74.98*

Alphacool's new Low Noise Edition of the Laing DDC for absolute silence! The widely used... more

Close menu

Product information

Alphacool's new Low Noise Edition of the Laing DDC for absolute silence!

The widely used Laing DDC pumps are getting a new addition. Freshly packaged, this pump can start its life with a lot of confidence. A few details have been changed. Firstly, a lot of power has been saved in order to remedy a widespread problem: the noise! Hardly any other pump can compete with this one in terms of noise generation. For the most common water cooling system consisting of cooling for the CPU and GPU, this pump should be the first choice.

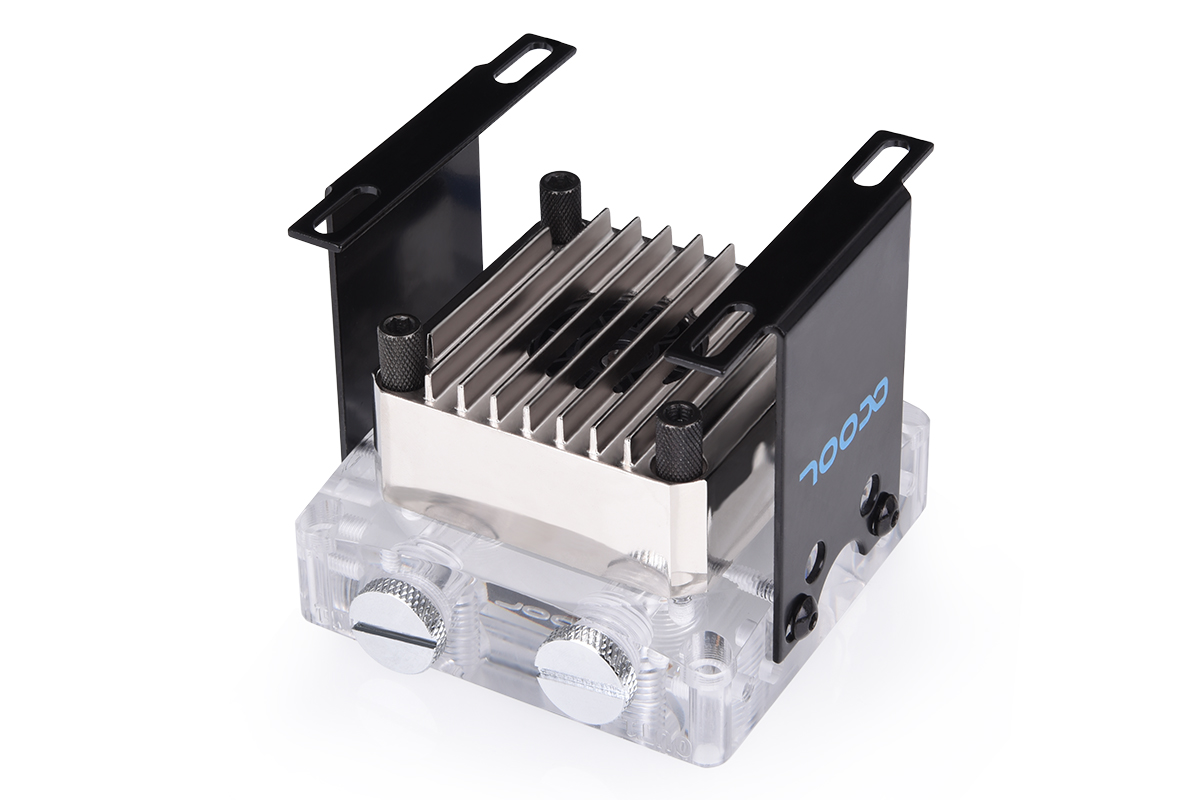

This pump no longer comes in the familiar plastic housing. What is new is the perfectly coordinated brass housing that adorns the exterior. This new housing promises a longer service life for the pump. Air flows through the cooling fins and is passed directly to the pump board via an internal thermal pad.

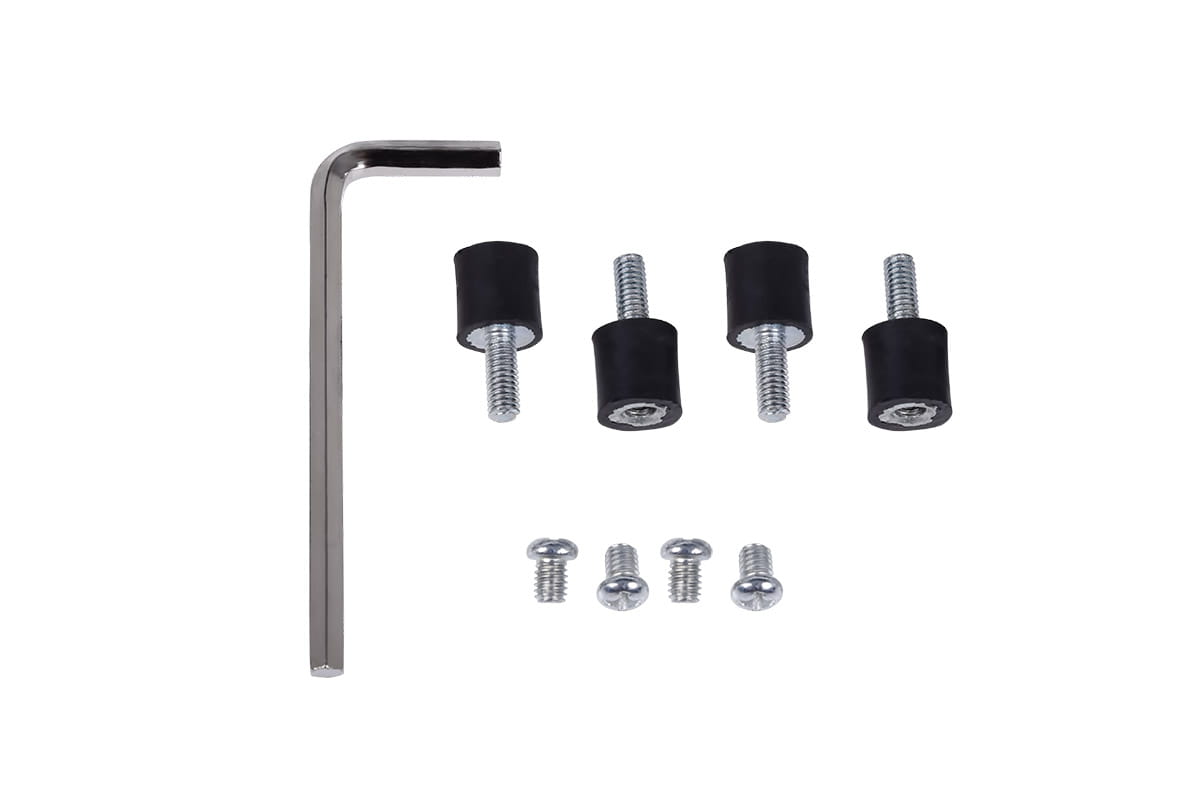

Another feature is the included decoupling option. Using the special M4 screws, the included decoupling can be screwed into the head of the screw, which in turn is connected to the housing.

The innovation in this set is that the V.2 of the Alphacool Eisdecken were used, which offer the possibility of three G1/4" connections for the inlet and two G1/4" connections for the outlet.
Inlet options: front, side, top
Outlet options: Front, Top

In addition, three G1/4" screw plugs are included in delivery to close the unused in/out connection options.

Another feature is the pre-assembled bracket, as we know it from the new ice cream cups. This means that this pump set can also be mounted directly on the housing base.

Now available in combination with the proven Alphacool Eisdecke Laing DDC acrylic or acetal top!

Technical details

Dimensions: 89 x 85 x 75mm
Color: Silver / Acrylic / Black
Power consumption: 10W
Material: brass, stainless steel, aluminum oxide, hard carbon, acrylic
Maximum discharge head: 2.44m
Maximum system temperature: 60°C
Maximum flow: 200l/h
Voltage: 12V DC

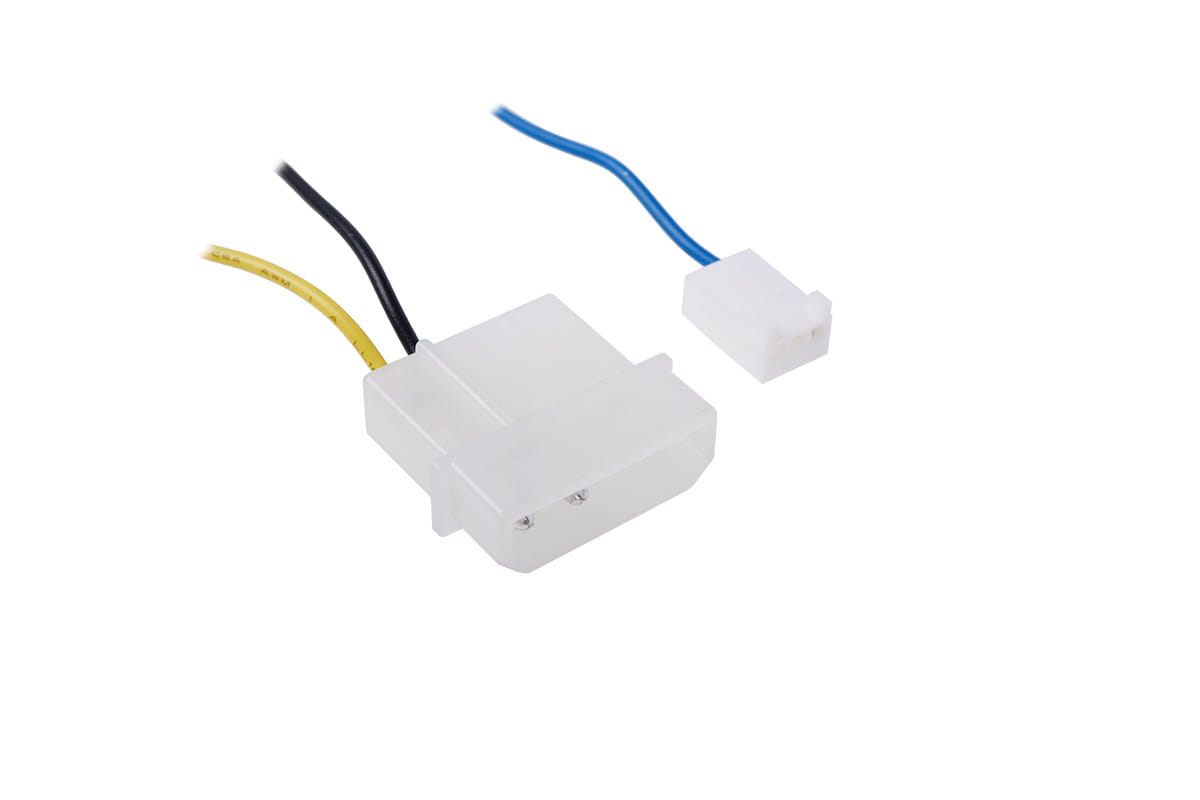

Power connector: 4 pin Molex
Speedometer signal: 3 pin Molex

Scope of delivery

1x Alphacool Laing DDC310 pump
1x Alphacool Laing DDC metal bottom - silver
1x Alphacool Eisdecke Laing DDC acrylic attachment V.2
Decoupling set
Mounting material

Notice
Not suitable for continuous use with liquids containing titanium dioxide or glycerine. Many pastel colors typically use these additives.

Technical data sheet of the DDC310 pump: Please click here!

Assembly instructions

Download 3D file (.stp)

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Stromanschluss:	4Pin
Farbe:	schwarz
Spannung:	12V DC
Maximale Förderhöhe:	Gut (2 bis 4m)
Maximaler Durchfluss:	200 l/h, 480 l/h
Maximale Systemtemperatur:	60°C
Wassereinlass:	G1/4" Innengewinde
Wasserauslass:	G1/4" Innengewinde
Leistungsaufnahme:	10W
Abmessungen:	61 x 60 x 21mm
Zugelassene Flüssigkeiten:	Wasser/Glykol-Gemisch
Material:	Aluminiumoxid, Hartkohle, Messing
