NexXxoS 240mm radiator for water cooling

RAD Alphacool NexXxoS XT45 Full Copper 240mm Radiator V.2 - White Special Edition

Article no.: RAD
EAN: 4250197186476
Weight: 1,012 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€79.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool Eisblock XPX Aurora Edge - Acrylic Black Digital RGB

€59.98*

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

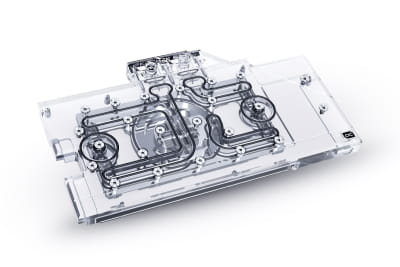

Alphacool Ice Block Aurora Acrylic GPX-N RTX 3070 ROG Strix with Backplate

€47.98*

Save money with the following bundle

RAD Alphacool NexXxoS XT45 Full Copper 240mm Radiator V.2 - White Special Edition PHT EOL

L12 Alphacool Rise Aurora 120mm Fan White (120x120x25mm) PHT EOL

Instead of €111.94 * (15% saved) Price for all: €95.14 *

The NexXxoS V.2 radiator is the further development of the already established NexXxoS V.1... more

Close menu

Product information

The NexXxoS V.2 radiator is the further development of the already established NexXxoS V.1 series and rightly takes its place among Alphacool's high-end full copper radiators. The fresh design in modern, noble white and the numerous technical details make the NexXxoS V.2 radiator the perfect partner for your own water cooling system.

Uncompromising in the choice of materials
Alphacool is the only manufacturer worldwide to use exclusively copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are all made of pure copper. The only exceptions are the threaded inserts (made of brass) and the outer casing of the radiator (made of sheet steel).

Sufficient cooling capacity

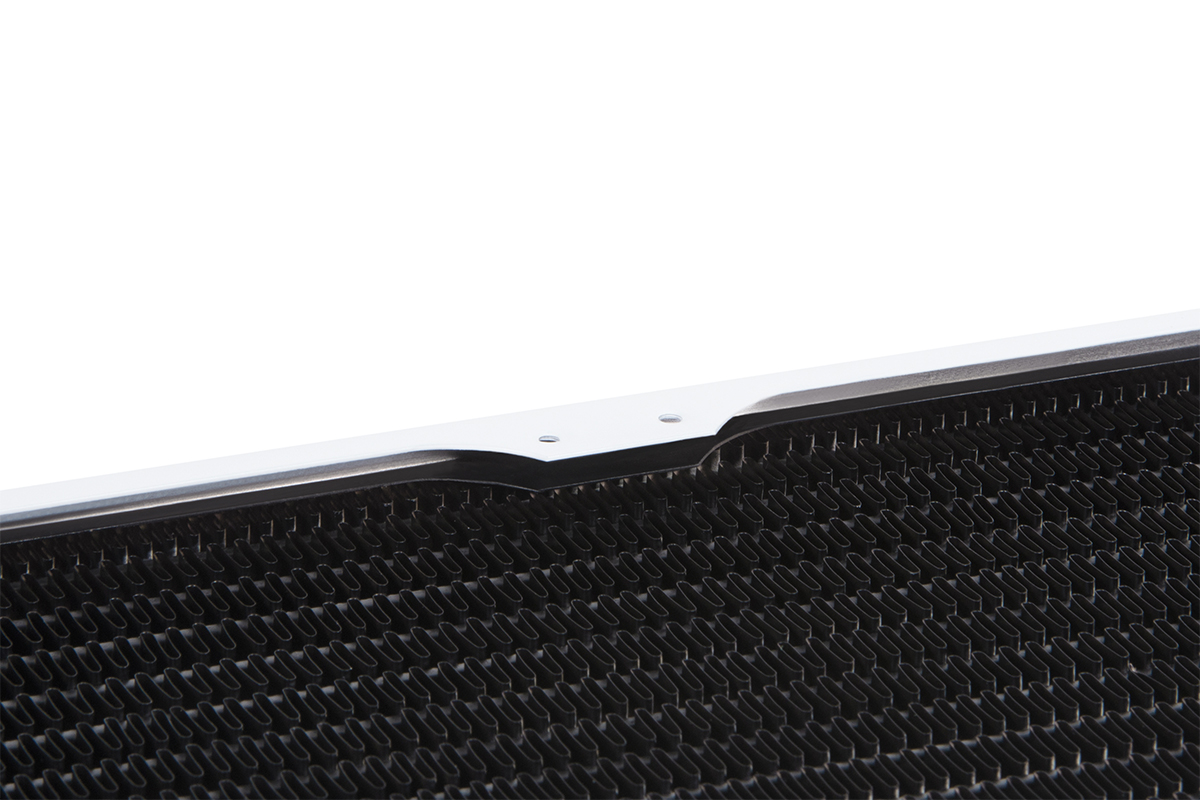

To maximise the performance of the radiator, Alphacool reaches deep into its bag of tricks and uses pure copper for the cooling fins, cooling channels and pre-chambers due to the high thermal conductivity of 400 W/mK (in comparison: aluminium 236 W/mK). The special fin density of the radiator with a fin spacing of 15 FPI give optimal airflow and performance. All cooling fins are additionally serrated. These act as tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. This increases the cooling capacity and minimises possible flow noise.

Patented screw plugs

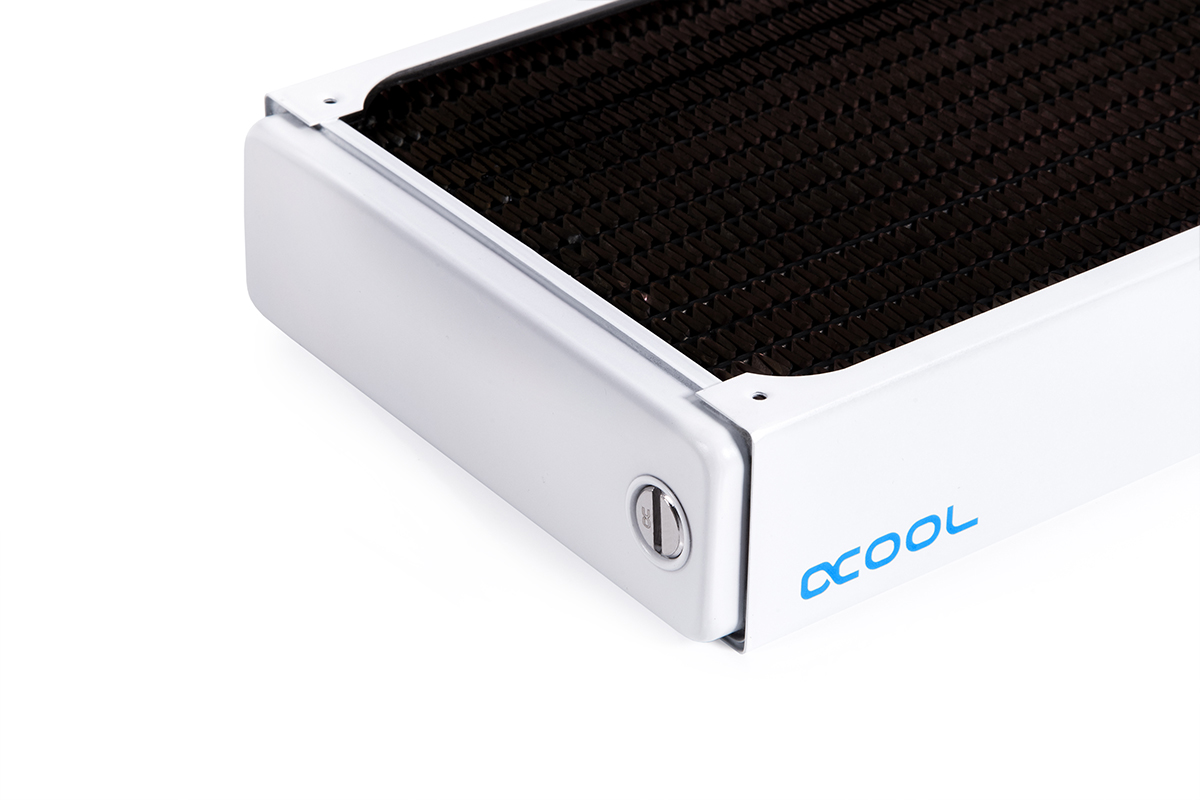

All NexXxoS V.2 radiators use Alphacool's patented stop fittings. Anyone who has mounted a radiator on the front or in the roof of a case is familiar with the fact that protruding stop fittings can stop the radiator from sitting flush. With the patented stop fittings, Alphacool offers an excellent solution. The stop fittings are completely recessed in the radiator and sit flush with its surface. This means that nothing stands in the way of a clean installation. Of course, the radiators also look much more elegant with the flat stop fittings.

Plenty of connection options

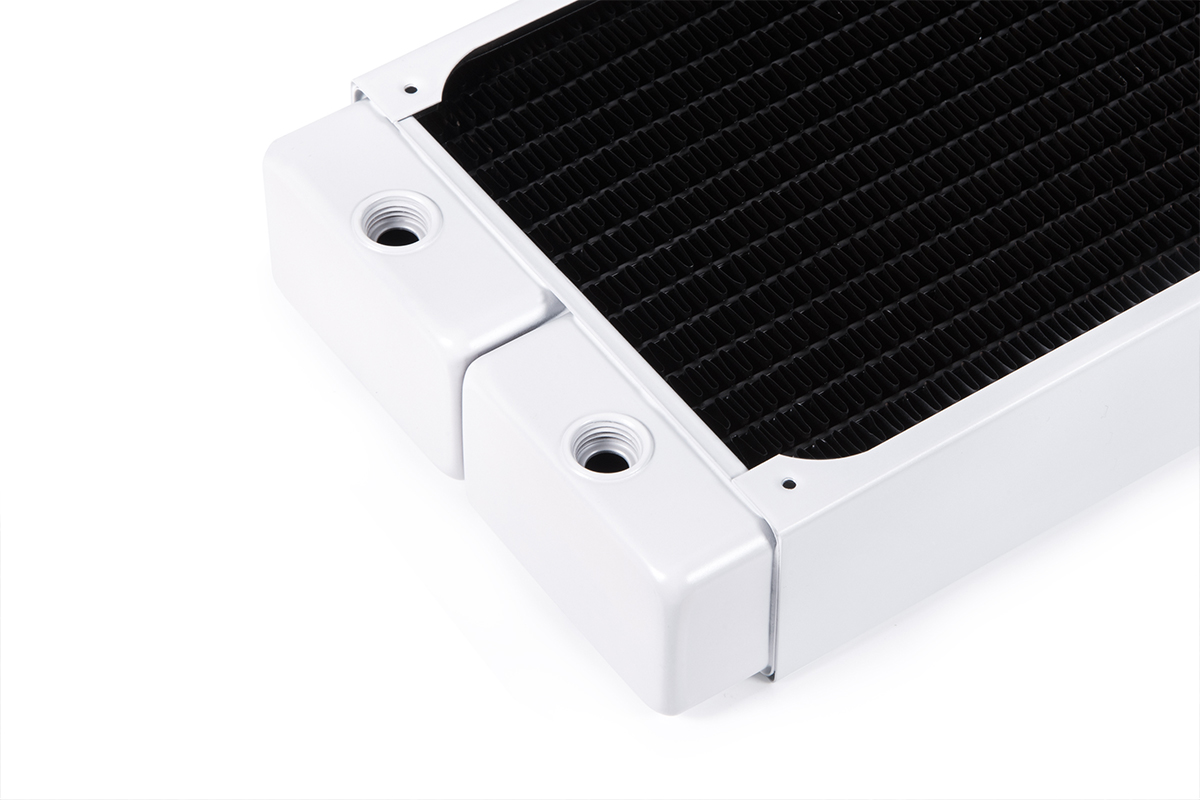

All versions of the NexXxoS V.2 radiators have two options for IN and OUT on each side. On the opposite end is a fill or vent port, which can also be used to drain the water circuit.

Safety first
The NexXxoS V.2 radiator has a special protective plate that prevents fan or mounting screws from being screwed in too deeply. These plates are beneath the screw holes that are used to mount the fans to the radiator, or for mounting the radiator to the case. This protects the cooling fins and water channels underneath from damage.

Technical data
L x W x H	272,1 x 124 x 45 mm (+/- 3% tolerance in the range of the prechamber)
Quantity of cooling channels	12
Material cooling fins, channels & prechamber	copper
Material outer housing	steel
Fins per Inch	12
Threads	5x G1/4“
Thread size fan mounting	M3
Fan size	120 mm
Fan slots	2 one-sided / 4 double-sided
Max working temperature	60 °C
Weight	868 g
Colour	Weiss
Pressure tested	0,8 bar

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Dicke:	39 - 49mm
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	1,5 bar
Fins per inch:	12
Anschluss:	5x G1/4"
Anzahl Lüfter:	2
Lüftergröße:	120mm
Abmessungen (L x B x H):	272,1 x 124 x 45mm
Farbe:	weiß
