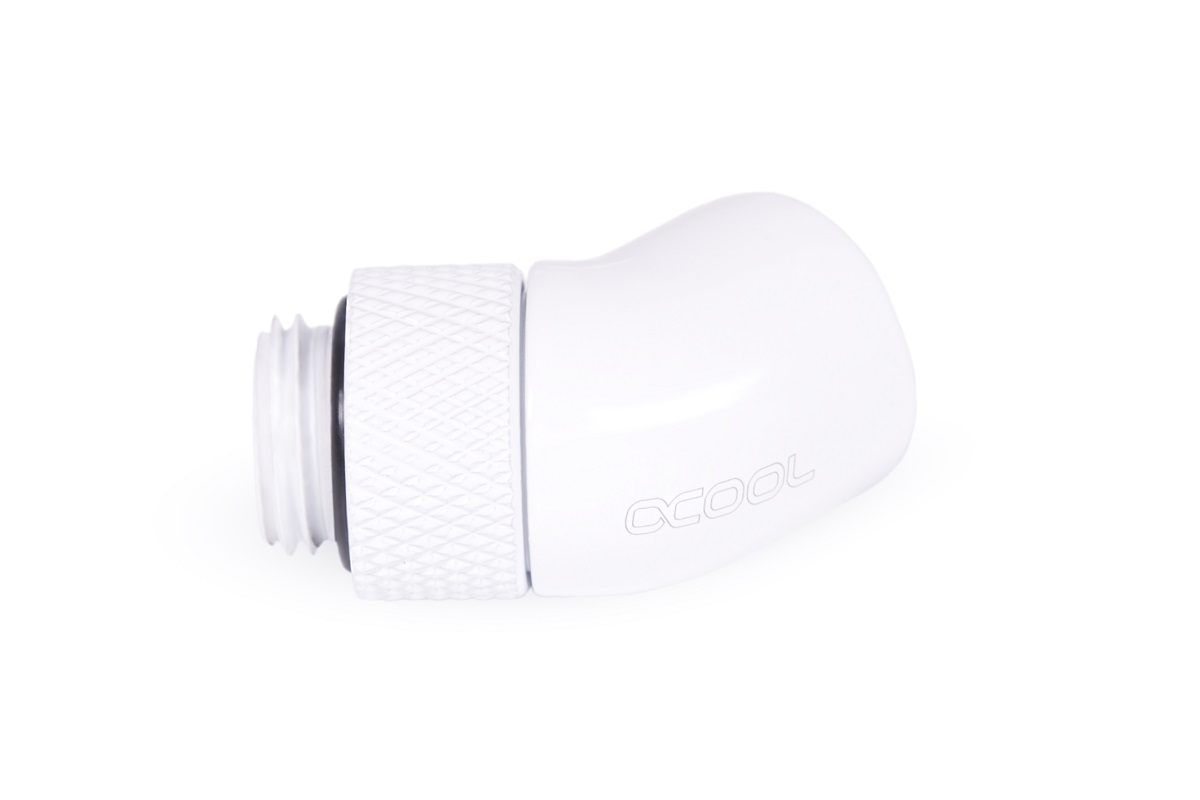

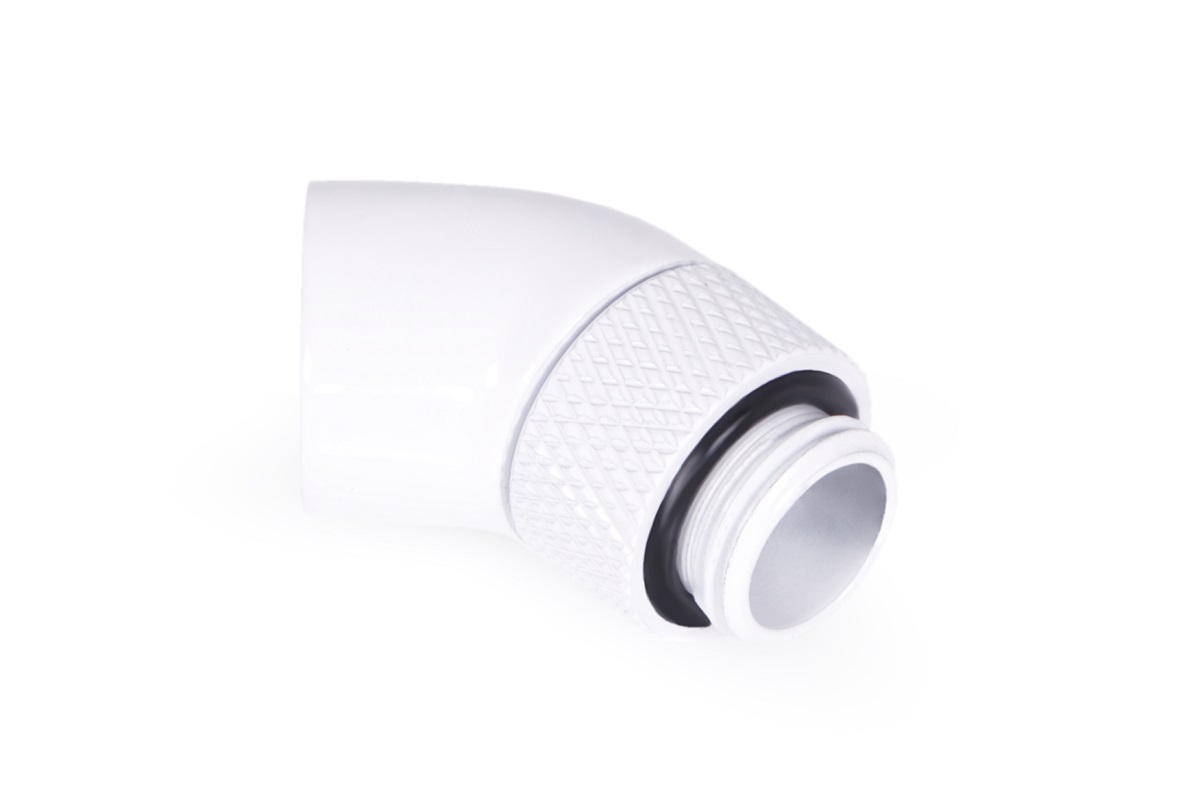

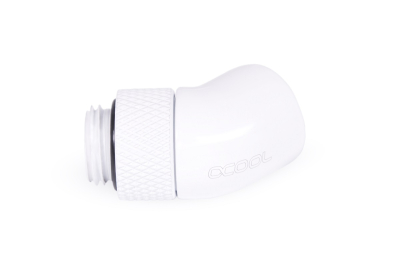

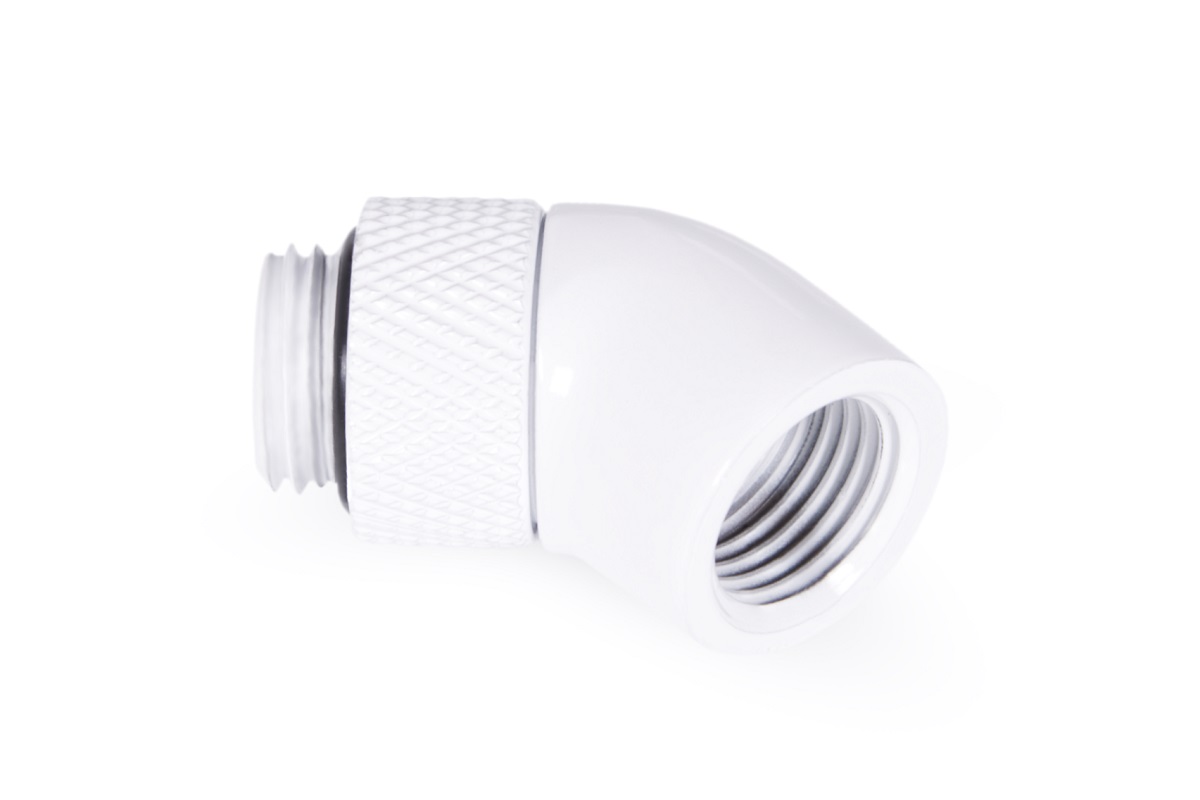

Alphacool Eiszapfen angle adapter 45° rotatable G1/4 AG to G1/4 IG - White
- Article no.: 17487
- EAN: 4250197174879
- Weight: 0,047 kg
- Available:
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
Liefertermin: in 11 - 12 Wochen
Alphacool's Eiszapfen is the high-end version of the already proven connectors and meets all the requirements of a connector with high flow, shape, workmanship and color.
compatibility
This adapter has a rotatable 1/4" external thread on one side and a 1/4" internal thread on the other side. This 45° angled connection is usually used where the 1/4" threads are too close together and larger hose connections do not fit next to each other. The adapter can be rotated on the external thread for maximum flexibility.
design
With brilliant chrome, deep matt black and subtle matt white, there are three color variants that fit perfectly into any system. Thanks to special processes, the coatings are firmly bonded to the substrate. This ensures that the colors are very long-lasting and prevents the coating from chipping. The connection now also has the Alphacool logo, which makes it unmistakable in addition to its special shape!
Technical data | |
material | Brass |
Color | White |
length | 35mm |
diameter | 18mm |
thread | G1/4“ |
Thread length | 5mm |
Weight | 34g |
Download data sheet PDF: Alphacool Eiszapfen angle adapter 45° rotatable G1/4 AG to G1/4 IG - White
Fitting Map: Here you will find an interactive overview of all Alphacool connections.
2. Seite: | G1/4" Innengewinde |
Gewindelänge: | 5mm |
Hersteller: | Alphacool |
1. Seite: | G1/4" Außengewinde |
Kompatibilität: | weiche Schläuche (PVC, Silikon, Neoprene) |
Drehbar: | Ja - 360° |
Spezifikation: | Form: 45° gewinkelt |
Abmessungen (L x B x H): | 35 x 18,5 x 18,5mm |
Material: | Messing |
Farbe: | weiß |
