Alphacool 13mm HardTube compression fitting 90°

ANS Alphacool Eiszapfen 13mm HardTube Anschraubtülle 90° drehbar G1/4 für Plexi- Messingrohre - White

Article no.: 17620
EAN: 4250197176200
Weight: 0,07 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€8.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's Eiszapfen connector series is the high-end execution of these tried-and-true... more

Close menu

Product information

Alphacool's Eiszapfen connector series is the high-end execution of these tried-and-true fittings!

Everything you want in a compression fitting is here: highflow, form, processing and colour. A refusal to compromise in development and production has made the Eiszapfen series into what it is.

A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable!

The union nut's slanted corners allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before. This allows for greater safety in transport.

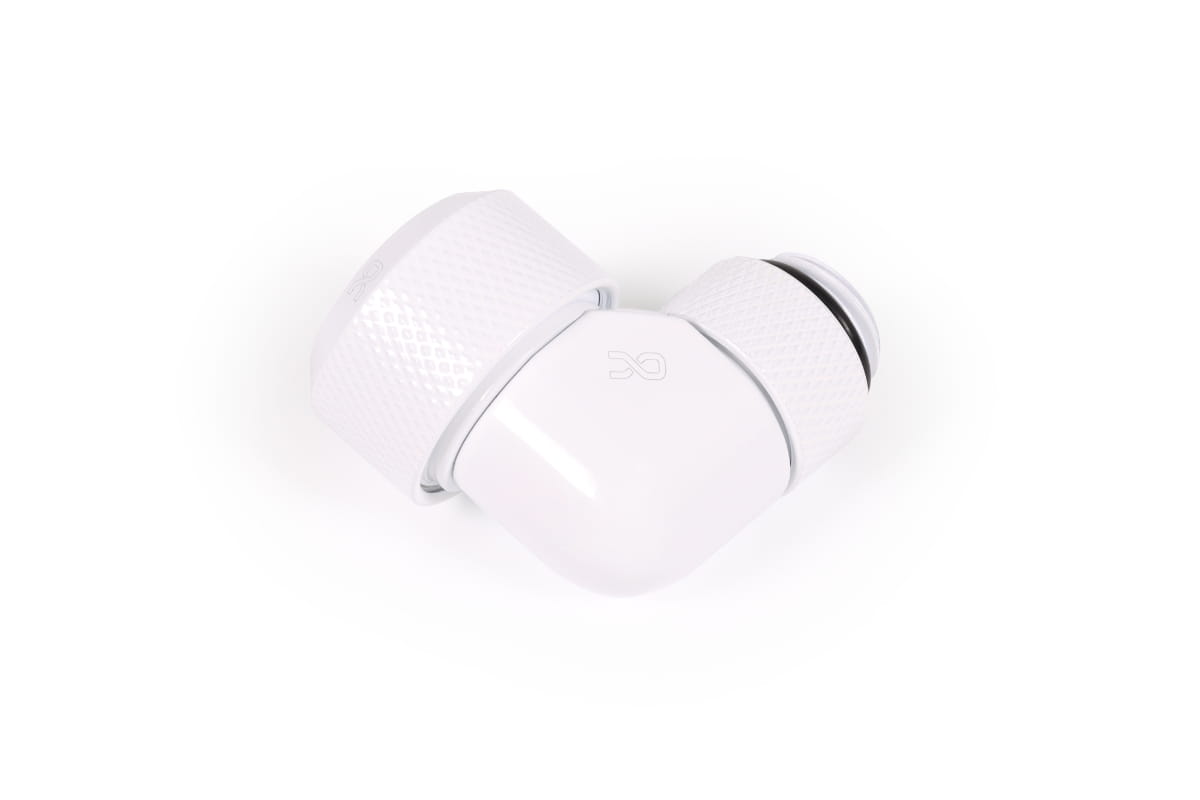

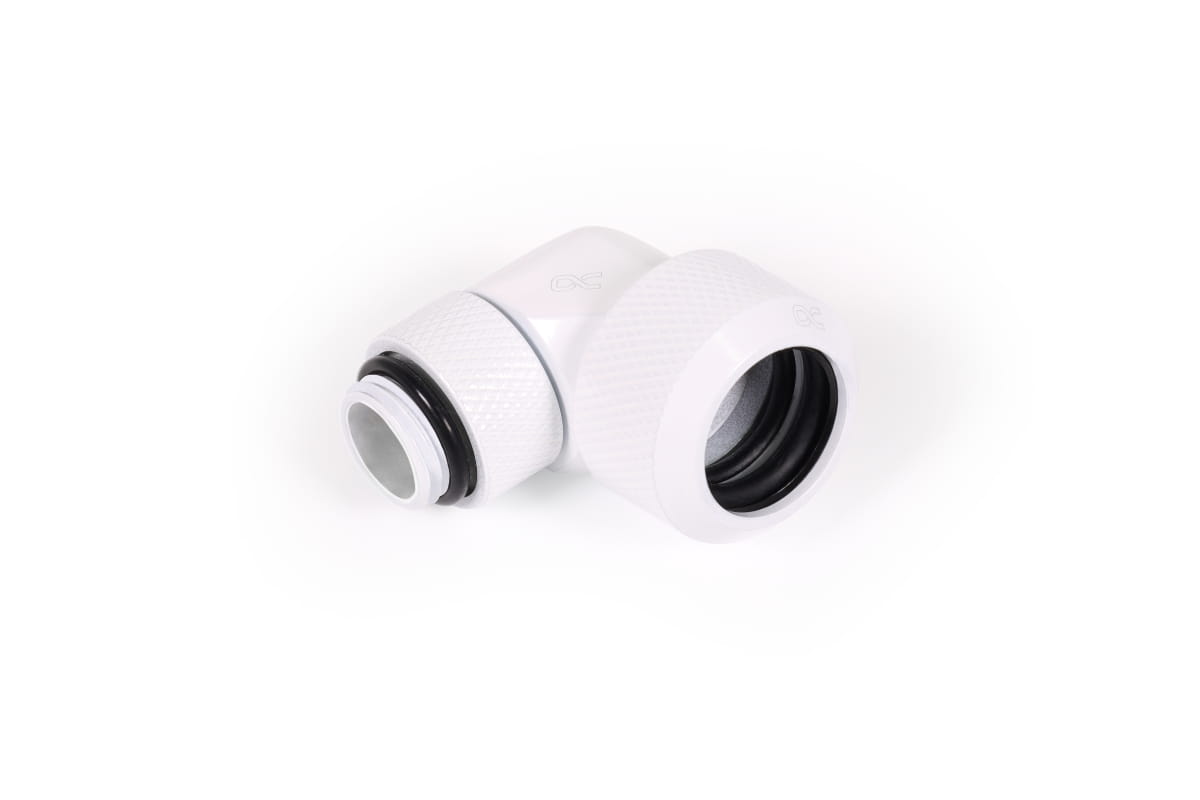

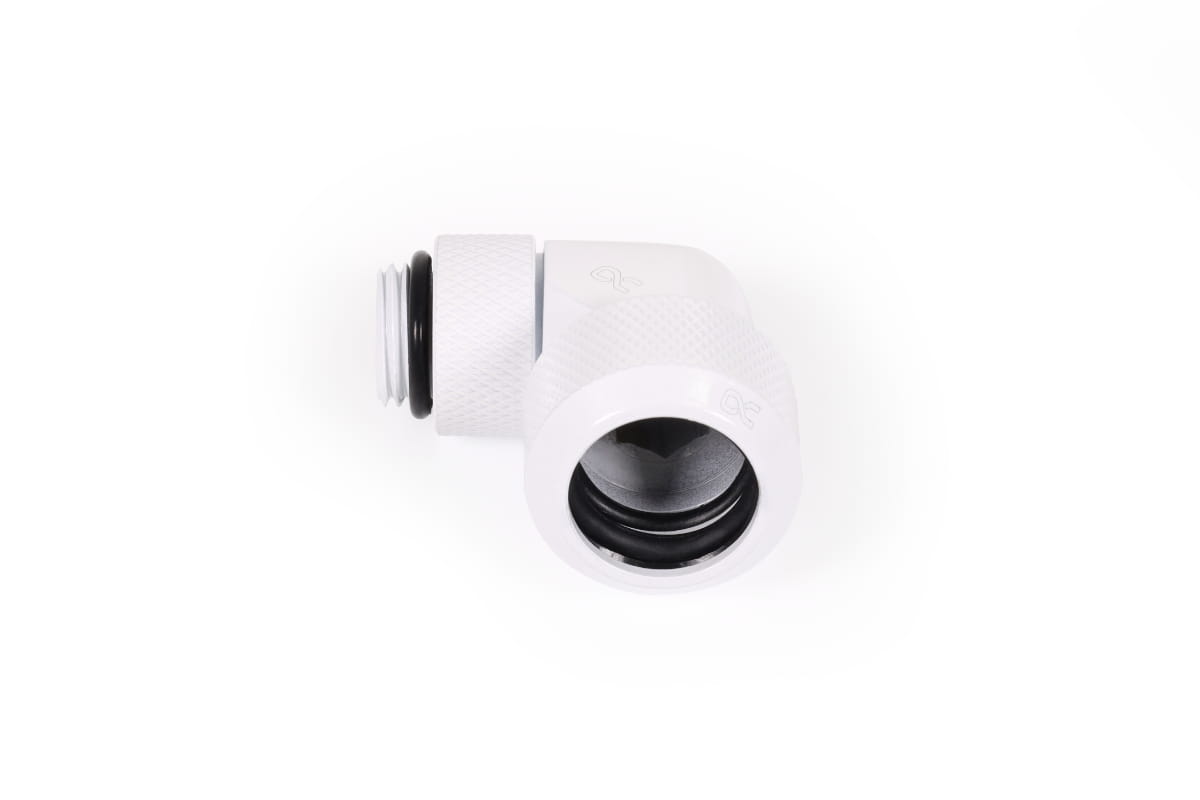

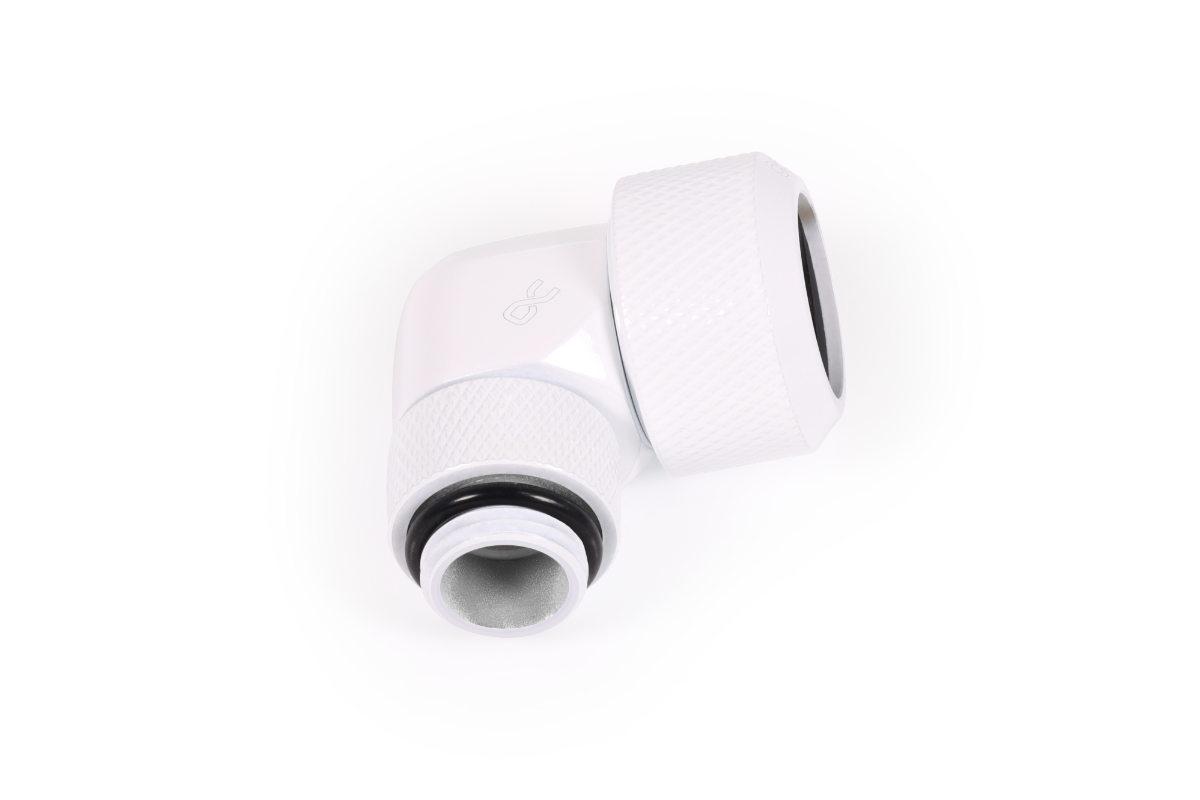

Model: 90° compression fitting 13mm
This fitting has a 1/4" thread on one side and is thereby compatible with 95% of components. The other side fits a 13mm acrylic or brass tube. This fitting is bent 90° in the middle to avoid complicated hose connections. The threaded side is rotatable for maximum flexibility.

Technical data
Dimensions (L x W)	42.5 x 21.00mm
Material	brass
Threads	G1/4" OT \| 13mm (OD 1/2")
Thread length	5mm
Possible rotation	360°
Version	90° angled
Color	white

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	13/10mm (ID 3/8" OD 1/2")
Rotatable:	Yes - 360°
Color:	White
Thread length:	5mm
Compatibility:	Acrylic tubes, Brass tubes, Carbon tubes
Material:	Brass
Specification:	Shape: 90° angled
1st page:	G1/4" external thread
