360 mm Radiator Alphacool NexXxoS ST30 weiß

RAD Alphacool HPE-30 Full Copper 360mm Radiator - White

Article no.: 10225
EAN: 4250197102254
Weight: 1,009 kg
Available:
Images may differ slightly from the original

€82.98 *

Prices incl. VAT plus shipping costs

Liefertermin: in 12 - 13 Wochen

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - White Sixpack

€31.98*

Alphacool EPDM Tube 13/10 - Black 1m (3.28ft) Retailbox

€9.98*

Alphacool Core 1 Aurora White

€129.98*

Alphacool Core 140mm Reservoir with VPP/D5 Pump

€169.98*

For more than a decade, Alphacool has dominated the market with its Full Copper radiator series.... more

Close menu

Product information

For more than a decade, Alphacool has dominated the market with its Full Copper radiator series. Our extensive portfolio of radiator variants is unique worldwide, just like our manufacturing process, which enables us to craft all water-bearing parts and cooling fins from pure copper. Thanks to their exceptional performance, these radiators can effortlessly dissipate even extremely high waste heat, making them indispensable in many sectors of the cooling industry.

The next step in evolution: HPE Full Copper Radiator!
The Full Copper HPE Radiator uses the same materials as the previous NexXxoS models but takes a technical step forward. With a denser internal structure, the number of water channels and copper fins has been increased. This design ensures a larger water volume is in direct contact with the cooling fins, significantly enhancing heat transfer. The increased number of fin rows and their shortening also results in a much more efficient utilization of the cooling surface. Comparison tests with the conventional NexXxoS radiator have demonstrated that the HPE radiator can achieve a performance improvement of 4.5K. At higher ambient temperatures and fan speeds, the performance gap between the HPE and standard NexXxoS radiators increases progressively, with possible performance gains of up to 6K.

Connection options & mounting

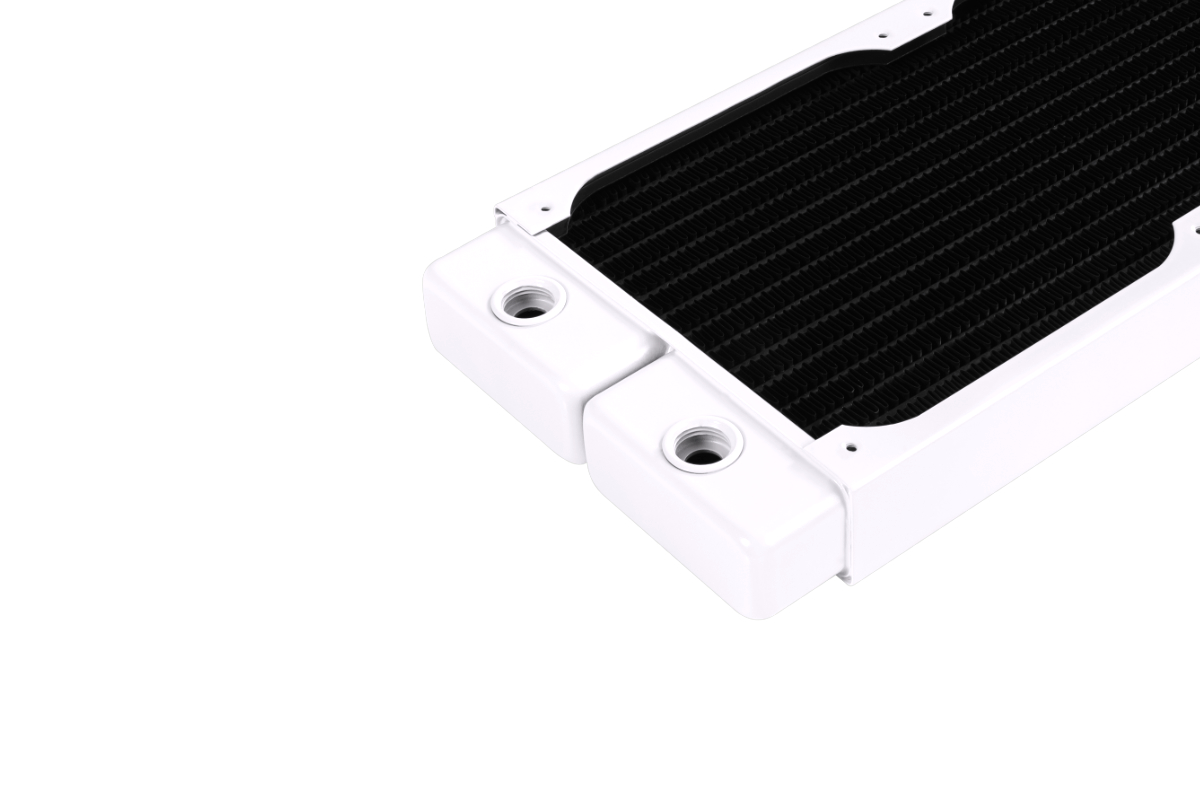

The HPE radiator features two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side, there is a fill or drain port for filling and draining the water circuit. The radiator comes with all necessary screws for case and fan installation. Additional screws are typically not required.

Safety first
The HPE radiator is equipped with special protective plates beneath all mounting holes to prevent screws from being inserted too deeply. This ensures the cooling fins and water channels underneath are protected from damage.

Patented screw plugs
All HPE radiators use Alphacool's patented screw plugs. Protruding screw plugs often prevent the radiator from being installed flush. Alphacool's screw plugs are fully recessed into the radiator, flush with its surface, allowing for easy and seamless installation in the case.

Technical data
Dimensions (L x W x H)	391.5 x 124 x 30mm (+/- 3%)
Quantity of cooling channels	12
Material cooling fins, pre-chambers & channels	copper
Material threads	brass
Material outer housing	stainless steel
Threads	4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length)
Possible fan size	120mm
Possible fan assembly	2x one-sided / 4x both-sided
Thread size fan mounting	M3
Pressure tested	0.8 Bar
Maximum working temperature	60°C
Fin density	18 FPI
Weight	790g
Color	white

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Dicke:	29 - 39mm
Anzahl Lüfter:	3
Fins per inch:	18
Lüftergröße:	120mm
Farbe:	weiß
Abmessungen (L x B x H):	391.5 x 124 x 30mm (+/- 3%)
