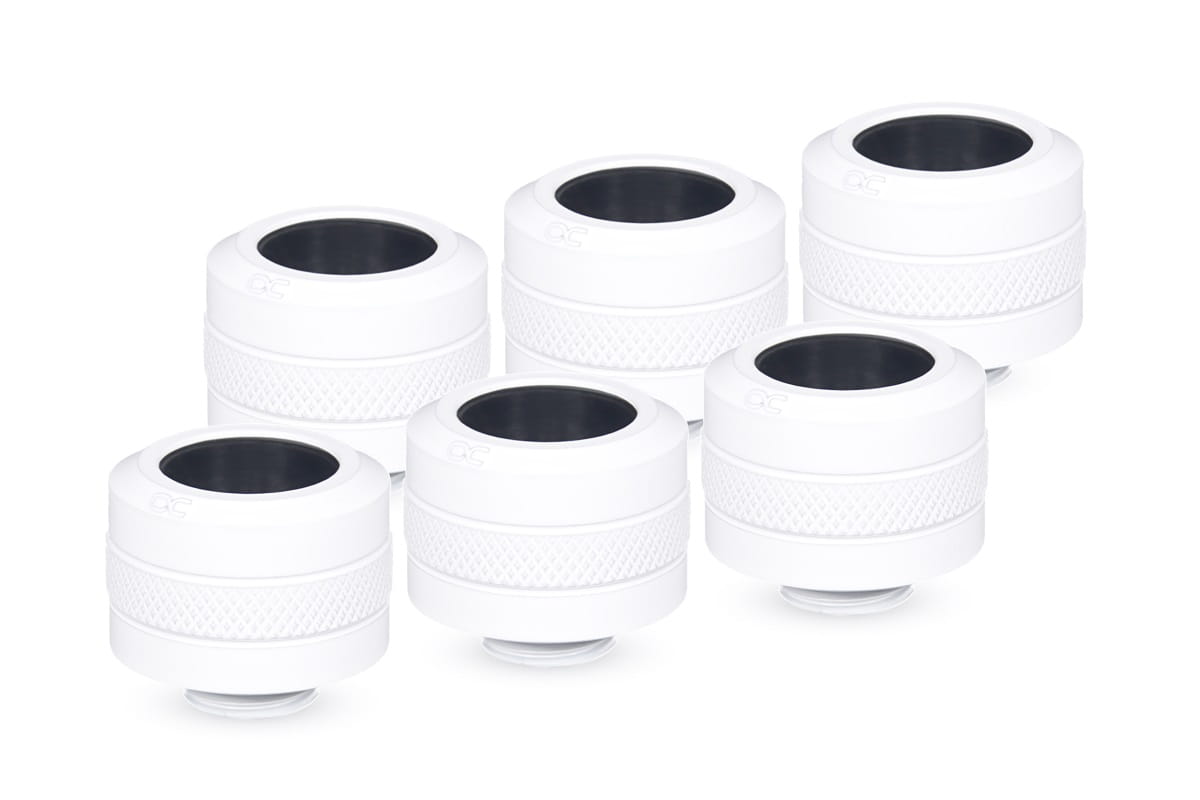

Alphacool Eiszapfen PRO 16mm HardTube screw-on nozzle G1/4 - White Sixpack

ANS Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - White Sixpack

Article no.: 17484
EAN: 4250197174848
Weight: 0,16 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€37.98 *

Content: 6 Stück (€6.33 * / 1 Stück)

Prices incl. VAT plus shipping costs

in stock

Alphacool Ice Tube 13/10mm PETG HardTube 80cm - Set of 4 (320cm)

€21.98*

Alphacool Eistools Strong Guy pipe and hose deburrer

€19.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome

€6.49*

Alphacool Eiszapfen PRO 16mm HardTube fitting G1/4 - deep black -

€6.99*

Alphacool HardTube Bending Kit Basic

€44.98*

The new Eiszapfen PRO HardTube fittings from Alphacool are a further development of the... more

Close menu

Product information

The new Eiszapfen PRO HardTube fittings from Alphacool are a further development of the well-known Eiszapfen. When developing the fittings, Alphacool focused specifically on a specific problem: the deformation of PETG HardTubes at high temperatures. These can deform at as little as 60°C. Although such a temperature is rarely reached, it can still occur. The Eiszapfen PRO prevent this problem from the outset and hold the tubes in position.

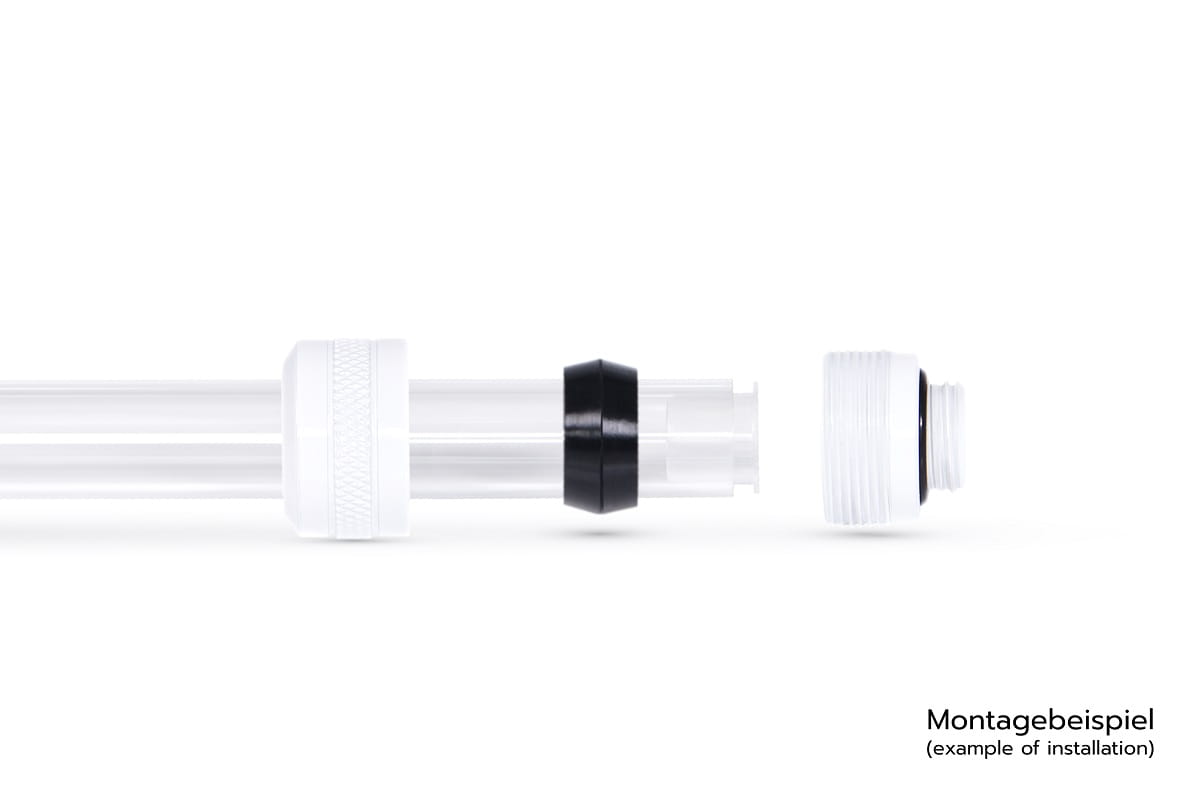

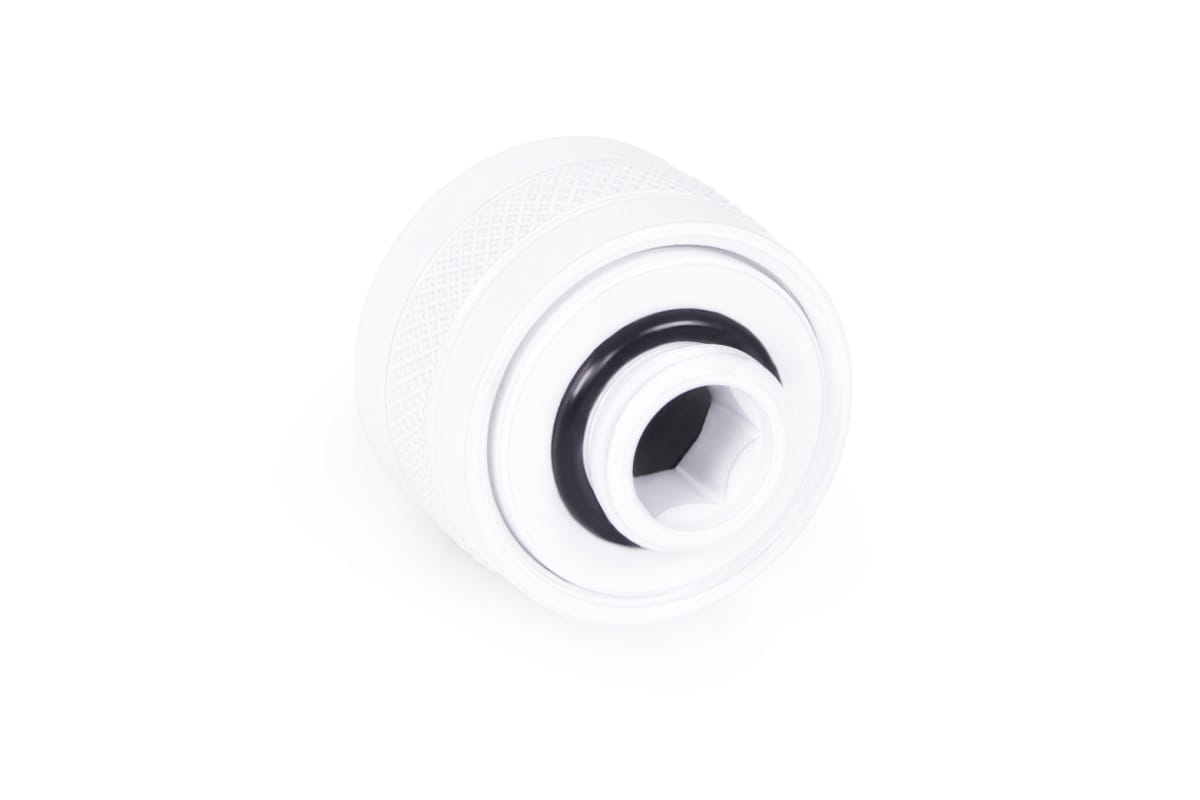

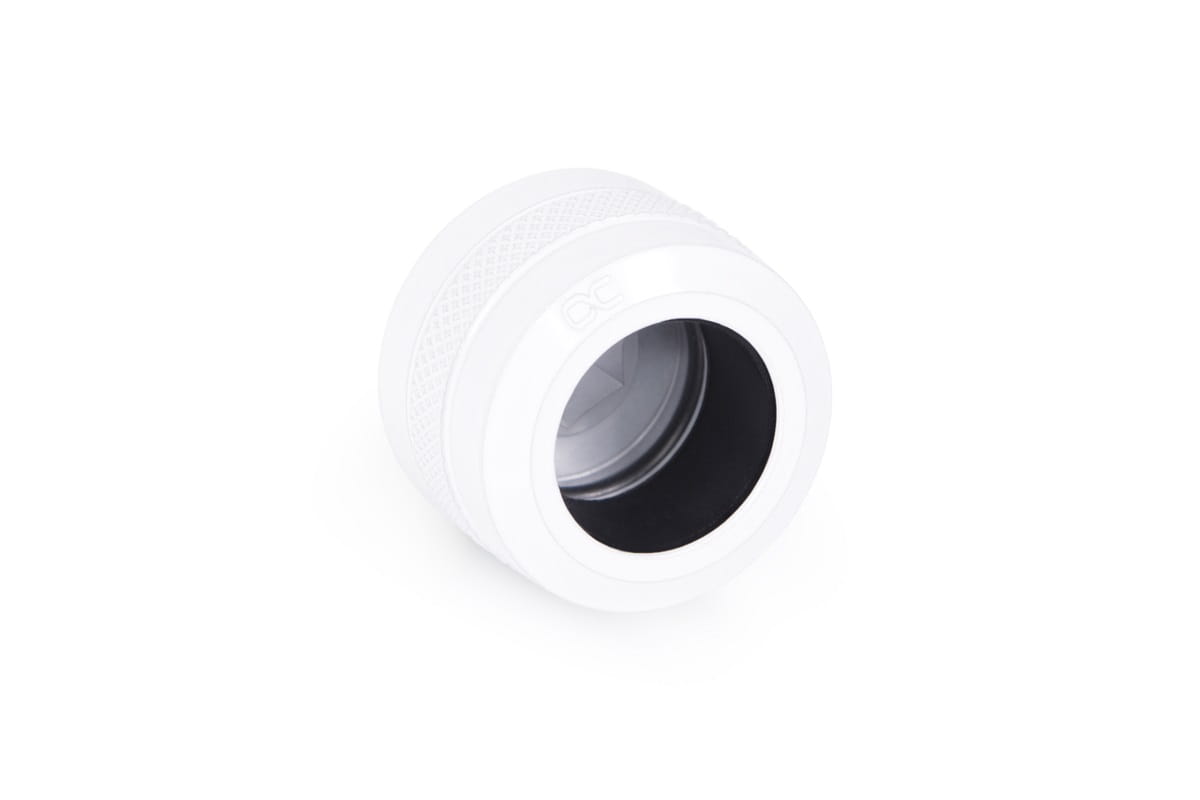

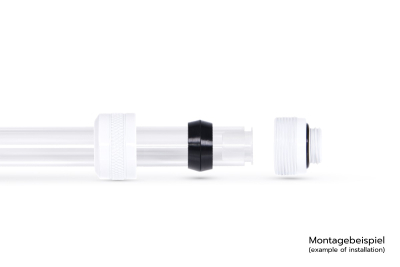

The new nylon inserts inside prevent deformation and stabilize the hard tubes. The fitting also still has an O-ring and a compression seal. However, the contact surface is much larger than with normal O-rings, which ensures a better hold. The insert and the compression seal in the screw connection strengthen the tube from the inside and outside.

The HardTube does not slip even under higher loads. Alphacool has tested the tensile strength of up to 8kg! So you don't need to worry about that.

Technical data
material	Brass
Color	White
Height	23mm
diameter	26mm
Thread length	5mm
thread	G1/4“
HardTube Size	16mm
compatibility	PETG, acrylic, brass and glass tubes
Weight	42g

Download data sheet PDF: Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - White Sixpack

Fitting Map: Here you will find an interactive overview of all Alphacool connections.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	16mm Hard Tube
Rotatable:	No
Color:	White
Thread length:	5mm
Compatibility:	Acrylic tubes, Brass tubes, Carbon tubes
Material:	Brass
Specification:	Shape: straight
1st page:	G1/4" external thread
