Water cooling 90° L-connector rotatable G1/4

ANF Alphacool Eiszapfen L-Verbinder drehbar G1/4 AG auf G1/4 IG - Chrome

Article no.: 17249
EAN: 4250197172493
Weight: 0,058 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€5.49 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's Eiszapfen connection series is the high-end version of the proven connections! All... more

Close menu

Product information

Alphacool's Eiszapfen connection series is the high-end version of the proven connections!

All the requirements that a connection has to meet are met here: high flow, shape, workmanship and color. Uncompromising development and production have made the icicles what they are. Two versions are available in brilliant chrome and matte, deep black, which fit perfectly into any system.

Using special processes, the coatings are firmly bonded to the substrate, ensuring the longevity of the intense colors and preventing the coating from flaking. Each connection now also has the Alphacool logo, which makes it unmistakable in addition to its special shape!

If you like it colorful, there are three different colored O-rings included. If there is UV lighting, they even glow in the corresponding color.

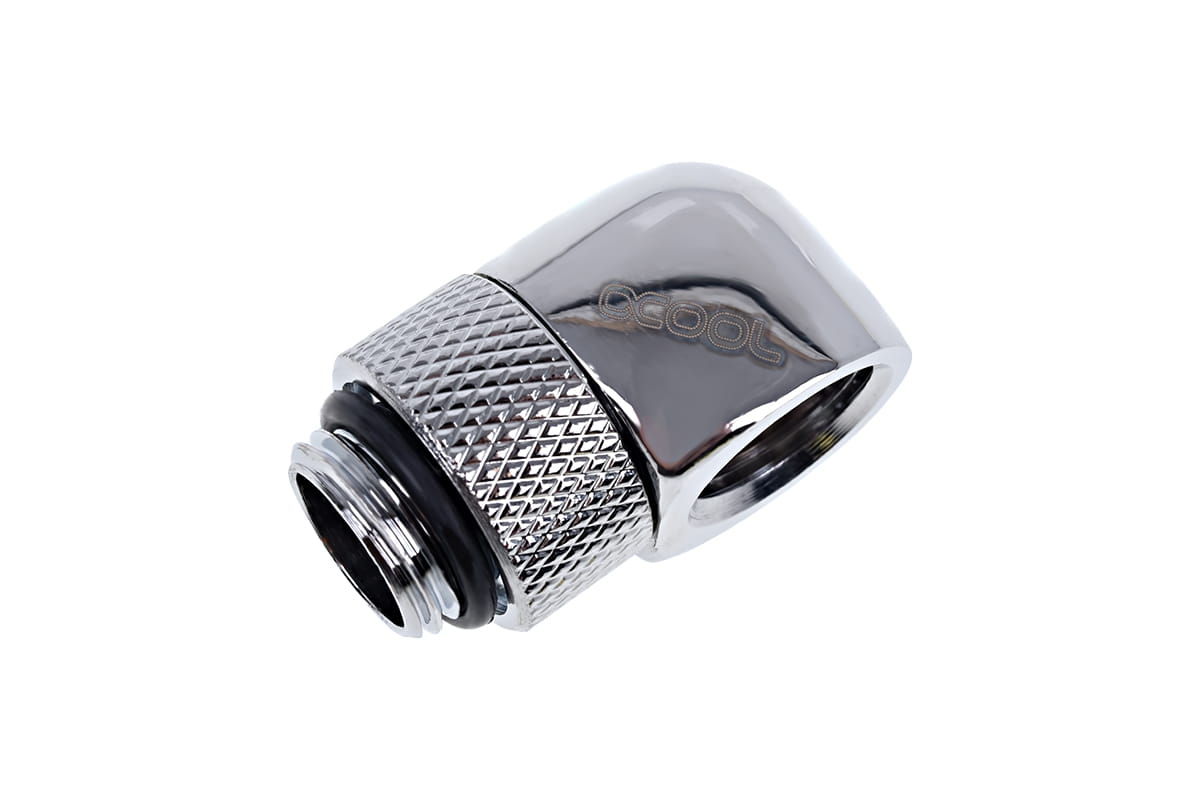

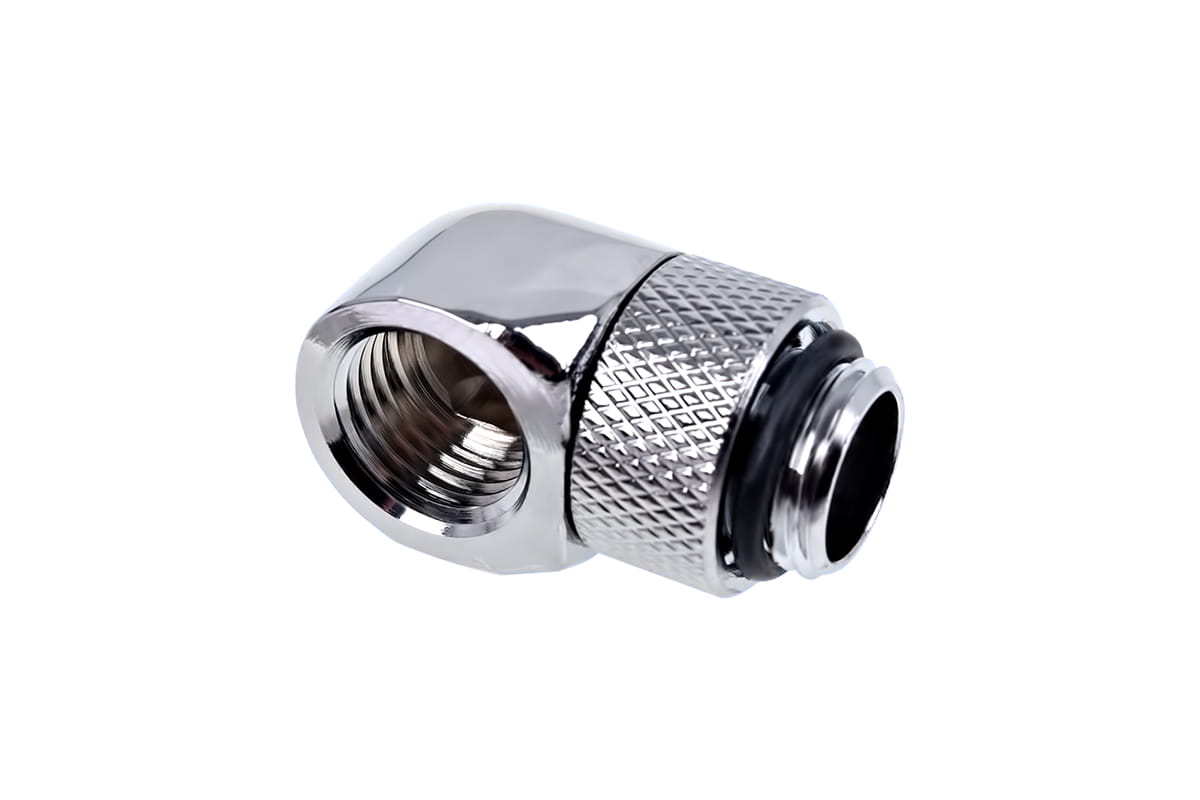

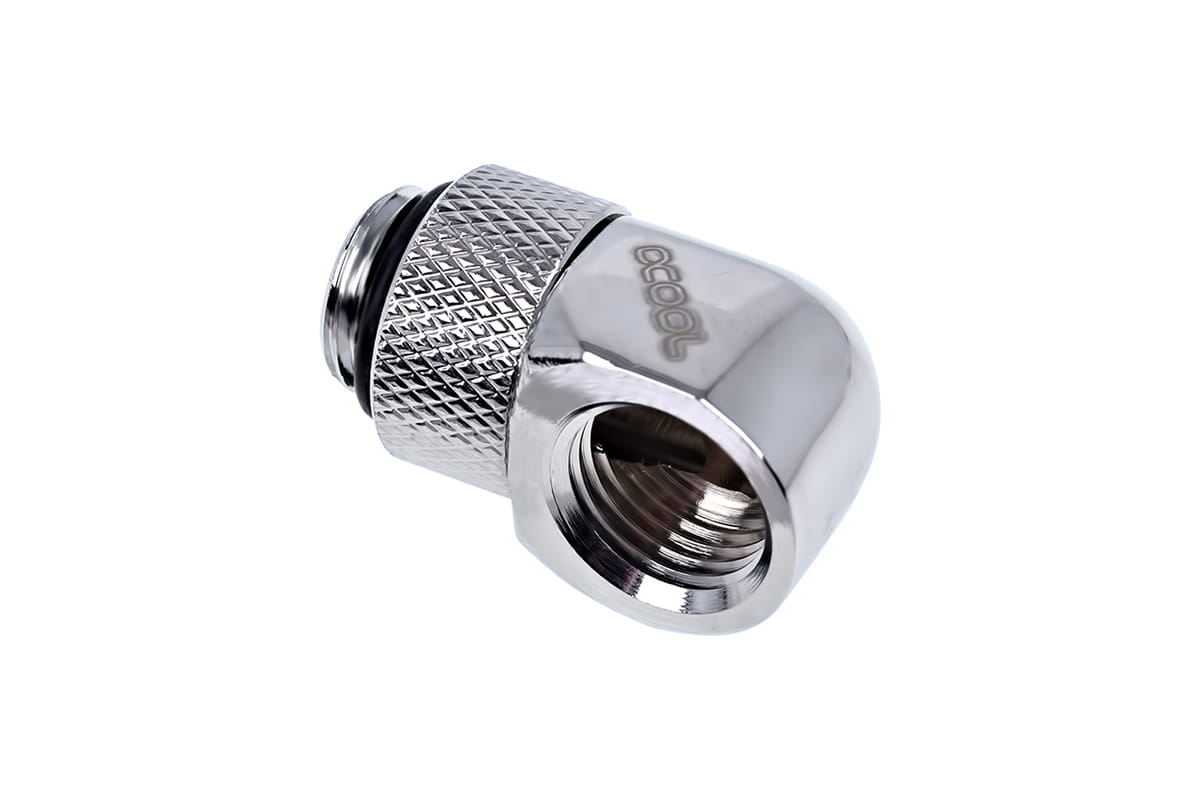

Design: L-connector rotatable
This 90° angled adapter has a rotatable 1/4" external thread on one side and a 1/4" internal thread on the other side. This 90° angled connection is usually used where there is little space and a special solution is required.

Technical details:

Material: Brass
Color: Chrome

Dimension:

Length: 32mm
Width: 18mm
Height: 18mm

Scope of delivery:

1x Alphacool Eiszapfen L-connector rotatable G1/4 AG to G1/4 IG - Chrome

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	G1/4" internal thread
Dimensions (L x W x H):	32 x 18 x 18mm
Rotatable:	Yes - 360°
Color:	Chrome
Thread length:	5mm
Compatibility:	Soft hoses (PVC, silicone, neoprene)
Material:	Brass
Specification:	Shape: 90° angled
1st page:	G1/4" external thread
