Water cooling adapter 90° angle rotatable G1/4

ANF Alphacool Eiszapfen Winkeladapter 90° drehbar G1/4 AG auf G1/4 IG - Chrome

Article no.: 17261
EAN: 4250197172615
Weight: 0,1 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€6.99 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's Eiszapfen connection series is the high-end version of the proven connections! All... more

Close menu

Product information

Alphacool's Eiszapfen connection series is the high-end version of the proven connections!

All the requirements that a connection has to meet are met here: high flow, shape, workmanship and color. Uncompromising development and production have made the icicles what they are. Two versions are available in brilliant chrome and matte, deep black, which fit perfectly into any system.

Using special processes, the coatings are firmly bonded to the substrate, ensuring the longevity of the intense colors and preventing the coating from flaking. Each connection now also has the Alphacool logo, which makes it unmistakable in addition to its special shape!

If you like it colorful, there are three different colored O-rings included. If there is UV lighting, they even glow in the corresponding color.

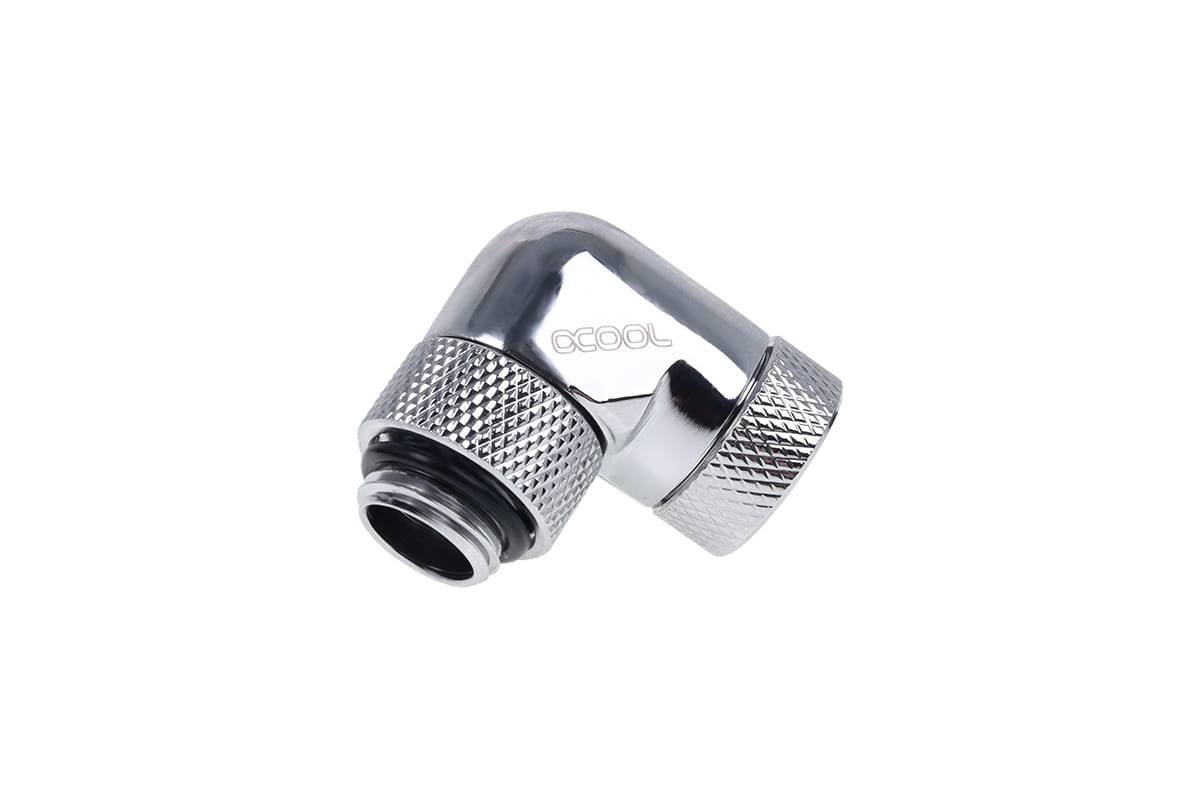

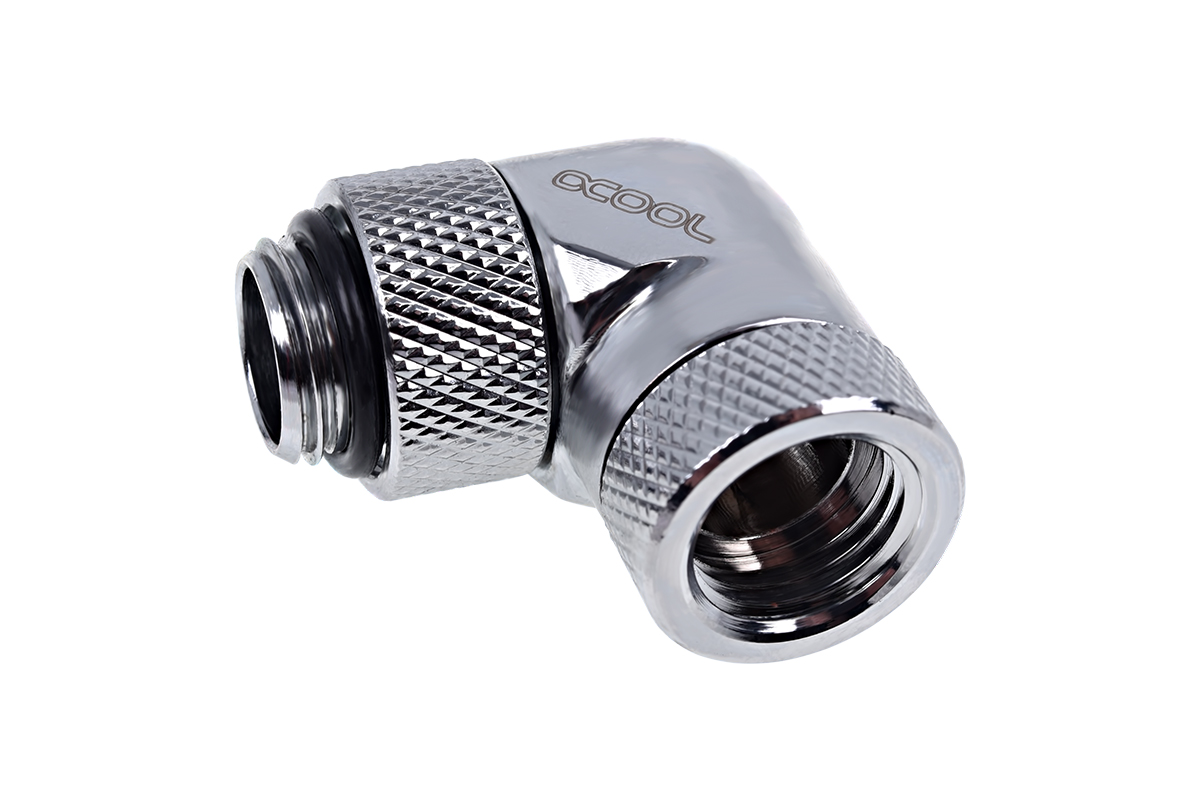

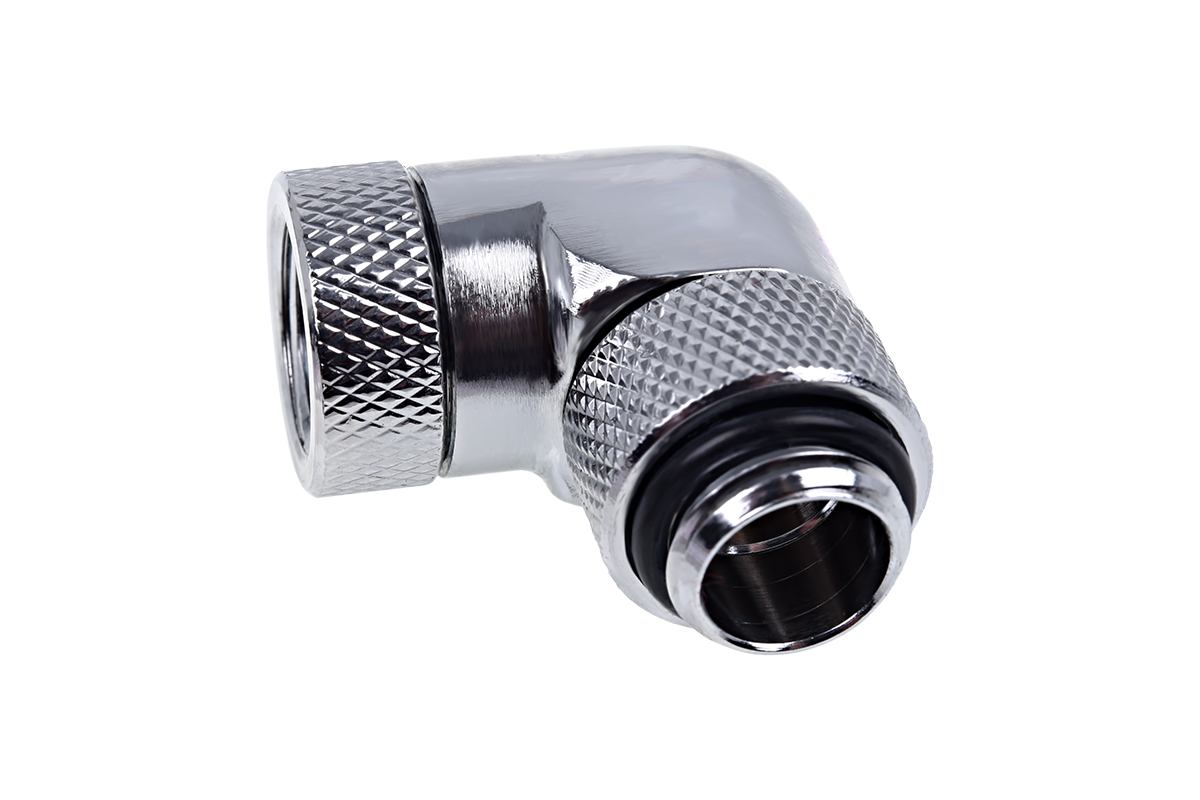

Design: 90° angle adapter
This 90° angled adapter has a 1/4" external thread on one side and a 1/4" internal thread on the other. The special feature is that the threads can be rotated on both sides, which provides maximum flexibility!

Technical details:

Material: Brass
Color: Chrome

Dimension:

Length: 31.5mm
Width: 32.5mm
Height: 18mm

Scope of delivery:

1x Alphacool Eiszapfen angle adapter 90° rotatable G1/4 AG to G1/4 IG - Chrome

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

2. Seite:	G1/4" Innengewinde
Gewindelänge:	5mm
Hersteller:	Alphacool
1. Seite:	G1/4" Außengewinde
Kompatibilität:	weiche Schläuche (PVC, Silikon, Neoprene)
Spezifikation:	Form: 90° gewinkelt
Drehbar:	Ja - 360°
Abmessungen (L x B x H):	31,5 x 32,5 x 18mm
Material:	Messing
Farbe:	chrom
