Water cooling Y-adapter 45° rotatable G1/4

ANF Alphacool Eiszapfen Y-Verbinder 45° - G1/4 drehbar - 2x Innen 1x Außengewinde - Chrome

Article no.: 17400
EAN: 4250197174008
Weight: 0,081 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€6.99 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's Eiszapfen connection series is the high-end version of the proven connections! All... more

Close menu

Product information

Alphacool's Eiszapfen connection series is the high-end version of the proven connections!

All the requirements that a connection has to meet are met here: high flow, shape, workmanship and color. Uncompromising development and production have made the icicles what they are. Two versions are available in brilliant chrome and matte, deep black, which fit perfectly into any system.

Using special processes, the coatings are firmly bonded to the substrate, ensuring the longevity of the intense colors and preventing the coating from flaking. Each connection now also has the Alphacool logo, which makes it unmistakable in addition to its special shape!

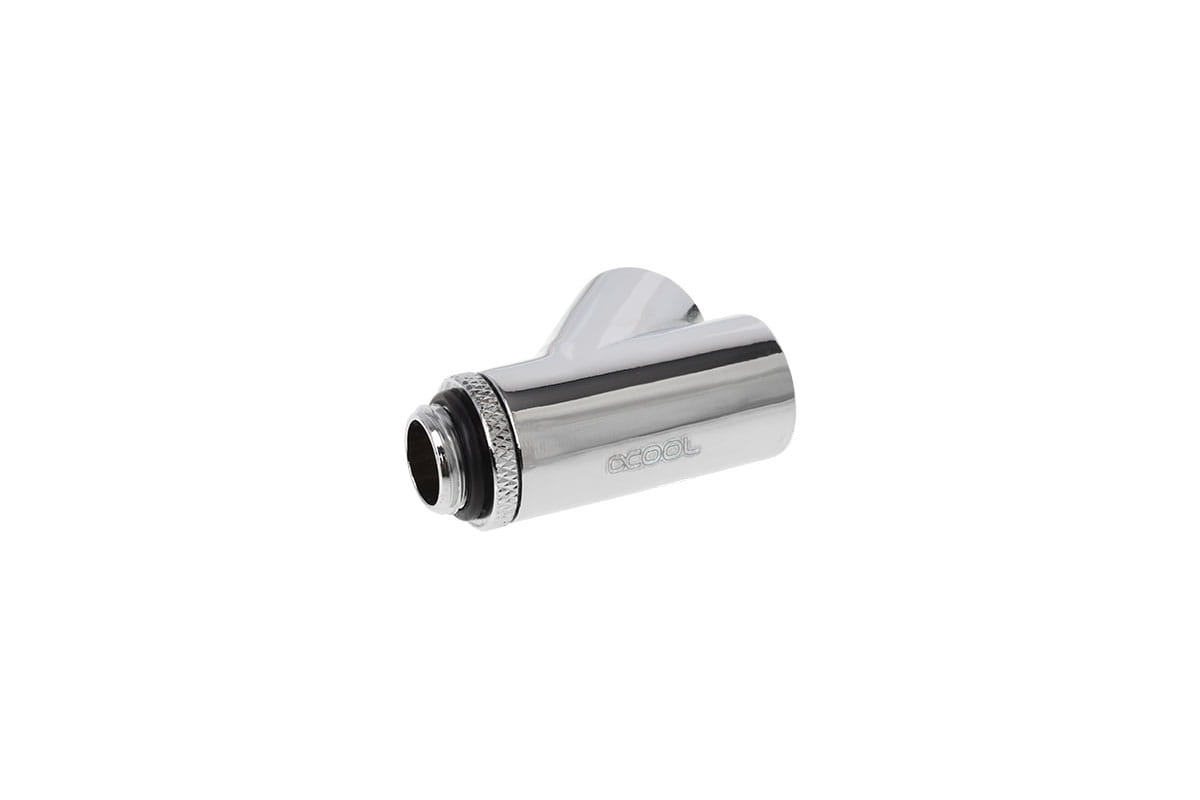

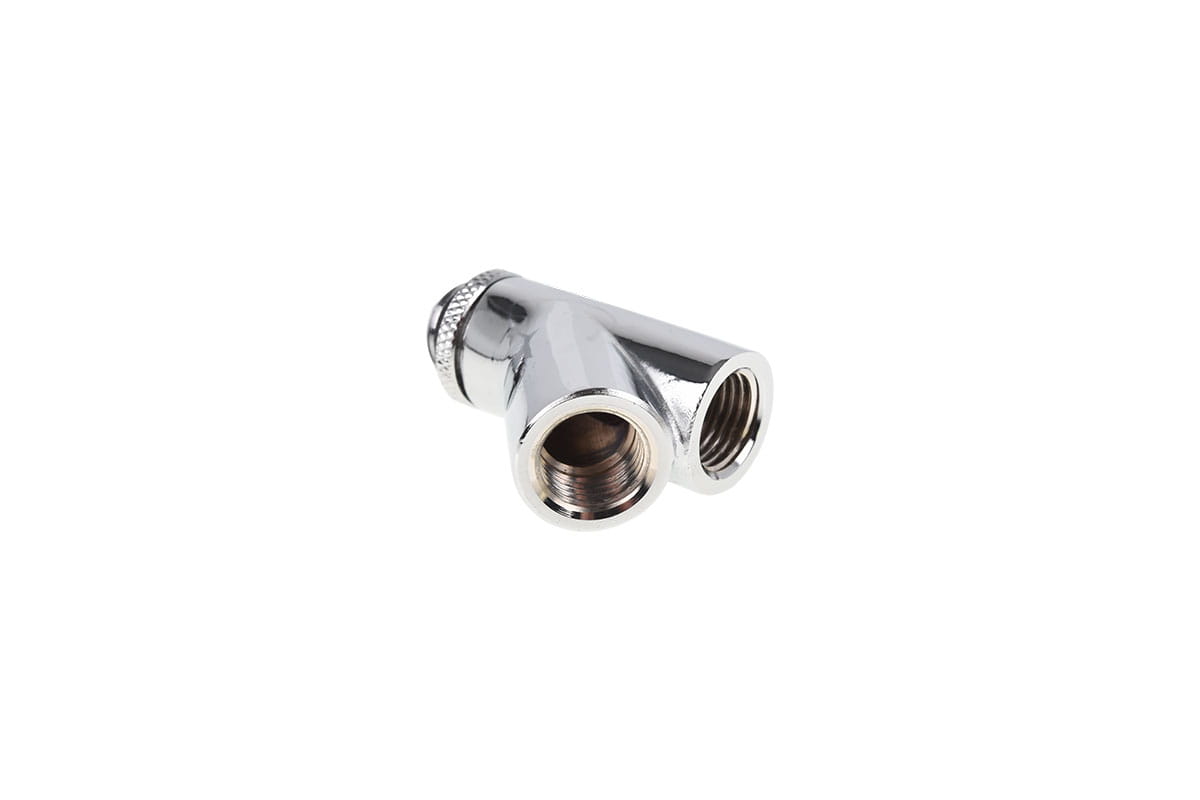

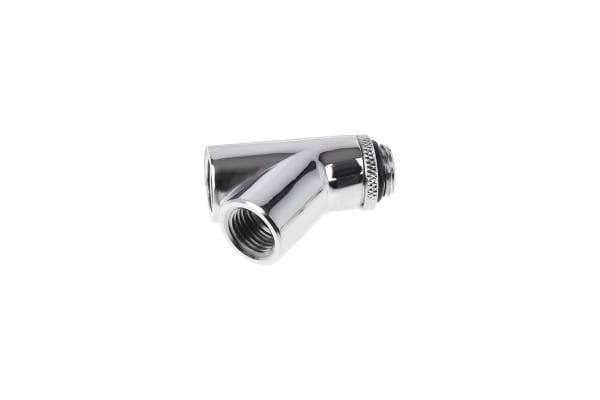

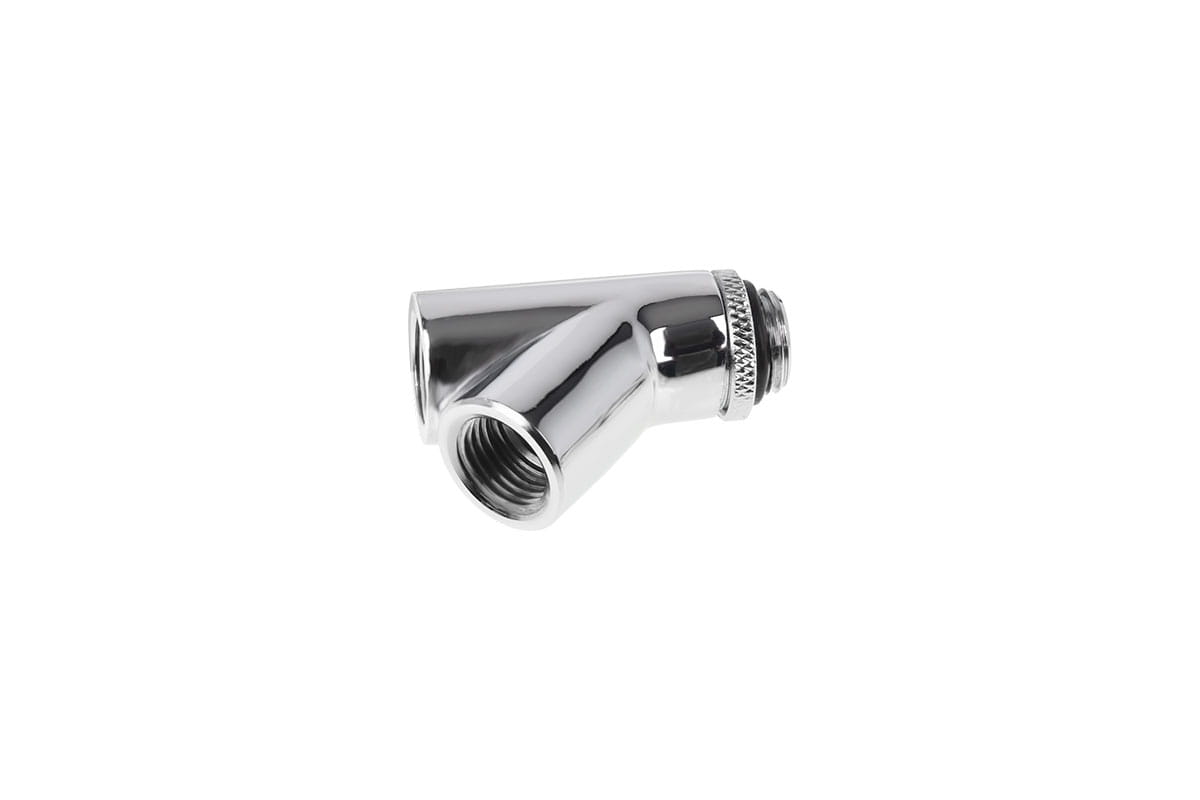

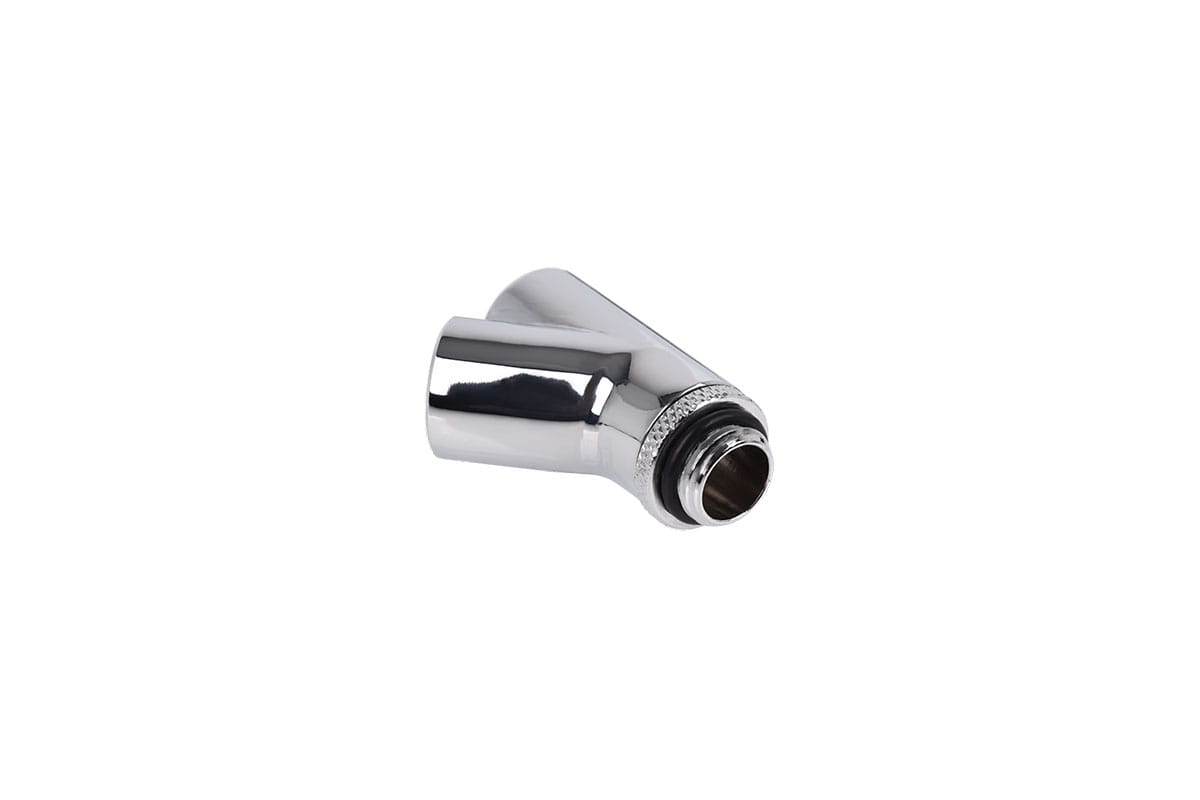

Design: Y-connector 45° - G1/4 rotatable - 2x internal 1x external thread
This connection has a 1/4" external thread on one side and is therefore compatible with 95% of all components. The other side has two 1/4" internal threads and can therefore be used as an adapter.

Technical details

Material: Brass
Color: Chrome

dimension

Length: 44mm
Width: 18mm
Height: 33mm

Scope of delivery

1x Alphacool Eiszapfen Y-connector 45° - G1/4 rotatable - 2x internal 1x external thread - Chrome

Fitting Map
Here you will find an interactive overview of all Alphacool connections.

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	G1/4" internal thread
Rotatable:	Yes - 360°
Color:	Chrome
Thread length:	5mm
Compatibility:	Soft hoses (PVC, silicone, neoprene)
Material:	Brass
Specification:	Form: 2x 45° angled
1st page:	G1/4" external thread
