ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Chrome

Article no.: 17586
EAN: 4250197175869
Weight: 0,06 kg
Images may differ slightly from the original

€7.68 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

1x

Alphacool Eiszapfen angled adaptor double-45° rotatable G1/4 outer thread to G1/4 inner thread - chrome

€11.98*

1x

Alphacool Eiszapfen quick release connector kit G1/4 inner thread - Deep Black

€29.98*

1x

Alphacool NexXxoS UT60 Full Copper Dual-Flow 360mm Radiator

€144.98*

1x

Eisblock Aurora Acetal GPX-A Radeon RX 6800/XT/6900 Reference with Backplate

€79.99*

1x

Alphacool EPDM Tube 13/10 - Black 3m (9,84ft) Retailbox

€17.98*

1x

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" male threads offers the... more

Product information

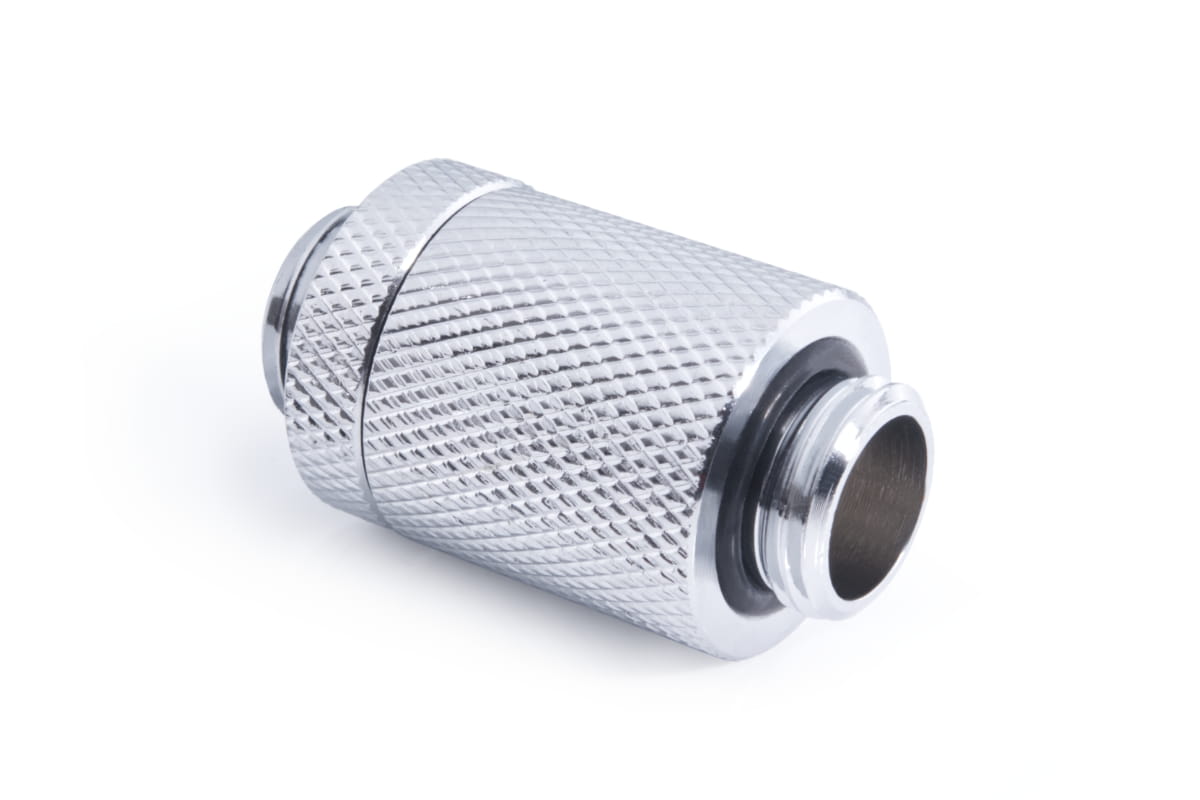

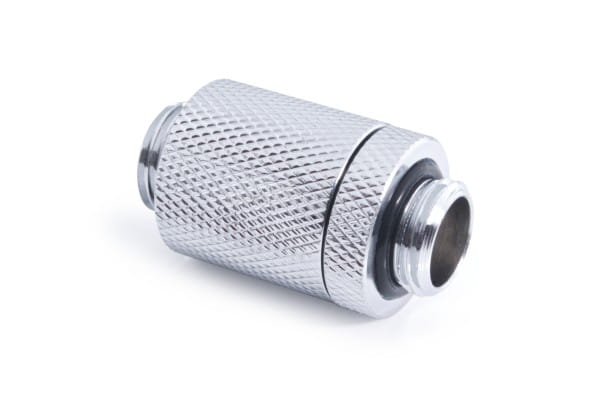

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" male threads offers the possibility to connect components like GPU and CPU coolers or radiators within a water circuit.

What's New?
Compared to double nipples or similar adapters, the ES D-Plug is plugged and not screwed. The necessary stability is provided by two closely fitting O-rings on the Male component of the connector. Of course, the connector has been extensively tested in the Alphacool lab with the result that the D-Plug is stable up to 1.5 Bar.

Uses

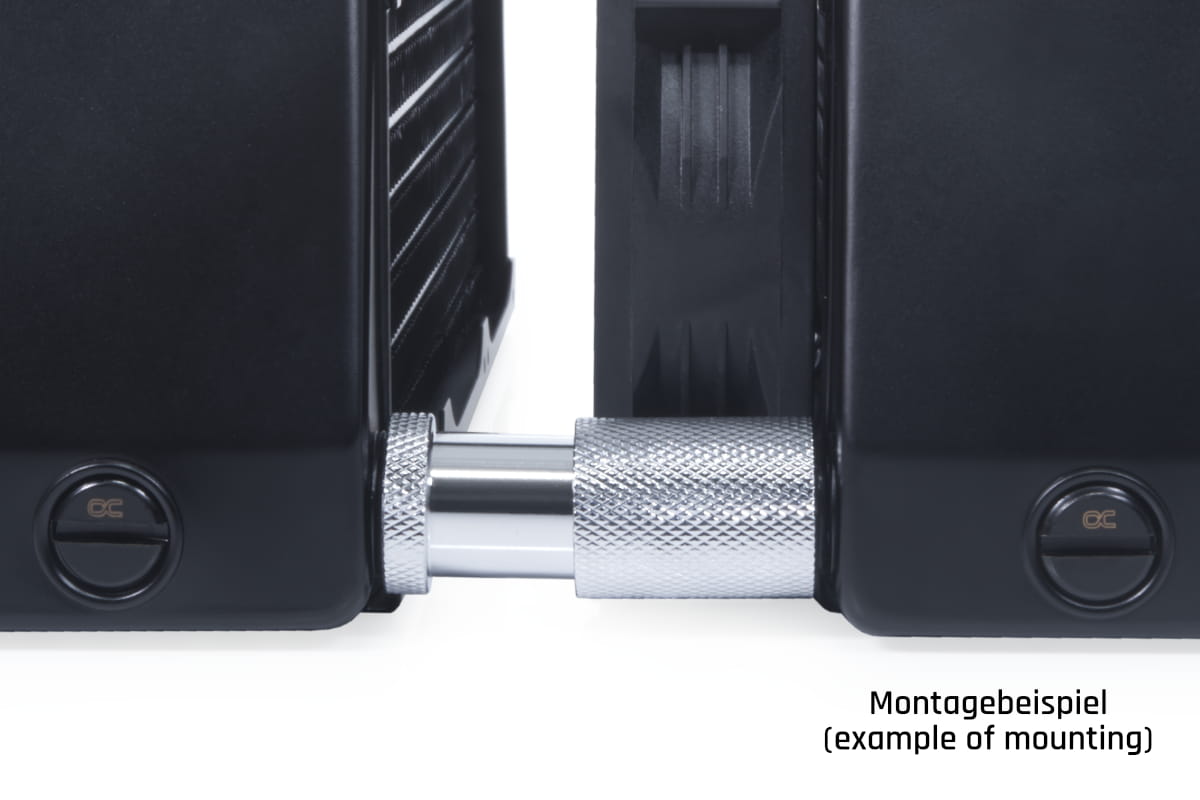

Alphacool's ES D-Plug allows for easy connection of water cooling components such as graphics card and CPU coolers or radiators to each other. Since the connector is only plugged in and not screwed, easy installation or quick replacement are uncomplicated. The ES D-Plug has a variable length. By pulling the connector apart, an extension of up to 15 mm can be achieved. This flexibility allows compensation for inaccuracies in the system design and prevents hoses from twisting during assembly. With the use of the D-Plug, the connection of water cooling elements is possible even in the tightest spaces.

The right size for every application

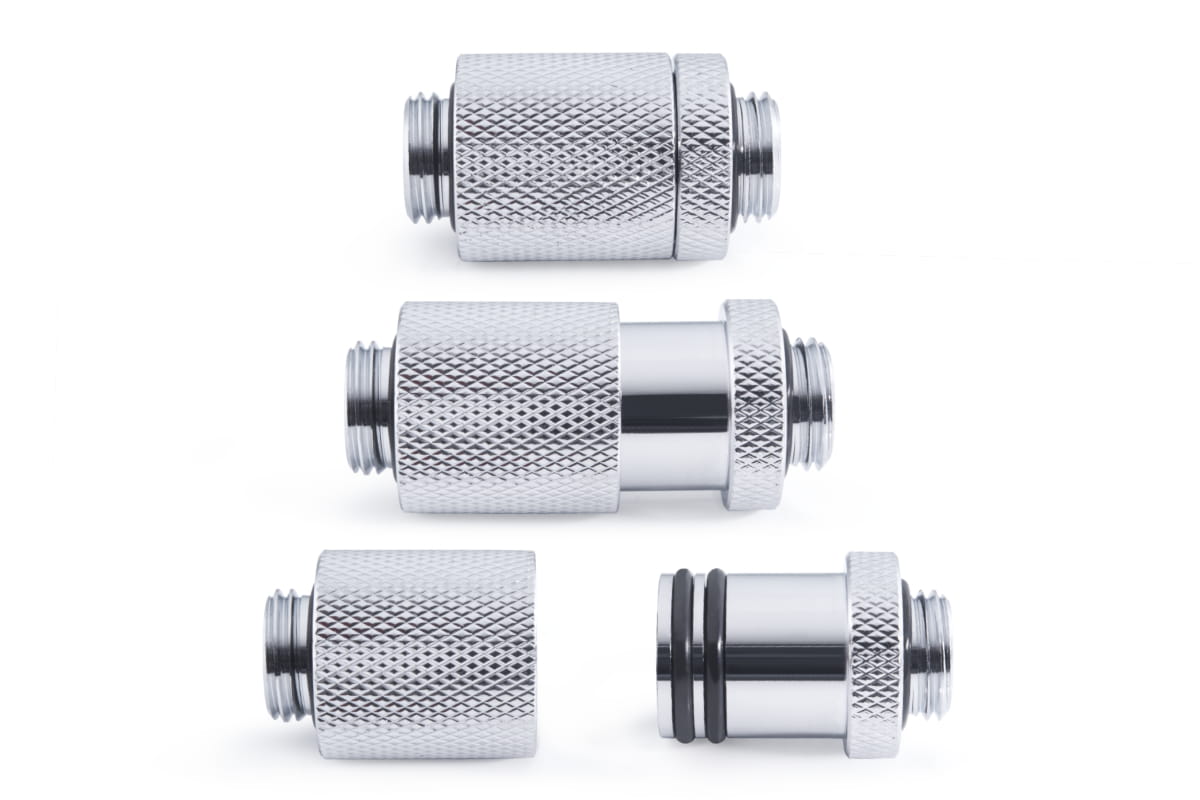

The ES D-Plug is available in lengths of 20 mm, 25.5 mm and 31.5 mm. They come in multiple colors such as brilliant chrome or matte black. Replacement O-rings in three different colors are included.

Application notes
To ensure the required stability and tightness of the connection, both O-rings of the Male component must be fully recessed in the Female component.

Technical data
Material	Brass
Color	Chrome
Length	25,5 mm
Diameter	20 mm
Thread	G1/4“ OT
Thread length (incl. O-ring)	5 mm
Weight	44 g
Pressure tested	1,5 Bar

Technical details mehr

Technical details

Technical details

Hersteller:	Alphacool
2. Seite:	G1/4" Außengewinde
Spezifikation:	Form: gerade
Material:	Messing
Gewindelänge:	5mm
Drehbar:	Ja - 360°
1. Seite:	G1/4" Außengewinde ;
Abmessungen (L x B x H):	25,5 x 20 x 20mm
Farbe:	silber ;
