Low profile L-connector for PC water cooling

Article no.: ANF
EAN: 4250197175845
Weight: 0,073 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€6.49 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen double nipple rotatable G1/4 AG to G1/4 AG - Chrome

€3.47*

Alphacool Eiszapfen double nipple G1/4 AG to G1/4 AG - Chrome

€2.48*

and Conditions Alphacool Eisstation DC-LT - Solo Top

€23.28*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

The Low Profile ES L-connector from Alphacool's ENTERPRISE SOLUTIONS series with 1 G1/4"... more

Close menu

Product information

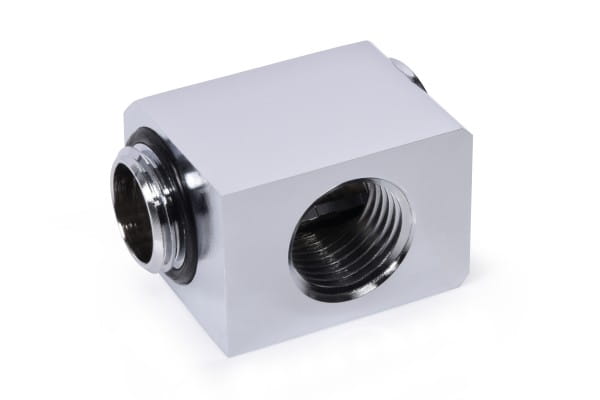

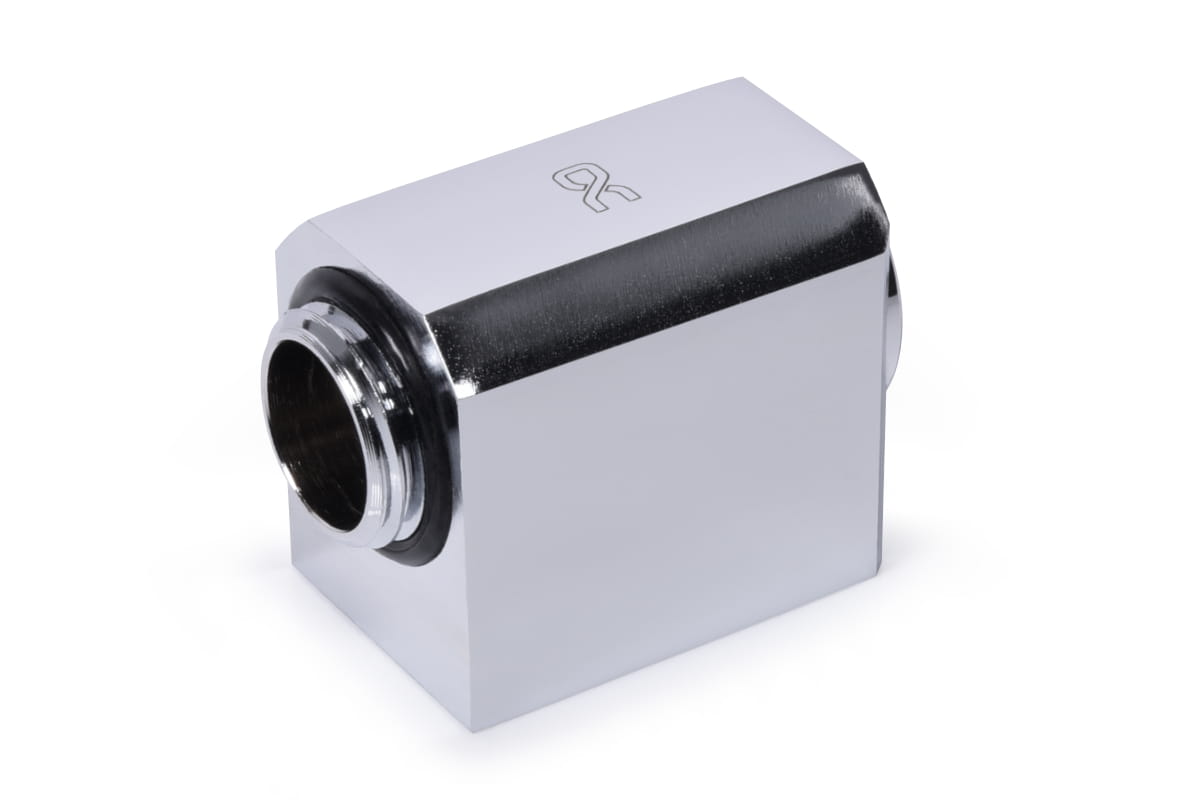

The Low Profile ES L-connector from Alphacool's ENTERPRISE SOLUTIONS series with 1 G1/4" external thread and 1 G1/4" internal thread offers the possibility of integrating components such as GPU and CPU coolers, expansion tanks or radiators into a water circuit even in the tightest server housing.

use

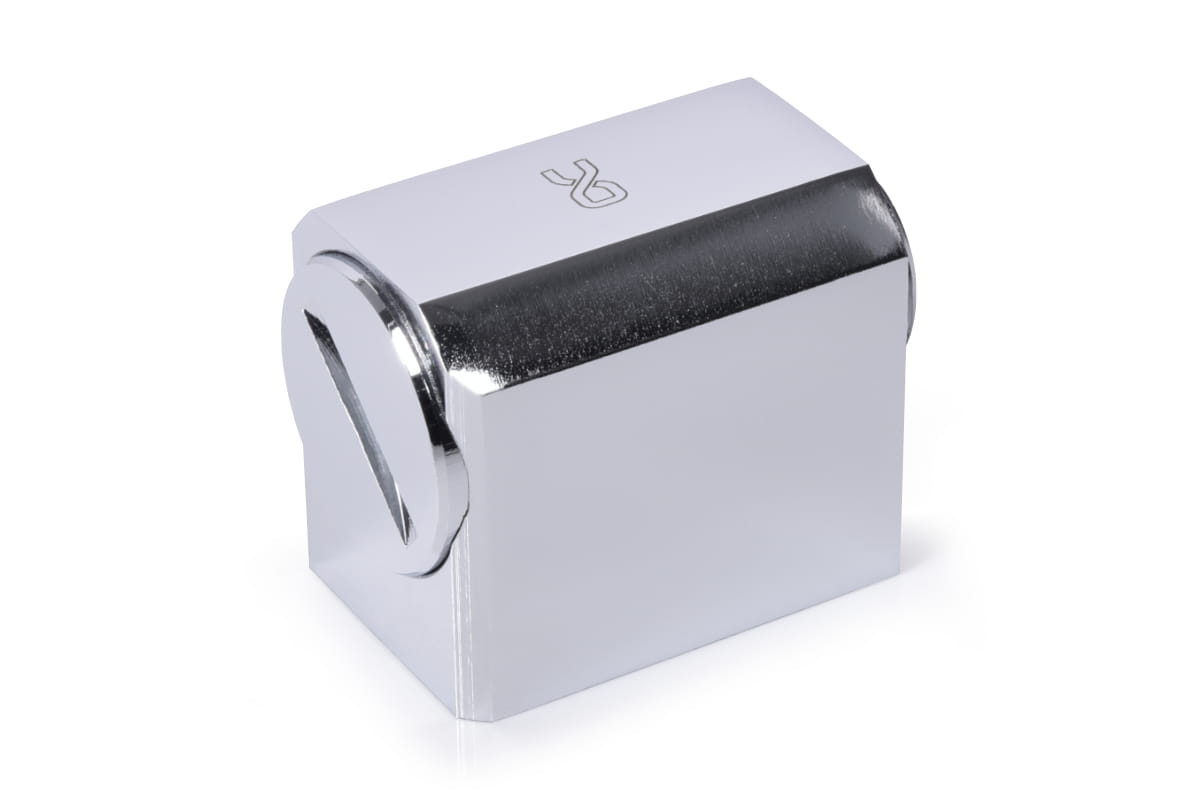

The Low Profile ES L-connector can be rotated 360°. In comparison to Alphacool's conventional L-connectors, the rotation is not made possible by turning the connection itself, but by a recessed, freely rotating plug with a slot on the opposite thread side of the connector. Using a screwdriver or Alphacool's plug-in tool makes it easier to integrate water cooling elements, as the connector itself no longer needs to be rotated. The connection is positioned using the adjustment options on the plug itself. This is particularly advantageous in narrow server cases with little space. The position of the Low Profile ES L-connector can also be easily adjusted or changed later in this way.

Variants
The Low Profile ES L-connector is available in brilliant chrome or matte black. The coating is firmly bonded to the surface using special processes, ensuring the longevity of the color and preventing the coating from chipping. The connector has the Alphacool logo, which makes it unmistakable in addition to its special shape! Replacement O-rings in three different colors are included in the delivery.

Technical data
material	Brass
L x W x H	31x23.5x18.5mm
Connections	1x G1/4" AG \| 1x G1/4" IG
Thread lengths	AG 3.5mm, IG 5mm
Possible rotation	360°
Execution	90° angled
Weight	65g
Color	chrome

Technical details mehr

Technical details

2. Seite:	G1/4" Innengewinde
Hersteller:	Alphacool
1. Seite:	G1/4" Außengewinde
Kompatibilität:	weiche Schläuche (PVC, Silikon, Neoprene)
Spezifikation:	Form: 90° gewinkelt
Drehbar:	Ja - 360°
Abmessungen (L x B x H):	31 x 23,5 x 18,5mm
Material:	Messing
Farbe:	chrom
