Water cooling 90° L-connector G1/4 chrome

ANF Alphacool Eiszapfen L-Verbinder G1/4 AG auf G1/4 IG - chrom

Article no.: 17595
EAN: 4250197175951
Weight: 0,037 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€4.97 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen angle adapter 45° rotatable G1/4 AG to G1/4 IG - Chrome

€6.99*

Alphacool Eiszapfen L-connector rotatable G1/4 AG to G1/4 IG - Chrome

€5.49*

Alphacool Eiszapfen angle adapter double 45° rotatable G1/4 AG to G1/4 IG - Chrome

€9.98*

Alphacool Eiszapfen L-connector G1/4 IG to G1/4 IG - Chrome

€4.97*

Alphacool Eiszapfen angle adapter 90° rotatable G1/4 AG to G1/4 IG - Chrome

€6.99*

The Alphacool Eiszapfen 20mm L-connector G1/4" OT to G1/4" IT is a 90° elbow with an internal... more

Close menu

Product information

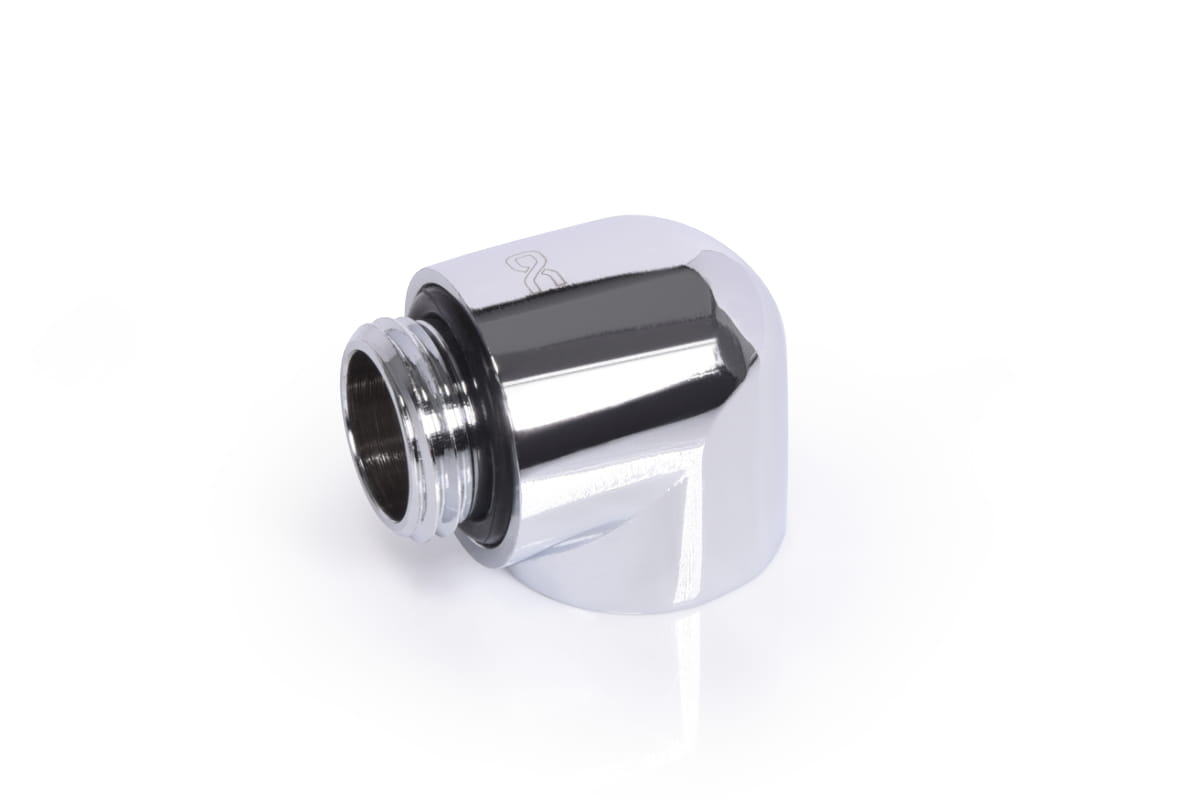

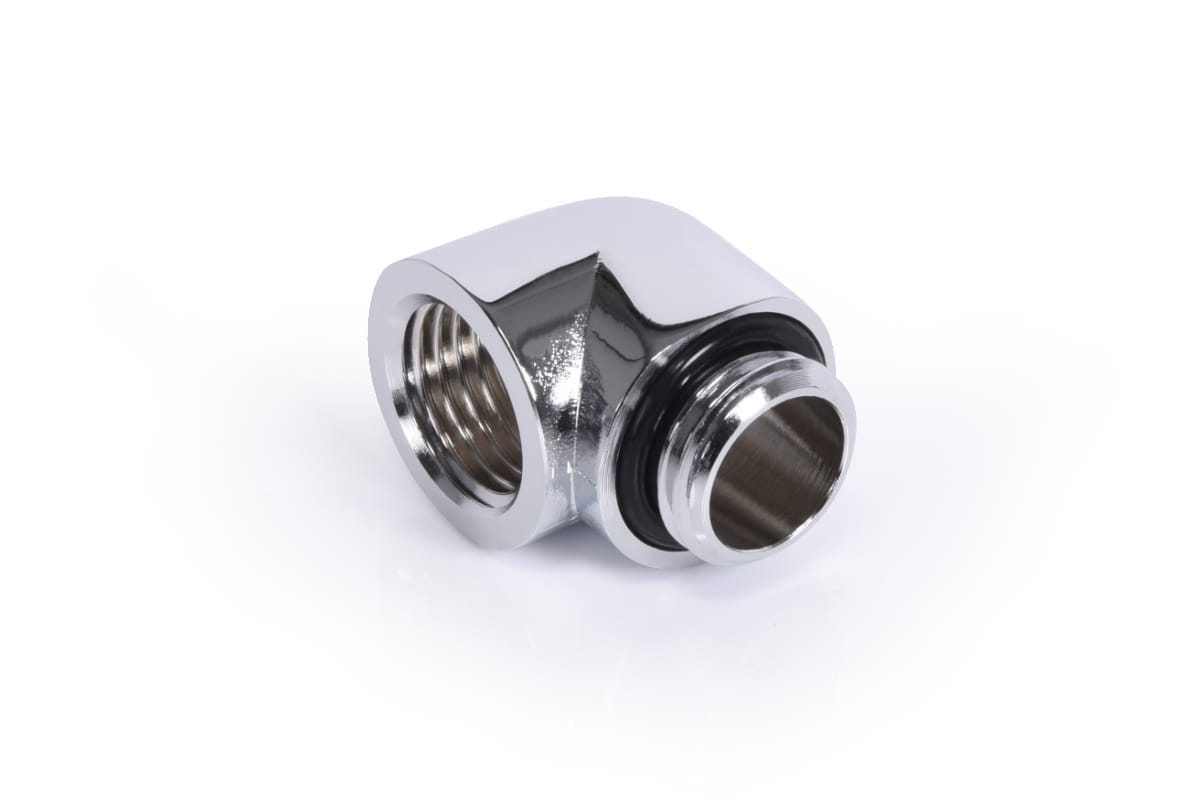

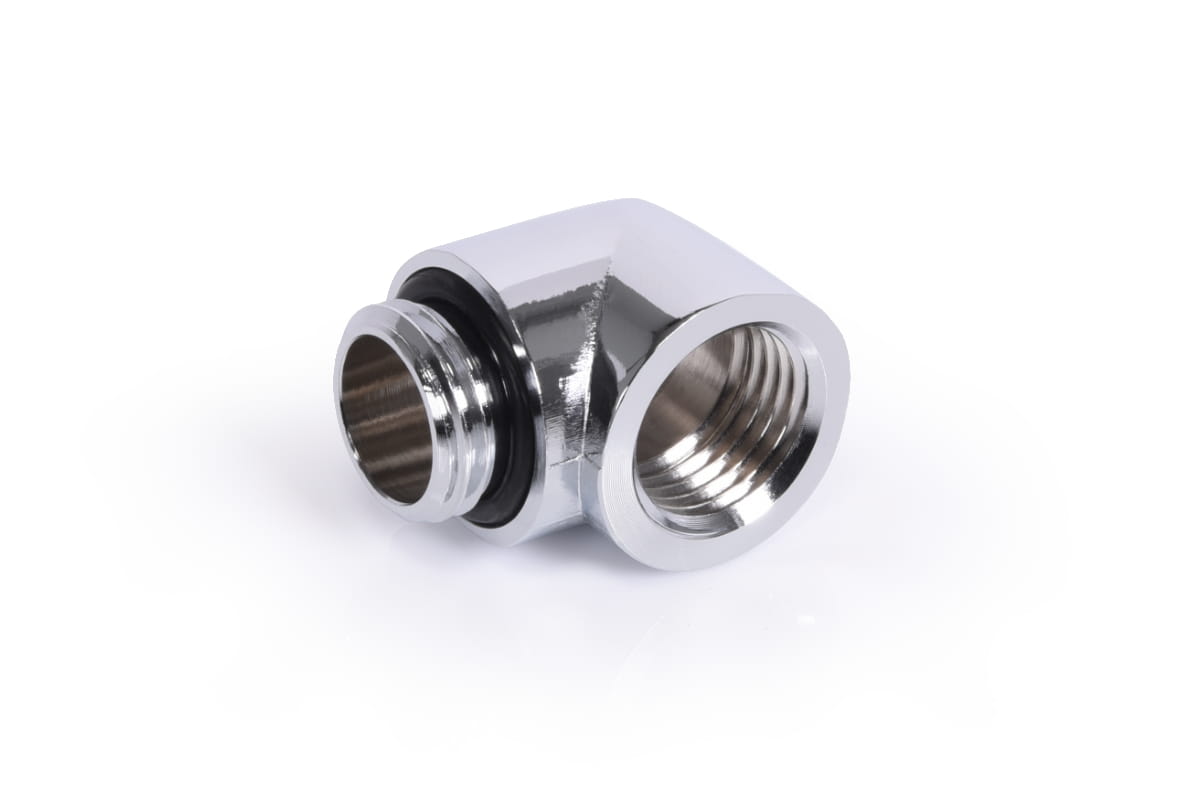

The Alphacool Eiszapfen 20mm L-connector G1/4" OT to G1/4" IT is a 90° elbow with an internal thread and an external thread that can be easily integrated into any water circuit.

Integration made easy
The L-connector is very compact and can be integrated into any water circuit thanks to its G1/4" internal and external threads. It is simply screwed onto the corresponding G1/4" connections at any position in the water circuit.

design
The threads are 5mm deep and high, allowing for a very compact design. This means the L-connector can be installed in the system in a very space-saving manner.

Compatibility:
G1/4" AG/IG connections

Technical data
L x W x H	24.7mm x 19.7mm x 18mm
material	Brass
Color	chrome
thread	G1/4" female, G1/4" male
Thread depth	5mm
Thread height	5mm

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	G1/4" internal thread
Rotatable:	No
Color:	Chrome
Thread length:	5mm
Material:	Brass
Specification:	Shape: 90° angled
1st page:	G1/4" external thread
