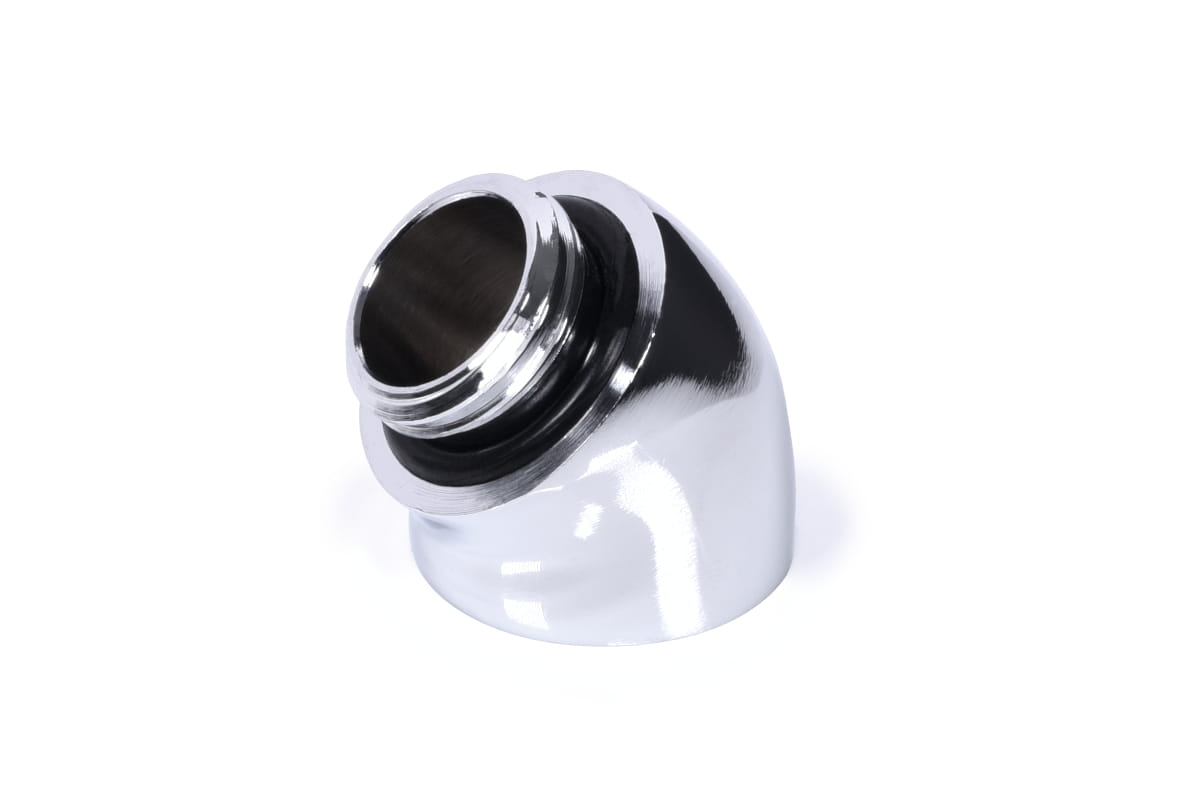

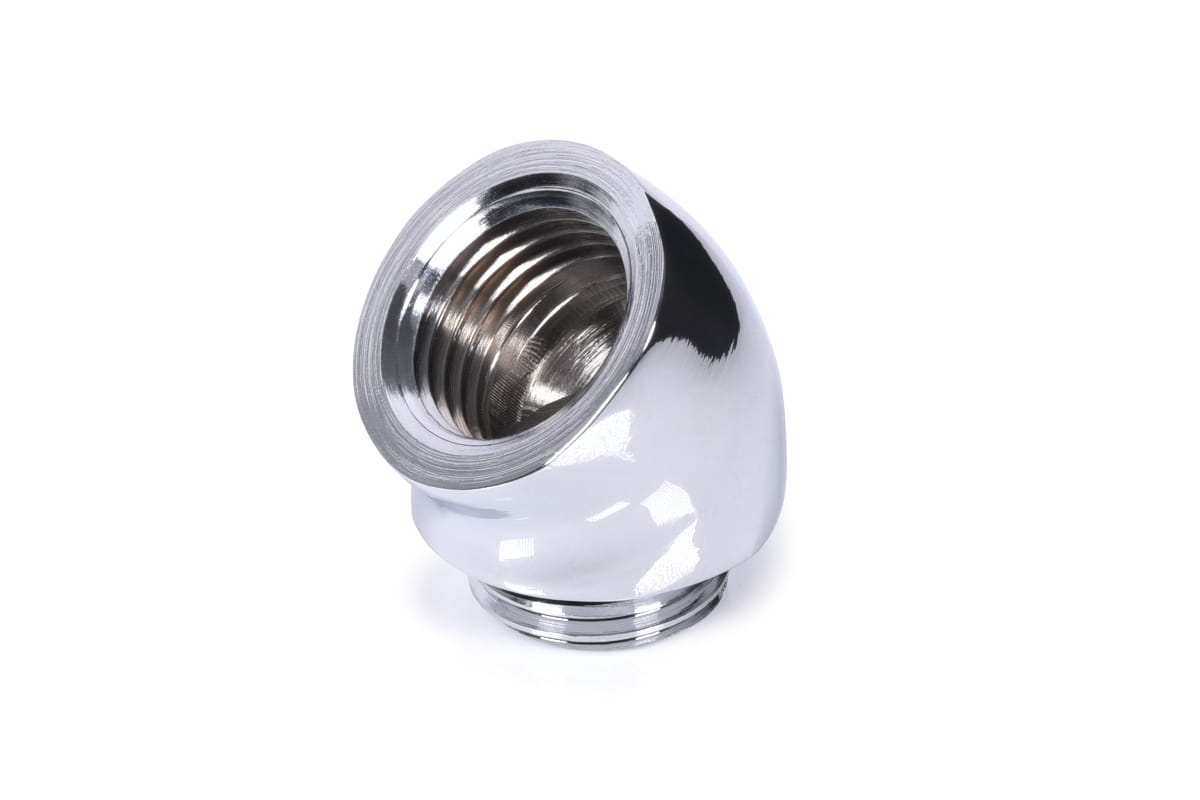

Water cooling adapter 45° angle G1/4 AG/IG

ANF Alphacool Eiszapfen Winkeladapter 45° G1/4 AG auf G1/4 IG - chrome

Article no.: 17591
EAN: 4250197175913
Weight: 0,028 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€4.97 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen angle adapter 45° G1/4 AG to G1/4 IG - black

€4.97*

Alphacool Eiszapfen L-connector 45° G1/4 IG to G1/4 IG - black

€3.97*

Alphacool Eiszapfen L-connector 45° G1/4 IG to G1/4 IG - chrome

€3.97*

Alphacool Eiszapfen 8mm offset piece rotatable G1/4 AG to G1/4 IG - chrome

€8.98*

Alphacool Eiszapfen 8mm offset piece rotatable G1/4 AG to G1/4 IG - black

€8.98*

Alphacool's Eiszapfen connection series is the high-end version of the tried-and-tested... more

Close menu

Product information

Alphacool's Eiszapfen connection series is the high-end version of the tried-and-tested connections! All requirements that are placed on a connection are met here: high flow, shape, workmanship and color. Uncompromising development and production have made the Eiszapfen what they are. Two versions are available in brilliant chrome and deep matte black, which fit perfectly into any system.

Using special processes, the coatings are firmly bonded to the substrate, ensuring the longevity of the intense colors and preventing the coating from flaking. Each connection now also has the Alphacool logo, which, in addition to its special shape, makes it unmistakable!

If you like it colorful, you will find three different colored O-rings included in the delivery. If UV lighting is present, these even glow in the corresponding color.

Execution
This 45° angled adapter is equipped with a G1/4" internal thread and a G1/4" external thread. This 45° angled connection is used in water circuits where there is little space for the hoses and a special solution is required.

Technical data
L x W x H	21x20x21mm
material	Brass
angle	45°
Thread depth/height	5mm
thread	2x G1/4" internal thread
Weight	18g
Color	chrome

Technical details mehr

Technical details

2. Seite:	G1/4" Innengewinde
Gewindelänge:	5mm
Hersteller:	Alphacool
1. Seite:	G1/4" Außengewinde
Kompatibilität:	weiche Schläuche (PVC, Silikon, Neoprene)
Spezifikation:	Form: 45° gewinkelt
Abmessungen (L x B x H):	21 x 20 x 21mm
Material:	Messing
Farbe:	chrom
