Water cooling 8mm offset piece G1/4" AG/IG

ANF Alphacool Eiszapfen 8mm Versatzstück drehbar G1/4 AG auf G1/4 IG - black

Article no.: 17604
EAN: 4250197176040
Weight: 0,037 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€8.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen angle adapter 45° G1/4 AG to G1/4 IG - black

€4.97*

Alphacool Eiszapfen angle adapter 45° G1/4 AG to G1/4 IG - chrome

€4.97*

Alphacool Eiszapfen L-connector 45° G1/4 IG to G1/4 IG - black

€3.97*

Alphacool Eiszapfen L-connector 45° G1/4 IG to G1/4 IG - chrome

€3.97*

Alphacool Eiszapfen 8mm offset piece rotatable G1/4 AG to G1/4 IG - chrome

€8.98*

The Alphacool Eiszapfen is a rotatable 8 mm offset piece with an internal thread and an external... more

Close menu

Product information

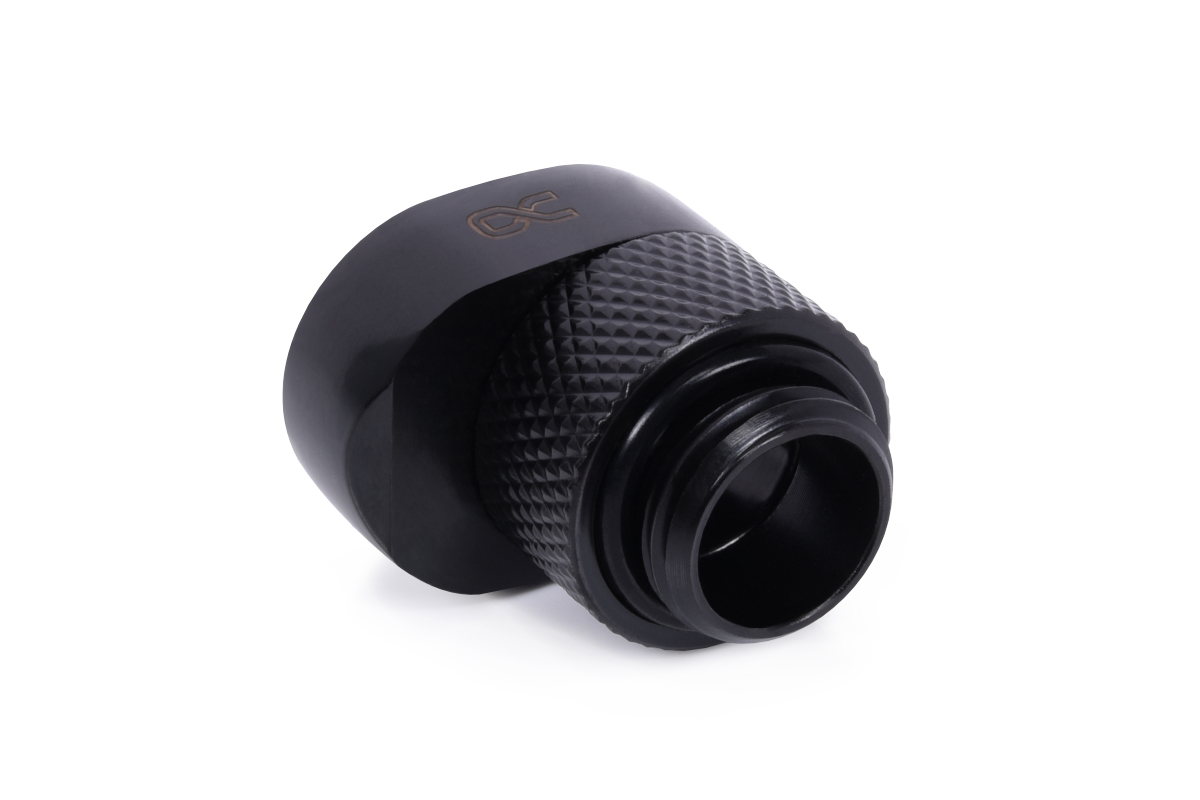

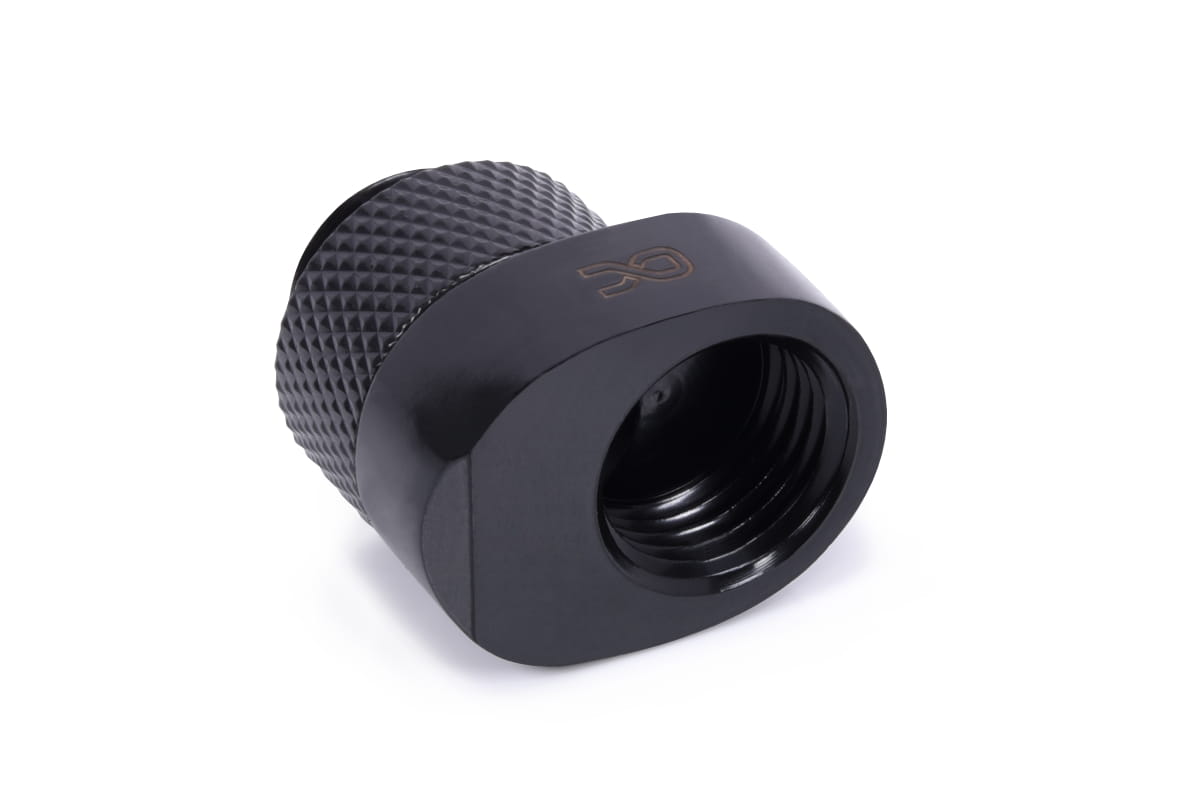

The Alphacool Eiszapfen is a rotatable 8 mm offset piece with an internal thread and an external thread that can be easily integrated into any water circuit.

Integration made easy

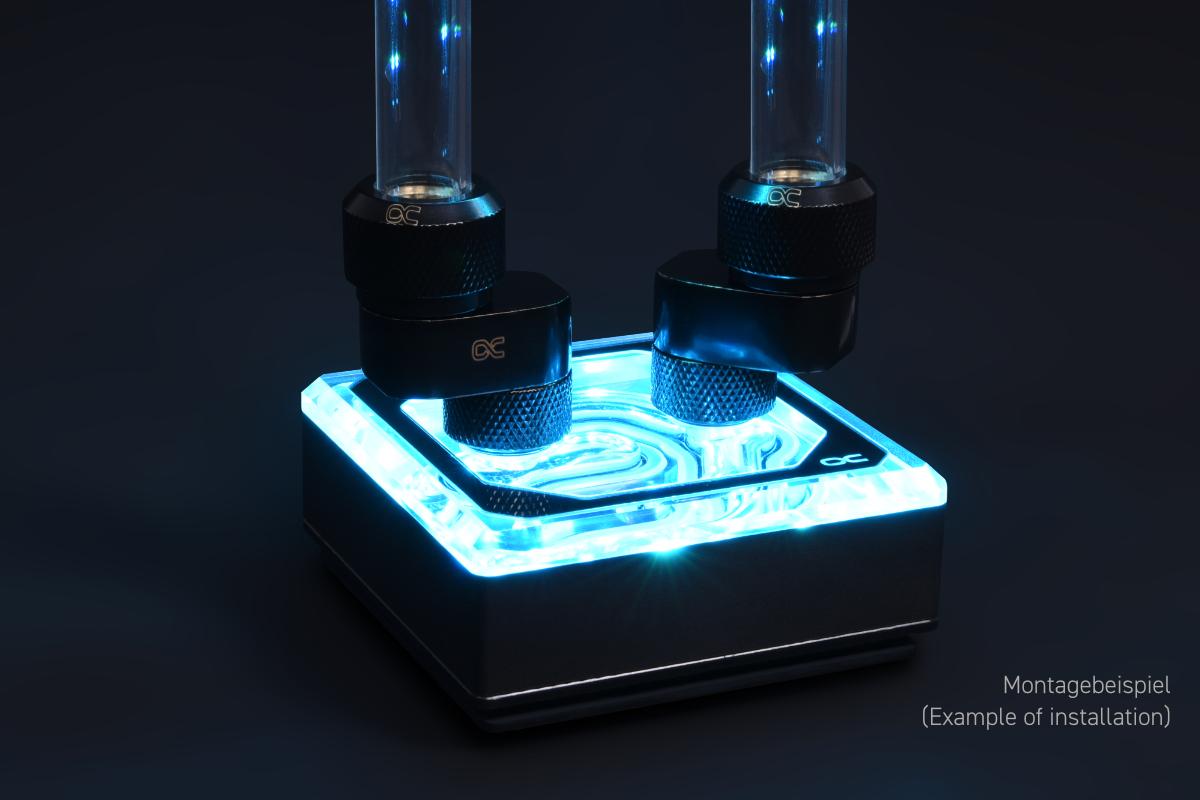

The offset piece is very compact and can be integrated into any water cooling system thanks to its G1/4" internal and external threads. It is simply screwed onto the corresponding G1/4" connections at the desired position in the water circuit.

design
The threads are 5mm deep and high, allowing for a very compact design. The offset piece can also be rotated 360°, which allows for more flexibility when integrating it into even the tightest housings.

Colored O-rings
In addition to the standard O-ring in black, 3 additional O-rings in red, yellow and blue are included in delivery.

Compatibility:
G1/4" AG/IG connections

Technical data
L x W x H	24x22.5x18.5mm
material	Brass
Offset	8mm
thread	G1/4" female, G1/4" male
Thread depth	5mm
Thread height	5mm
Weight	28g
Color	black

Technical details mehr

Technical details

2. Seite:	G1/4" Innengewinde
Gewindelänge:	5mm
Hersteller:	Alphacool
Farbe:	schwarz
1. Seite:	G1/4" Außengewinde
Spezifikation:	Form: 90° gewinkelt
Drehbar:	Ja - 360°
Abmessungen (L x B x H):	24 x 22,5 x 18,5mm
Material:	Messing
