Wasserkühlung D-Plug mit G1/4 Außengewinde

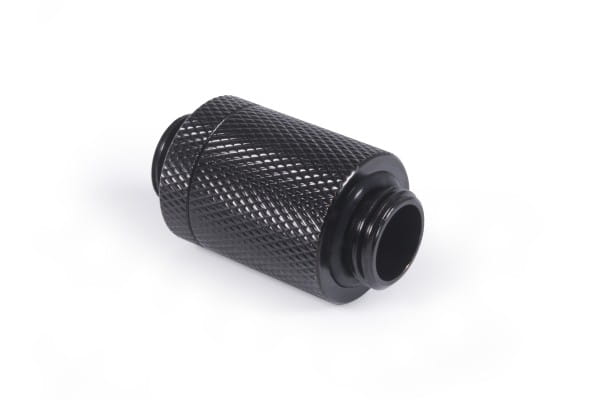

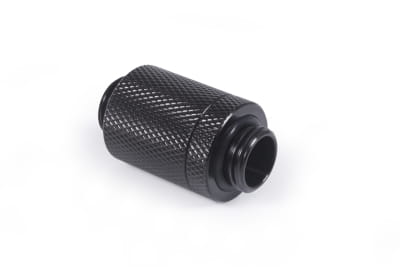

ANF Alphacool ES D-Plug 25,5mm G1/4 AG auf G1/4 AG - Deep Black

Article no.: 17580
EAN: 4250197175807
Weight: 0,06 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€4.48 * €7.68 * (41.67% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool 2-way ball valve G1/4 - Black Nickel

€9.98*

Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Penta (5x40mm) Radiator

€99.98*

Alphacool ES Distro Plate C3

€41.98*

Alphacool ES quick release coupling set G1/4 IG/IG - PushIn Industry Version

€15.98*

Alphacool Eisblock Aurora Acetal GPX-A Radeon RX 6800/XT/6900 Reference with backplate

€74.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" male threads offers the... more

Close menu

Product information

The D-Plug from Alphacool's ENTERPRISE SOLUTIONS series with 2 G1/4" male threads offers the possibility to connect components like GPU and CPU coolers or radiators within a water circuit.

What's New?
Compared to double nipples or similar adapters, the ES D-Plug is plugged and not screwed. The necessary stability is provided by two closely fitting O-rings on the Male component of the connector. Of course, the connector has been extensively tested in the Alphacool lab with the result that the D-Plug is stable up to 1.5 Bar.

Uses

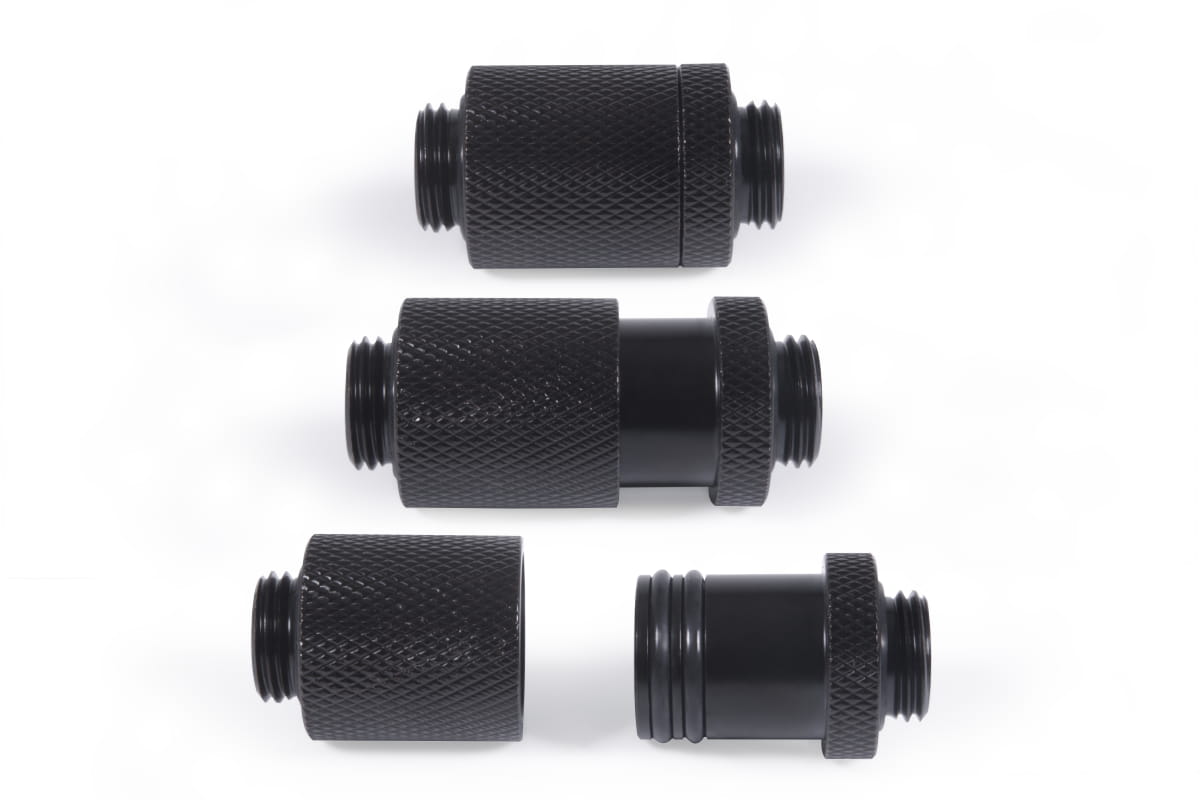

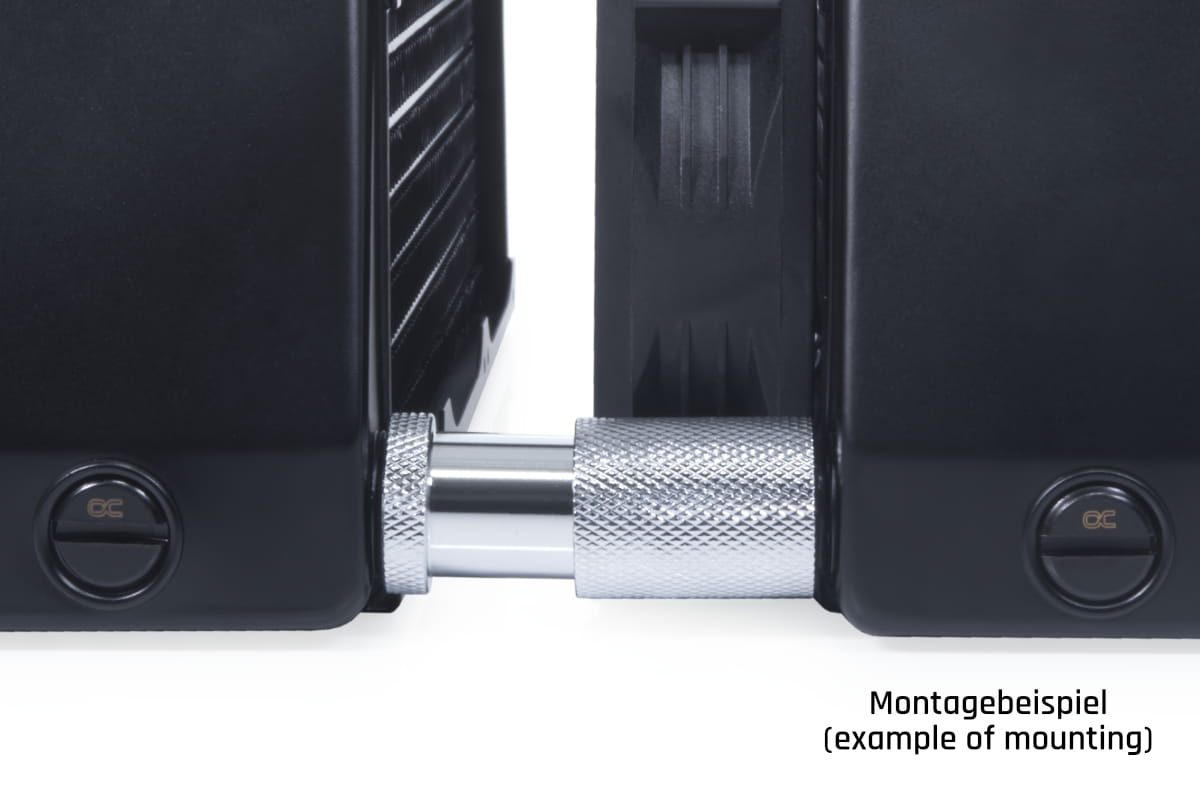

Alphacool's ES D-Plug allows for easy connection of water cooling components such as graphics card and CPU coolers or radiators to each other. Since the connector is only plugged in and not screwed, easy installation or quick replacement are uncomplicated. The ES D-Plug has a variable length. By pulling the connector apart, an extension of up to 10 mm can be achieved. This flexibility allows compensation for inaccuracies in the system design. With the use of the D-Plug, the connection of water cooling elements is possible even in the tightest spaces.

The right size for every application
The ES D-Plug is available in lengths of 20 mm, 25.5 mm and 31.5 mm. They come in multiple colors such as brilliant chrome or matte black. Replacement O-rings in three different colors are included.

Application notes
To ensure the required stability and tightness of the connection, both O-rings of the Male component must be fully recessed in the Female component. The specified pressure of 1.5 bar can only be achieved if both sides of the plugs are mounted to fixed parts.

Technical data
Material	Brass
Color	Black
Length	25,5 mm
Diameter	20 mm
Thread	G1/4“ OT
Thread length (incl. O-ring)	5 mm
Weight	44 g
Pressure tested	1,5 Bar

Technical details mehr

Technical details

Hersteller:	Alphacool
Made in:	China
2nd page:	G1/4" external thread
Dimensions (L x W x H):	25,5 x 20 x 20mm
Rotatable:	Yes - 360°
Color:	Black
Thread length:	5mm
Material:	Brass
Specification:	Shape: straight
1st page:	G1/4" external thread
