Alphacool Enterprise quick release coupling IG/IG

ANK Alphacool ES Schnellverschlusskupplungsset G1/4 IG/IG - PushIn Industry Version

Article no.: 17569
EAN: 4250197175692
Weight: 0,035 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€14.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack

€31.98*

Alphacool Eiszapfen 16/10mm screw-on nozzle G1/4 - Deep Black Sixpack

€31.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool hose AlphaTube HF 16/10 (3/8"ID) - Ultra Clear 1m (3.3ft) retail box 100cm

€7.98*

Alphacool ES quick release coupling set G1/4 AG/AG - PushIn Industry Version

€14.98*

The Alphacool ES Quick Disconnect Fittings Industry IG/IG are taken from the Alphacool... more

Close menu

Product information

The Alphacool ES Quick Disconnect Fittings Industry IG/IG are taken from the Alphacool Enterprise Solutions product range. Special emphasis has been placed on longevity and safety.

Enterprise Solution?
Alphacool offers specialised water cooling products for servers and workstations in the B2B and Enterprise Solution area. When used for these applications, water cooling must be secure and safe. To ensure these criteria is met, Alphacool has concentrated on 3 main targets for the quick release fittings: a secure leak proof link, high tensile strength and a particularly low weight.

Compact Quick Connector?

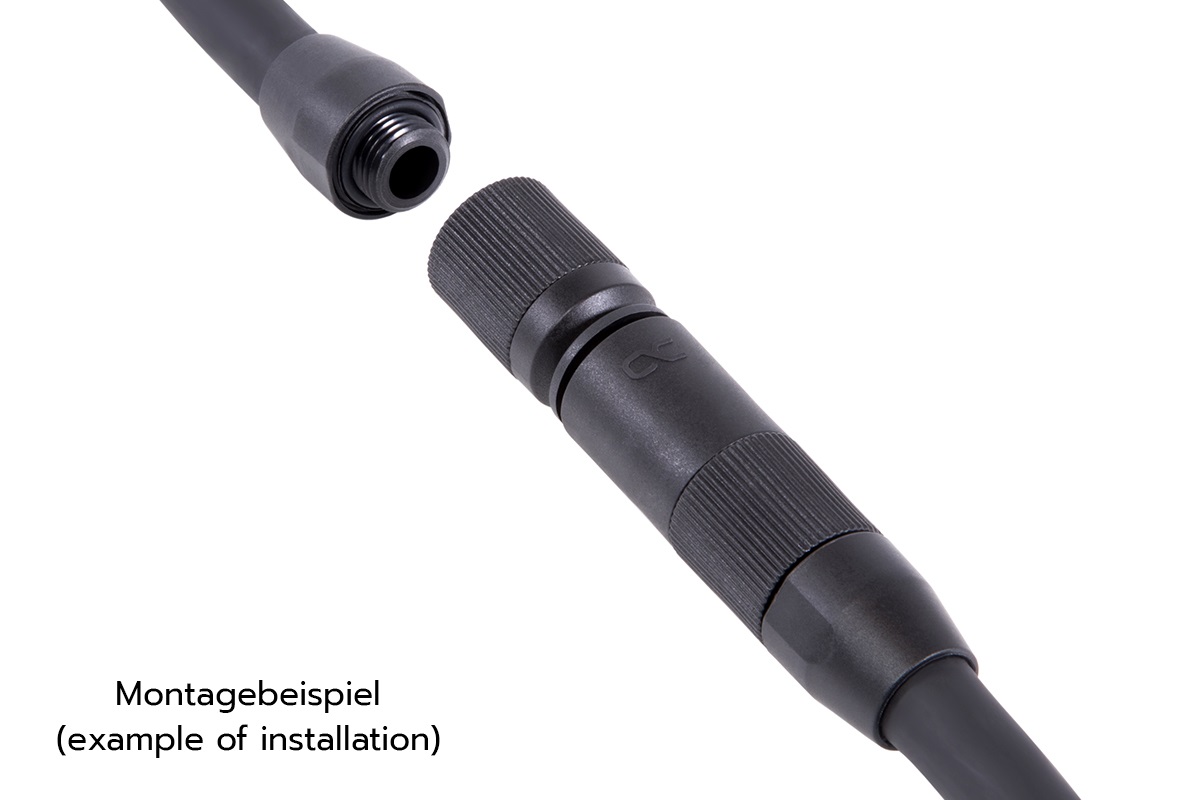

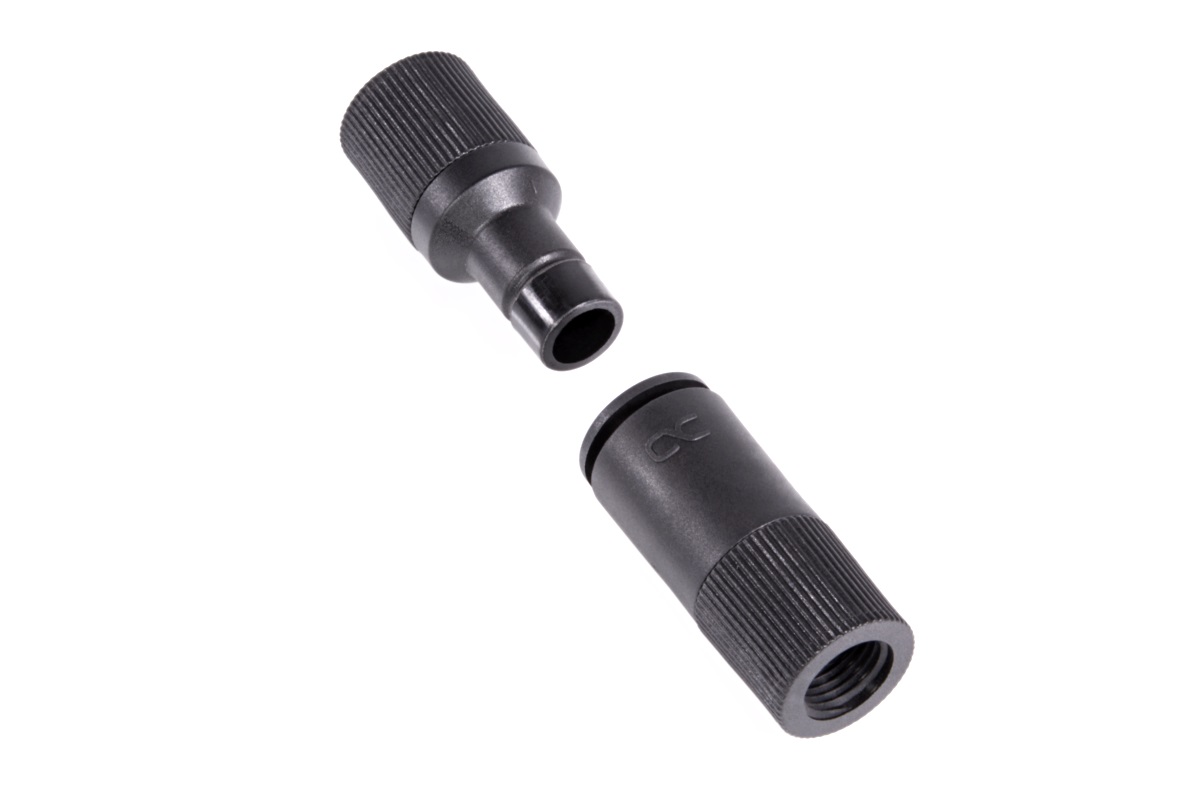

Common quick connectors can have a diameter of over 24mm. This Alphacool quick release connectors has a diameter of only 20 mm. This makes it probably one of the sleekest quick release connectors for water cooling systems on the market. To close the quick-release fastener, it only needs to be pushed together. To open it again, a small ring is pulled back. This makes the quick-release fastener pop open. The water loss is minimal and consists of only 1-2 small drops which can easily be halted with a towel or cloth.

Nylon as material?
Instead of the usual brass, the fittings for the Enterprise Solutions product range are usually made of nylon. In water-cooled servers and workstations, all components must be easily and quickly replaceable and keeping the weight down is important. That is why all components are fitted with quick release fasteners. Due to the high packing density in modern servers, the quick release fastener is made of highly stable nylon. They are therefore non-conductive and cannot cause any short circuits. Nylon is also an ultra-light material, which makes it extremely easy to use.

Flow and sealing

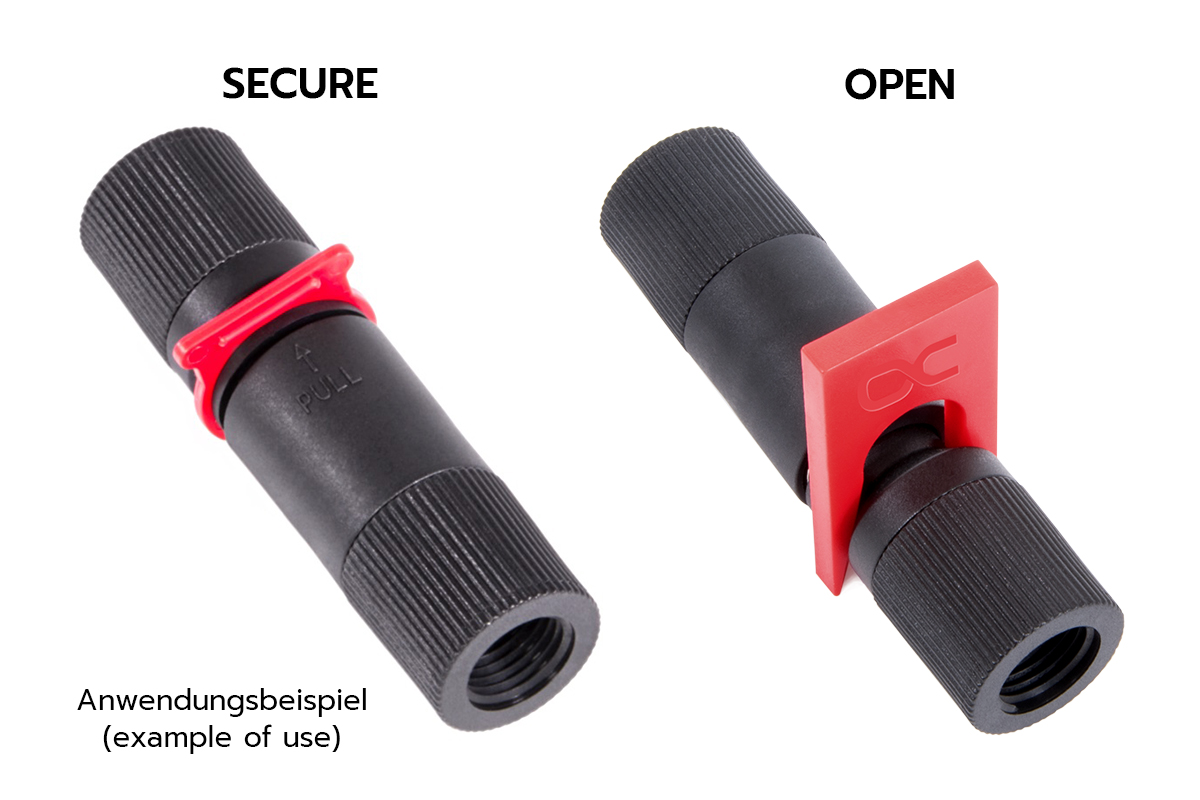

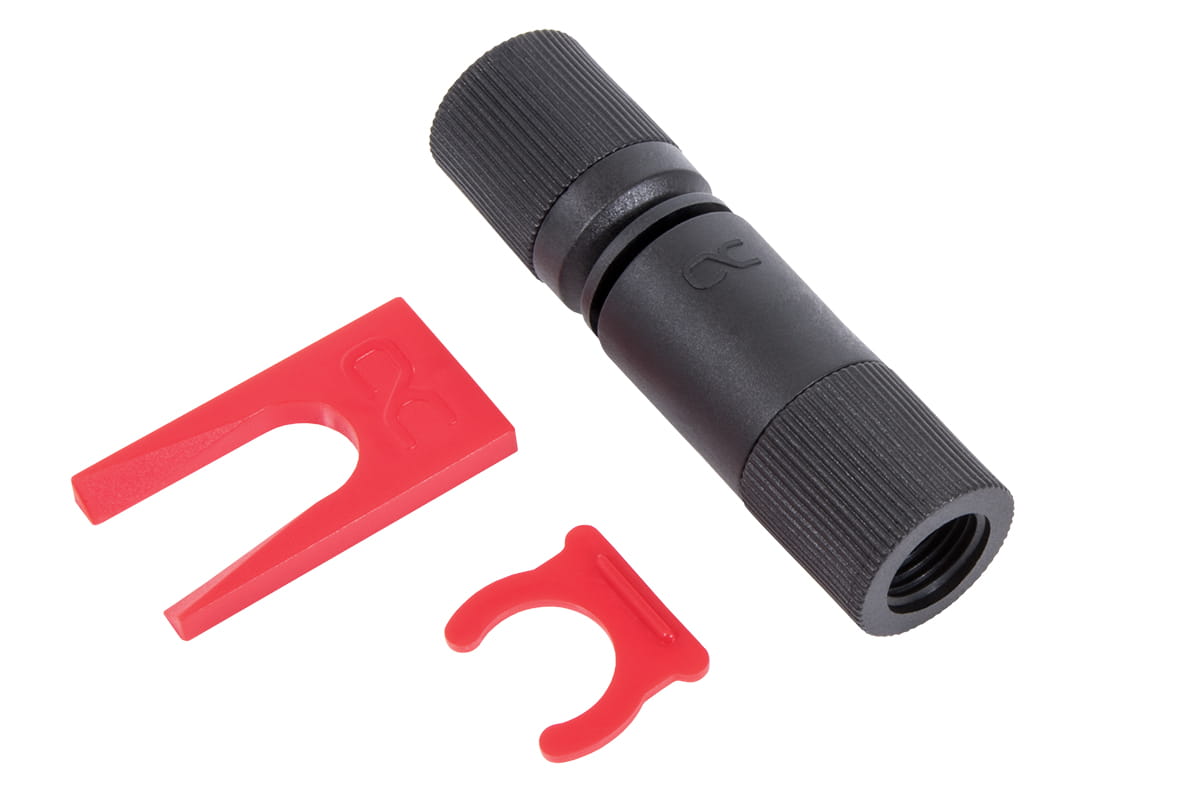

In servers and workstations with multiple processors and graphics cards, many components must be equipped with quick connectors. With conventional quick-connectors, narrow water channels will restrict the flow. With the Alphacool quick release connectors, which were developed especially for such solutions, the water flow is optimised to keep the resistance as low as possible. As with all Alphacool quick-release fasteners, this version also uses a double seal to ensure maximum tightness and therefore maximum safety. To further increase safety, a locking clip is also included to prevent accidental opening of the quick release fastener. An unlocking clip makes it easier to open the quick-release fastener if required.

Lightweight, extremely thin, high security and the non-conductive material are the basic characteristics of this quick release connector which has been developed especially for industry and servers.

Compatibility:
G1/4“ male connectors

Technical data
Abmessungen (L x D)	75 x 20 mm
Net weight	23 g
Pressure tested	8 bar
Max working temperature	60°C
Material	Nylon
Threads	2 x G1/4“ female
Thread length	8,5 mm
Type of quick release connector	Push In
Bore diameter	8 mm
Color	black

Technical details mehr

Technical details

Hersteller:	Alphacool
Spezifikation:	Form: gerade
Drehbar:	Ja - 360°
Gewindelänge:	keine Angabe
1. Seite:	11/8mm
2. Seite:	11/8mm
Farbe:	mattschwarz
Material:	Kohlefaser
