Alphacool HF 16/10 screw nozzle 45 degrees rotatable G1/4 - Deep Black

ANS Alphacool HF 16/10 Anschraubtülle 45° drehbar G1/4 - Deep Black

Article no.: 17084
EAN: 4250197170840
Weight: 0,076 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€5.49 *

Prices incl. VAT plus shipping costs

in stock

Alphacool connections break new ground in terms of shape, processing, color and variety. The... more

Close menu

Product information

Alphacool connections break new ground in terms of shape, processing, color and variety. The absolute innovation is an outstanding inner diameter that really deserves the term high flow!

The first 3 colors, Chrome, Deep Black and Shiny Copper, offer a wide variety to suit a wide range of tastes. The completely coordinated product series lets each system shine in its own way and there are no limits to individuality when combined with Alphacool hoses!

A new chromating process firmly bonds the coloring to the brass base, ensuring the longevity of the intense color and preventing the chrome layer from flaking. Blue Alphacool lettering on some of the connectors further highlights the special nature of these items.

The function of this connector is:

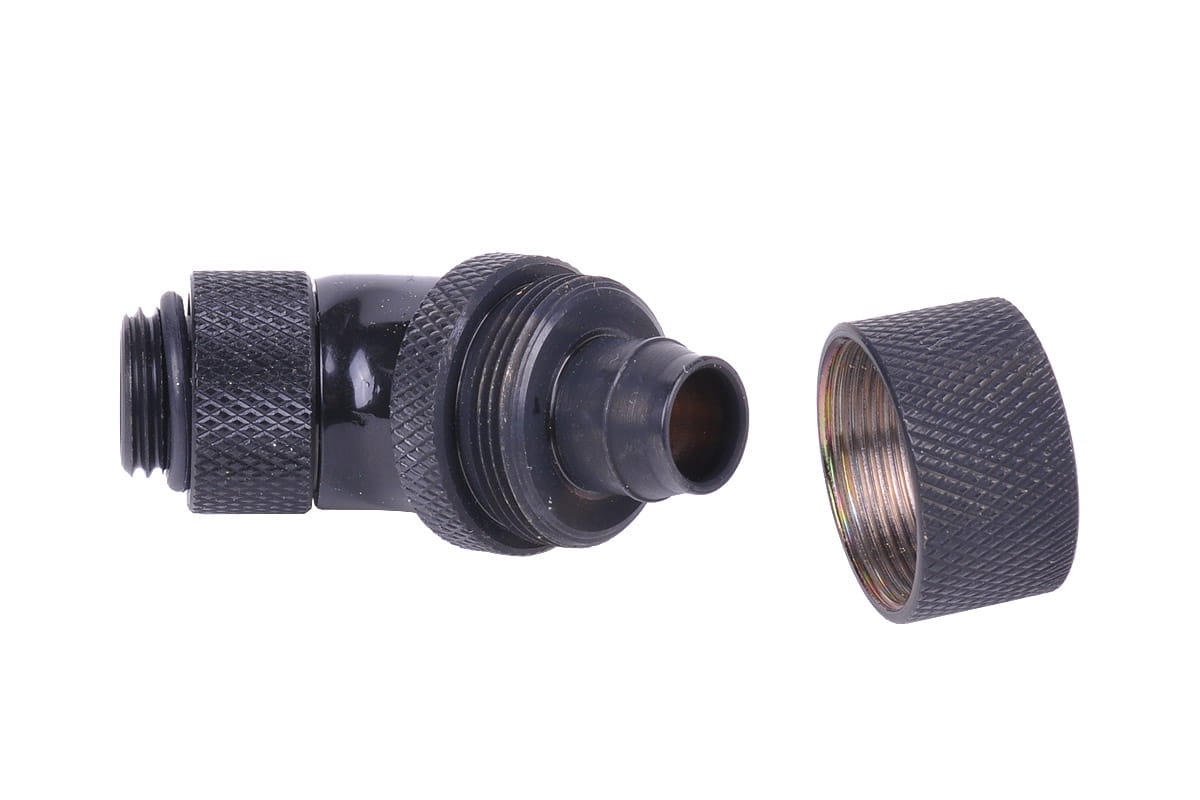

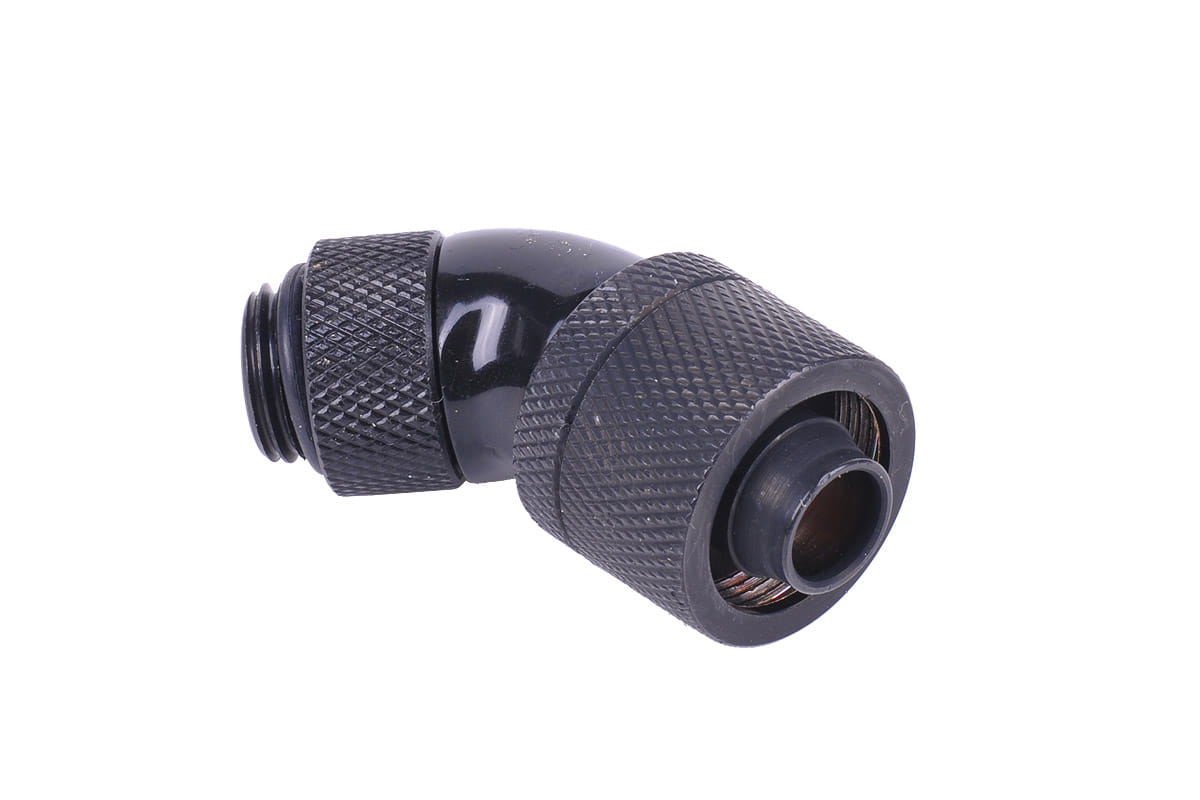

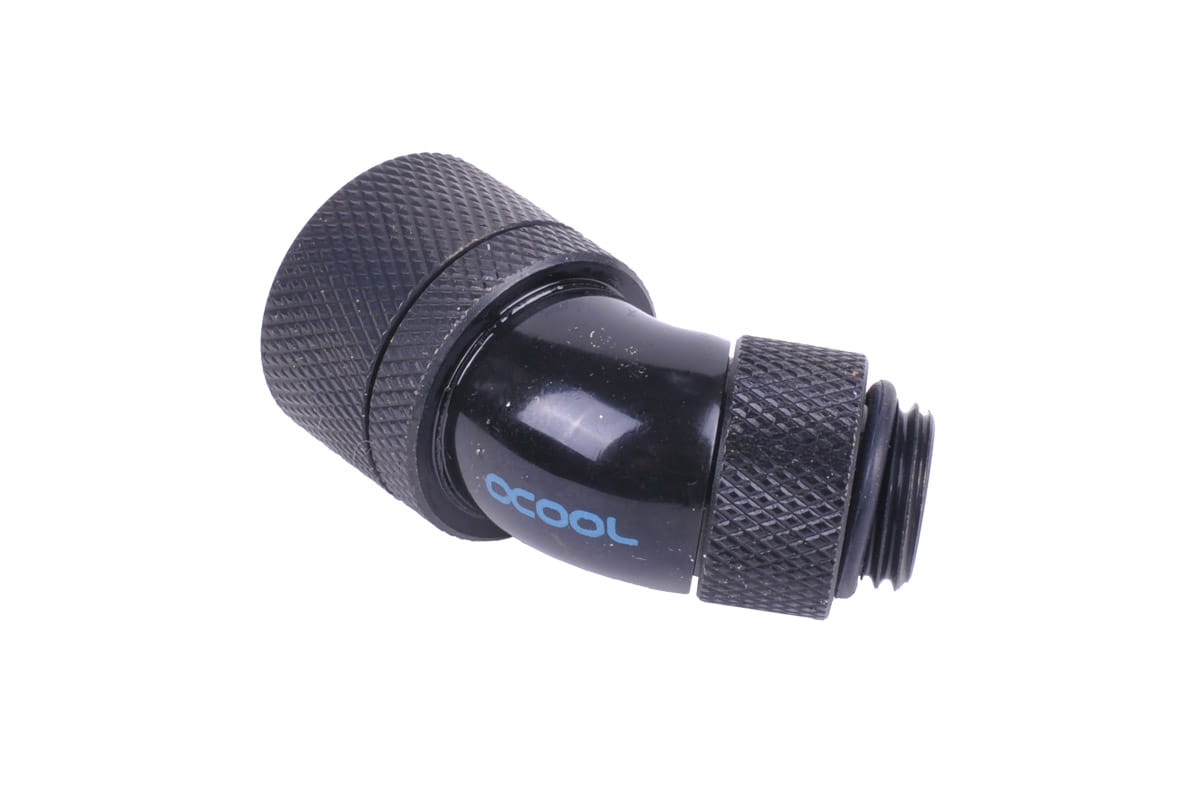

This connector is used to connect a 16/10mm hose with a 1/4 inch thread. The connector has a 45 degree bend and is rotatable, which is interesting for easy tubing in the system.

Technical data:
Material: brass, chromated
Colour: Deep Black

Dimension:
Length: 50.2mm
Width: D22.1mm
Height: 25mm

Hose size: 16/10mm

Scope of delivery:

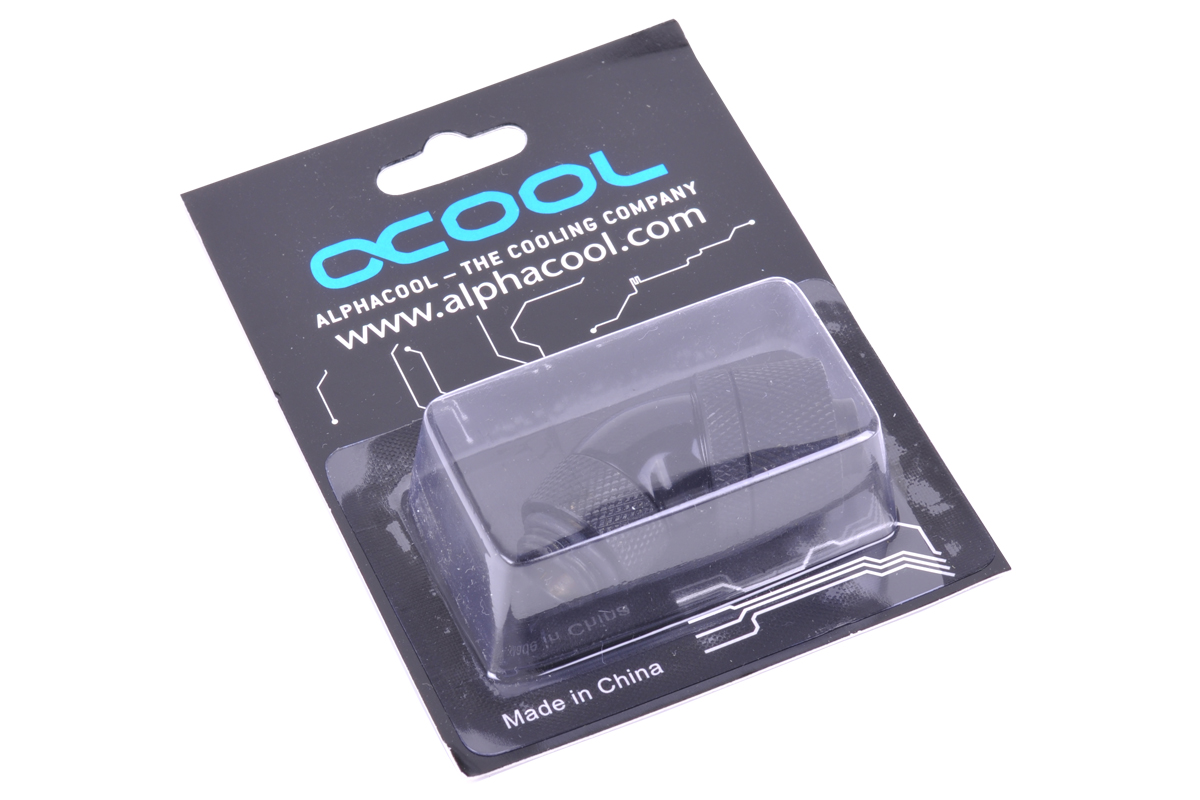

1 x Alphacool HF screw connection 45° G1/4 external thread rotatable to 16/10 - Deep Black

Reviews:
Xtremesystems.com
PT-Reviews.pt

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	16/10mm (ID 3/8" OD 5/8")
Rotatable:	Yes - 360°
Color:	Black
Thread length:	5mm
Compatibility:	Soft hoses (PVC, silicone, neoprene)
Material:	Brass
Specification:	Shape: 45° angled
1st page:	G1/4" external thread
