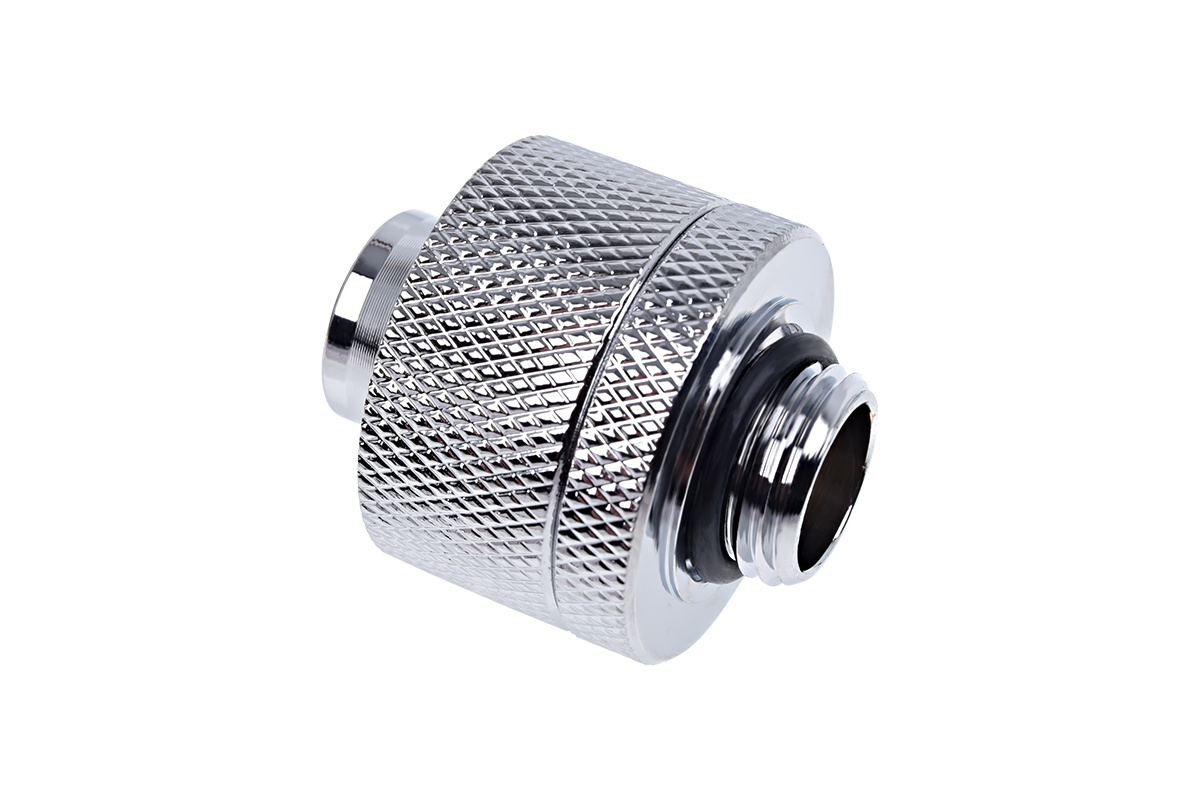

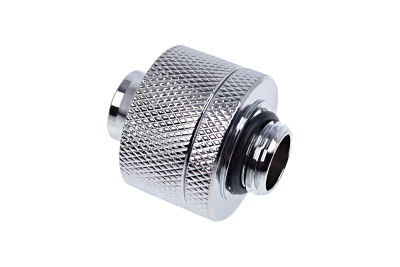

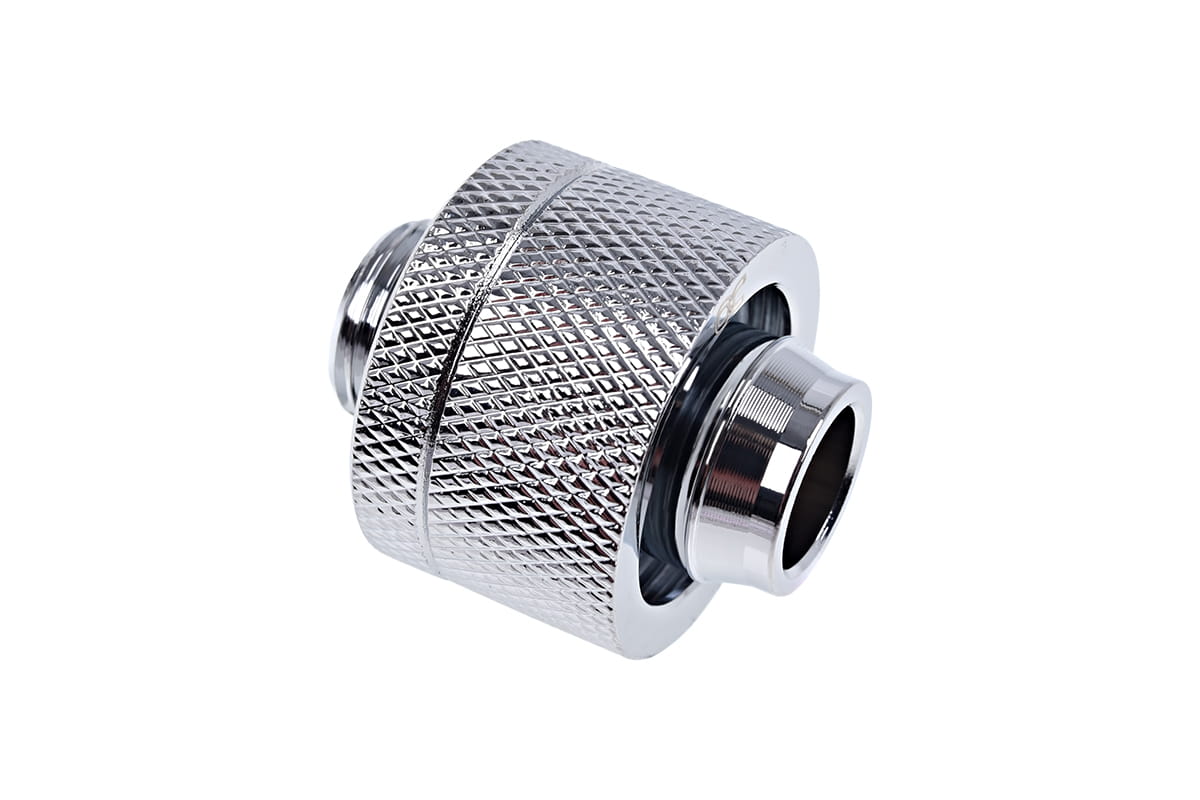

Alphacool Eiszapfen 19/13mm screw nozzle G1/4 - Chrome

ANS Alphacool Eiszapfen 19/13mm Anschraubtülle G1/4 - Chrome

Article no.: 17239
EAN: 4250197172394
Weight: 0,1 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€5.99 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's Eiszapfen connection series is the high-end version of the proven connections! All... more

Close menu

Product information

Alphacool's Eiszapfen connection series is the high-end version of the proven connections!

All the requirements that a connection has to meet are met here: high flow, shape, workmanship and color. Uncompromising development and production have made the icicles what they are. Two versions are available in brilliant chrome and matte, deep black, which fit perfectly into any system.

Using special processes, the coatings are firmly bonded to the substrate, ensuring the longevity of the intense colors and preventing the coating from flaking. Each connection now also has the Alphacool logo, which makes it unmistakable in addition to its special shape!

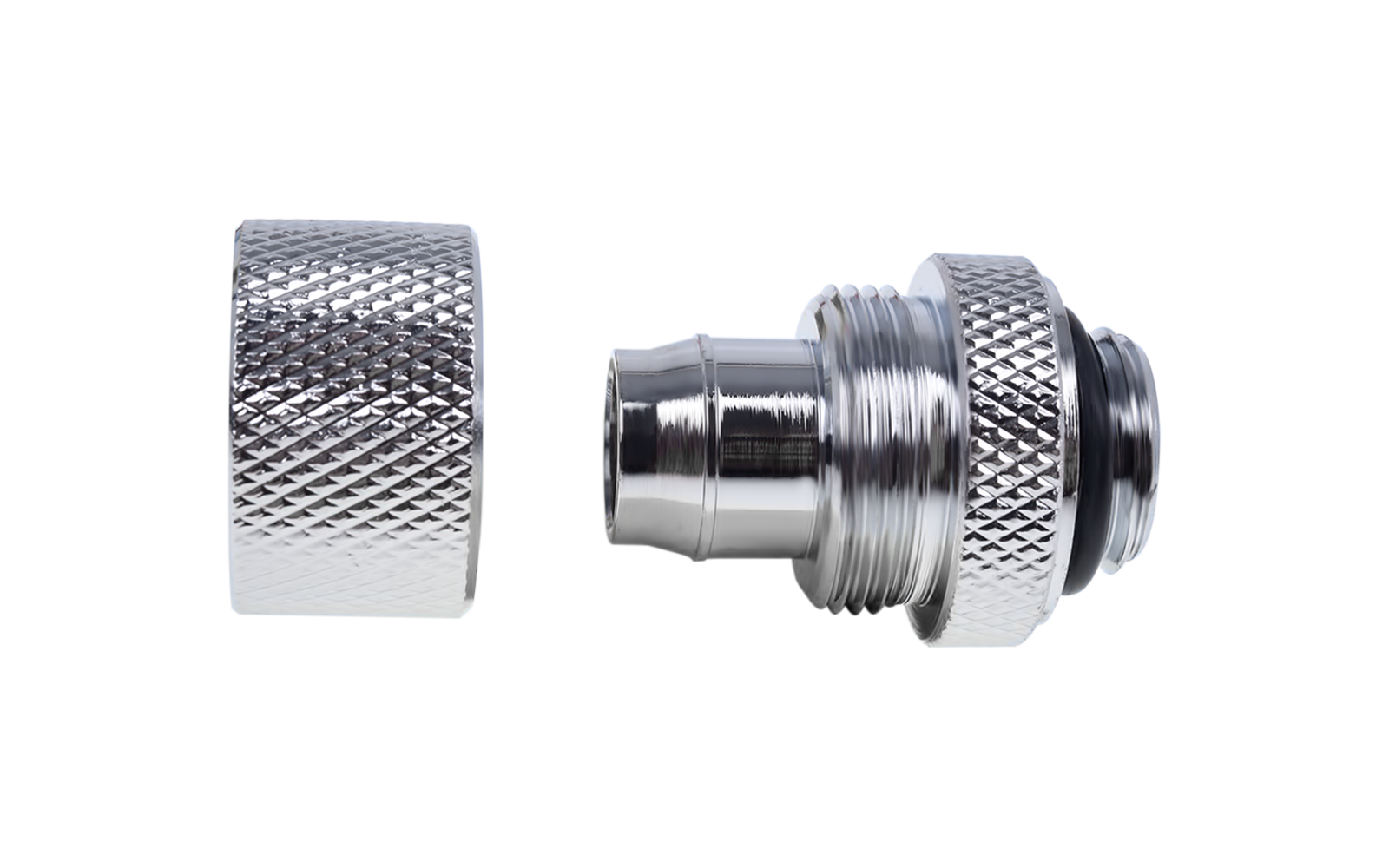

The bevelled edges of the union nut press the O-ring very tightly onto the HardTube, making it sit even more securely than in its predecessors. This ensures greater safety during transport.

Design: Straight screw-on nozzle 19/13mm
This connector has a 1/4" thread on one side and is therefore compatible with 95% of all components
compatible. The other side is suitable for a 19/13mm hose.

Technical details:

Material: Brass
Color: Chrome

Dimension:

Diameter: 26mm
Height: 29.5mm

Scope of delivery:

1x Alphacool Eiszapfen 19/13mm screw-on nozzle G1/4 - Chrome

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	19/13mm (ID 1/2" OD 3/4")
Dimensions (L x W x H):	29,5 x 26 x 26mm
Rotatable:	No
Color:	Chrome
Thread length:	5mm
Compatibility:	Soft hoses (PVC, silicone, neoprene)
Material:	Brass
Specification:	Shape: straight
1st page:	G1/4" external thread
