Alphacool NexXxoS ST30 Full Copper 240mm Radiator V.2 - White Special Edition HPT

  • 18648
  • 4250197186483
  • 0,78 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€69.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack
1x
Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack
€31.98*
WAC Alphacool Eisbaer LT (Solo) - Black
1x
Alphacool Eisbaer LT (Solo) - Black
€69.98*
Terms and Conditions Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm
1x
and Conditions Alphacool Eisbecher Aurora D5 Acetal/Glass - 150mm
€95.98*
L12 Alphacool Rise Aurora 120 mm fan (120x120x25mm) PHT EOL
1x
Alphacool Rise Aurora 120 mm fan (120x120x25mm)
€11.98*
S13 Alphacool EPDM Tube 13/10 - Black 3m (9.84ft) retail box
1x
Alphacool EPDM Tube 13/10 - Black 3m (9.84ft) retail box
€17.98*
WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo with Backplate PHT EOL
1x
Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 Turbo with Backplate
€62.97*
Save money with the following bundle
RAD Alphacool NexXxoS ST30 Full Copper 240mm Radiator V.2 - White Special Edition HPT EOL 1x
L12 Alphacool Rise Aurora 120mm Fan White (120x120x25mm) PHT EOL 2x
Instead of €101.94 * (15% saved) Price for all: €86.64 *
The NexXxoS V.2 radiator is the further development of the already established NexXxoS V.1... more
Product information

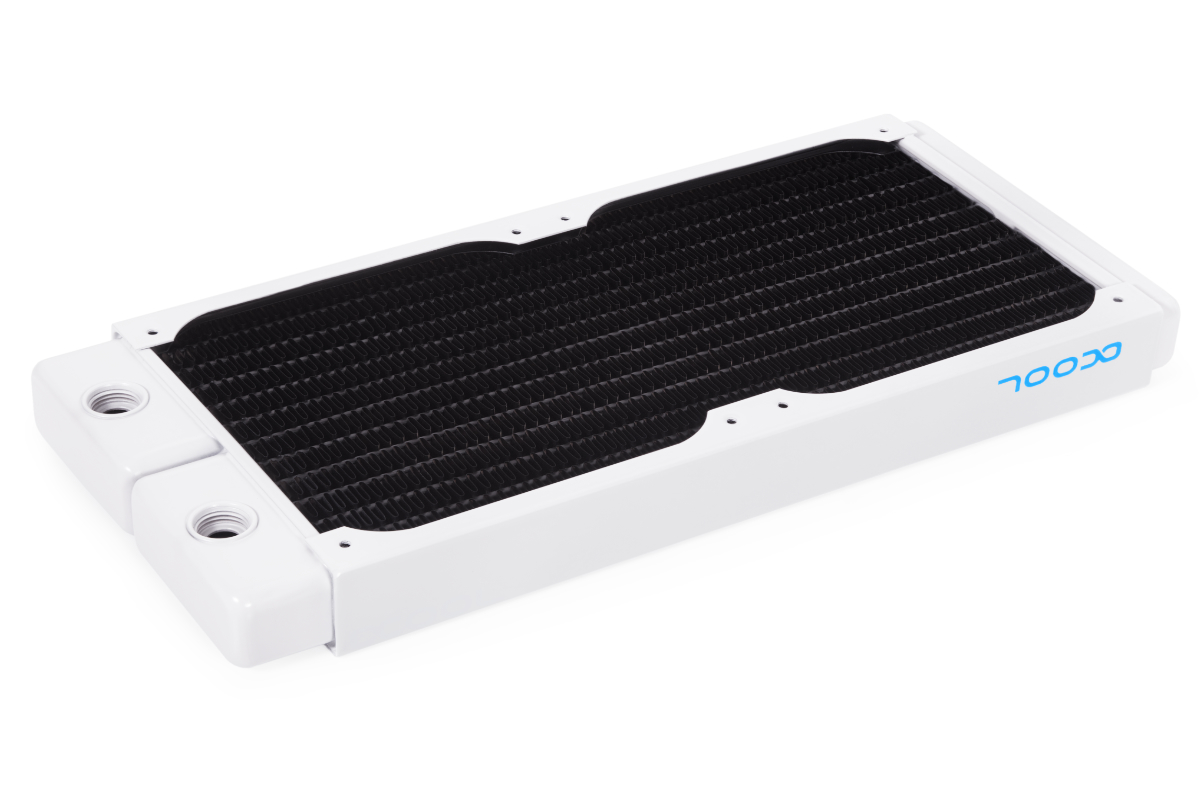

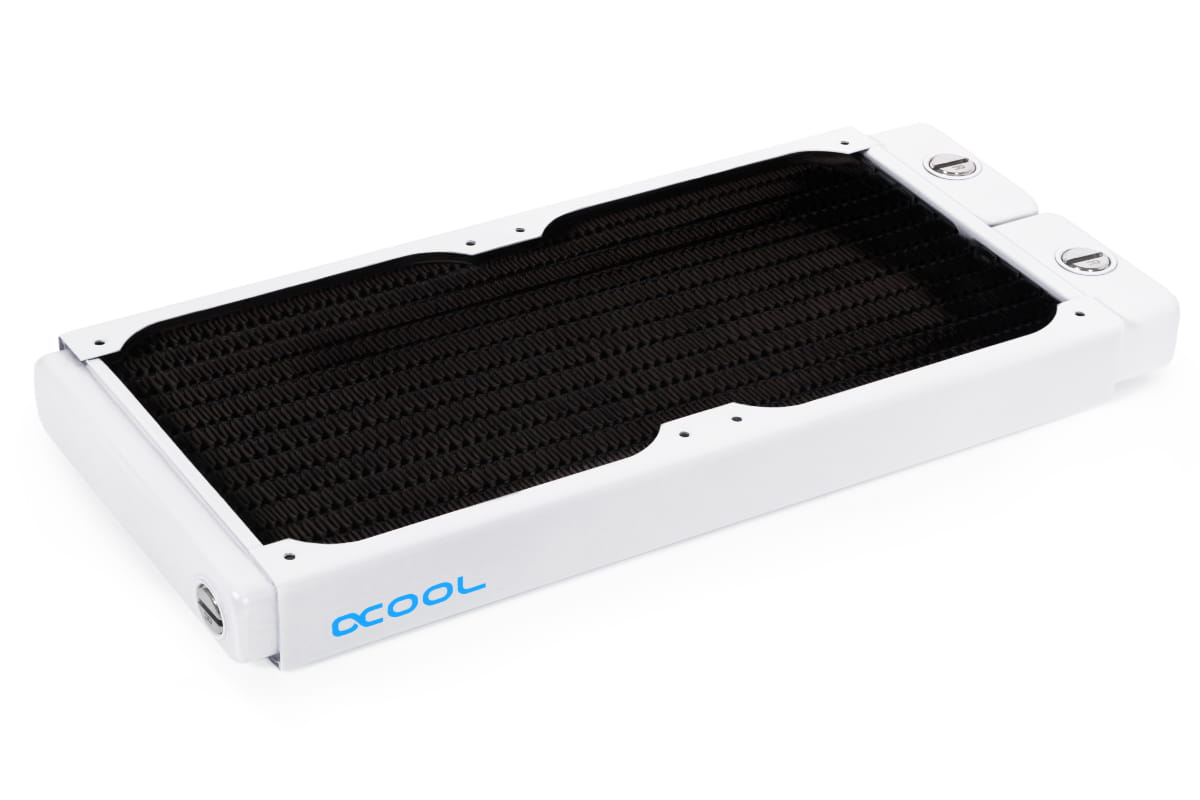

The NexXxoS V.2 radiator is the further development of the already established NexXxoS V.1 series and rightly takes its place among Alphacool's high-end full copper radiators. The fresh design in modern, noble white and the numerous technical details make the NexXxoS V.2 radiator the perfect partner for your own water cooling system.

Uncompromising in the choice of materials
Alphacool is the only manufacturer worldwide to use exclusively copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are all made of pure copper. The only exceptions are the threaded inserts (made of brass) and the outer casing of the radiator (made of sheet steel).

Sufficient cooling capacity

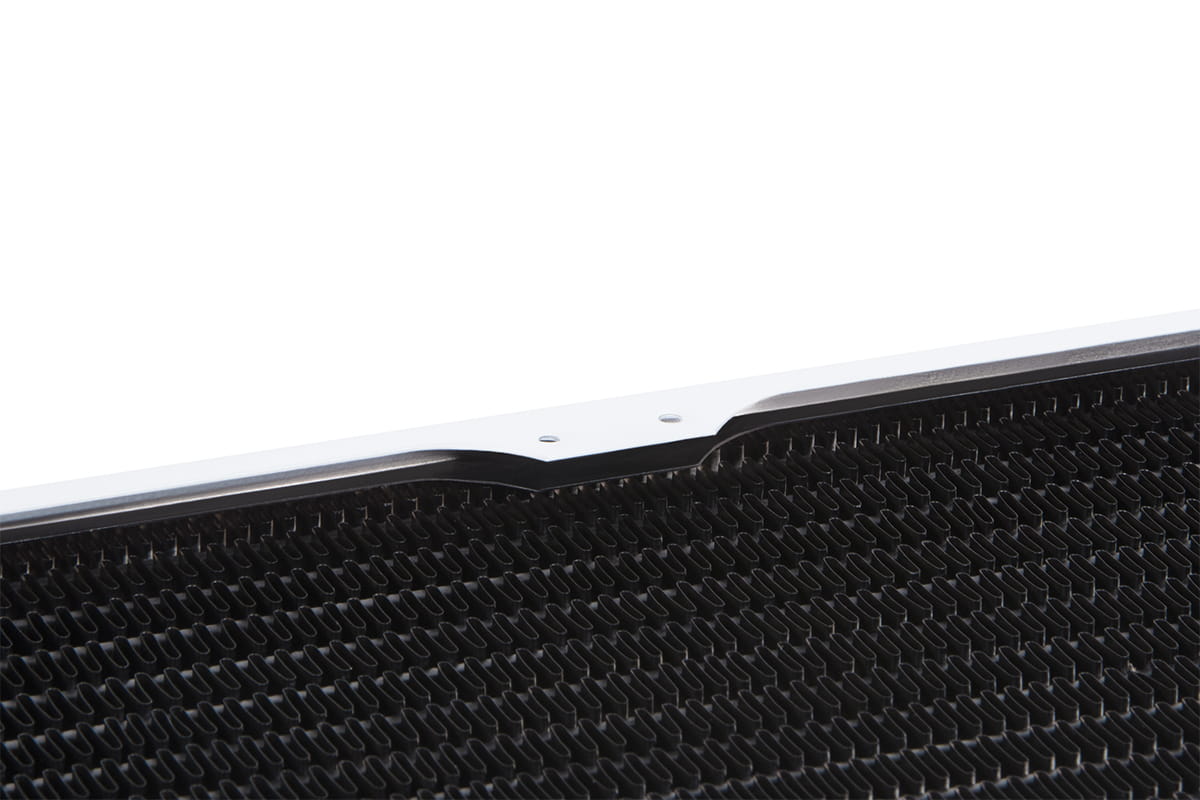

To maximise the performance of the radiator, Alphacool reaches deep into its bag of tricks and uses pure copper for the cooling fins, cooling channels and pre-chambers due to the high thermal conductivity of 400 W/mK (in comparison: aluminium 236 W/mK). The special fin density of the radiator with a fin spacing of 15 FPI give optimal airflow and performance. All cooling fins are additionally serrated. These act as tiny wings that direct the airflow in the desired direction and ensure controlled air turbulence. This increases the cooling capacity and minimises possible flow noise.

Patented screw plugs

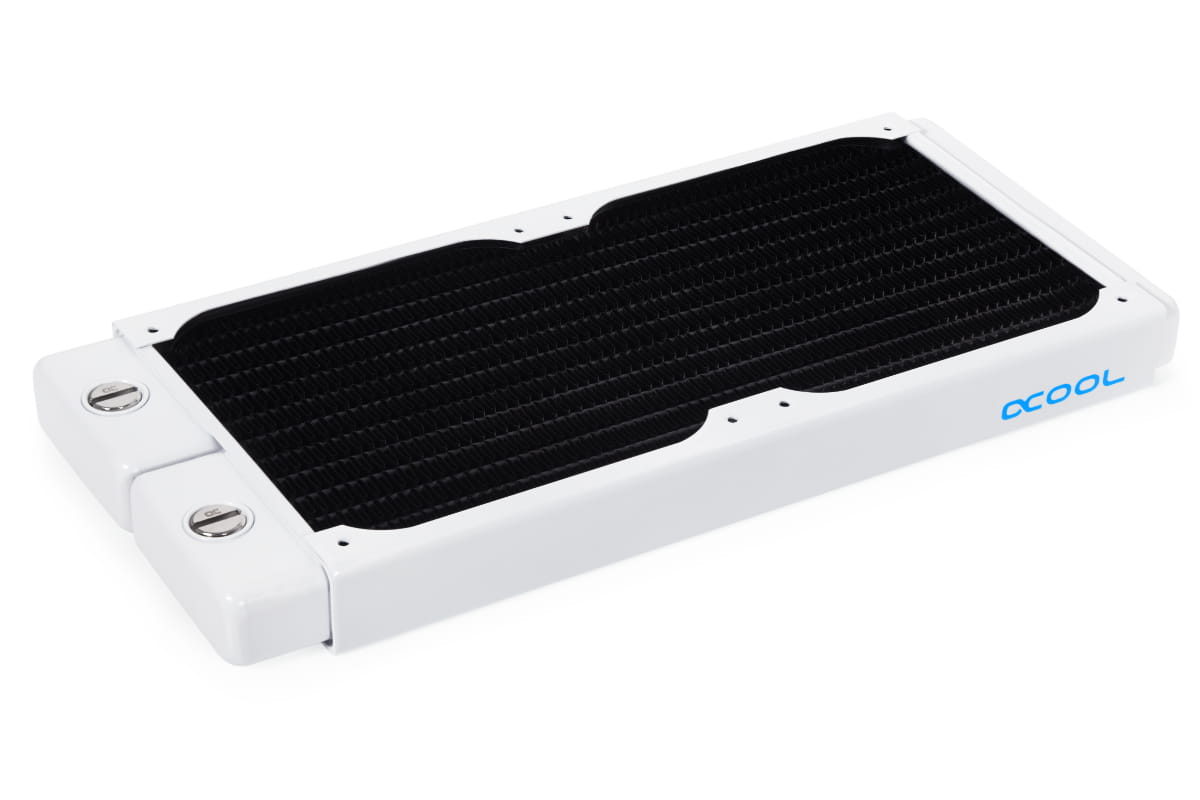

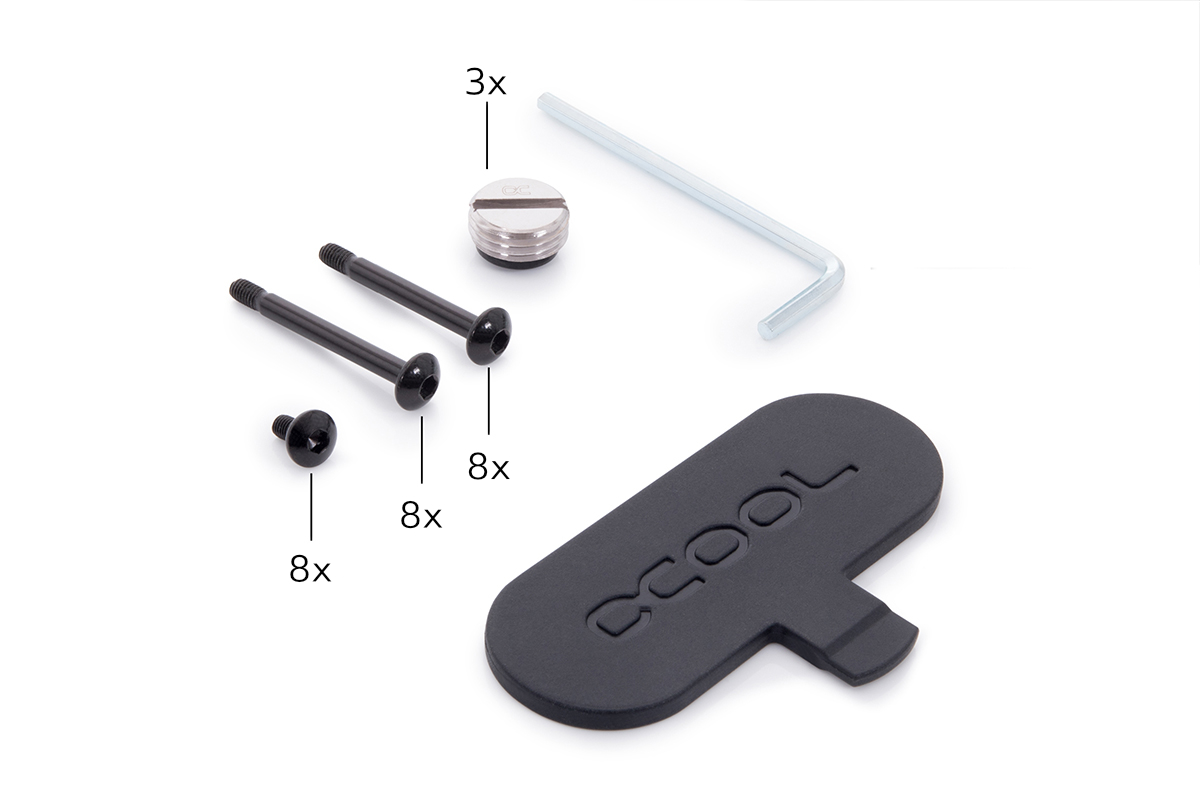

All NexXxoS V.2 radiators use Alphacool's patented stop fittings. Anyone who has mounted a radiator on the front or in the roof of a case is familiar with the fact that protruding stop fittings can stop the radiator from sitting flush. With the patented stop fittings, Alphacool offers an excellent solution. The stop fittings are completely recessed in the radiator and sit flush with its surface. This means that nothing stands in the way of a clean installation. Of course, the radiators also look much more elegant with the flat stop fittings.

Plenty of connection options

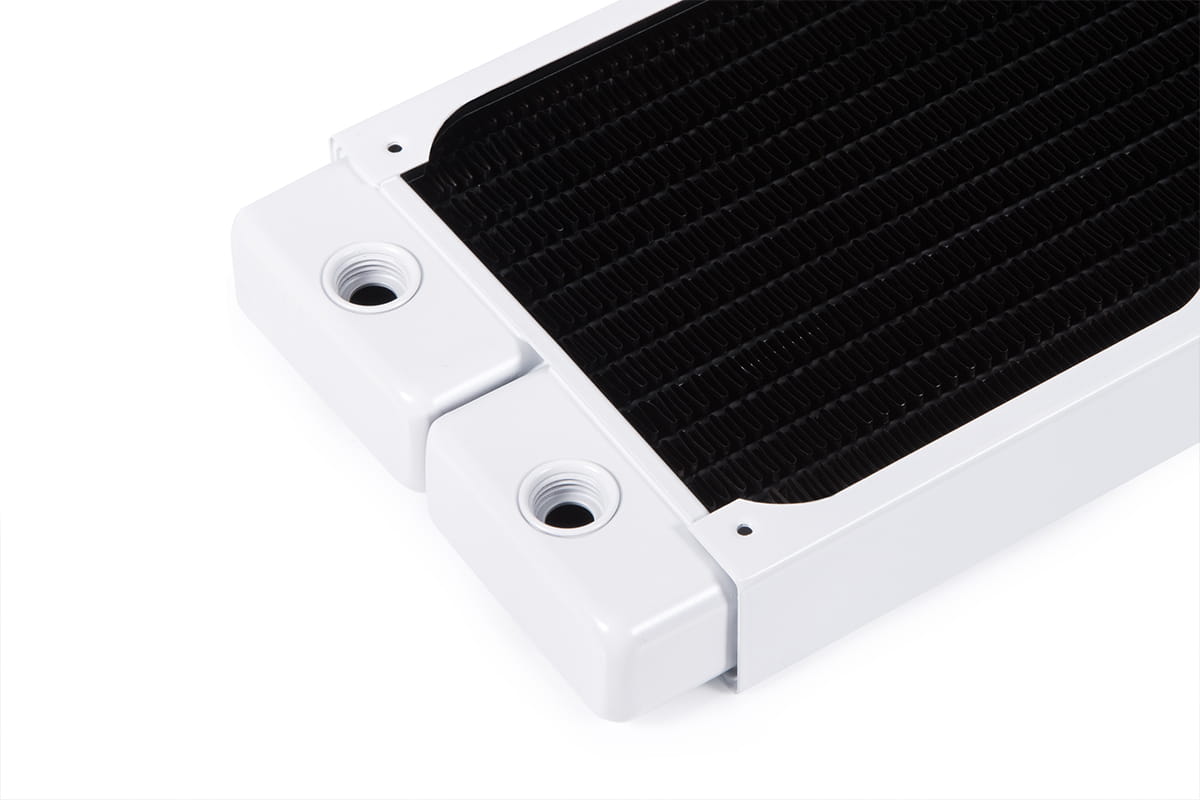

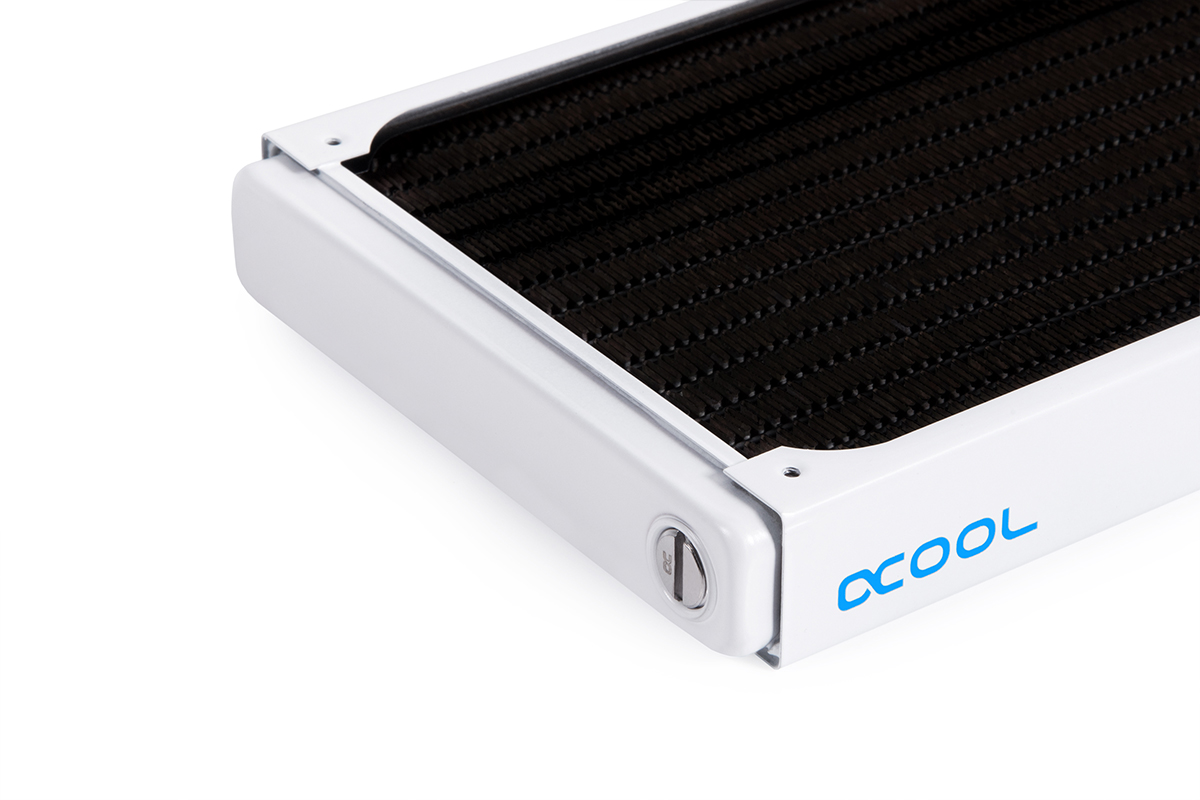

All versions of the NexXxoS V.2 radiators have two options for IN and OUT on each side. On the opposite end is a fill or vent port, which can also be used to drain the water circuit.

Safety first
The NexXxoS V.2 radiator has a special protective plate that prevents fan or mounting screws from being screwed in too deeply. These plates are beneath the screw holes that are used to mount the fans to the radiator, or for mounting the radiator to the case. This protects the cooling fins and water channels underneath from damage.



Technical data
L x W x H271.5 x 124 x 30 mm (+/- 3% tolerance in the range of the prechamber)
Quantity of cooling channels12
Material cooling fins, channels & prechambercopper
Material outer housingsteel
Fins per Inch15
Threads5x G1/4“
Thread size fan mountingM3
Fan size120 mm
Fan slots2 one-sided / 4 double-sided
Max working temperature60 °C
Weight581 g
ColourWeiss
Pressure tested0,8 bar

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 1,5 bar
Dicke: 29 - 39mm
Fins per inch: 15
Anschluss: 5x G1/4"
Anzahl Lüfter: 2
Lüftergröße: 120mm
Farbe: weiß
Abmessungen (L x B x H): 271,5 x 124 x 30mm
