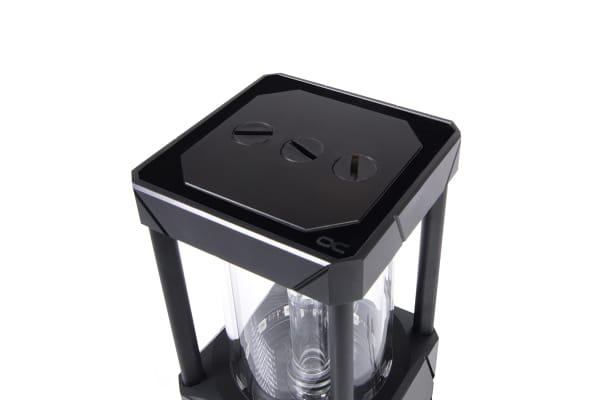

AGB Alphacool Eisbecher Aurora D5 Acetal/Glas - 150mm

Article no.: Terms
EAN: 4250197153829
Weight: 0,892 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€95.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool pumpin gum ball - black

€9.98*

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Leak Testing Tool incl. Pump

€34.98*

Alphacool VPP Apex Pump

€65.99*

spray bottle 500ml PE-LD

€4.19*

Alphacool VPP655 - Single Edition

€69.98*

Alphacool VPP655 - PWM - Single Edition

€74.98*

The Alphacool Eisbecher Aurora expansion tank uses a real glass tube instead of the usual... more

Close menu

Product information

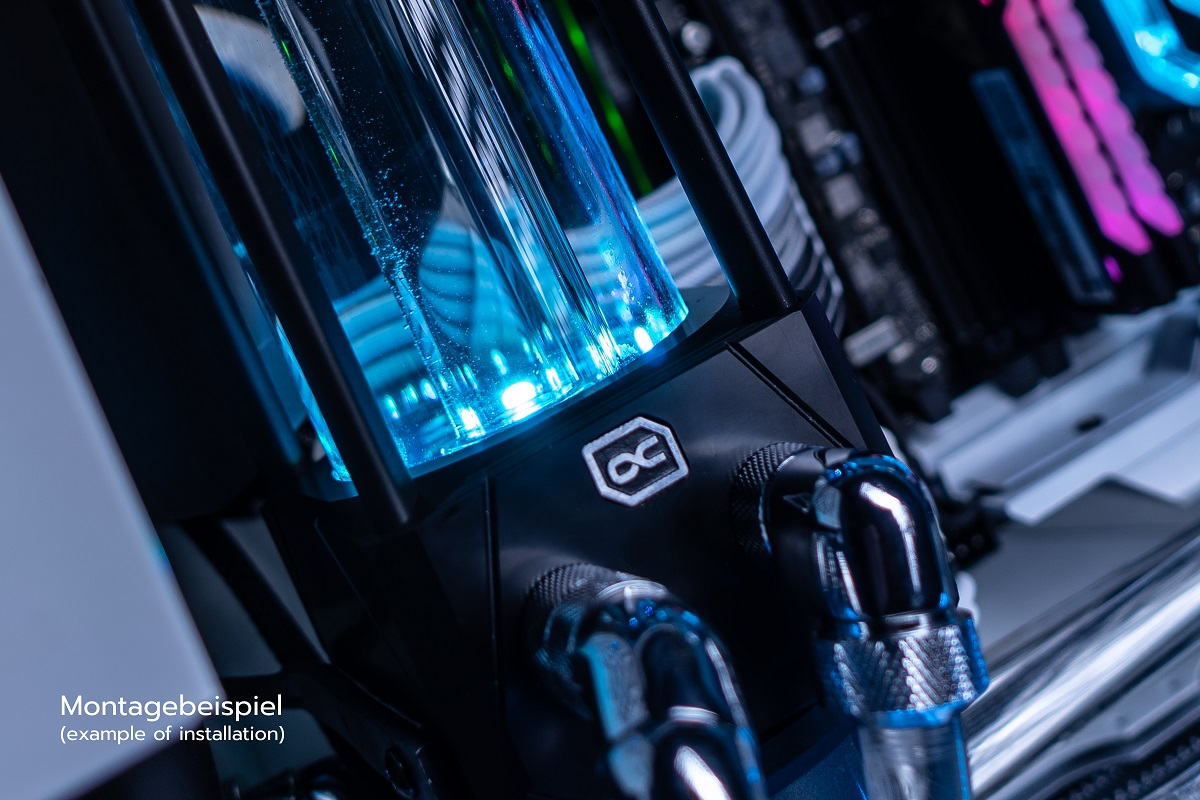

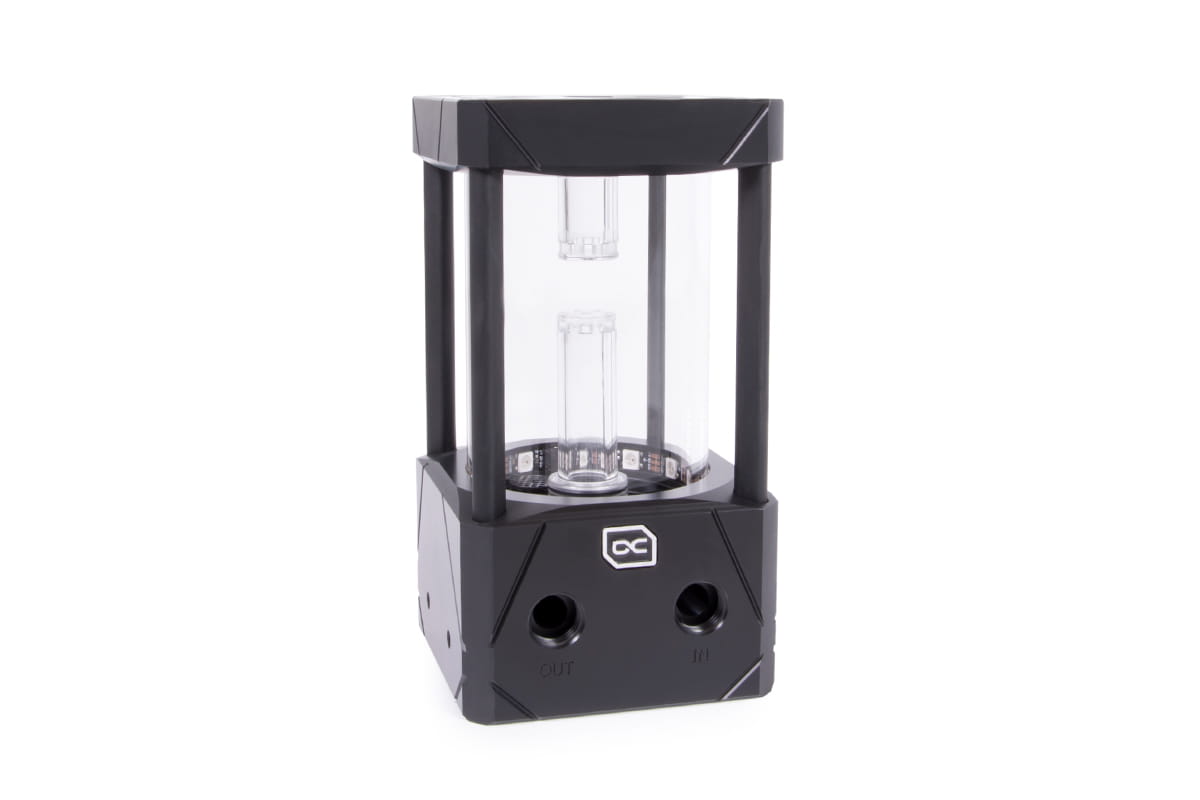

The Alphacool Eisbecher Aurora expansion tank uses a real glass tube instead of the usual acrylic tubes. The embedded 5V digital RGB LED ring and the new design ensure a unique and elegant look. Of course, the Lighttower water effect is also on board. It can be mounted using feet or directly on a 120 or 140mm fan slot or directly on a radiator.

Extensive assembly options

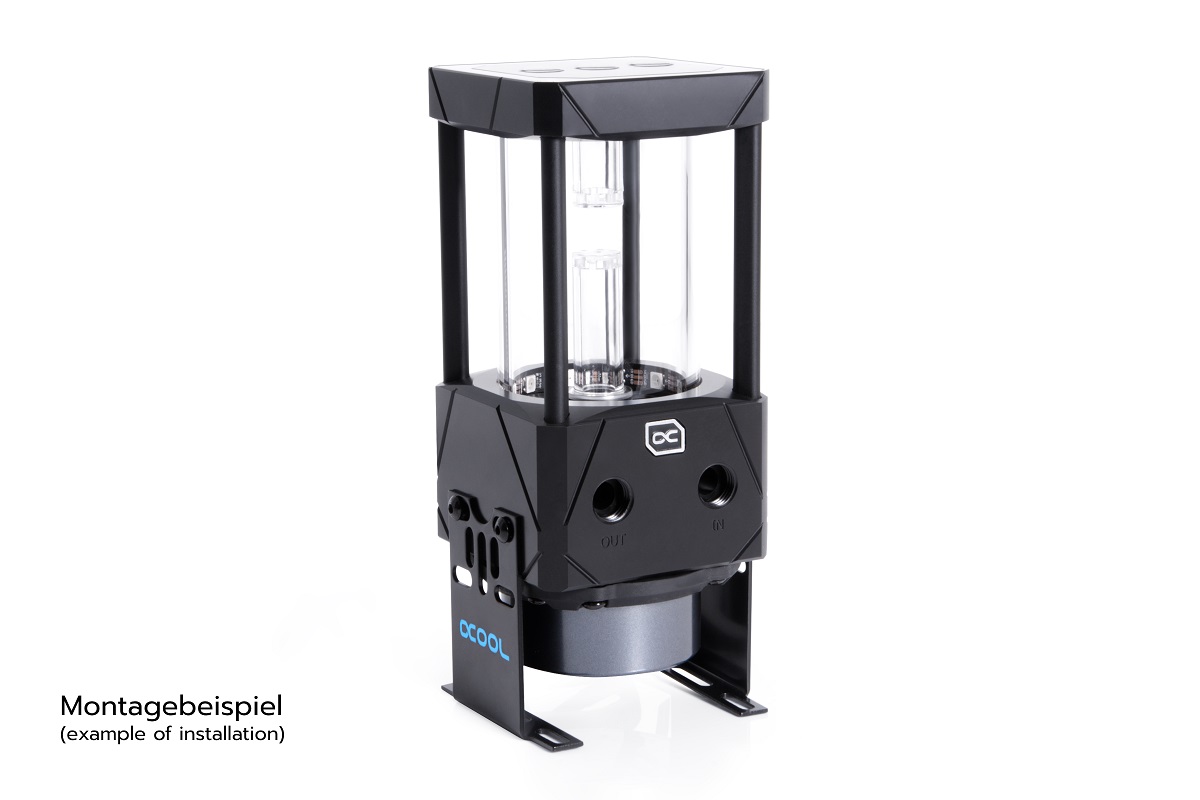

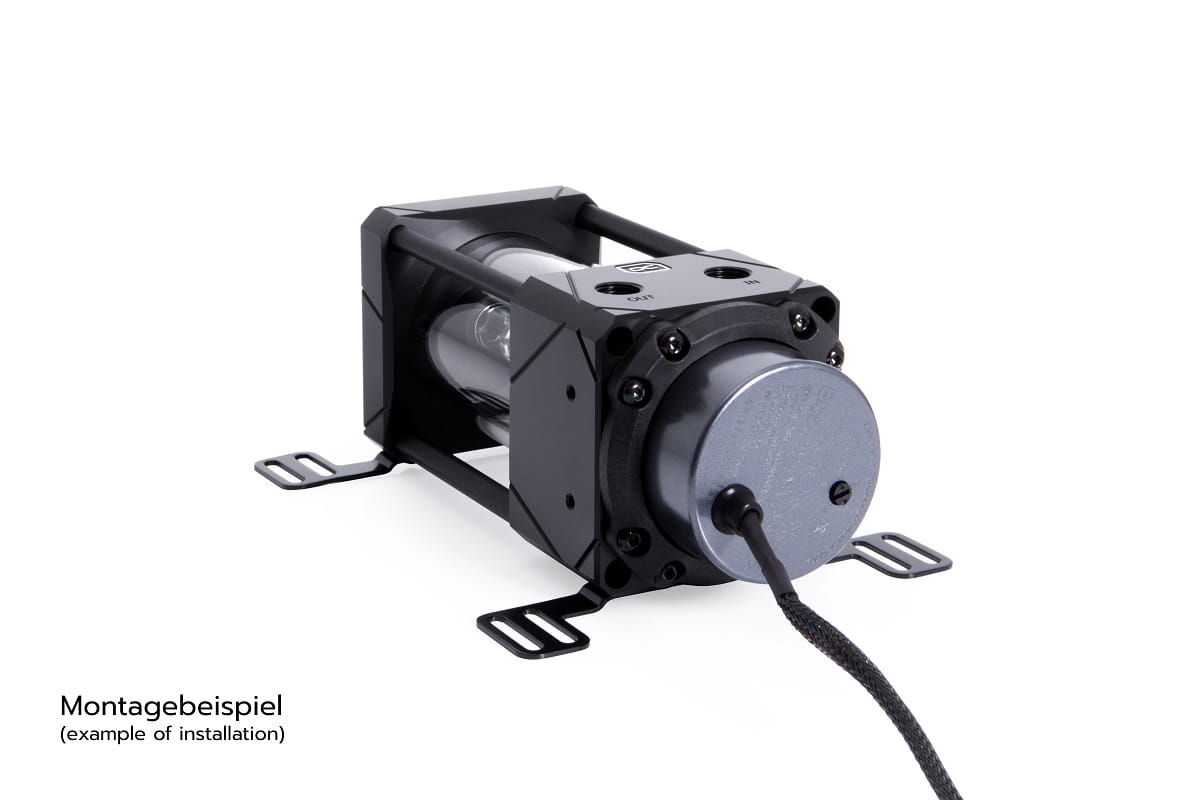

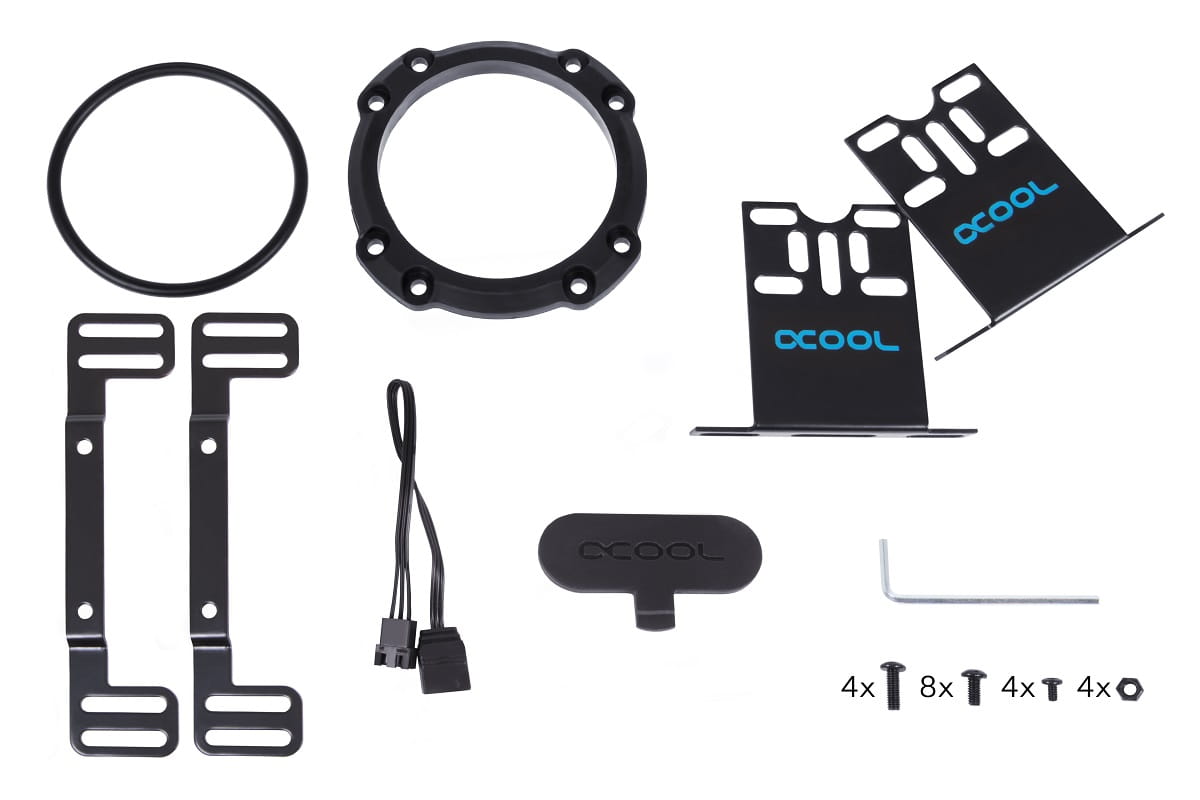

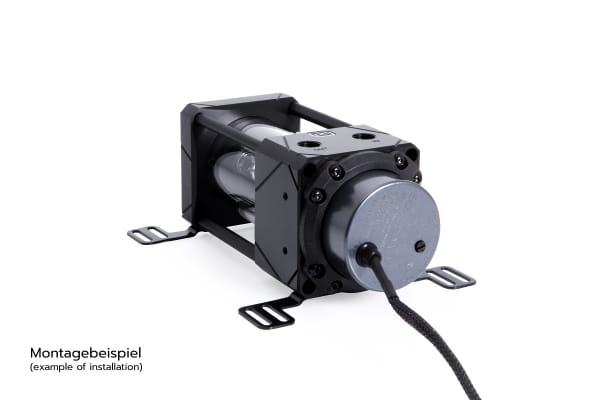

There are two basic mounting options that can be used in a variety of ways. The Eisbecher Aurora glass expansion tank comes with feet for mounting on the bottom of the case, for example. The scope of delivery also includes mounting frames with which the Eisbecher Aurora can be mounted on any 120 or 140 mm fan slot. This of course also makes it possible to mount it directly on the radiator or on the radiator's fans.

Digital RGB lighting

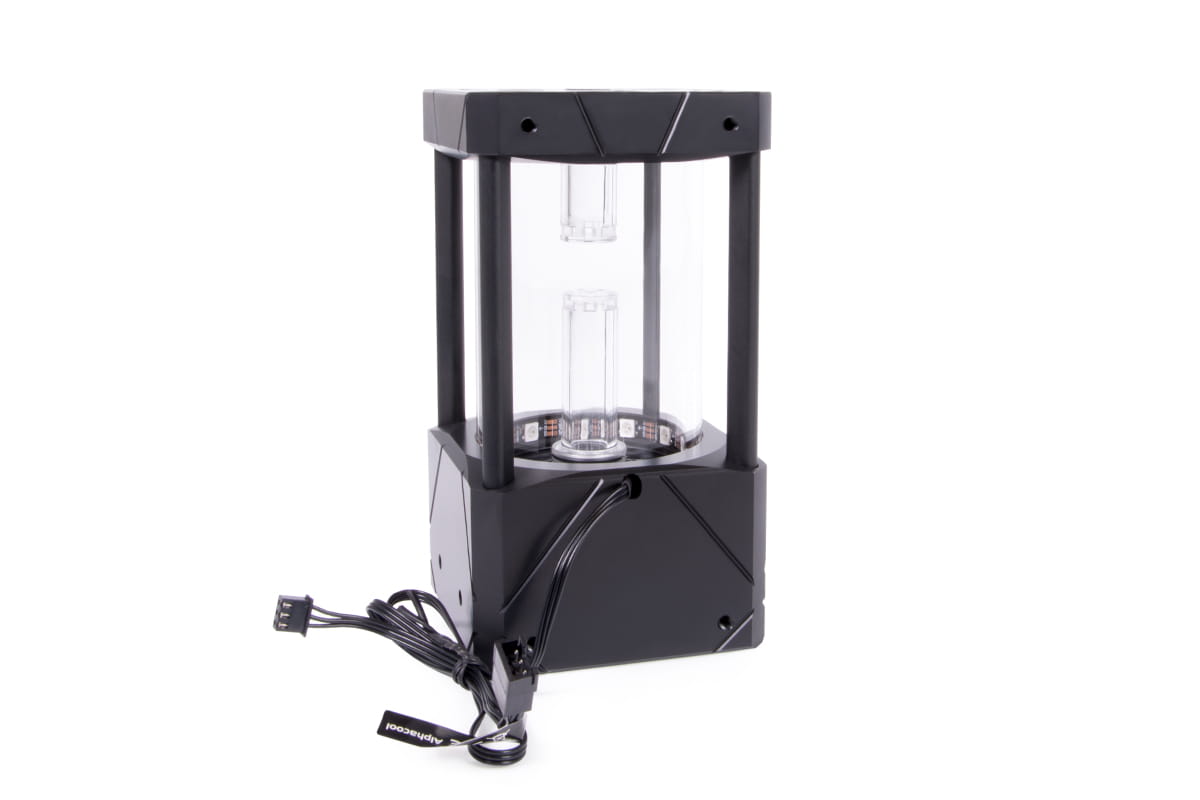

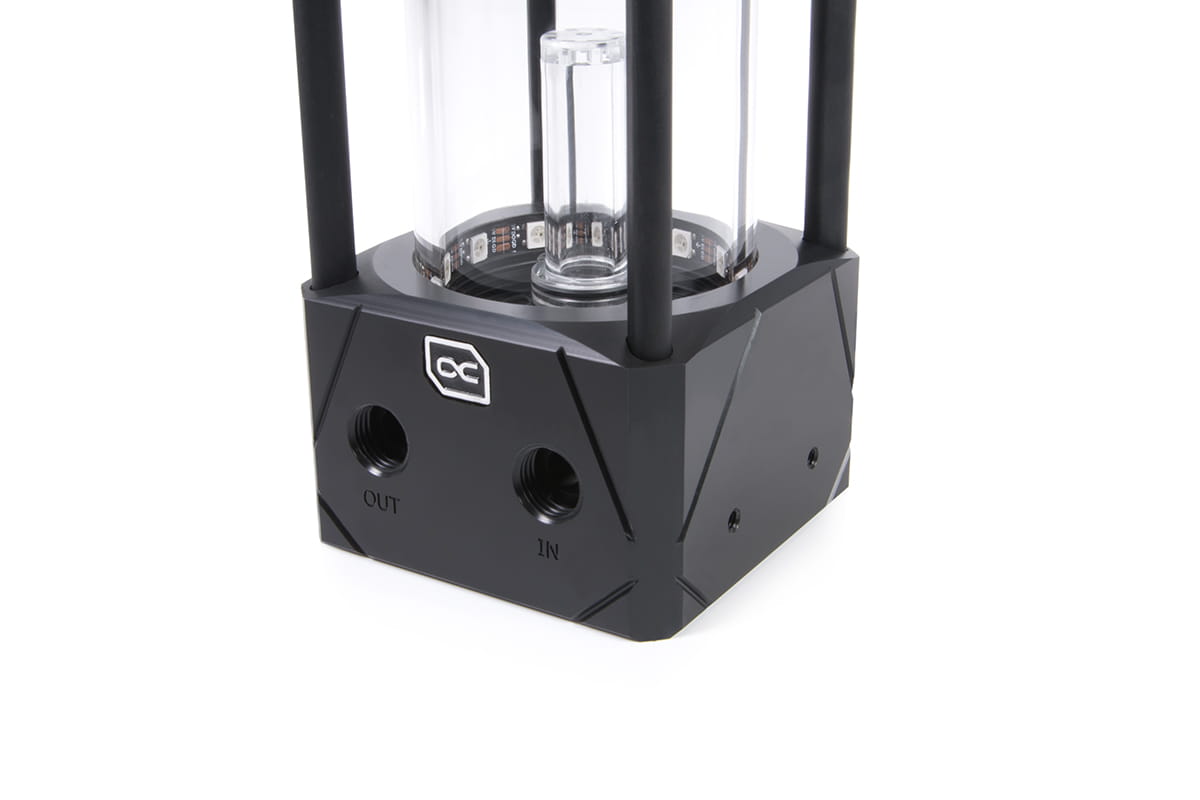

A total of 12 aRGB LEDs illuminate the glass tube of the expansion tank. They are arranged in a ring at the lower end of the glass tube and cannot be seen from the outside. The illumination is particularly strong at the bottom and decreases gradually towards the top. In combination with the Lighttower water effect, a very special type of illumination is achieved. In particular through the reflections in the real glass. The digital RGB LEDs are connected via a 3-pin JST connector, as with all Alphacool products. Other Alphacool digital RGB products can be connected directly via the Y adapter.

Lighttower water effect

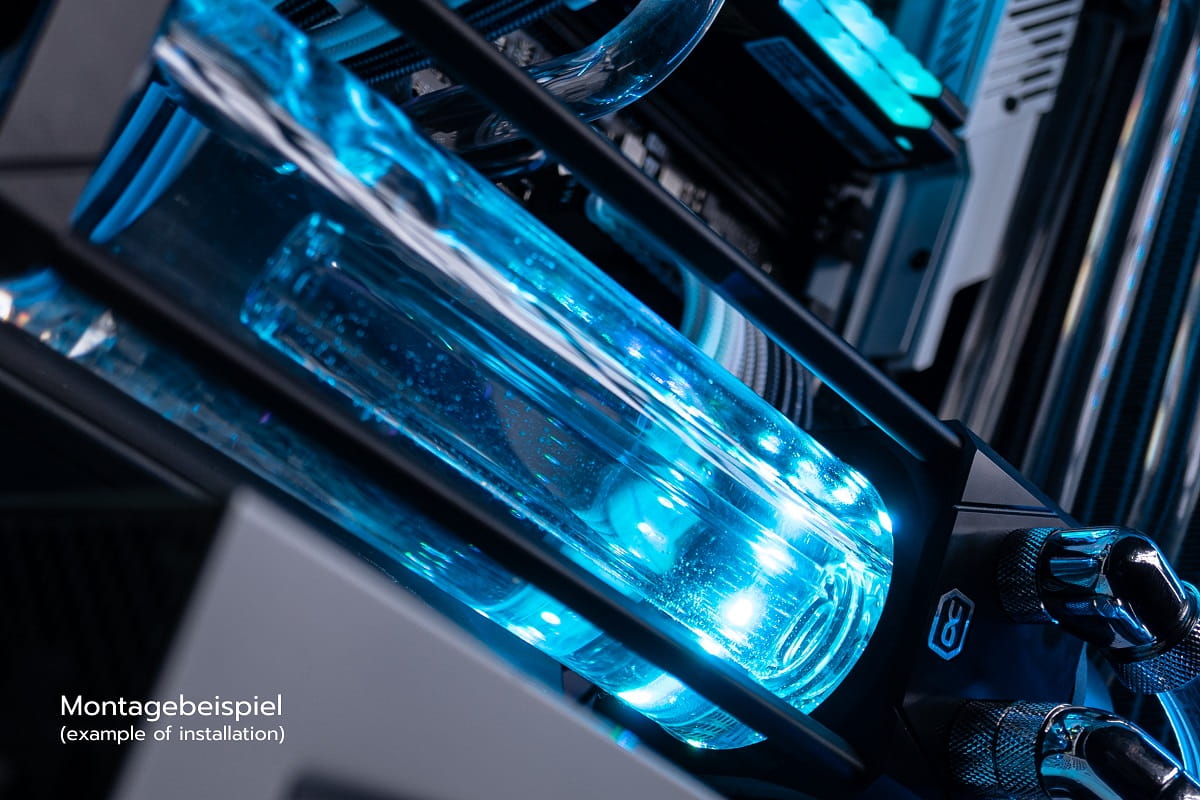

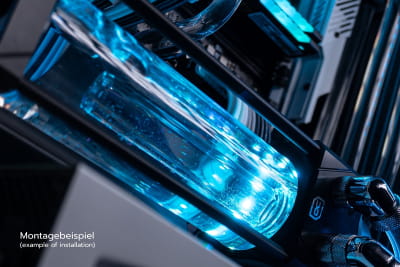

A special water effect is created in the Aurora ice cream bowl via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. There is one riser tube with this effect at the lower inlet and one at the upper inlet.

Pump?

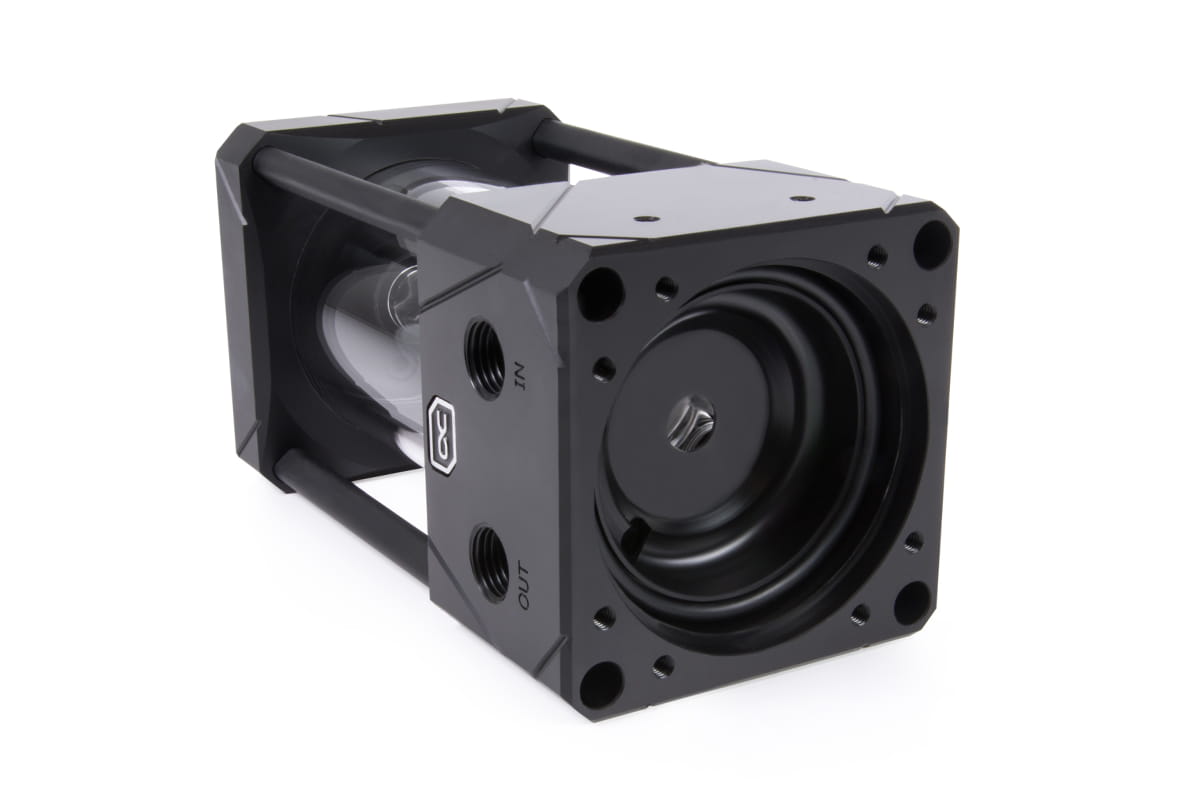

This Aurora glass ice cream bowl is compatible with all original D5 Xylem/Lowara pumps and all Alphacool VPP pumps.

Compatibility:
- Alphacool VPP / Laing D5 pumps

Technical data ice cream bowl Aurora
Dimensions (L x W x H)	77x77x142mm
Height including stand	169mm / 188mm
Weight	555g
Type of lighting	5V digital addressable LEDs (0.3A)
Number of LEDs	12
Housing material	Acetal
Material tube	Glass
Material bridges	aluminum
Connections	1x G1/4“ internal thread IN / 4x G1/4“ internal thread OUT
Cable length	40cm
Connection Digital aRGB	3-pin JST + 3-pin 5V
Maximum working temperature	60°C

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Behältertyp:	Röhrenbehälter 60mm
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
LED Bohrungen:	nicht vorhanden
Pumpenkompatibilität:	für 1x D5
Anzahl Anschlüsse:	5
Abmessungen:	77 x 77 x 142mm
Farbe:	transparent
